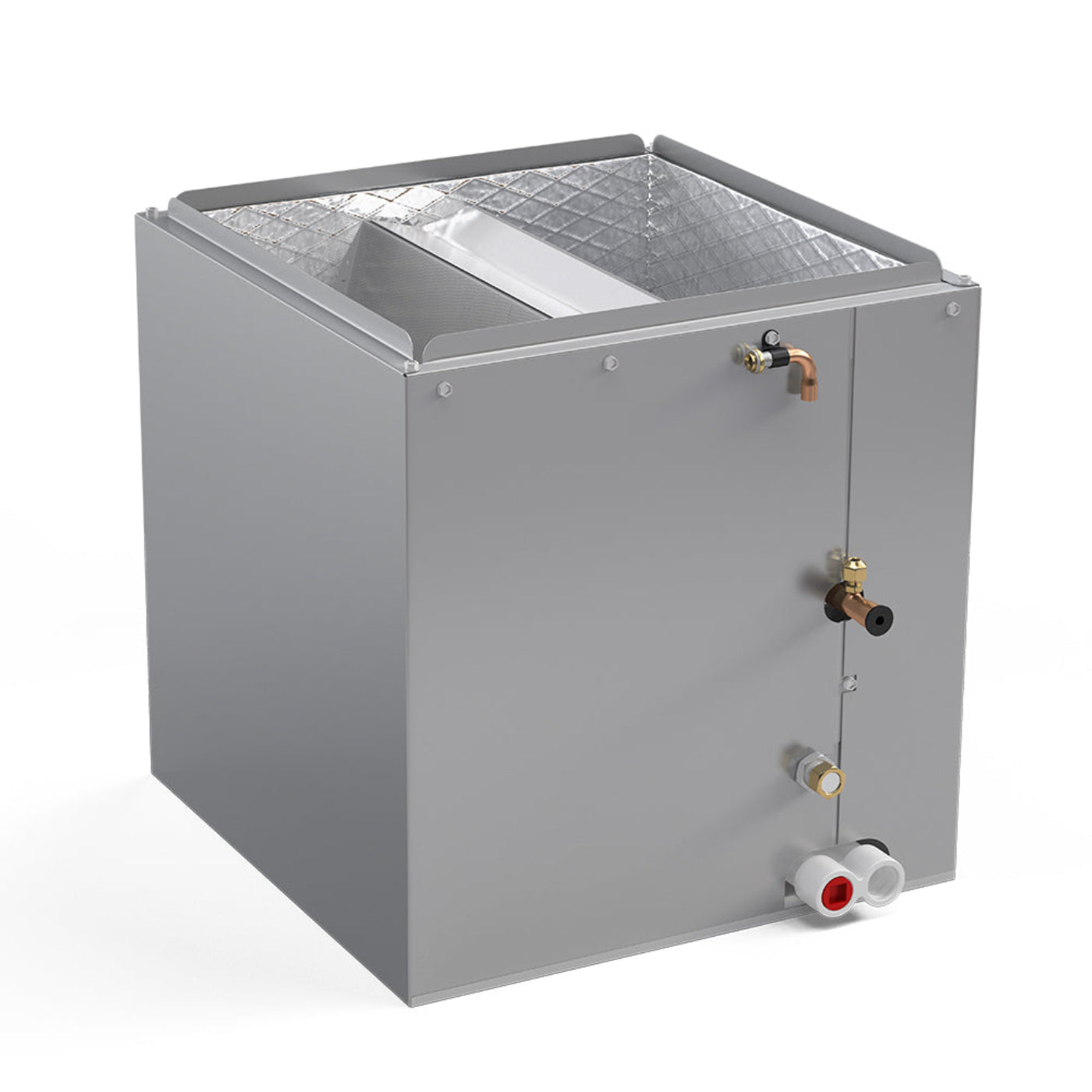

MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 21-Inch Cabinet (MCVP48CNPA)
This is a brand new 4 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
- External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

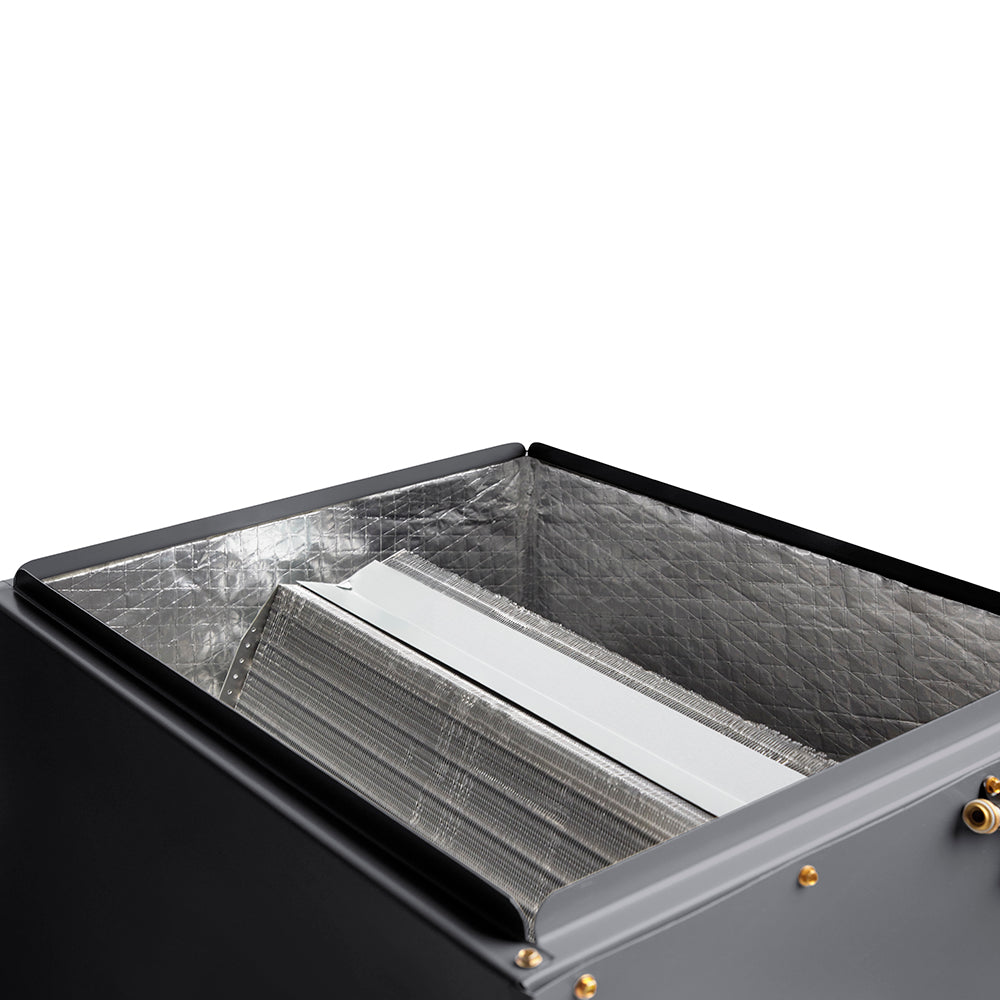

- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights

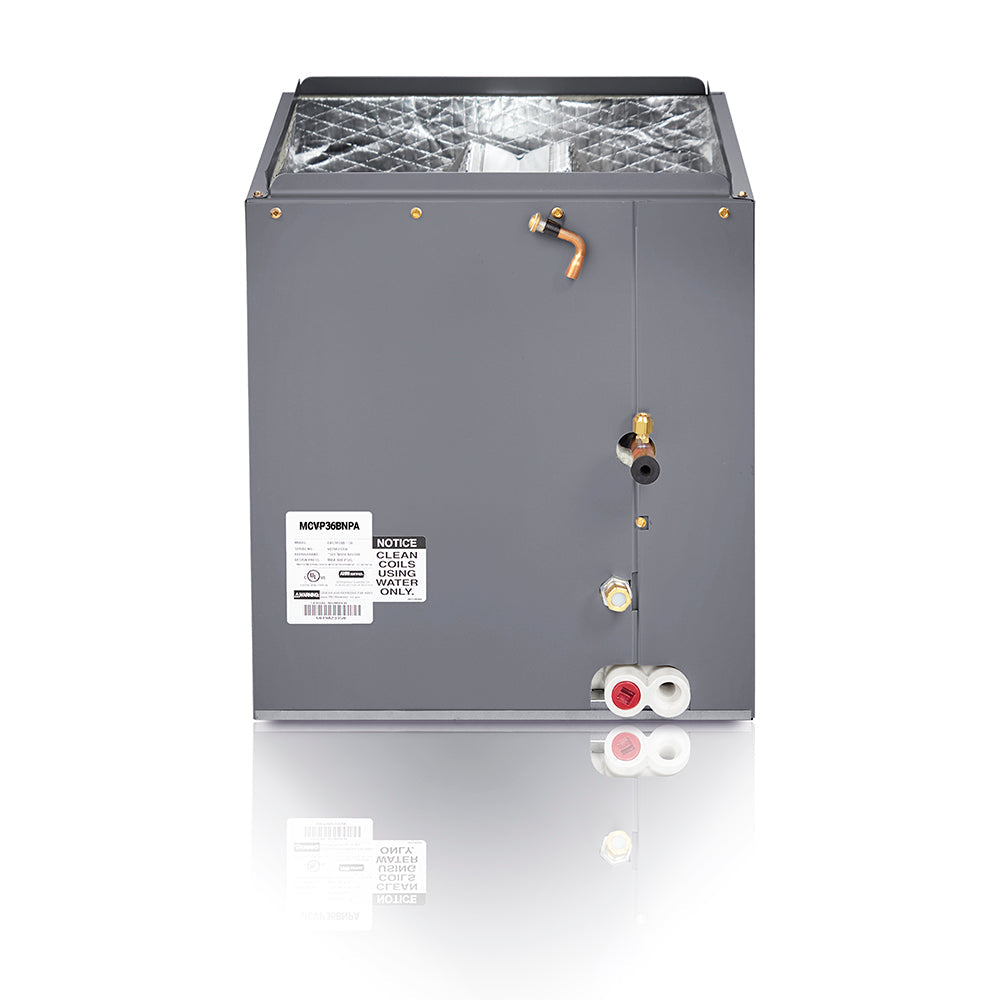

- Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty

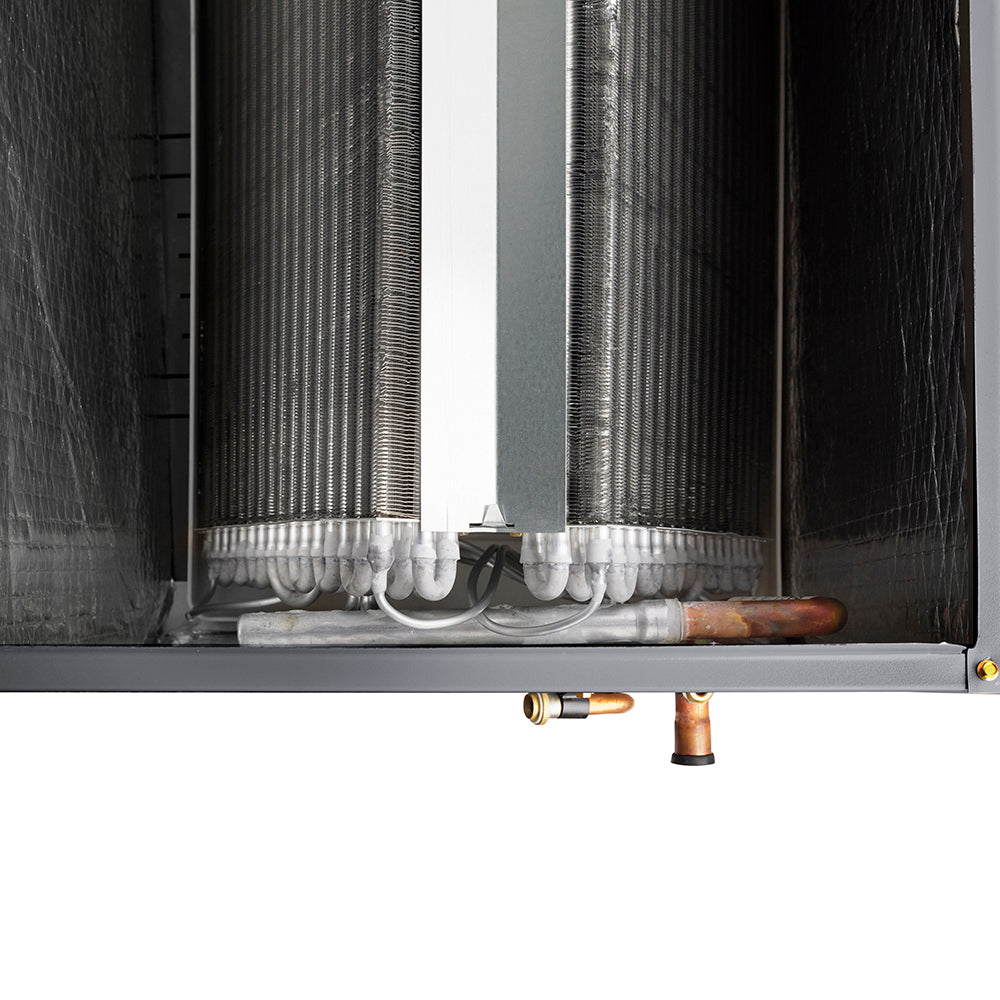

- Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
- Tubing located at door split for easy coil service or cleaning
- Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage
Specifications
Dimensions
|
21" D x 27.5" H x 21" W |
Tonnage |
4 |
Cooling Capacity
|
48000 |
Color |
Gray |
Color Family |
Gray |
Refrigerant Type |
R-410A |
Drain Connection Size |
3/4 |
Lineset Included |
No |
Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max Lineset Length |
50ft |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 |
Suction Line Size |
7/8 |
UL Reconized |
yes |
UL Listed |
yes |
Energy Star Compliant |
no |
Energy Star Certified |
no |
AHRI Certified |
yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed GAS |
Yes |
Proposition 65 Warning |
Yes |
Restricted States |
No |
Net Weight |
60 |
What our Experts Think
-
Perfect Fit for 4-Ton Systems – Designed to pair seamlessly with 48K BTU air conditioners and heat pumps.
-
High Efficiency – 16 SEER rating helps lower energy costs while delivering consistent comfort.
-
Durable Build – R410A compatible coil with a 21-inch cabinet ensures long-lasting reliability.
-
Flexible Installation – Upflow design suits a wide range of home setups.
-
Great Value – Combines strong performance with affordable ownership costs.
Q&A
Q: What cooling capacity does this evaporator coil support?
A: The MRCOOL MCVP48CNPA is designed for 48,000 BTU (4 ton) cooling systems.
Q: What refrigerant is it compatible with?
A: It uses R-410A refrigerant, the industry standard for efficiency and reliability.
Q: What type of installation is it designed for?
A: This coil is an upflow cased evaporator coil, ideal for vertical installations.
Q: What is the SEER rating supported?
A: It is compatible with systems rated up to 16 SEER efficiency.
Q: What is the cabinet width?
A: The unit comes in a 21-inch cabinet, providing a secure and durable fit.
Q: Can this coil be paired with MRCOOL air conditioners and heat pumps?
A: Yes, it is engineered for seamless integration with MRCOOL Signature Series systems.
Maintenance Tips
-
Clean coil surfaces regularly to prevent dust and dirt buildup.
-
Replace or clean air filters every 1–2 months for proper airflow.
-
Inspect for refrigerant leaks, ice accumulation, or unusual noises.
-
Keep surrounding cabinet area clear for unrestricted ventilation.
-
Flush condensate drain line to avoid clogs and water damage.
-
Schedule annual professional servicing to maintain efficiency and extend lifespan.
