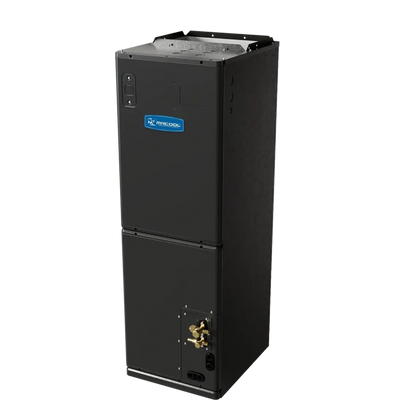

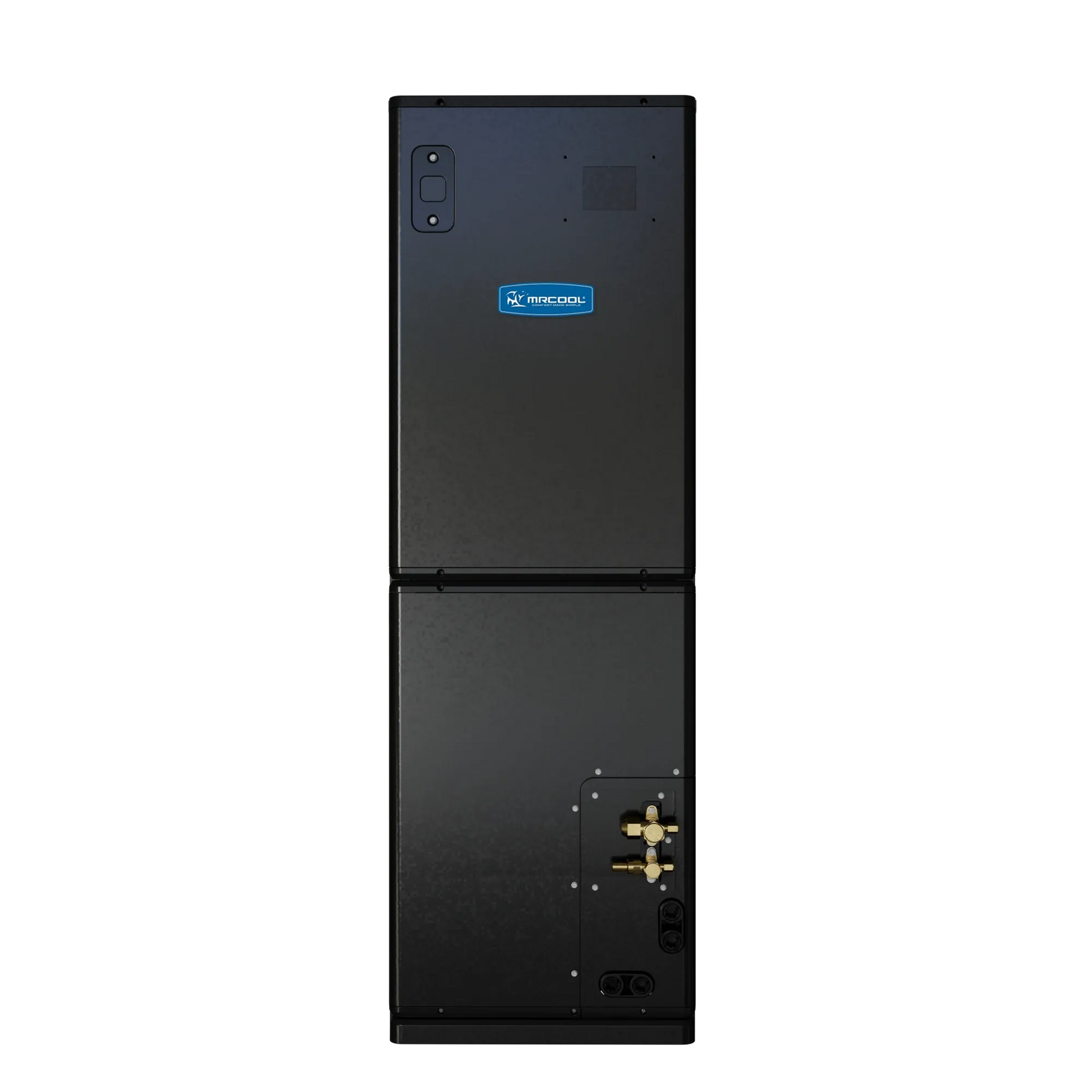

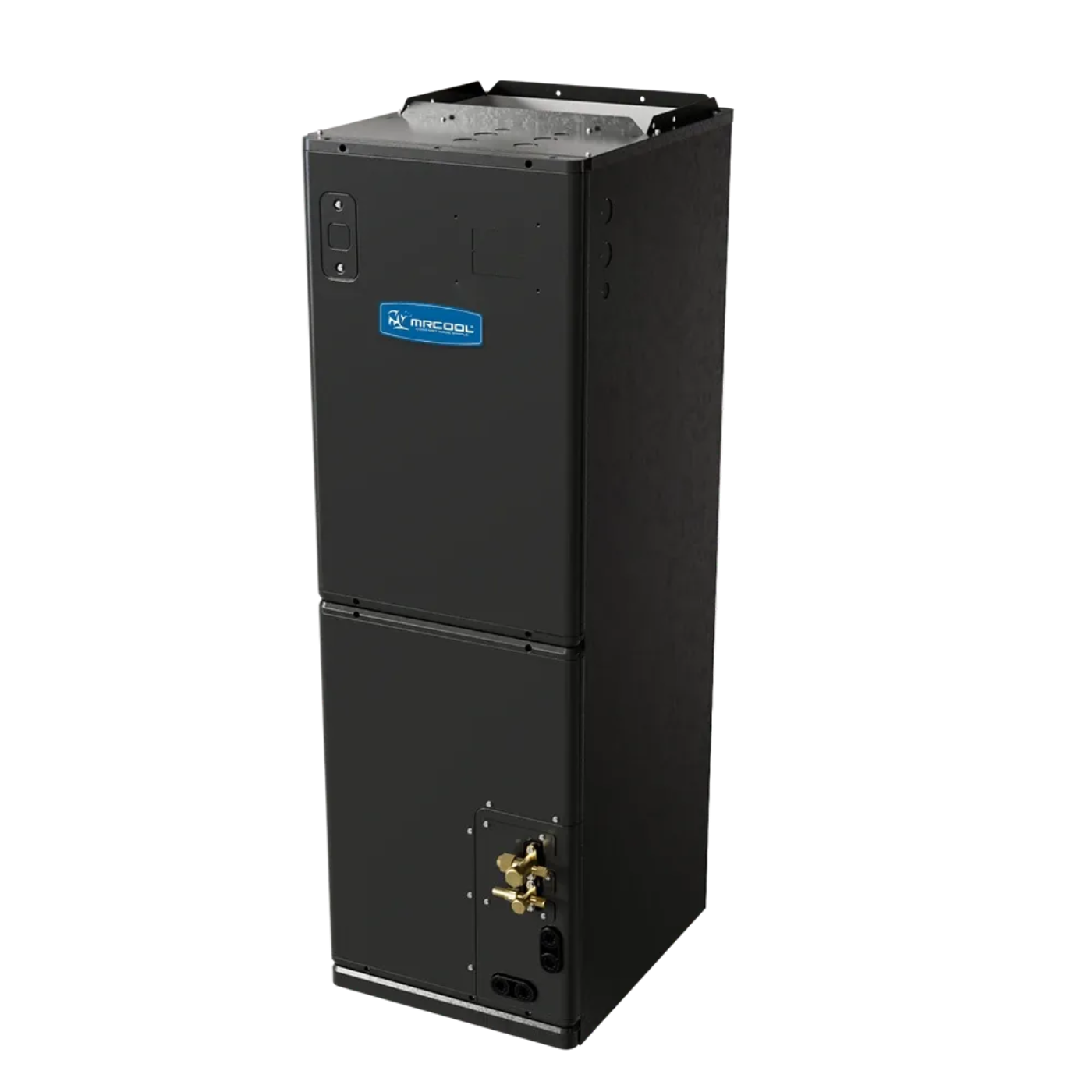

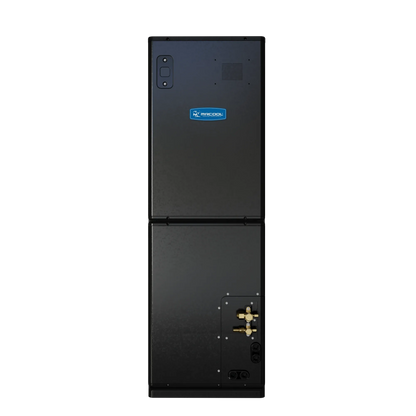

MRCOOL Universal Series 60K BTU, 5 Ton Air Handler - Multiposition (UAH18060-O)
The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it ensures consistent airflow and dependable indoor comfort—making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency.
Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for easier placement in tight mechanical spaces, closets, attics, or basements—giving homeowners and contractors more flexibility during setup. To further simplify installation, the unit is fully compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, saving time, reducing labor, and minimizing the chance of installation error. For enhanced performance in colder climates, the system also supports optional Universal® Series Heat Kits. These kits provide additional heating output when temperatures drop and serve as an emergency backup source of heat. Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area, boosts airflow, and helps maintain system efficiency. Constructed from 100% aluminum, the coil is corrosion-resistant, providing long-term reliability and reducing maintenance needs. Despite its power, the unit runs quietly—producing sound levels similar to a standard dishwasher or everyday conversation.
The MRCOOL® Universal® Series 60K Air Handler is backed by a 10-year parts warranty and a 2-year limited labor warranty, offering peace of mind and long-lasting value for your home.
Specifications
| Net Dimensions (In) |
21.5 D x 55.94 H x21.5 W |
| Net Weight (Lbs) |
188.05 |
| CFM |
1801.1/1648.1/1500.9/1236.1/N\A |
| Tonnage |
5 |
| Voltage (V) |
115/208/230 |
| Phase |
1 |
| Cycle |
60 |
| Max Fuse Breaker (A) |
15 |
| Min Circuit Ampacity (A) |
14.5/10 |
| Mount Type |
Multi-Position |
| Color |
Dark Grey |
| Refrigerant Type |
R-454B |
| Decibel Rating (Dba) |
60/57/54.5/37/N\A |
| Decibel Rating Low (Dba) |
37 |
| Decibel Rating High (Dba) |
60 |
| Number Of Speeds |
4 |
| Max Lineset Length (Ft) |
246 |
| Liquid Line Size |
8-Mar |
| Suction Line Size |
4-Mar |
| Filter Type |
Replaceable |
| Filter Size |
20 x 20 x 1 |
| Metering Device |
EXV |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxiliary Heater Sizes |
5 KW / 8 KW / 10 KW / 15 KW / 20 KW |
| UL Listed |
Yes |
| CSA Listed |
Yes |
| ETL Listed |
Yes |
| Base Warranty |
10 Year Parts |
| Base Parts Warranty |
10 Years |
| Base Labor Warranty |
2 Year |
| Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Gross Depth (In) |
31.1 |
| Gross Height (In) |
25 |
| Gross Width (In) |
59.84 |
| Gross Weight (Lbs) |
238.32 |
What our Experts Think
-
High Capacity Airflow – With 60K BTU and 5-ton capability, this air handler is built to deliver consistent comfort in larger homes.
-
Multiposition Flexibility – Can be installed in upflow, downflow, or horizontal positions to fit different ductwork setups.
-
Optimized Pairing – Designed to work seamlessly with MRCOOL Universal Series heat pump condensers for maximum efficiency.
-
Quiet & Efficient – Engineered to provide strong airflow with reduced noise for whole-home comfort.
-
Built for Reliability – Durable construction ensures long-term performance with minimal maintenance.
Q&A
Q: What is the capacity of this air handler?
A: The MRCOOL Universal Air Handler provides 60,000 BTU (5 Ton) capacity, ideal for pairing with Universal Series condensers.
Q: What installation options are available?
A: It is a multiposition air handler, meaning it can be installed in upflow, downflow, or horizontal configurations for maximum flexibility.
Q: Is it compatible with MRCOOL Universal condensers?
A: Yes, it’s designed to work seamlessly with MRCOOL Universal DC inverter condensers for efficient heating and cooling.
Q: Does it include a variable-speed blower?
A: Yes, the ECM variable-speed blower motor ensures quiet operation, consistent airflow, and improved energy efficiency.
Q: Can this air handler be used with existing ductwork?
A: Absolutely — it’s built for use with standard ducted central HVAC systems.
Q: Who is this unit best suited for?
A: Homeowners and businesses needing a reliable 5 Ton multiposition air handler that delivers comfort, efficiency, and installation flexibility.
Maintenance Tips
-
Inspect and replace air filters every 1–3 months to maintain airflow and indoor air quality.
-
Check the condensate drain regularly to prevent clogs and water damage.
-
Keep the blower motor and fan assembly free from dust and debris.
-
Inspect duct connections for leaks or loose fittings to maximize efficiency.
-
Ensure the air handler cabinet remains sealed and free of obstructions around it.
-
During seasonal checks, verify that electrical connections and control boards are functioning correctly.
-
Schedule annual professional maintenance to test airflow, coil condition, and overall system performance.
