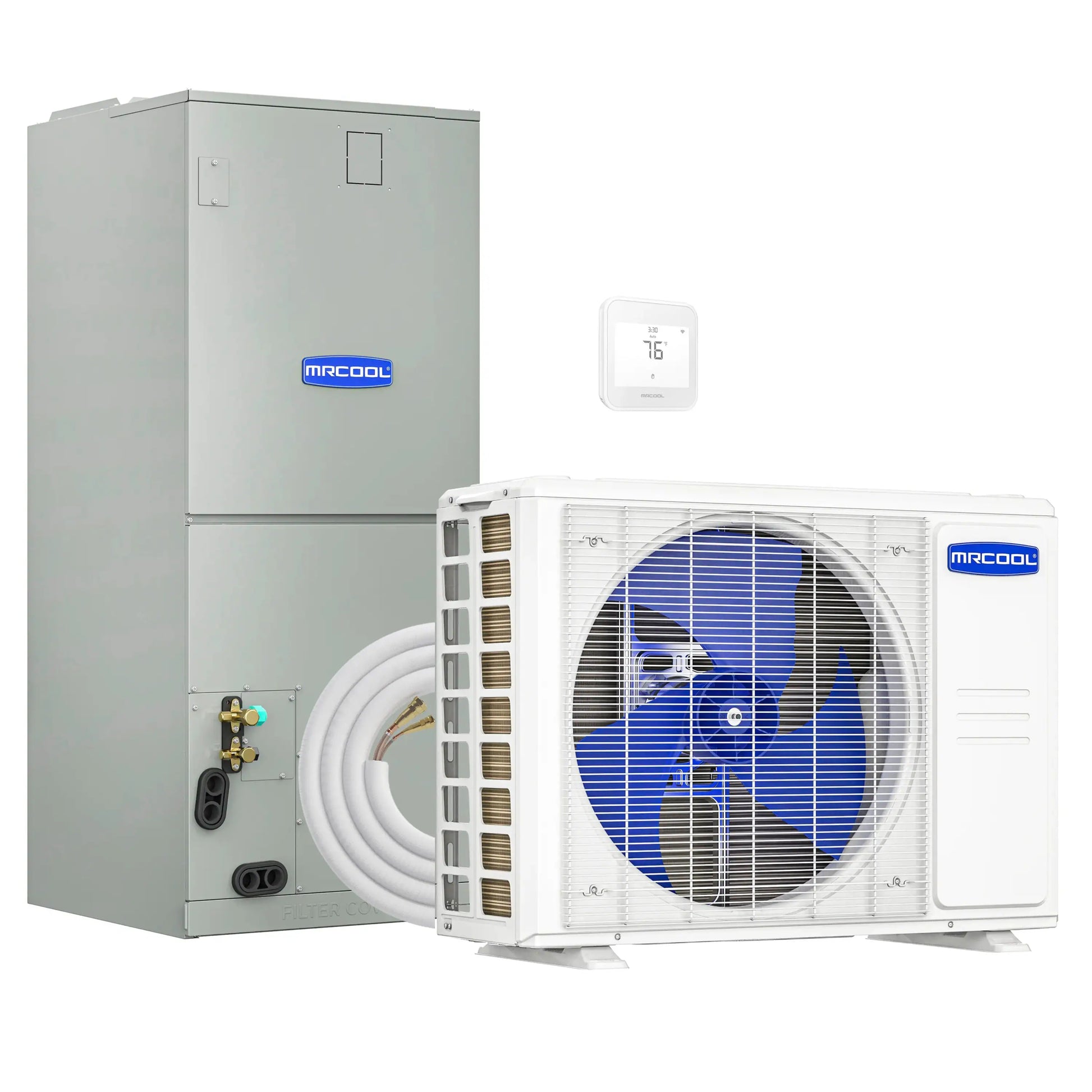

MRCOOL VersaPro 2nd Gen Central Split System with 60K BTU, 5 Ton, 15.2 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset (MVP-60-HP-230A15)

MRCOOL VersaPro 2nd Gen Central Split System with 60K BTU, 5 Ton, 15.2 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset (MVP-60-HP-230A15)

The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.

Features

1. MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser

2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler

3. MRCOOL 15 Ft. R-454B No-Vac Lineset


4. MRCOOL Smart Thermostat

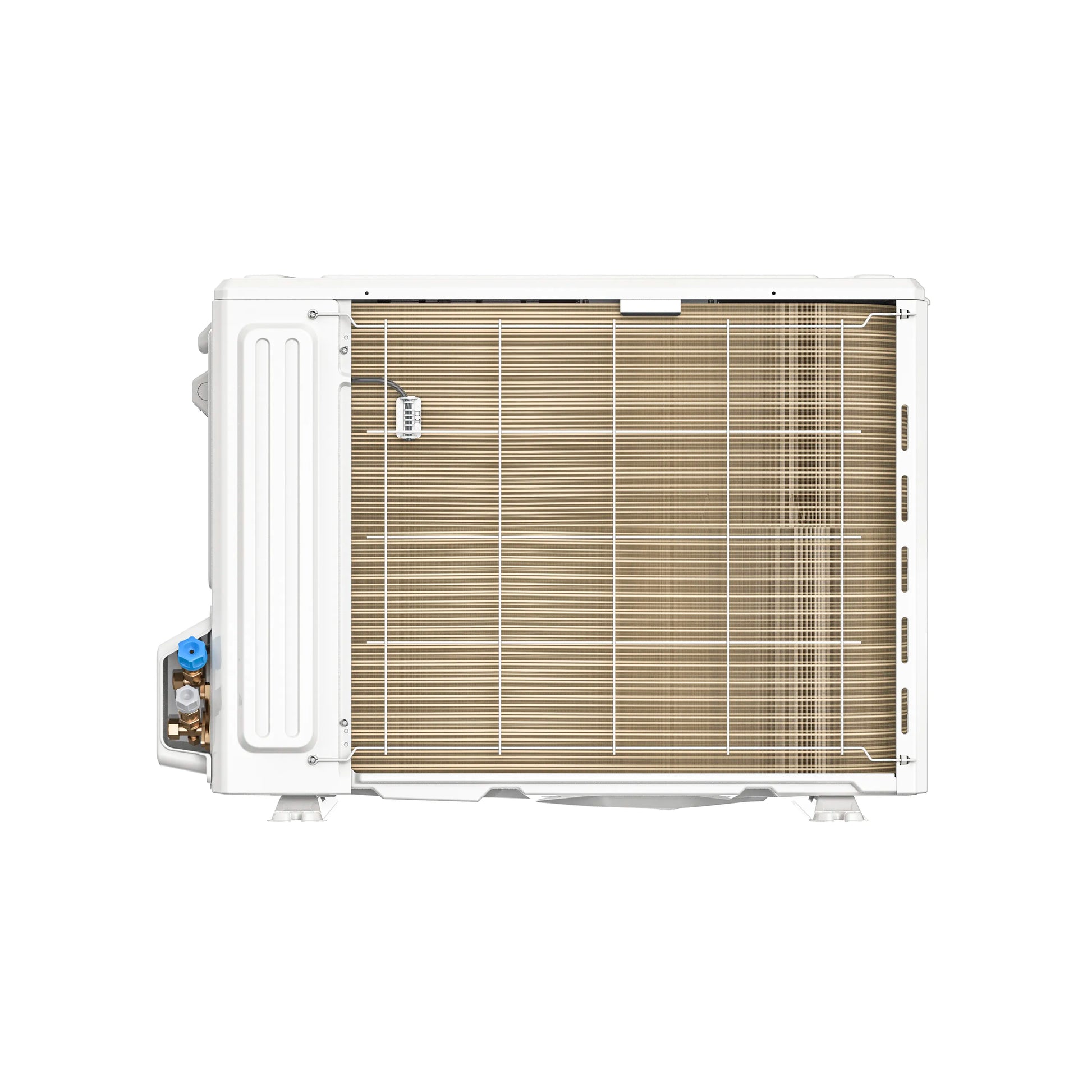

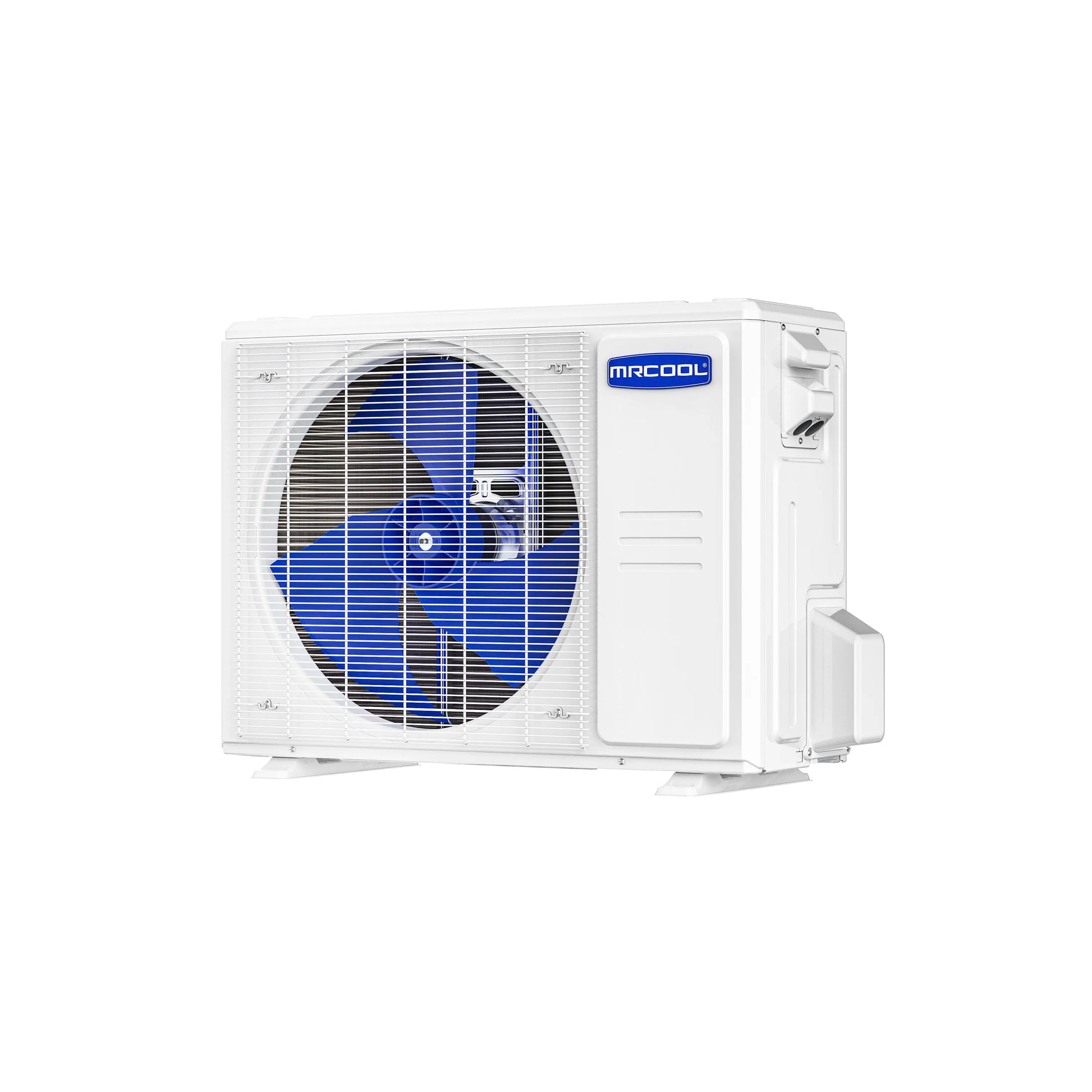

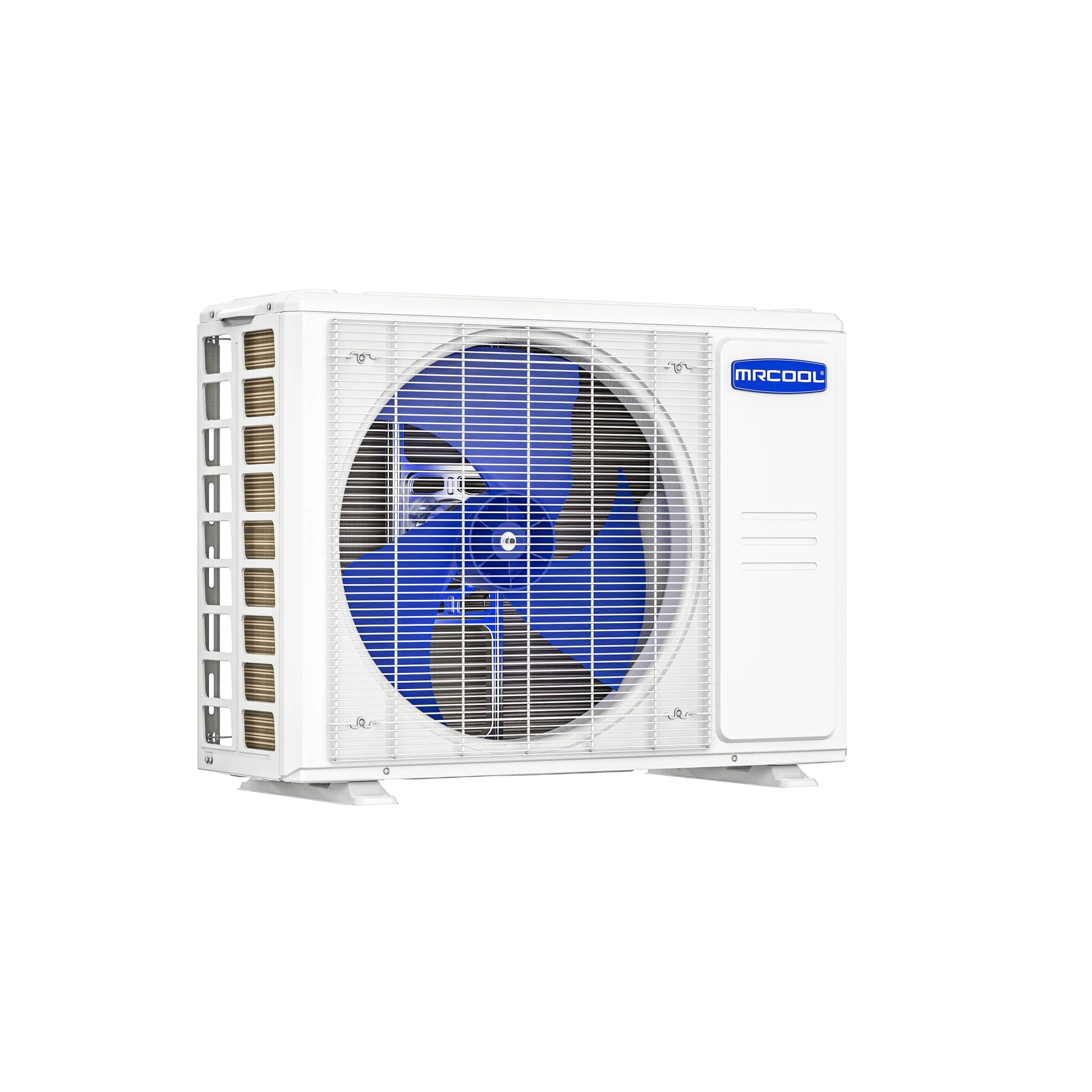

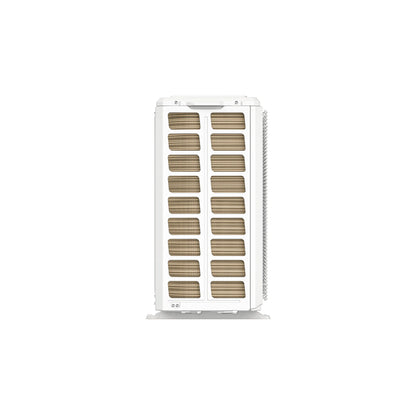

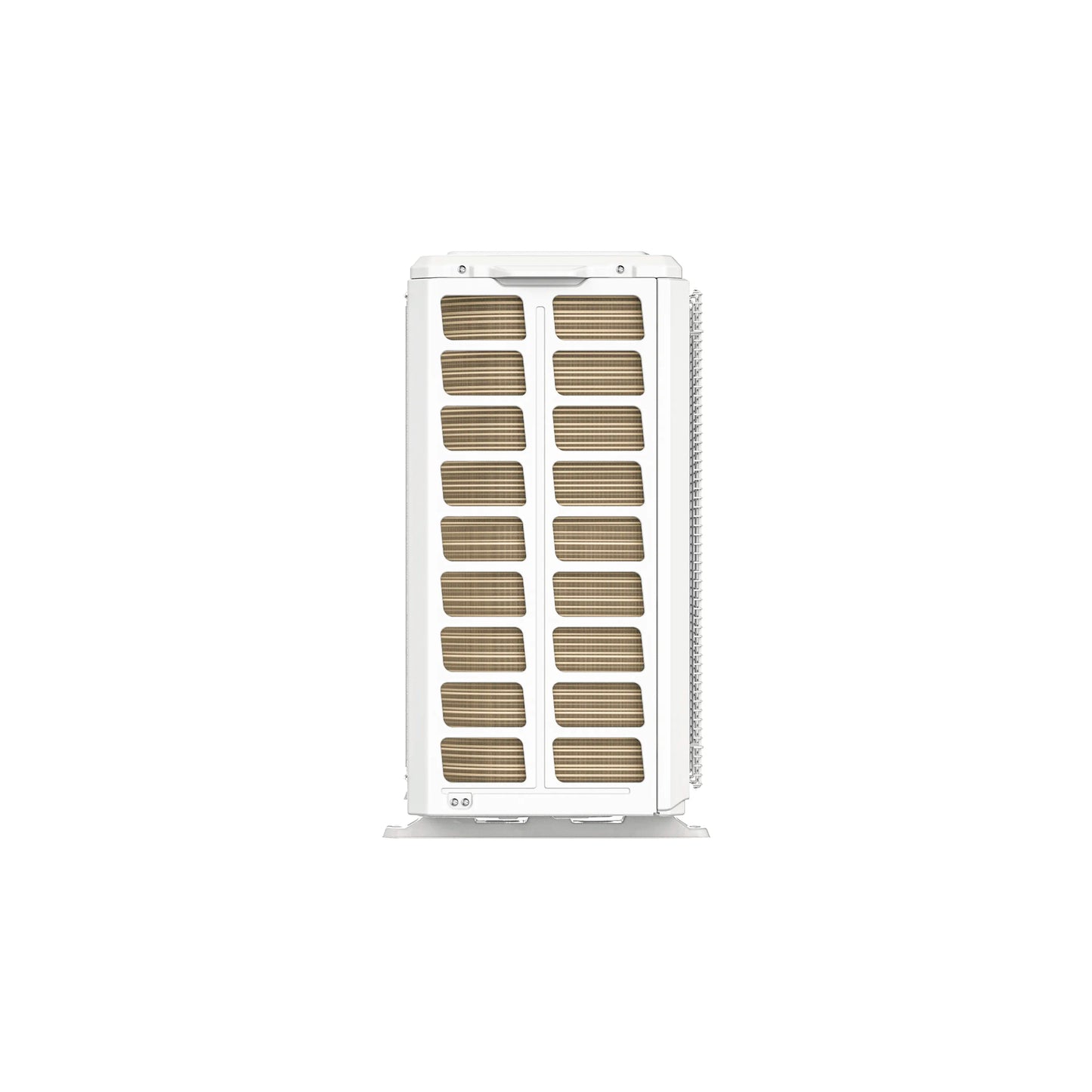

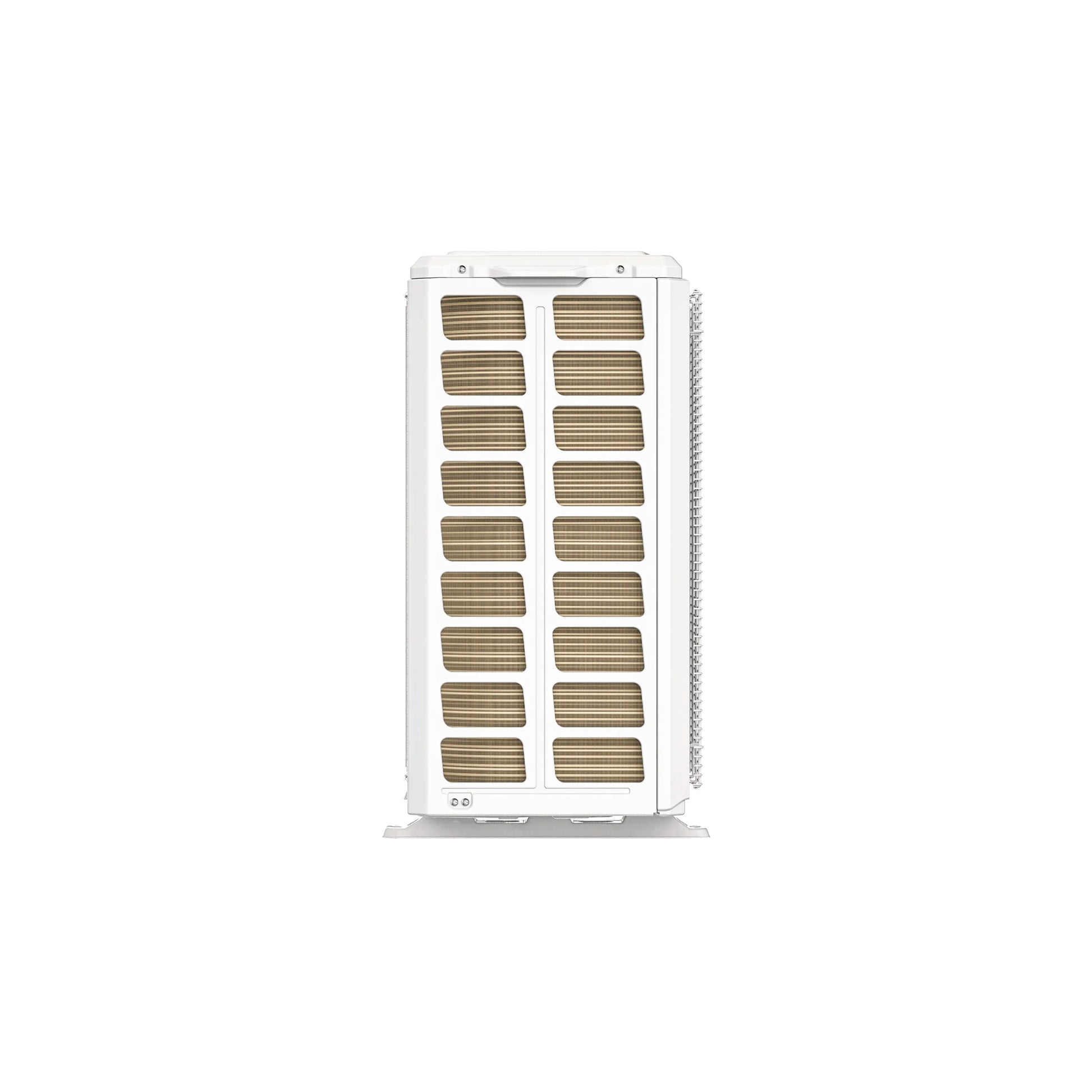

1. MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser (MVP-60-HP-C-230A00-O)

• 5 Ton

• SEER2 rating of 15.2 and an HSPF4 rating of 8.4

• R-454B refrigerant

• 10-year warranty covering the compressor and parts

2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)

• 5 Ton

• SEER2 rating of up to 16

• R-454B refrigerant

• 10-year warranty

3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)

• Kink Resistant - Precharged

• Simple Secure Quick Connect

• UV Protected Insulation

• Works With: VersaPro 2nd Gen - Central Ducted Hyper Heat 2nd Gen

4. MRCOOL Smart Thermostat (MST04)

• Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.

• One App for All Your HVAC Systems

• Global Control for Remote Accessibility

• Works with Alexa, Google, Siri, and MRCOOL® Link

Specifications

What our Experts Think

• High Efficiency: Achieves a 15.2 SEER2 rating, offering energy-efficient cooling for larger spaces.

• Complete System: Includes a 5-ton heat pump condenser, ducted air handler, and a 15 ft. R-454B No-Vac lineset, providing comprehensive heating and cooling solutions.

• Flexible Installation: Supports multi-position configurations—upflow, downflow, or horizontal—allowing adaptability to various duct layouts.

• Quiet Operation: Designed with a side-discharge compressor and variable-speed inverter technology, ensuring minimal noise levels.

• Eco-Friendly: Utilizes R-454B refrigerant, a next-generation, environmentally responsible coolant that reduces greenhouse gas emissions without sacrificing performance.

• Smart Control: Comes with a wireless remote featuring the Follow Me function, which automatically adjusts the airflow temperature based on the remote’s location in the room.

• Warranty Assurance: Backed by a 10-year parts and compressor warranty, ensuring long-term reliability and peace of mind.

Q&A

Q: What is the cooling capacity?
A: 60,000 BTU (5 Ton).

Q: What SEER2 rating does it have?
A: 15.2 SEER2 for energy efficiency.

Q: What refrigerant is used?
A: Environmentally friendly R-454B refrigerant.

Q: What components are included?
A: Heat pump condenser, ducted air handler, and 15 ft. no-vac lineset.

Q: Is this system suitable for ducted HVAC setups?
A: Yes, designed for central ducted installations.

Maintenance Tips

• Clean or replace air filters every 1–3 months for efficient airflow and system performance

• Keep outdoor condenser unit free of debris, leaves, and obstructions

• Inspect and clean evaporator and condenser coils annually to maintain efficiency

• Regularly check and clear condensate drain lines to prevent water damage

• Ensure all electrical connections are secure and corrosion-free

• Test thermostat settings periodically for proper heating and cooling operation
