US Motors ASB654 | 1 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor - ASB654

US Motors ASB654 | 1 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor - ASB654

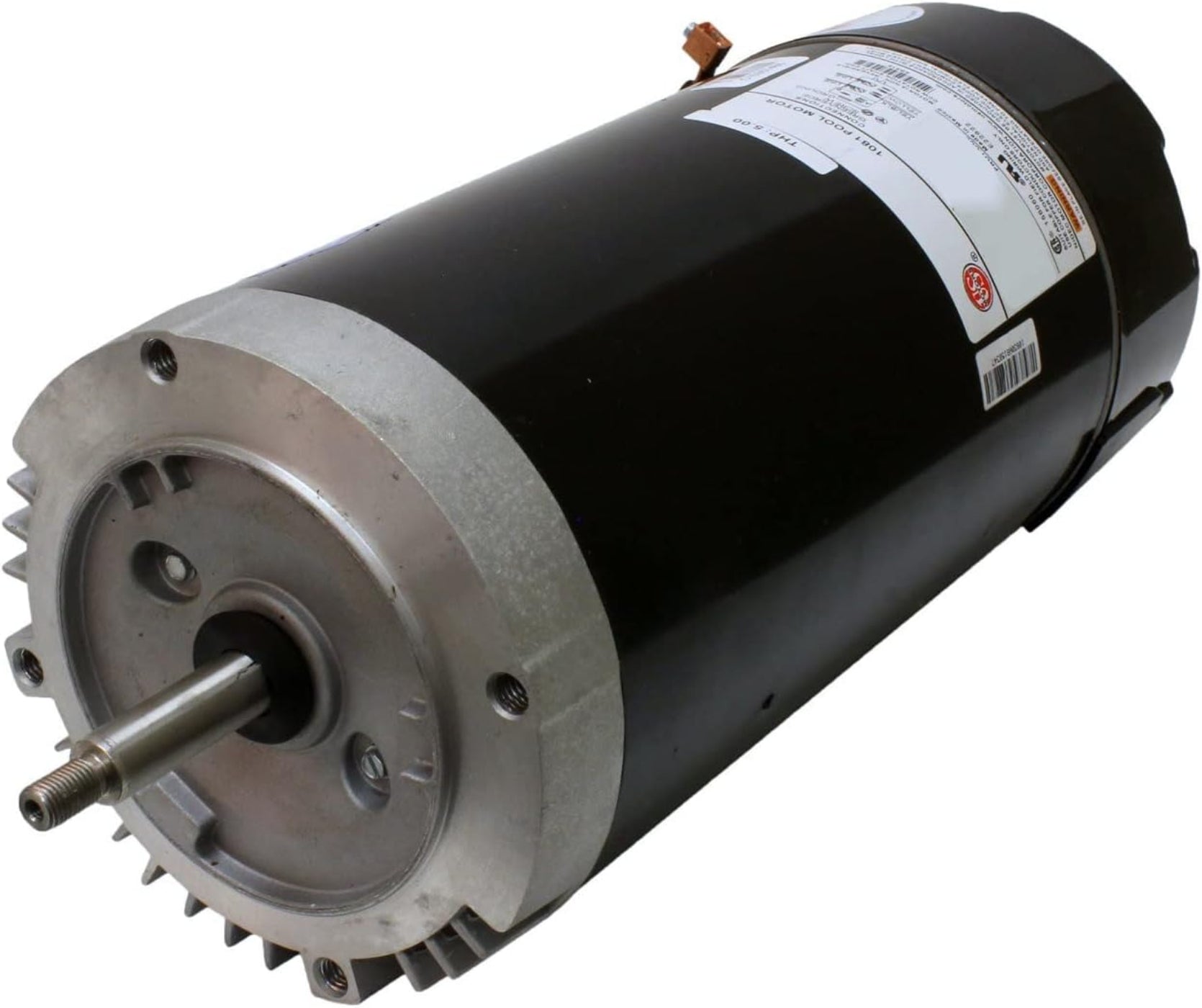

The US Motors ASB654 is a 1 hp pool pump motor designed for efficiency and reliability. It features a 3450 RPM speed and a 56J frame, making it suitable for swimming pool pumps. This motor operates on 115/230V and does not require a switch.

Product Highlights

This motor is commonly used with inground pool pumps, including models like Hayward Super Pump, Maxflo, and Super II. It features a stainless steel shaft, sealed ball bearings, and a C-face mount. The motor includes a wiring diagram on the nameplate and comes with a one-year manufacturer's warranty.

Features

• Designed for swimming pool pumps
• Operates on 115/230V
• 3450 RPM 1 hp motor

 Specifications

What our Experts Think

• Reliable Power Output

• 1 horsepower motor operating at 3450 RPM, ideal for in-ground pool and spa pumps

• Switchless design with built-in voltage selector for quick and easy setup

• Durable & Corrosion-Resistant

• Open Drip Proof (ODP) enclosure suited for indoor or protected outdoor environments

• 56J frame with C-face mounting ensures a secure, stable fit

• Stainless steel shaft offers long-term resistance to corrosion, even in wet environments

• Enhanced Protection Features

• Triple bearing protection: double-sealed ball bearings, lip seal, and water slinger

• Thermal overload protection prevents damage from overheating

• Versatile & Compatible

• Runs on 115/230V single-phase power, compatible with standard pool pump installations

• Commonly used with popular brands such as Hayward Super Pump, MaxFlo, and Super II

Q&A

Q: What applications is the U.S. Motors ASB654 motor suitable for?
A: This motor is designed for in-ground swimming pool and spa pump systems, compatible with models like Hayward Super Pump, Maxflo, and Super II.

Q: What are the key specifications of this motor?
A: The ASB654 delivers 1 horsepower at 3450 RPM, operates on 115/230V single-phase power, and features a 56J frame with a threaded shaft and C-face mount.

Q: Does this motor include thermal protection?
A: Yes, it includes built-in automatic overload protection to guard against overheating.

Q: What is the service factor of this motor?
A: The motor has a service factor of 1.40, allowing it to handle occasional overloads beyond its rated capacity.

Q: What are the construction and durability features?
A: The motor features a stainless steel threaded shaft, sealed ball bearings, and an Open Drip Proof (ODP) enclosure for reliable outdoor use.

Q: What is the insulation class and ambient temp rating?
A: It has Class B insulation and is rated for operation in ambient temperatures up to 50°C.

Maintenance Tips

• Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.

• Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.

• Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (115/230V) to avoid damage.

• Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.

• Check Capacitors: Test and replace capacitors if they show signs of degradation to maintain efficient motor startup and operation.

• Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.

• Test Thermal Overload Protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.

• Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
