US Motors ASB809 Swimming Pool Pump Motor 2 HP 3450 RPM 56J Frame 208-230V - ASB809

US Motors ASB809 Swimming Pool Pump Motor 2 HP 3450 RPM 56J Frame 208-230V - ASB809

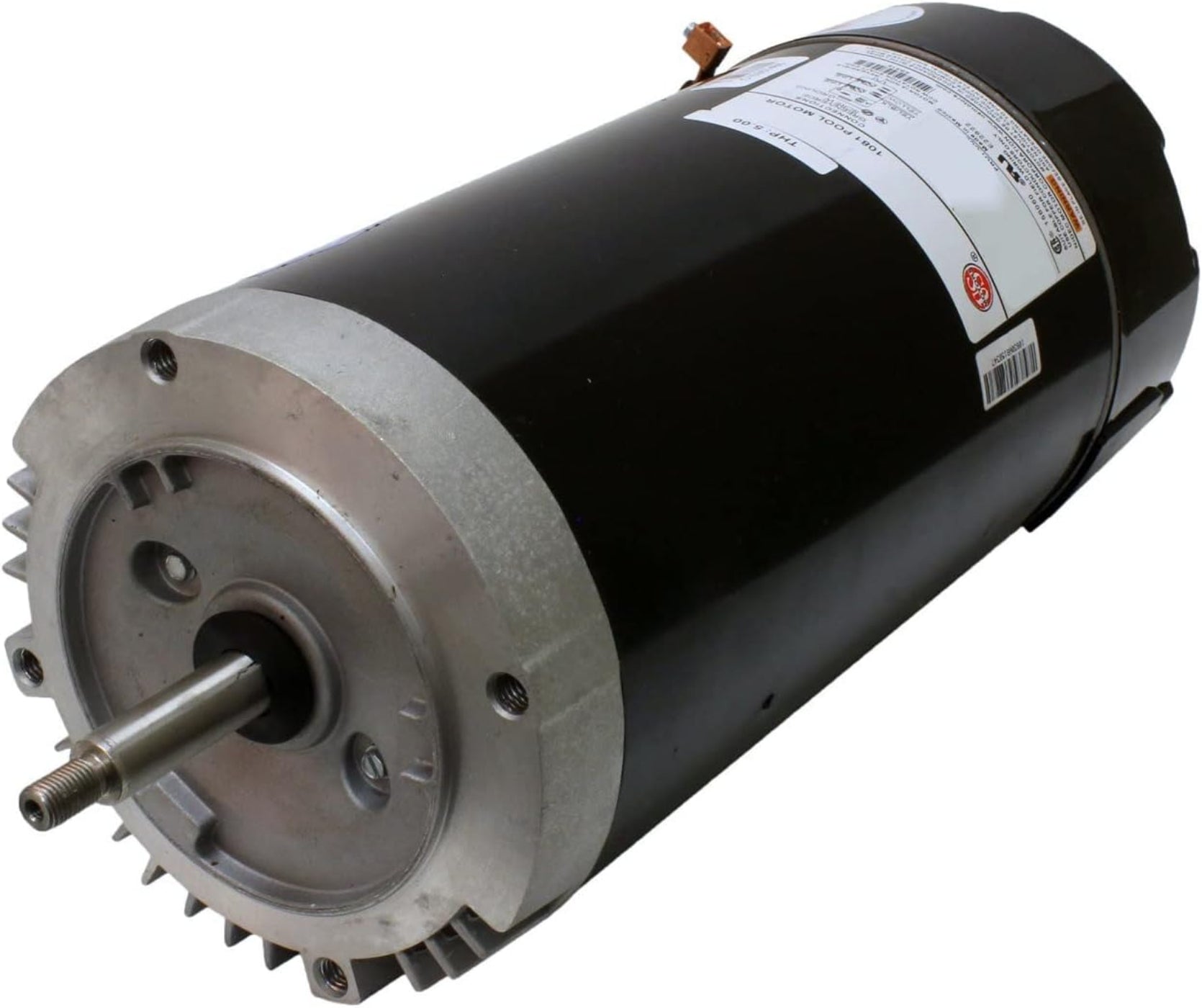

The US Motors ASB809 swimming pool pump motor, with an MPN of ASB809, offers reliable performance for your pool. It features a 2 horsepower motor that operates at 3450 RPM and fits a 56J frame.

Product Highlights

Designed for inground pool pumps like the Hayward Super Pump and Maxflo, this motor includes a sealed ball bearing system, stainless steel shaft, and switchless design for durability and ease of use. Suitable for continuous duty, it is thermally protected and includes a voltage selection device for dual voltage applications.

Features

• 2 HP motor for powerful performance
• 3450 RPM for efficient operation
• Fits 56J frame for compatibility

Specifications

What our Experts Think

• High-Speed Performance: Delivers 2 HP at 3450 RPM, ideal for powering swimming pool pumps with strong, consistent water flow.

• Corrosion-Resistant Build: Designed specifically for pool environments—resists moisture, chemicals, and corrosion for long-lasting performance.

• 56J Frame with Threaded Shaft: Industry-standard 56J frame and threaded shaft allow for easy drop-in replacement on most pool pump brands.

• Dual Voltage Capability: Operates on 208-230V, offering installation flexibility for different pool systems.

• Open Drip Proof (ODP) Venting: Keeps the motor cool in dry, ventilated settings, increasing efficiency while reducing operational noise.

• Trusted Brand: Backed by U.S. Motors’ reputation for reliability in residential and commercial pool applications.

Q&A

Q: What is the US Motors ASB809 Swimming Pool Pump Motor used for?
A: The ASB809 is a high-performance motor designed for swimming pool and spa pumps, ensuring reliable water circulation and filtration in residential and commercial pool systems.

Q: What is the power and speed rating of the ASB809?
A: It delivers 2 HP and operates at 3450 RPM, providing powerful and efficient performance for demanding pool pump applications.

Q: What voltage does the ASB809 motor support?
A: It runs on 208–230V, single-phase power, making it compatible with standard residential and light commercial electrical setups.

Q: What type of motor frame does the ASB809 use?
A: It features a 56J frame with a threaded shaft, commonly used for direct mounting on pool pump assemblies.

Maintenance Tips

• Keep Motor Dry and Covered:
  Protect the motor from rain, splash, and excessive humidity. Although built for pool environments, prolonged exposure to moisture can cause corrosion and electrical issues.

• Clean Ventilation Openings:
  Regularly remove leaves, dust, and debris from the motor housing and air vents to ensure proper airflow and prevent overheating.

• Inspect and Lubricate Bearings:
  This motor uses sealed bearings, but periodic checks for noise or vibration are wise. Replace bearings if wear is detected—do not over-lubricate.

• Check Electrical Connections:
  Ensure all wiring is secure and corrosion-free. Loose or oxidized terminals can reduce motor efficiency and pose fire risks.

• Monitor for Overheating:
  If the motor runs hot to the touch, check for restricted airflow, overloaded pumps, or misalignment. Running hot can shorten motor life.

• Inspect Shaft Seal:
  Check the shaft seal area for leaks. A worn or damaged seal can allow water to enter the motor, leading to failure.

• Balance and Align Pump Assembly:
  Ensure the pump and motor are properly aligned and mounted. Misalignment can lead to excessive wear, vibration, and early motor failure.

• Verify Voltage and Amperage:
  Confirm that the motor is receiving the correct 208-230V and is drawing amperage within spec. Voltage issues can cause overheating and reduced performance.

• Use a Motor Cover:
  If outdoors, use a ventilated motor cover to shield the motor from sun and debris while allowing airflow.

• Schedule Seasonal Maintenance:
  Inspect the motor at the start and end of each pool season. Look for rust, unusual noises, or electrical issues and address them early.
