U. S. Motors Nidec D5C1K18 General Purpose Motor 5 HP 3600 RPM 230V 184T - D5C1K18

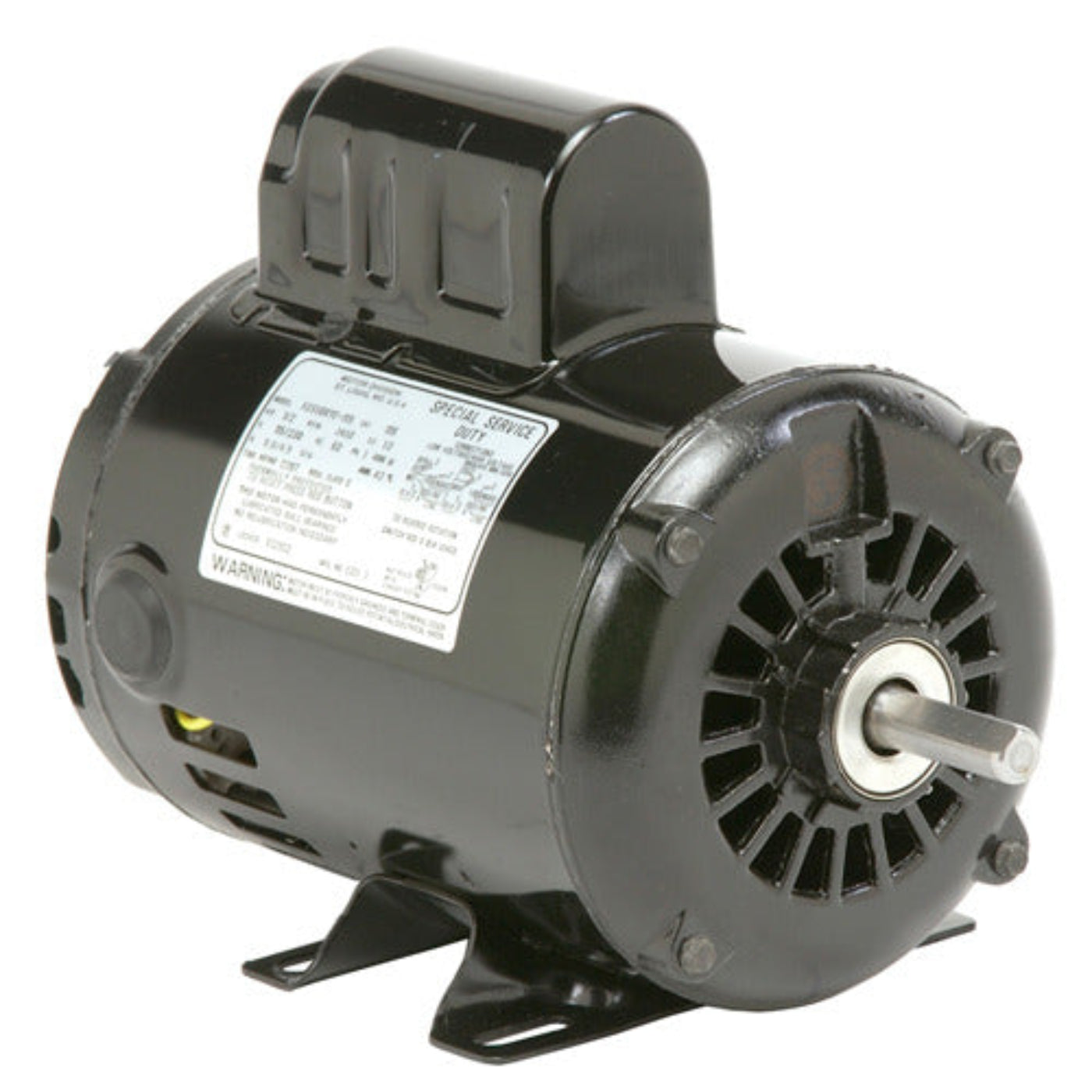

The Nidec US Motors D5C1K18 is a rigid motor designed for a variety of applications requiring a reliable power source. With a power output of five horsepower and a rotational speed of three thousand six hundred RPM, this motor operates efficiently at two hundred thirty volts. It features a robust 184T frame that provides durable support for demanding tasks.

Product Highlights

This motor is suited for HVAC systems, commercial fans, and other applications where dependable performance is crucial.

Features
  • Belt drive motor type
  • Capacitor start motor for easy starting
  • Open dripproof enclosure for added protection
Specifications
Brand Nidec
Model / MPN D5C1K18
Motor Type Capacitor-Start
Horsepower 5 HP
Voltage Rating 230V
Full Load Amps 19.6 A
Full Load RPM 3600 RPM
Frame Size 184T
Phase Single Phase
Enclosure Type Open Dripproof (ODP)
Mounting Type Rigid Base
Material Rolled Steel
Bearings Type Ball / Ball
Service Factor 1.15
What our Experts Think
  • High-Speed Performance: Delivers 5 HP at 3600 RPM, perfect for applications that require consistent, high-speed operation.

  • Compact & Durable: Features a 184T frame and open drip-proof (ODP) enclosure, providing durability and efficient cooling.

  • Energy Efficient: Operates at 230V, 60 Hz, with a service factor of 1.15, ensuring reliable performance while maintaining energy efficiency.

  • Versatile Applications: Ideal for HVAC systems, compressors, and other general-purpose industrial needs.

  • Easy Maintenance: Equipped with ball bearings and a rigid base for straightforward installation and minimal maintenance.

Q&A

Q: What are typical applications for the D5C1K18 motor?
A: This motor is commonly used in pumps, fans, compressors, conveyors, and other general industrial machinery where high-speed operation is required.

Q: What is the advantage of the ODP (Open Drip Proof) enclosure?
A: The ODP enclosure offers effective cooling by allowing air to flow through the motor, while providing protection against dust and moisture. It’s ideal for use in dry, indoor environments.

Q: Is the D5C1K18 motor reversible?
A: Yes, the motor supports reversible rotation, allowing flexibility in installation and operation for various applications.

Q: What is the duty rating of the D5C1K18 motor?
A: The motor is rated for continuous duty, providing reliable performance for extended periods of time in industrial settings.

Q: Does the D5C1K18 motor include thermal protection?
A: No, the motor does not have built-in thermal protection. External overload protection is recommended to ensure safe operation.

Maintenance Tips
  • Regular Cleaning: Clean dust and debris from the motor to ensure optimal cooling and prevent overheating.

  • Inspect Bearings: Check ball bearings for wear and lubricate regularly to prevent failure.

  • Check Shaft Alignment: Ensure that the motor shaft is aligned with the driven load to minimize vibration and wear.

  • Monitor Electrical Connections: Ensure all electrical connections are tight and free from corrosion.

  • Check for Overheating: Monitor motor temperature regularly to avoid damage due to overheating. Ensure the motor is in a well-ventilated area to maintain cooling efficiency.

  • Check for Proper Voltage: Ensure the motor is receiving the correct voltage as specified (230V) to avoid overloading or underperformance.
