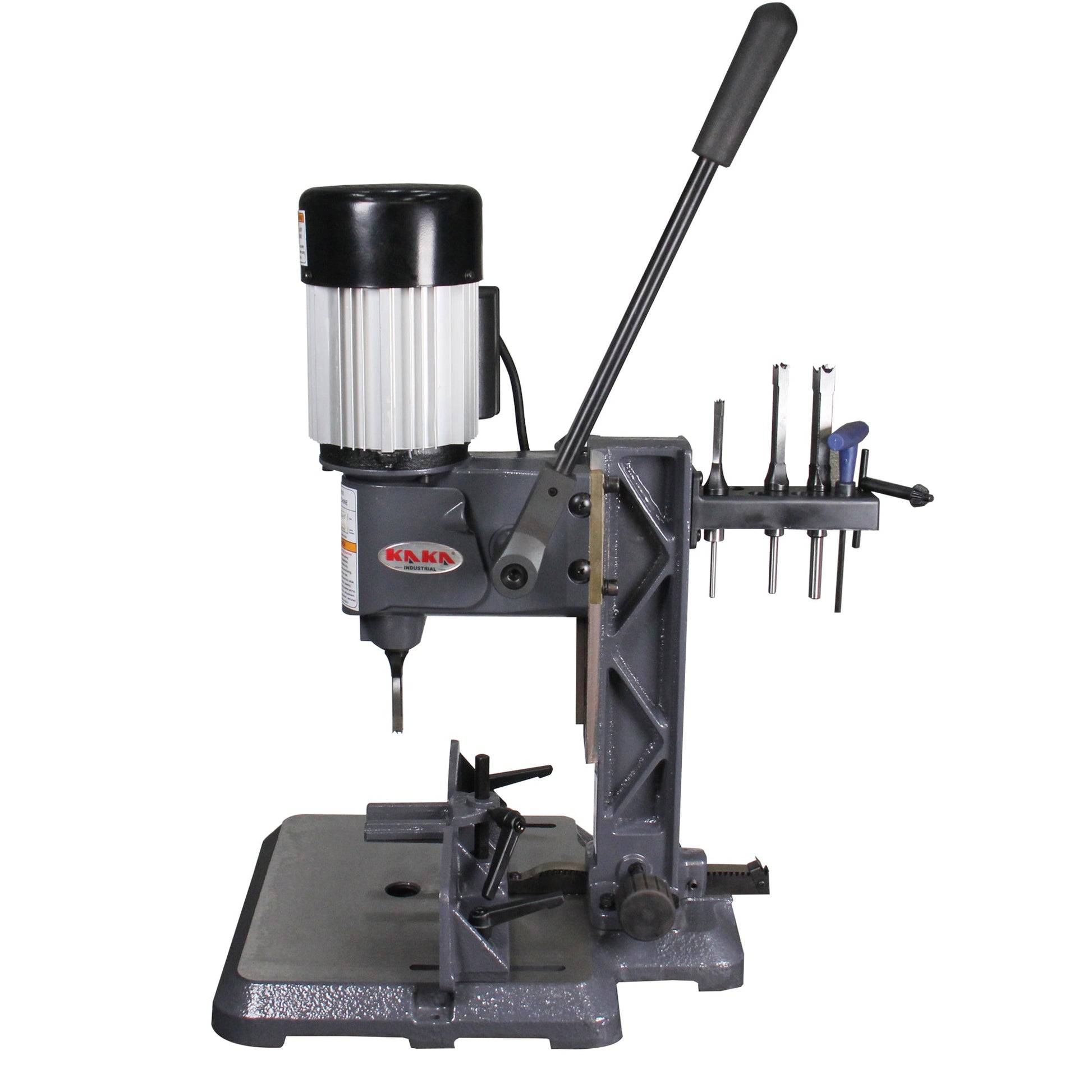

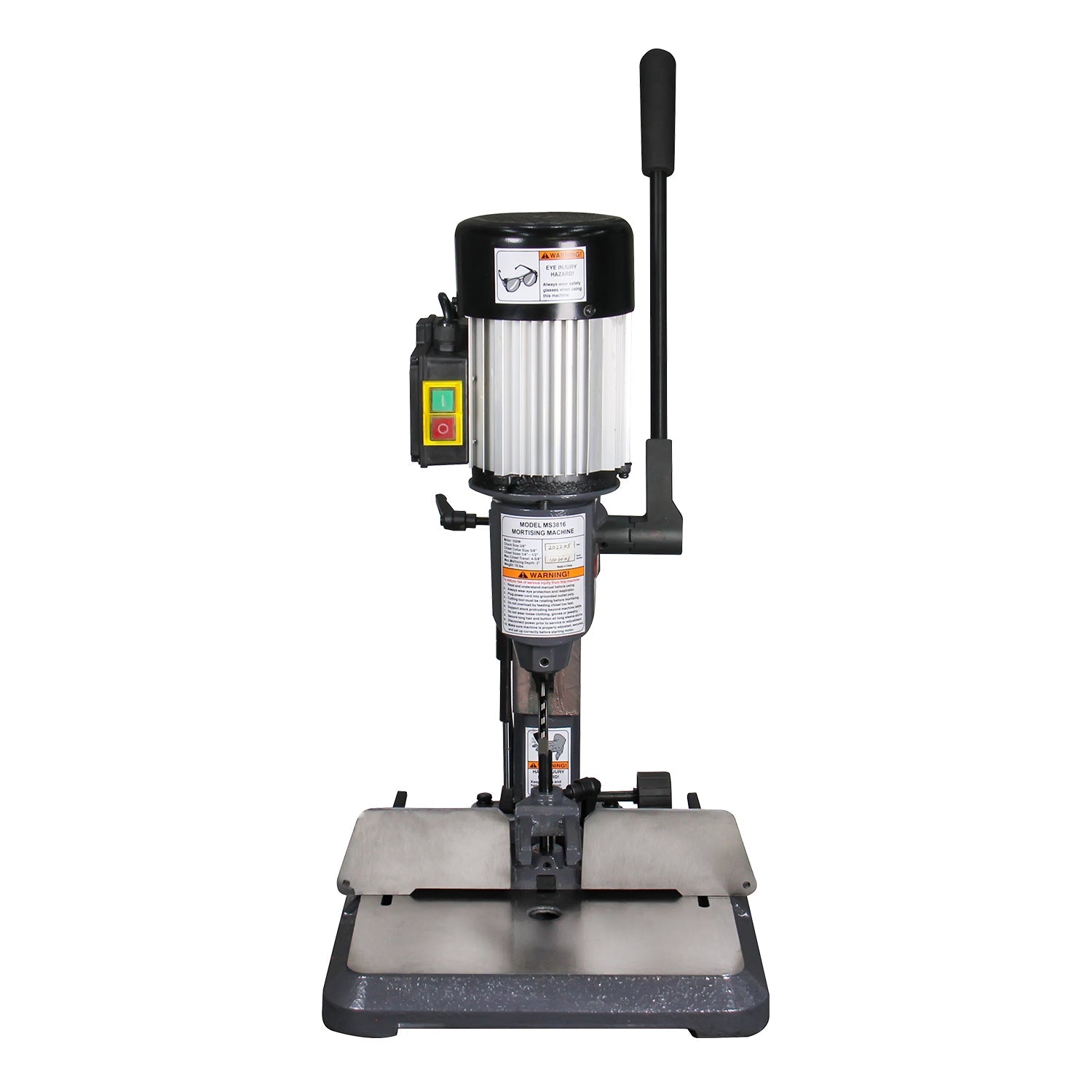

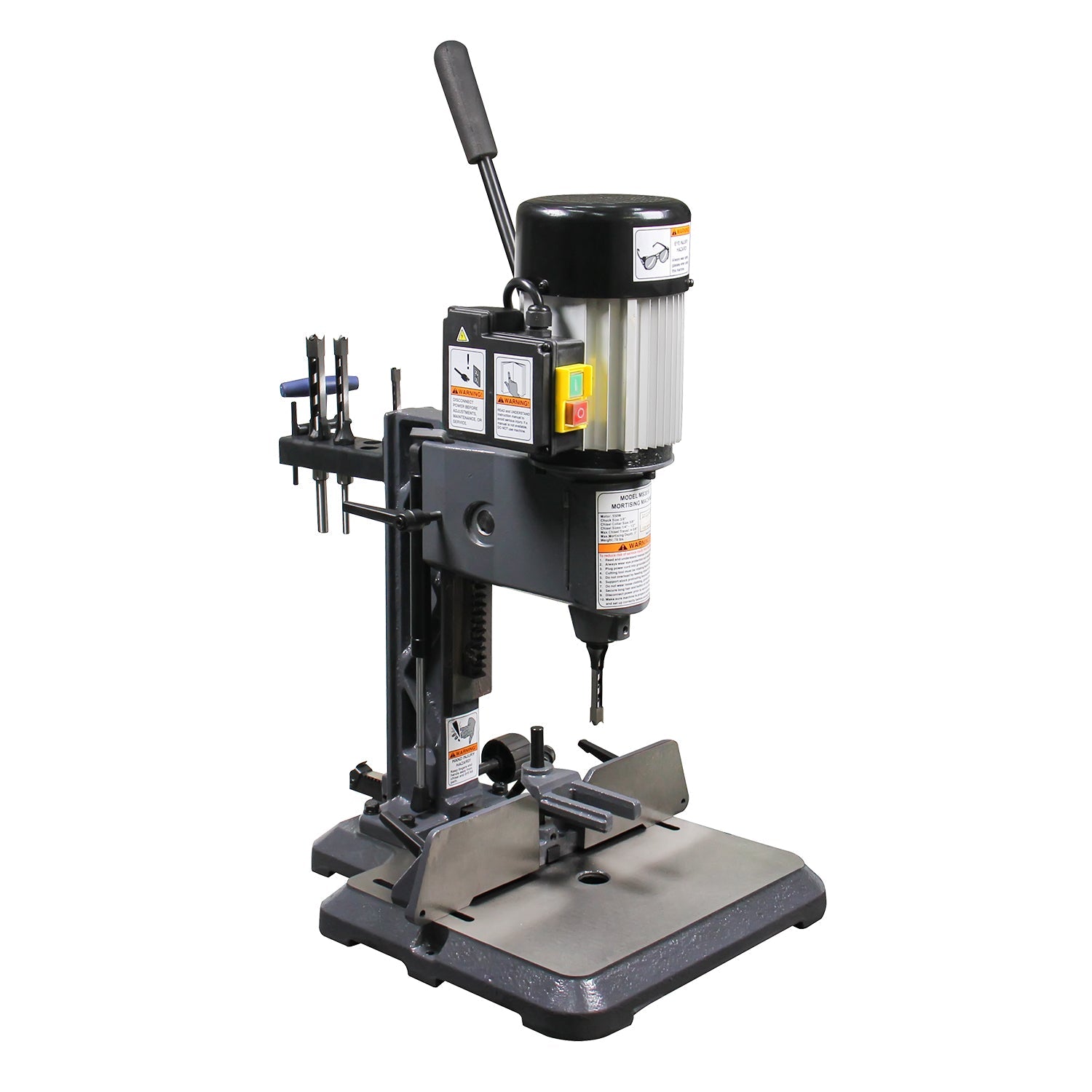

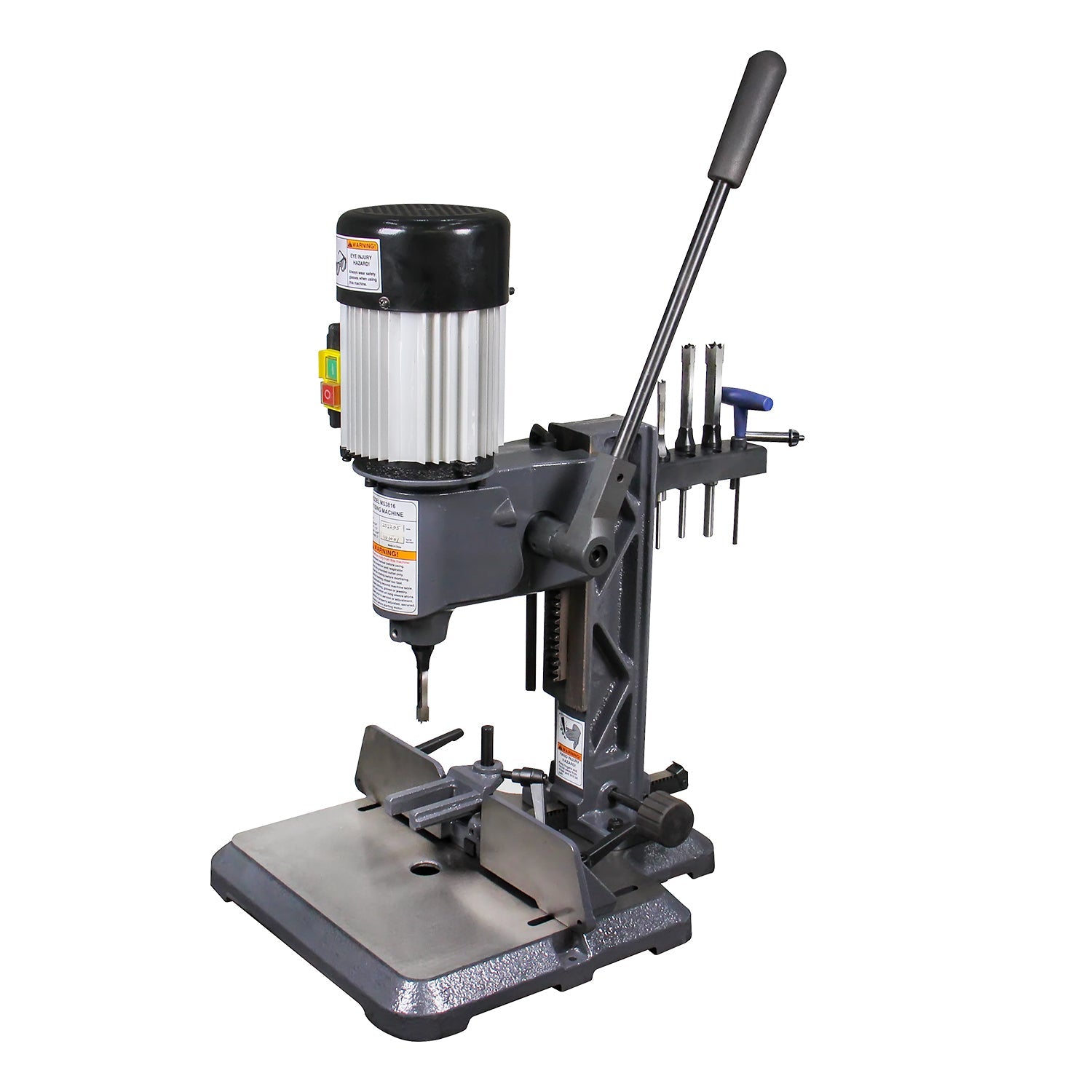

KAKA INDUSTRIAL MS-3816 Wood Mortising Machine
The KAKA MS-3816 is a compact yet powerful benchtop hollow-chisel mortising machine designed for precise mortise-and-tenon joinery in any home workshop or small professional setup. Built with rigid cast-iron construction and a dovetailed column, it delivers clean, square mortises up to 0.5" wide with excellent repeatability.
Precision & Clean Mortises. Rigid cast-iron construction and dovetailed column with adjustable ways ensure rock-solid stability and square, tear-out-free mortises. The rack-and-pinion controls allow smooth, accurate adjustments to the fence and head.
Faster Workflow with Pneumatic Return. The built-in pneumatic strut automatically returns the head after each cut, making repetitive mortising much quicker and less fatiguing, perfect for production work or multiple identical pieces.
Versatile Capacity. Handles stock up to 5.91" thick with the included riser block and 8.50" wide. The large table provides excellent support, and the multi-position handle gives comfortable leverage from either side.

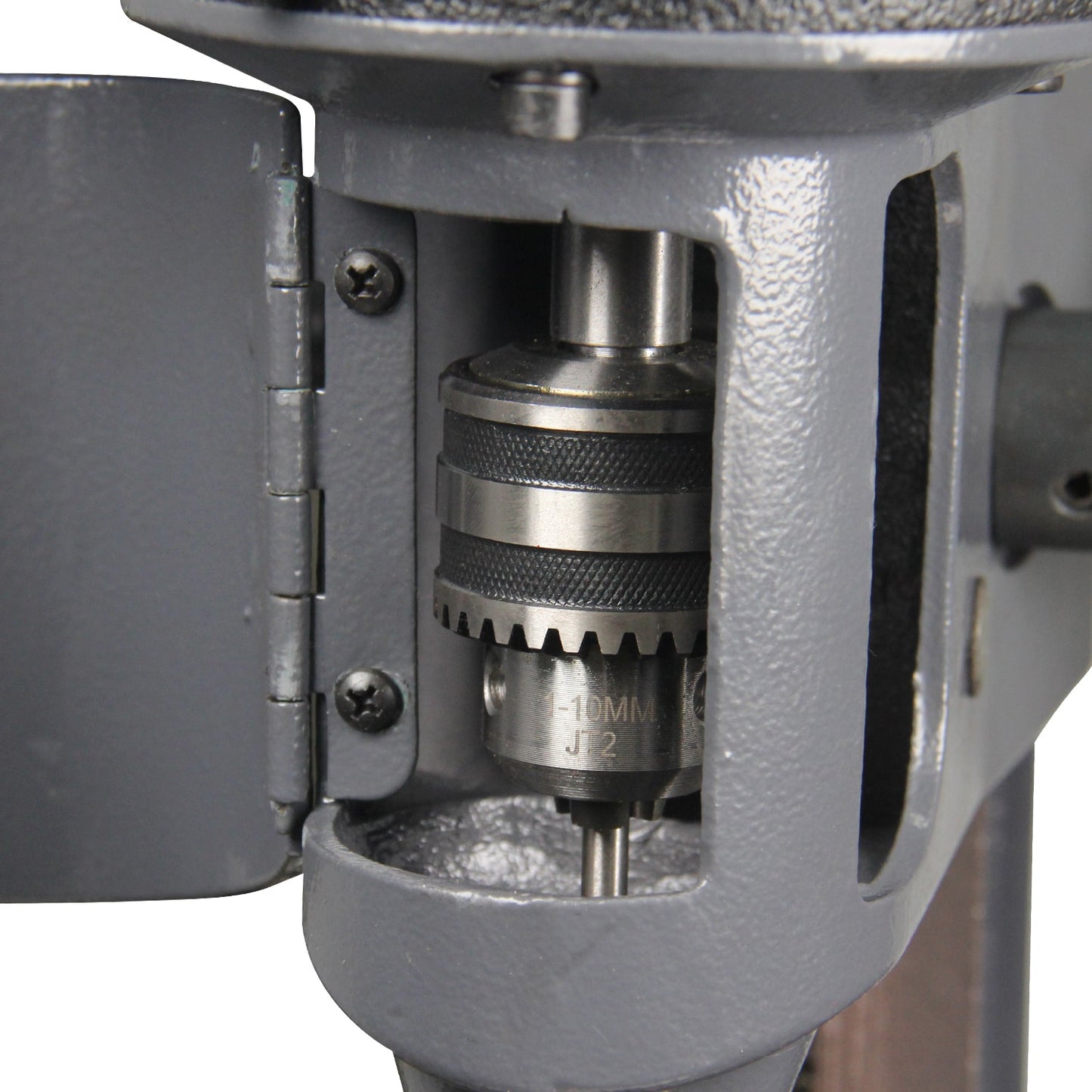

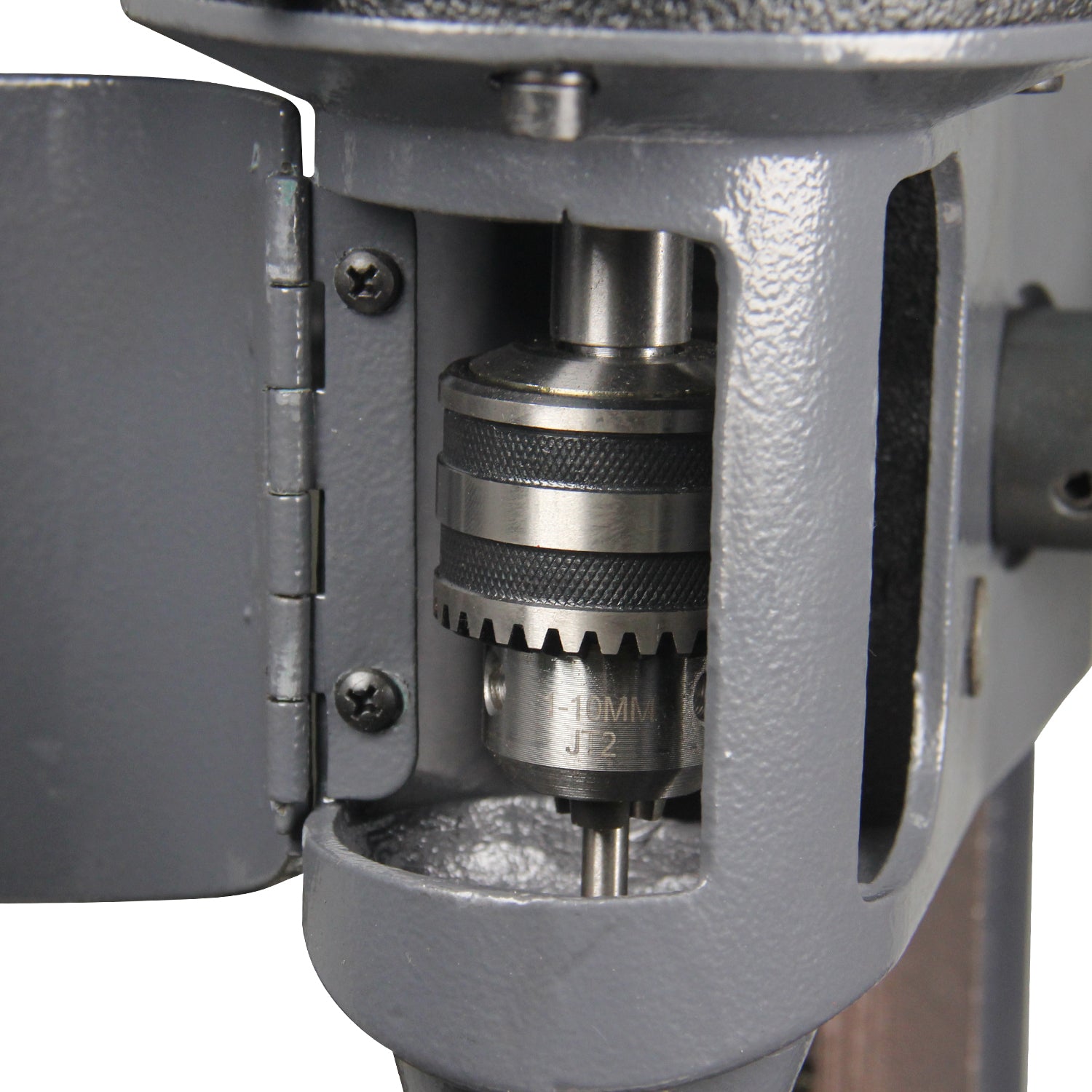

Ready to Use Out of the Box. Comes with four popular-size chisels (1/4", 5/16", 3/8", 1/2") already sharpened and a convenient tool storage rack on the column. Easy-access chuck makes chisel changes fast.
Powerful & Reliable Woodworking Machine. The 1/2 HP motor powers through hardwoods and softwoods without bogging down.
Compact Benchtop Design Mortiser. Takes up minimal space on your workbench while offering features usually found on larger floor models. Great for sheds, garages, or space-limited workshops.
Features

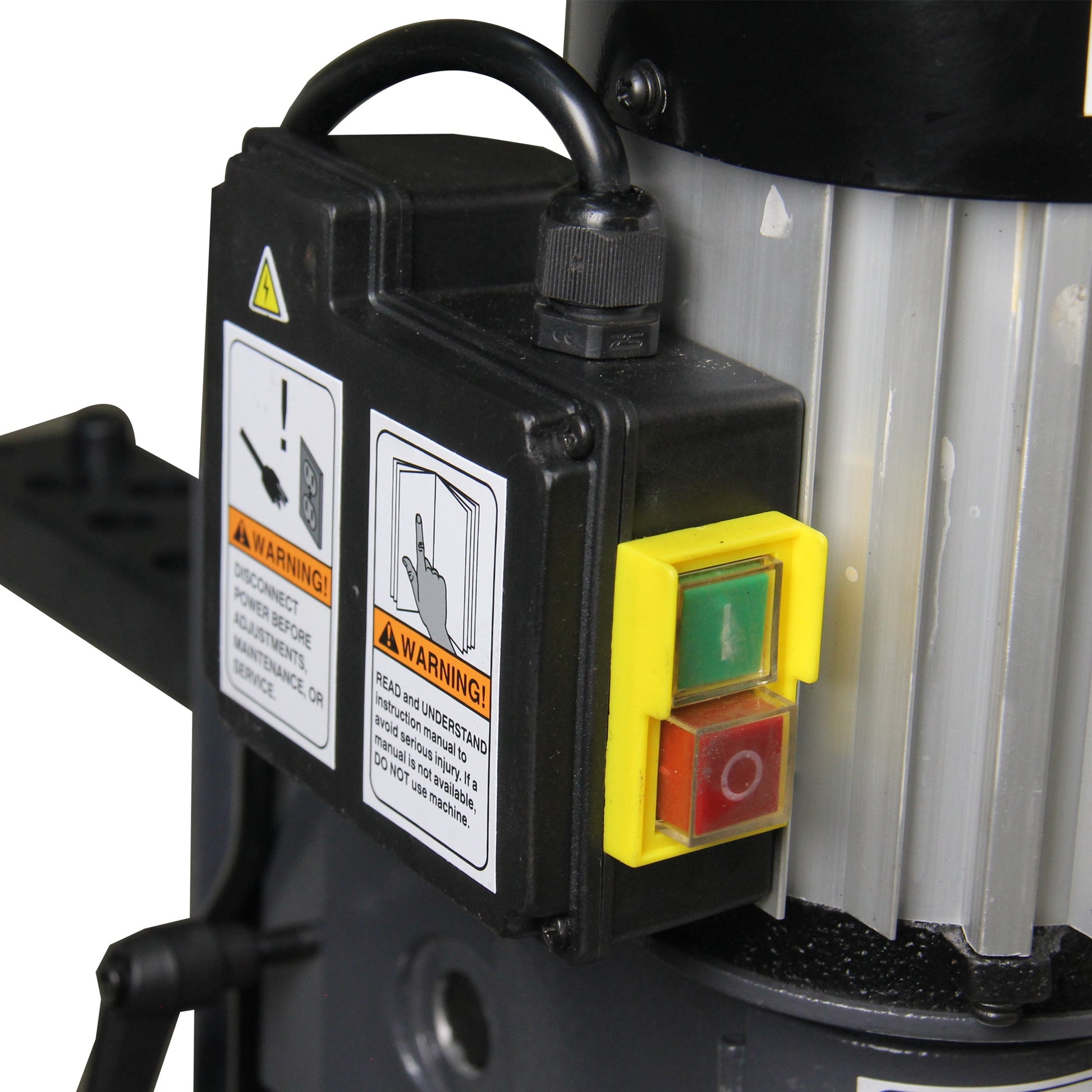

- 1/2HP powerful motor runs on 110V power, suitable for home use

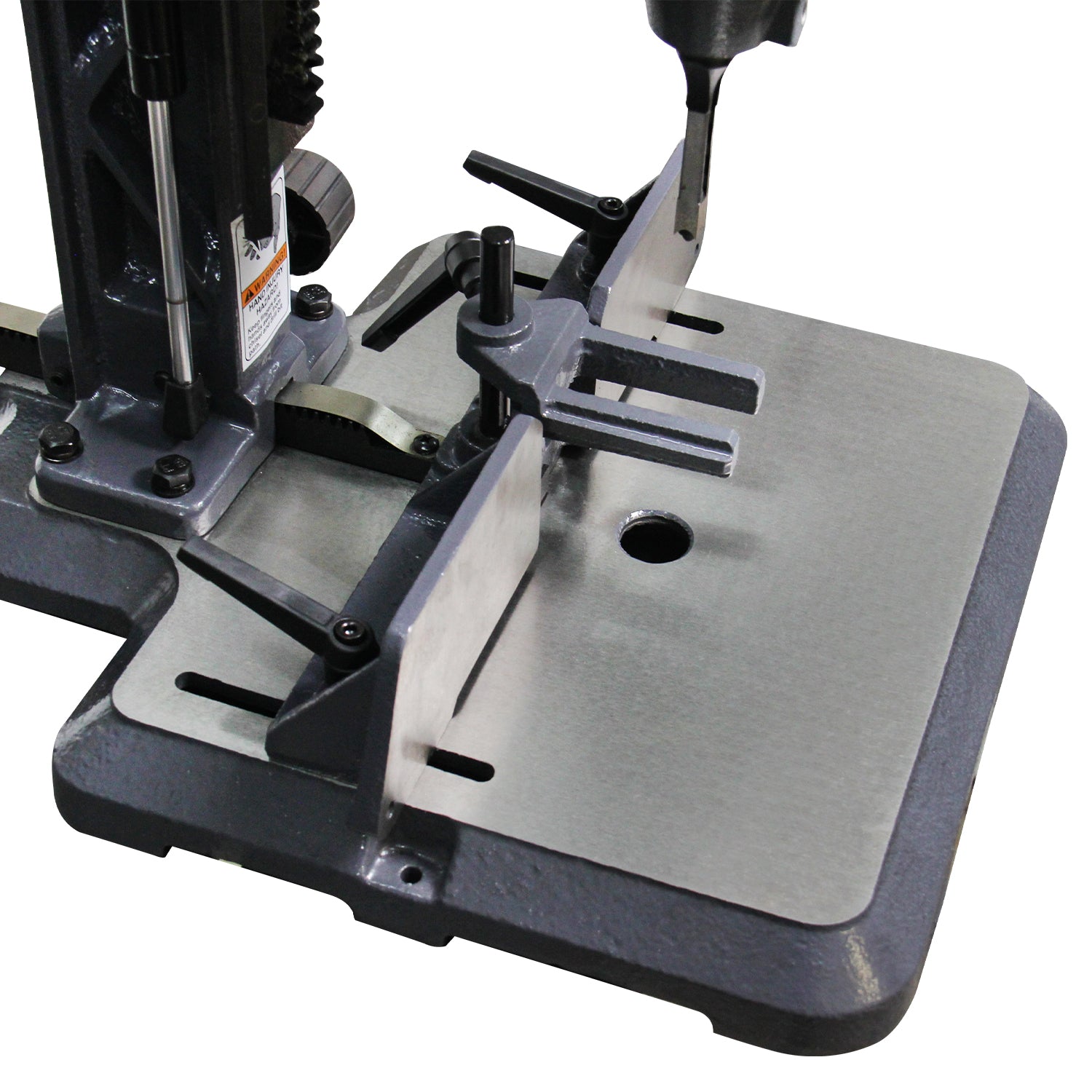

- Quick-action material clamp
- Tool storage rack on the back of the column to put the standard chisels
- The dovetailed column and head move smoothly
- With a riser block for increasing the capacity, 1.75" height
- Adjustable depth stop to get the same mortising depth
- Standard with four chisels : 1/4", 5/16", 3/8" and 1/2"
Specifications
- SKU: 462201
- Model: MS3816
- Motor: 1/2HP, 0.375 kW
- Spindle speed: 1440 rpm
- Spindle Taper: JT #2
- Spindle travel: 3.27"
- Chuck size: 0.39"
- Collar size: 0.63"
- Max. stock width: 8.50"
- Max. stock thickness: 6.02"
- Max. mortising depth: 3.00"
- Max. chisel travel: 4.65"
- Packing size: 26.38" x 9.84" x 13.39"
- N.W./G.W.: 77.16 lbs / 90.39 lbs
