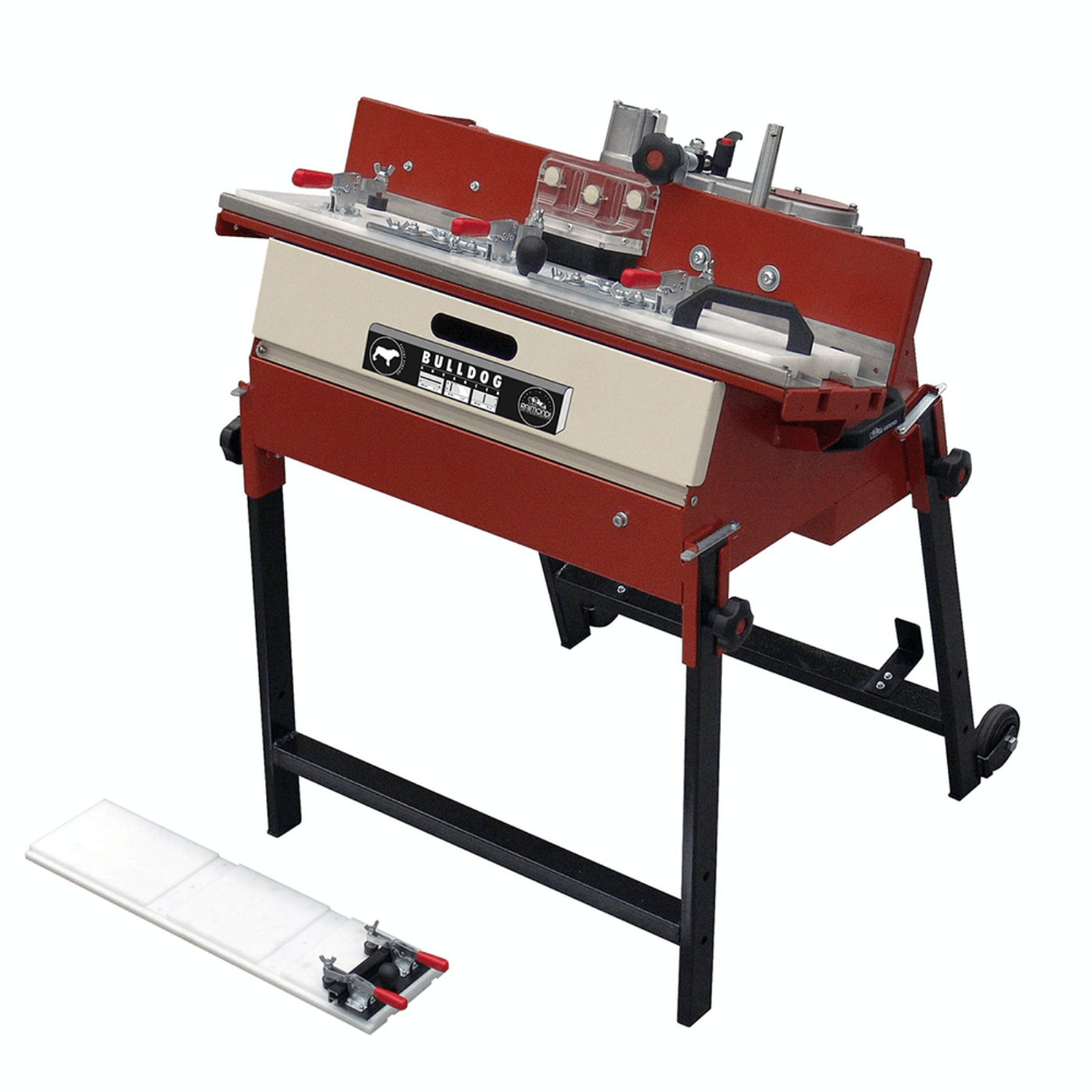

Raimondi Bulldog Advanced Bullnose Machine - BD1WD

Raimondi Bulldog Advanced Bullnose Machine - BD1WD

Raimondi Bulldog Advanced Bullnose Machine will profile a perfect half/full bullnose, 45° bevel (Jolly) or finished flat edge on marble, porcelain tile or natural stone up to 1-3/16" (30 mm) thick. This machine provides a 31-1/2" maximum length of shaping and it's single motor in-line connection supplies 3 levels of finishing for milling, rough finishes and polishing. The single motor BD1WD is equipped with a powerful 1-1/2 hp electric motor that runs up to 3,360 RPM at 110 volts.

Features

• Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
• Powerful single motor application provides 3 levels of finishing
• 31" maximum profiling length
• Can work on materials up to 1-3/16" thick
• Heavy duty water pump will cool down profile wheels
• Telescopic legs equipped with a wheel kit for easy transportation and set up
• Machine has 20 mm arbor and wheel distance is adjustable
• Clamping mechanism and adjustable pressure wheel will not allow material to shift
• Magnetic splash guard keeps water and debris away from the operator
• Includes 31" sliding table, tool kit, dressing stone and operator's manual
• All bullnose wheels are sold separately

Specifications

What our Experts Think

• Pro‑grade edge finishing: Designed for bullnosing, full bullnose, 45° bevel (Jolly) and flat edges on porcelain, ceramic, stone, marble and granite — ideal for professional tile fabricators and contractors.

• Powerful single‑motor system: A 1.5 HP belt‑driven motor delivers three levels of finishing (milling → rough → polished), ensuring smooth, consistent profiles every run.

• Versatile material handling: Works with slabs up to 31‑1/2″ long and 1‑3/16″ thick, making it suitable for most tile and stone edge work.

• Water‑cooled wheel performance: Heavy‑duty water pump keeps diamond profile wheels cool, extending tooling life and improving cut quality.

• Jobsite‑friendly design: Equipped with telescoping legs with wheels, magnetic splash guard, sliding table, tool kit and dressing stone — portable yet rugged for on‑site use.

Q&A

Q: What is this product?
A: The Raimondi Bulldog Advanced Bullnose Machine (BD1WD) is a professional tile edge profiling and finishing machine for creating custom edge profiles on tiles and stone materials.

Q: What edge profiles can it produce?
A: It can create half bullnose, full bullnose, 45° bevel (Jolly), and finished flat edges on porcelain, ceramic, glass, marble, granite and more. .

Q: What’s included with the machine?
A: Includes a 31″ sliding table, tool kit, dressing stone and operator’s manual. Diamond profiling wheels are typically sold separately.

Q: Why choose this bullnose machine?
A: It’s ideal for tile contractors, installers and stone fabricators needing on‑site customization of tile edges with professional‑grade control, finish quality and versatility.

Maintenance Tips

• Clean After Every Use: Rinse and wipe the machine, cutting head, water nozzles and sliding table to remove slurry and debris — prevents buildup that can affect wheel performance and water flow.

• Inspect & Maintain Wheels: check diamond wheels before each job for wear, chipping or glazing and replace as needed to keep edge profiles precise and consistent.

• Water System Care: clean water filters, pump and hoses regularly to ensure steady cooling flow for the wheels and avoid overheating.

• Lubricate Moving Parts: apply the recommended lubricant to guide rails and moving joints to maintain smooth operation and reduce wear.

• Alignment & Fasteners: verify the cutting head and table are properly aligned; tighten all screws and bolts periodically to maintain accuracy and machine stability.

• Electrical & Storage: inspect the power cord and connections for damage before use, and store the machine in a clean, dry place to prevent corrosion and protect electronics.
