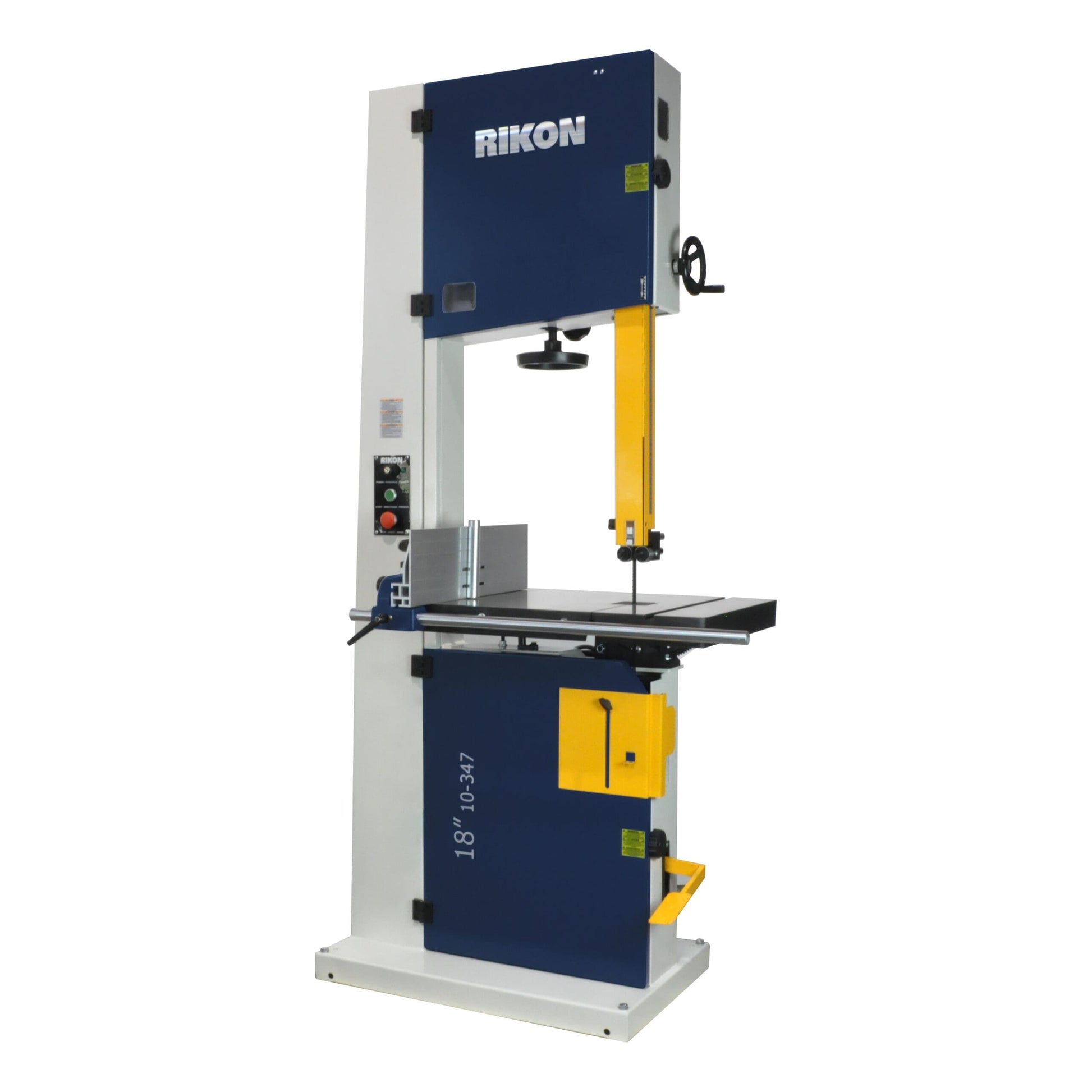

RIKON 18″ Professional Band Saw - 10-347
The 18” Bandsaw #10-347 has one of the most powerful motors in the line, 4HP with 19″ of re-saw capacity, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include patent pending spring loaded tool-less guide system, massive cast iron table with quick adjust trunnion system, substantial quick adjust 6” tall rip fence system, key activated safety on/off switch, micro safety on/off switch activated door & foot brake. Under the top door blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.
Features
-
Patented Spring Loaded Tool-less Guide System.
- Patented Quick Adjust 6″ Tall Rip Fence System.
- Cast Iron Wheels.
-
Quick Adjust Trunnion System.
- oot Brake With Micro-switch.
Specifications
| Motor Horsepower |
4 HP |
| Motor Amps |
16 |
| Motor Volts |
220V, 60Hz, 1Ph |
| Blade Speed |
4,920 FT/MIN |
| Cutting Capacity Height |
19” |
| Cutting Capacity Width |
17-1/2” |
| Blade Width |
1/4” – 1-3/8” |
| Blade Length |
162” |
| Table Size |
25” x 19” |
| Table Left Tilt |
-5° |
| Table Right Tilt |
45° |
| Table Miter Gauge “T” Slot |
(1) 3/4” x 3/8” |
| Table Height to Floor |
33-1/2” |
| Table Fence Size |
18-3/4” x 1-3/4” x 6” |
| Wheel Material |
Cast Iron |
| Blade Guide Type |
Tool-less |
| Table Trunnion |
Cast Iron |
| Overall Height |
84” |
| Overall Width |
39” |
| Overall Depth |
30” |
| Overall Base Size |
29-15/16” x 18-1/8” x 2-7/16” |
| Dust Port |
2@4” |
| Overall Net Weight |
498 lbs. |
What our Experts Think
-
Serious power & resaw capacity: The RIKON 18″ Professional Band Saw – 10‑347 packs a 4 HP motor with 19″ of resaw height, giving professionals and serious woodworkers the muscle to handle thick stock and heavy resaw work with confidence.
-
Precision engineering for smooth cutting: A patented spring‑loaded tool‑less guide system and cast iron wheels/table/trunnion deliver stability, reduce vibration, and help maintain accurate blade tracking for cleaner cuts.
-
Easy adjustments speed workflow: Features like the quick‑adjust tall rip fence, front‑accessible blade tension controls, and foot brake with micro‑switch streamline setup and keep operations safer and more efficient.
-
Large, tilt‑capable table: The spacious 25″ × 19″ cast iron table with ‑5° to 45° tilt and miter gauge slot provides flexibility for angled cuts and complex joinery.
-
Professional build quality & durability: With heavy welded steel construction and a 5‑year warranty, this saw is built for long‑term, demanding shop environments.
-
Shop feedback aligns: Experienced users praise its robust performance and heavy‑duty capabilities, though proper blade setup and tensioning are important for top results.
Q&A
Q: What motor powers the RIKON 10‑347 band saw?
A: It’s equipped with a powerful 4 HP TEFC motor (220 V, 16 A), ideal for heavy re‑saw work and demanding woodworking tasks.
Q: What cutting capacity does this bandsaw offer?
A: The saw delivers a 19″ re‑saw height and a 17‑1/2″ width capacity, allowing it to handle large lumber, panels, and slabs.
Q: What makes the guide and fence systems efficient?
A: It features a patented spring‑loaded tool‑less guide system and a quick adjust 6″ tall rip fence system for fast setup and accurate cuts.
Q: What table and support features does it include?
A: The machine has a 25″ × 19″ cast iron table with tilts from ‑5° to 45°, plus a miter gauge slot and adjustable rip fence for enhanced versatility.
Q: Does it include safety and convenience features?
A: Yes — it includes a key‑activated safety on/off switch, micro‑switch door and foot brake for safer operation.
Q: What blade specs are supported?
A: Supports blade widths from 1/4″ to 1‑3/8″ with a 162″ blade length for flexible cutting performance.
Q: What about dust collection and durability?
A: It includes dual 4″ dust ports for easier dust management and cast iron wheels and robust welded steel frame for long‑lasting performance.
Maintenance Tips
-
Disconnect Power First: Always unplug the saw before cleaning, blade changes, or adjustments.
-
Clean Blade & Wheels Regularly: Remove sawdust and resin from the blade, wheels, and guides after each use to maintain smooth cutting and prevent tracking issues.
-
Check Blade Tension & Tracking: Inspect and adjust blade tension and tracking before each cut to ensure accurate and safe operation.
-
Lubricate Bearings & Guides: Lightly oil wheel bearings and clean blade guides; replace worn guides to reduce friction and extend blade life.
-
Inspect Drive Belt: Check the motor belt for wear or proper tension to maintain consistent speed and avoid slippage.
-
Check Hardware & Safety Features: Ensure all knobs, guards, and fasteners are secure; verify the blade guard and safety switches function correctly.
-
Protect Painted & Metal Surfaces: Wipe down exposed metal parts and apply light machine oil to prevent rust and corrosion.
