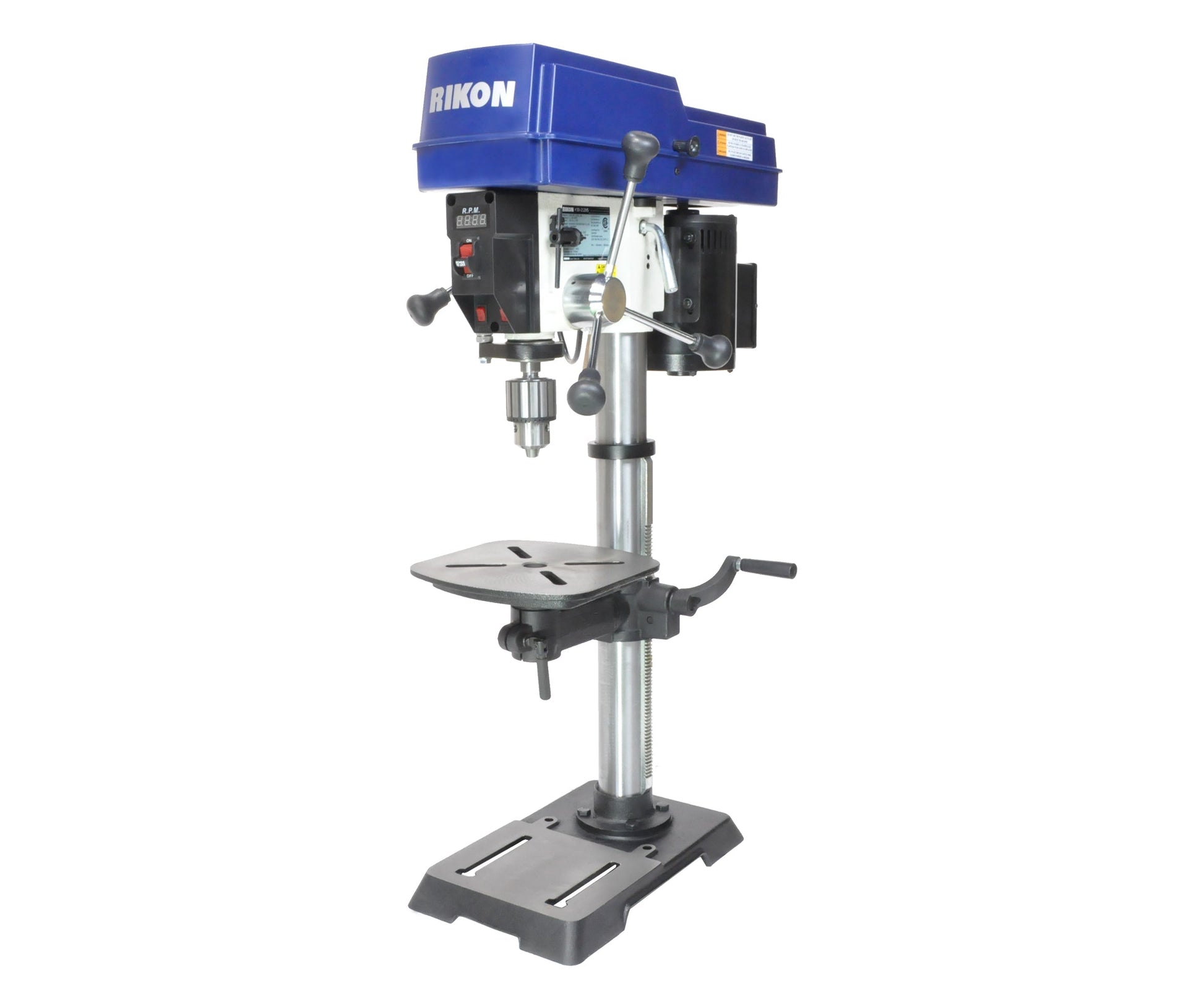

RIKON 12” VS Drill Press - 30-212VS
12” Variable Speed Benchtop Drill Press #30-212VS features a more powerful motor and a Vari-speed pulley system that adjusts to chuck speeds with a simple turning of a lever! Includes digital RPM readout, LED work light, laser X-Y drilling guide, clamp-friendly thin edge woodworking table and a 5/8” chuck.
Features
- Powerful 3/4 HP Motor
- Variable Speeds
- LED Light & Laser X-Y Guides
- LED Digital Display
Specifications
| Motor Horsepower |
3/4 HP |
| Motor Amps |
5 |
| Motor Volts |
120V, 60Hz |
| Motor RPM |
1,130 |
| Swing |
11-13/16” |
| Chuck Size |
5/8” |
| Chuck Taper |
JT3 |
| Drilling Capacity |
1” |
| Spindle Travel |
3-5/32” |
| Spindle Taper |
MT2 |
| Head Rotates |
360° |
| Head Tilts |
- |
| Speeds |
Variable |
| Speed Range (RPM) |
150 – 2,800 |
| Quill Diameter |
1-9/16” (40mm) |
| Table Dimensions |
9-1/2” x 9-1/2” |
| Table Tilts |
90° |
| Table Rotates |
360° |
| Maximum Chuck to Table |
12-3/16” |
| Maximum Chuck to Base |
19-1/2” |
| Column Diameter |
2-9/16” |
| Overall Height |
38-3/16” |
| Overall Base Size |
16-9/64” x 9-7/8” |
| Overall Net Weight |
102.5 lbs. |
What our Experts Think
-
Variable‑Speed Precision Drilling – The RIKON 12″ VS Drill Press (30‑212VS) delivers a true variable speed range (150 – 2,800 RPM) with a simple lever control and digital RPM readout, letting users match speed precisely to material and bit size for cleaner, more accurate holes.
-
Solid Power & Torque – Powered by a 3/4 HP motor, this benchtop unit provides enough torque at low RPM to avoid stalling during tough hardwood drilling while still handling general woodworking and light metal tasks.
-
Enhanced Visibility & Accuracy – Built‑in LED work light and laser X‑Y drilling guides improve alignment and hole placement — helpful when precision counts.
-
Stable Work Surface – A 9‑1/2″ × 9‑1/2″ cast‑iron table that tilts and rotates gives solid support and flexibility for angled drilling and repeatable setups.
-
User‑Friendly Controls – Features like the adjustable depth stop, 5/8″ keyed chuck, and rack‑and‑pinion table height adjustment help make consistent drilling faster and easier.
-
Compact Workshop Fit – Bench‑top design saves space while still handling up to 1″ drilling capacity, making this drill press ideal for small shops, hobbyists, and detailed woodworking.
-
Expert Verdict – A versatile variable‑speed benchtop drill press that blends power, precision, and convenience — perfect for woodworkers and tinkerers who want adjustable speeds without bulky floor machines.
Q&A
Q: What type of drill press is the RIKON 30‑212VS?
A: It’s a 12″ variable‑speed benchtop drill press that delivers bench drill press capability with flexible speed control for woodworking and metalworking.
Q: What motor power and speed range does it offer?
A: It features a 3/4 HP motor with a variable speed range from ~150 to 2,800 RPM, adjusted via a simple lever and variable pulley system.
Q: How do I control the speed?
A: You adjust speeds by shifting the drive belt between pulleys for two ranges (low and high) and fine‑tune with the control arm, with a digital RPM readout for precision.
Q: What sizes of drill bits can it hold?
A: It includes a 5/8″ keyed chuck (JT3) compatible with bits from 1/32″ to 5/8″ diameter.
Q: What features help improve accuracy?
A: Comes with an LED work light, digital RPM display, and laser X‑Y guides for precise hole placement.
Q: How adjustable is the work table?
A: The 9‑1/2″ × 9‑1/2″ cast iron table tilts to 90° and rotates 360°, and the height adjusts smoothly with rack‑and‑pinion.
Q: What’s the drilling capacity and travel?
A: It drills up to 1″ diameter with 3‑5/32″ spindle travel and a swing of about 11‑13/16″.
Q: Who should consider this drill press?
A: Ideal for serious hobbyists, small shops, and makers seeking flexible speed control, accuracy aids, and a mid‑size drill press without taking up floor space
Maintenance Tips
-
Clean Regularly: Clear dust and metal shavings from the table, spindle, and base to prevent buildup that affects precision and operation.
-
Inspect Belts and Pulleys: Periodically check drive belts and pulleys for wear, cracks, or looseness; adjust or replace as needed to maintain proper speed range and performance.
-
Lubricate Moving Parts: Lightly oil the quill, spindle, table adjustments, and column rack for smooth movement and accurate adjustments.
-
Protect Cast‑Iron Surfaces: Apply a thin coat of paste wax to the table and column to prevent rust and ensure workpieces slide easily.
-
Maintain Variable Speed System: Keep the variable speed belt and pulley surfaces clean; avoid oil or debris that can cause slippage.
-
Check Motor Vents: Keep ventilation areas clear of dust to prevent overheating and maintain optimal motor life.
-
Disconnect Power Before Service: Always unplug the drill press before cleaning, adjusting speeds, or performing maintenance.
