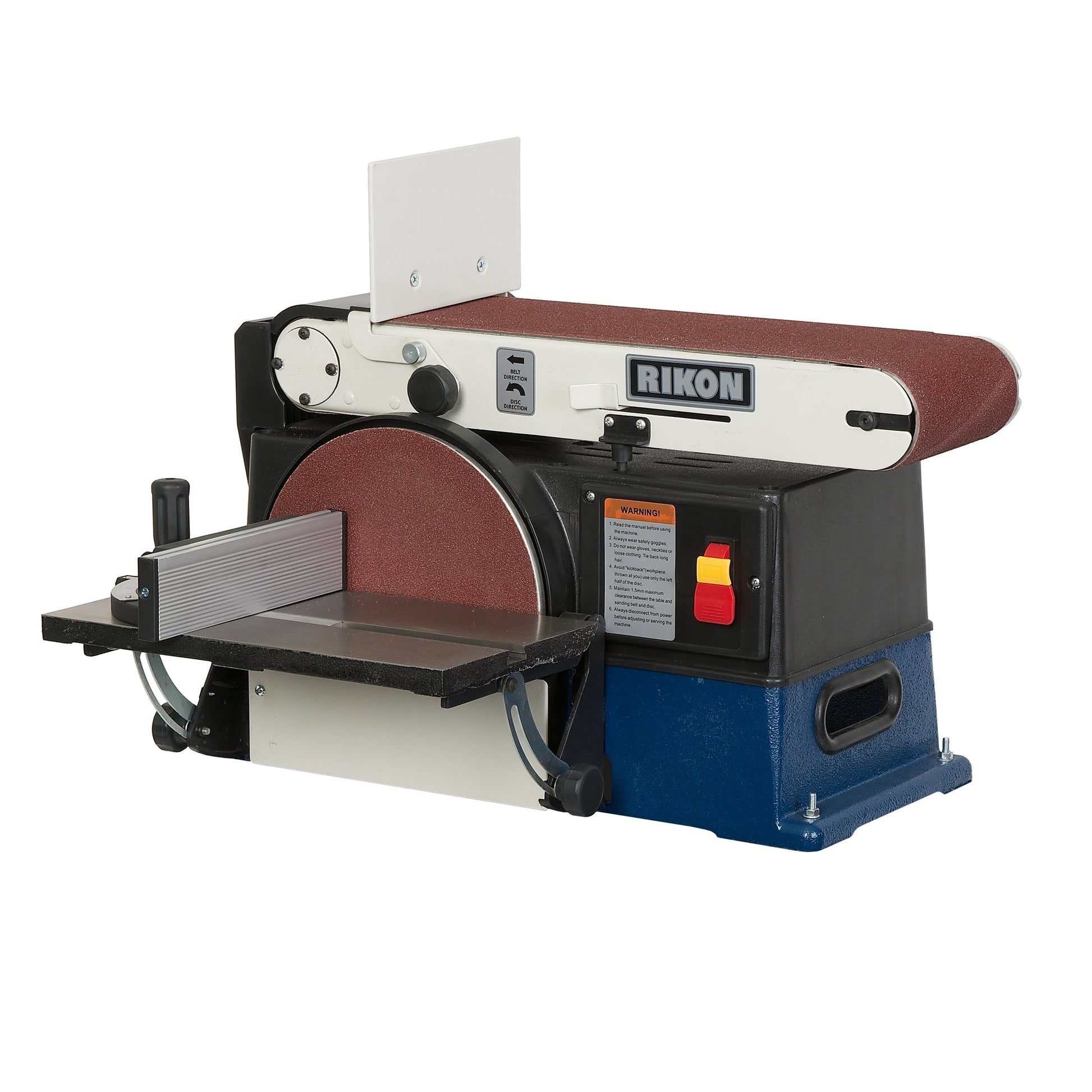

RIKON 6″ X 48″ Belt / 10″ Disc Sander - 50-120
6” x 48” Belt / 10” Disc Sander #50-120 is a large, robust sander, that shines where the majority of sanding would be done on the wide abrasive belt. The belt frame adjusts in any position from horizontal to vertical to meet your sanding needs. The belt’s support fence can be removed for full access to the whole length of the belt, and with the sanding disc positioned below the belt surface, it will not interfere with belt sanding of wide projects that overhang the frame. The large 10” diameter disc is very useful for edge work. Machine features heavy cast iron base, quick release belt lever, cast iron tilting table and miter gauge.
Features
-
Cast Iron Steel Construction.
- Belt Size 6″ x 48″.
- Belt Tilts 0 – 90°.
- 10″ Disc Diameter.
- INCLUDES: Work Support Table, Miter Gauge, Carrying Handles, 1 – 80 Grit Disc and 1 – 60 Grit Belt.
Specifications
| Motor Horsepower |
3/4 HP |
| Motor Amps |
10 |
| Motor Volts |
110V, 60 Hz |
| Body Construction |
Cast Iron |
| Stand Included |
No |
| Disc Table Size |
14” x 7-7/8” |
| Disc Table Tilt |
0° to 45° |
| Disc Table Material |
Cast Iron |
| Miter Gauge |
Included |
| Miter Gauge Slot |
3/4” x 3/8” T-Slot |
| Belt Table Size |
7-7/8” x 4-3/4” |
| Belt Size |
6” x 48” |
| Belt Speed |
2,030 SFPM |
| Belt Tilt |
0° – 90° |
| Disc Diameter |
10” PSA |
| Disc Speed |
1,720 RPM |
| Overall Height |
16” |
| Overall Width |
28-1/4” |
| Overall Depth |
17-1/4” |
| Overall Base Size |
22” x 10-1/4” |
| Dust Ports |
1@2-1/2” |
| Overall Net Weight |
92 lbs. |
What our Experts Think
-
Large sanding capacity for serious work: The RIKON 6″ x 48″ Belt / 10″ Disc Sander – 50-120 combines a wide 6" × 48" belt with a 10" sanding disc, giving users the flexibility to handle everything from large surface sanding to detailed edge work in one machine.
-
Powerful and consistent performance: A 3/4 HP induction motor delivers steady sanding power, making it suitable for demanding woodworking tasks such as shaping, smoothing, and material removal on hardwoods and composites.
-
Horizontal or vertical belt operation: The sanding belt tilts from 0° to 90°, allowing the machine to be used in both horizontal and vertical positions—ideal for sanding edges, faces, or curved pieces with better control.
-
Precision angle sanding: The cast-iron disc table tilts from 0° to 45° and includes a miter gauge, enabling accurate bevels, miters, and repeatable angled sanding for joinery and finishing work.
-
Heavy-duty stability: Built with a solid cast-iron base and steel frame, the machine minimizes vibration, improving sanding accuracy and delivering a smoother finish on projects.
-
Efficient workflow features: A quick-release belt tension lever, removable belt support fence, and accessible belt tracking system make belt changes and adjustments fast and convenient during busy shop work.
Q&A
Q: What materials can the RIKON 50-120 sander handle?
A: It is designed for sanding wood, plastics, and non-ferrous metals, making it ideal for woodworking, furniture building, and fabrication projects.
Q: What sanding sizes does this machine support?
A: The machine features a 6″ × 48″ sanding belt and a 10″ sanding disc, allowing both surface sanding and precision edge work.
Q: Can the sanding belt be used vertically and horizontally?
A: Yes. The belt assembly tilts from 0° to 90°, enabling horizontal or vertical sanding depending on the project.
Q: What motor powers the RIKON 50-120?
A: It is equipped with a 3/4 HP, 110V induction motor, providing consistent power for heavy sanding tasks.
Q: Does the disc table support angled sanding?
A: Yes. The cast-iron disc table tilts from 0° to 45°, allowing accurate bevel and miter sanding.
Q: What features improve accuracy and ease of use?
A: The sander includes a miter gauge, adjustable work tables, and a quick-release belt tension lever for fast belt changes and precise sanding control.
Q: Is the machine built for durability?
A: Yes. It features a heavy cast-iron base and steel construction, reducing vibration and improving stability during operation.
Q: Does it support dust collection?
A: Yes. The sander includes a 2-1/2″ dust port for connecting a dust collection system and keeping the workspace cleaner.
Q: What accessories come with the RIKON 50-120?
A: It includes a work support table, miter gauge, sanding belt, PSA sanding disc, and carrying handles for convenient setup and operation.
Maintenance Tips
-
Disconnect Power Before Maintenance: Always unplug the sander before adjusting, cleaning, or servicing to prevent accidents.
-
Remove Dust & Debris Frequently: Use compressed air or a vacuum to clear sanding dust from the motor housing, belt area, and disc to maintain airflow and performance.
-
Protect the Work Table: Apply a light coat of paste wax to the cast-iron table to reduce rust and allow smoother material feeding.
-
Check Belt Tracking & Tension: Inspect sanding belt alignment regularly and adjust tracking knobs to keep the belt centered for accurate sanding.
-
Inspect Drive Belt Condition: Ensure the internal motor belt has proper tension (about ¼″ deflection) to avoid slipping, excess noise, or motor strain.
-
Replace Worn Abrasives Promptly: Change sanding belts and PSA discs when they become clogged or worn to maintain efficient sanding and surface quality.
-
Check Power Cord & Hardware: Inspect the power cord, fasteners, and guards regularly; repair or tighten any damaged components immediately.
