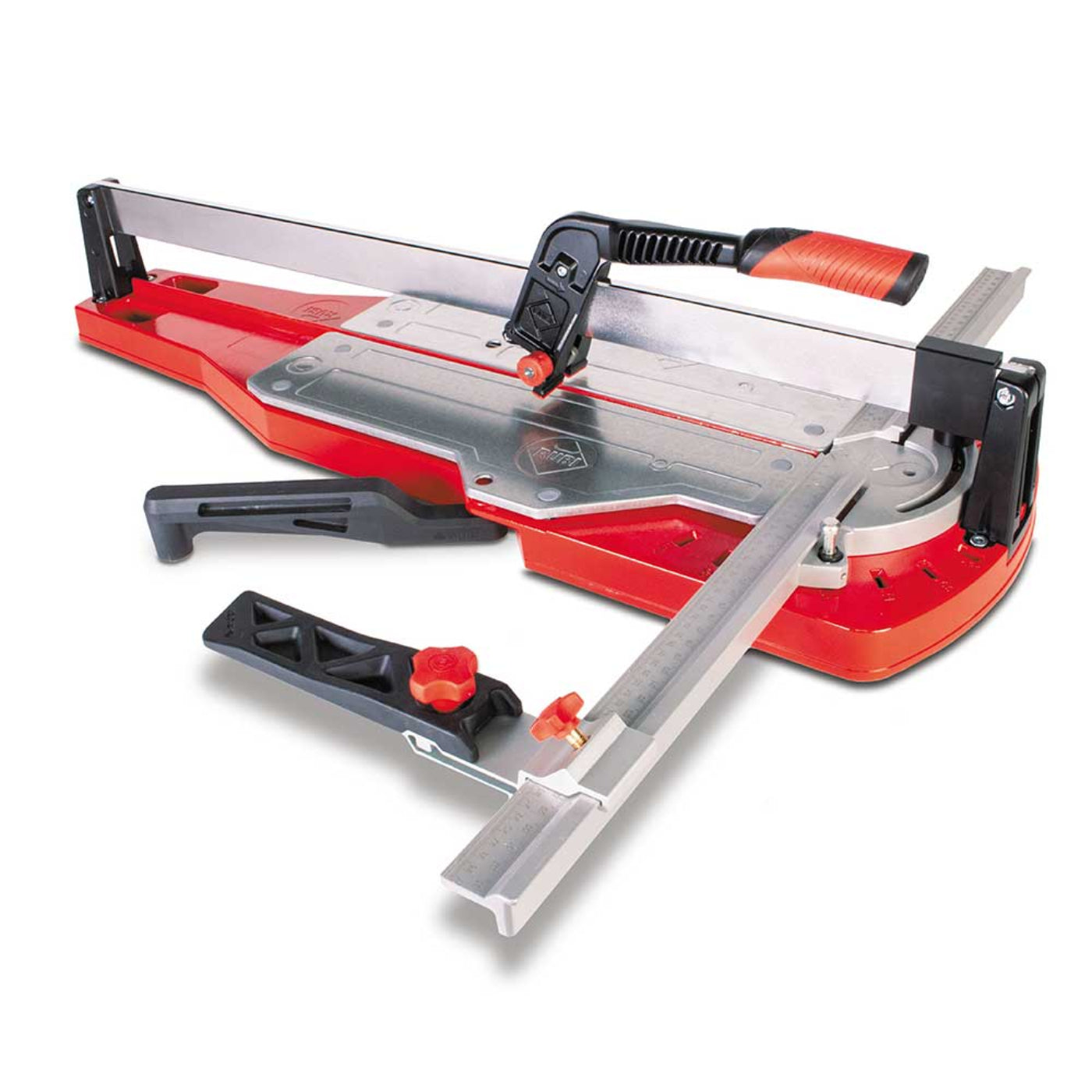

Rubi Tools TP-T Series Pull Handle Tile Cutters - 12917
Features
- Available in 3 sizes - TP-66 T (26" rip cut), TP-75 T (29-1/2" rip cut) and TP-108 T (40-3/16" rip cut)
- Single-guide, with multipoint breaker and rotating square
- Separator set with height adjustment, optimum separation for each thickness
- Swivel bracket with central pivot for fast and accurate measurement of angular cuts
- Long-lasting laser engraved square
- Reinforced pressure pad and 12 mm reinforced guide for greater bending resistance and increased precision
- 2,205 lb breaking force
- Lateral end stop for making repetitive precision cuts
- Two-layer base with shock absorbing effect with base extension for large sizes
- Carrying handle equipped on models TP-66-T and TP-75-T
- Assembly designed to be used by pulling the handle
- RUBIFLEX bi-material handle is ergonomic with heavy duty construction
- Cut thickness adjustment system with 3 settings (6-9 mm/9-12 mm/12-20 mm), fast and precise
-
Includes: Ø22 mm EXTREME scoring wheel for ceramic tiles with rough or structured surfaces
What our Experts Think
-
Professional pull-handle cutting system - Designed for intensive cutting of ceramic and porcelain tiles, delivering clean and consistent score-and-snap performance.
-
High breaking power for tough materials - Up to ~2200 lb (1000 kg) breaking force, ensuring reliable separation even on hard porcelain tiles.
-
Precision single-guide rail design - Reinforced guide system provides excellent stability and reduced flex, improving straight-line cutting accuracy.
-
Ergonomic pull-action operation - Built for smooth, controlled scoring with reduced effort, improving speed and comfort on repetitive cuts.
-
Adjustable cutting thickness system - Multi-setting adjustment allows optimized scoring depth for different tile thicknesses (approx. 6–20 mm range).
-
Built for repetitive professional use - Includes lateral stop and angular measurement system for fast repeat cuts and consistent jobsite productivity.
-
Durable jobsite construction - Reinforced aluminum base with shock-absorbing structure ensures long-term durability and stability under heavy use.
Q&A
Q: What is the Rubi TP-T Series used for?
A: It is a professional manual tile cutter designed for intensive cutting of ceramic and porcelain tiles with high precision and speed.
Q: What makes the pull-handle system different?
A: The ergonomic pull-handle design improves control, reduces effort, and increases cutting accuracy compared to traditional push cutters.
Q: What tile types can it cut?
A: Suitable for ceramic, porcelain (BIa), and hard-bodied tiles commonly used in floor and wall installations.
Q: What cutting capacity does it offer?
A: Model 12917 (TP-66-T) supports up to ~66 cm (26") straight cuts and diagonal cuts for medium-format tiles.
Q: How strong is the breaking system?
A: It features a high-power separator (around 1000 kg / 2200+ lbs force) for clean snapping of thick porcelain tiles.
Q: Does it support thick tiles?
A: Yes, it handles tile thickness roughly from 6 mm up to about 20 mm depending on material type.
Q: What features improve accuracy?
A: Includes a central pivot square for angle cuts, lateral stop for repeat cuts, and a reinforced guide system for stability.
Q: Is it suitable for job site use?
A: Yes, it is built with a reinforced aluminum base and impact-resistant guide for durability in professional environments.
Maintenance Tips
-
Keep base clean: Remove ceramic dust and glaze residue after each use to maintain smooth tile sliding and accurate scoring.
-
No lubrication needed: The guide system is designed to run dry—avoid grease or oil, which attracts abrasive dust and reduces performance.
-
Clean scoring wheel regularly: Wipe the carbide wheel to prevent buildup that can affect cutting precision.
-
Inspect breaker system: Check the pressure foot and breaking mechanism for wear and ensure smooth, even tile separation.
-
Tighten alignment components: Regularly verify the square guide, pivot system, and lateral stop for accurate repeat cuts.
-
Check handle & rails: Ensure the pull handle and single guide rail remain firm, with no looseness or play during operation.
-
Dry storage: Store in a dry area to prevent corrosion on metal parts and preserve calibration accuracy.
