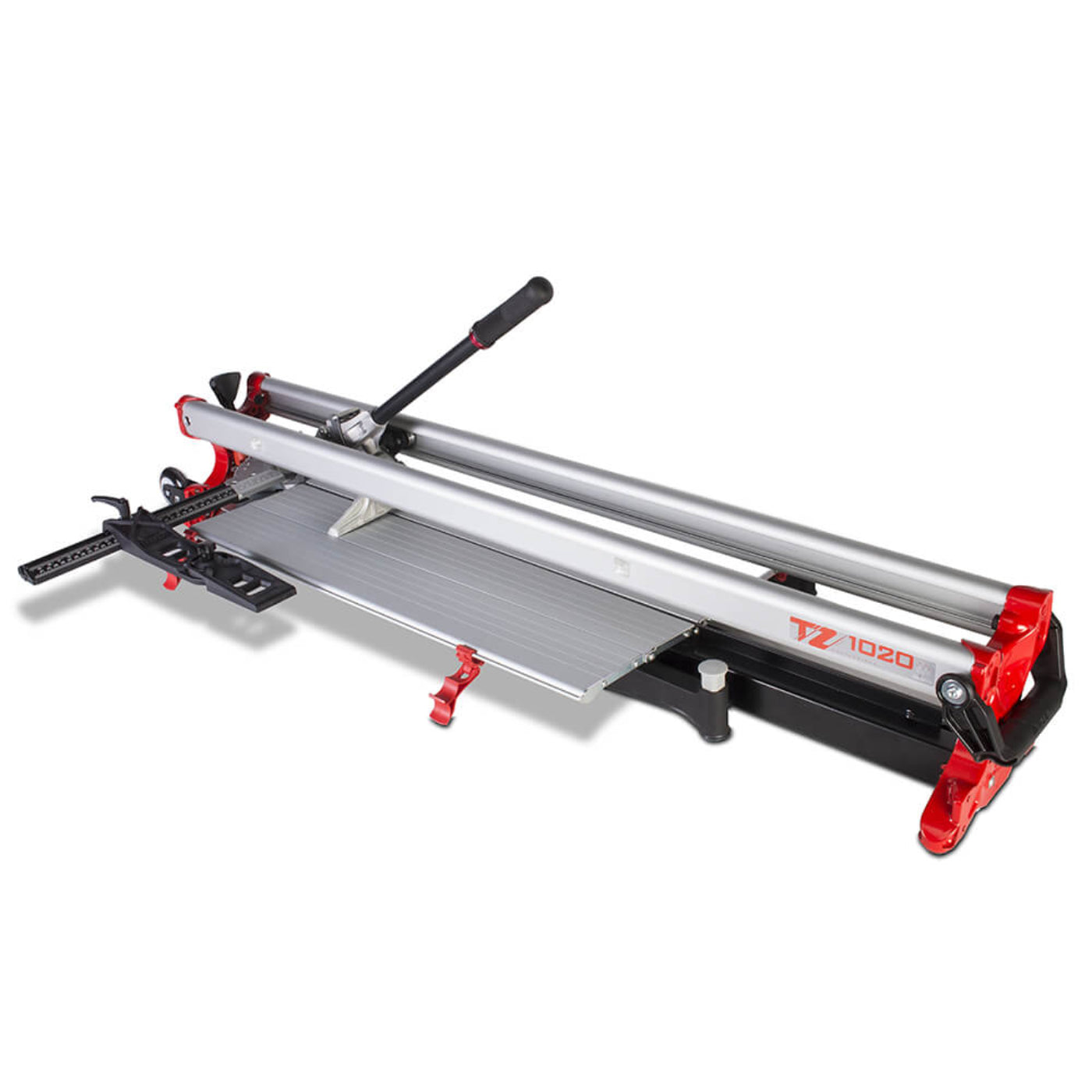

Rubi Tools TZ Heavy Duty Tile Cutters - 17956

Rubi Tools TZ Heavy Duty Tile Cutters - 17956

Rubi TZ tile cutters have a smooth dual rail system and a powerful breaking head for up to 3,307 lb breaking power that can handle thicker ceramic and porcelain tile. Despite the robust structure, the TZ tile cutters can be folded up, easily transported in a secure carrying bag with a rubber wheel kit. Choose from different size scoring wheels to properly score and snap a variety of ceramic and porcelain tile.

Features

• Available in 5 sizes - TZ-850 (33" rip cut), TZ-1020 (40" rip cut), TZ-1300 (51" rip cut), TZ-1550 (61" rip cut) and TZ-1800 (71" rip cut)
• For cutting 1/4" - 53/64" thick porcelain or ceramic tile (thicker tile increases chance of chipping)
• 3,307 lb of breaking power for thick materials
• Large tile cutter can fold up in to the carrying case for safe transportation
• Smooth dual rail, cutting head movement
• Breaking system works with just one hand
• Adjustable lateral stop for repetitive cuts
• Swivel bracket equipped with a central pivot for angular cuts
• Includes a reinforced soft carrying case, 8 mm and 18 mm scoring wheels

What our Experts Think

• Maximum breaking power in its class
  Delivering up to 1500 kg (~3300 lbs) of breaking force, the TZ series is built to snap thick, dense porcelain tiles with ease—making it one of the most powerful manual cutters available.
• Designed for large-format tile dominance
  Handles tiles up to ~21 mm thick and large formats confidently—ideal for modern installations where oversized porcelain is standard.
• Professional-grade precision under pressure
  The advanced guide system and smooth head movement ensure accurate scoring even when applying high breaking force—reducing chipping and rework.
• One-hand breaking = faster workflow
  Its patented breaker mechanism allows single-handed operation, improving efficiency and control on job sites.
• Engineered for heavy-duty site conditions
  A robust, foldable chassis with dual rail system offers stability during cuts while remaining portable for transport between jobs.
• Built for repetitive and angled cuts
  Features like adjustable lateral stops and swivel square make it ideal for consistent, repeatable, and angled cutting tasks.
• Expert insight
  This is not an entry-level cutter—its power and size are best suited for professional tilers working with demanding materials and large-scale projects.

Q&A

Q1: What is the Rubi TZ 17956 tile cutter designed for?
A: The Rubi TZ 17956 is a heavy-duty professional tile cutter built for intensive cutting of porcelain, ceramic, and large-format tiles.

Q2: What cutting capacity does the TZ 17956 offer?
A: It provides up to 33" straight cuts and 24" diagonal cuts, ideal for medium-to-large tiles.

Q3: How powerful is the breaking system?
A: It delivers up to 3,300 lbs (1500 kg) of breaking force, making it one of the most powerful manual tile cutters available.

Q4: What tile thickness can it handle?
A: The TZ series cuts tiles from approximately 3 mm to 21 mm thick, suitable for dense porcelain and pavers.

Q5: Is the Rubi TZ 17956 suitable for large-format tiles?
A: Yes, it is specifically engineered for large-format tile cutting, offering stability and precision for demanding installations.

Q6: What makes this tile cutter precise?
A: It features a smooth dual-rail guide system and precision scoring head, ensuring accurate, clean cuts even under high pressure.

Q7: Is it easy to operate?
A: Yes, the one-hand operated breaking mechanism and ergonomic design improve efficiency and reduce fatigue during repetitive work.

Q8: Does it support angled and repetitive cuts?
A: Yes, it includes a swivel square with central pivot and adjustable lateral stop for fast, accurate angle and repeat cuts.

Maintenance Tips

• Clean dual rails after every use: Remove dust and porcelain debris to maintain smooth sliding and cutting accuracy—build-up can affect precision.
• Avoid heavy lubrication: TZ cutters are designed for smooth movement; excess oil attracts abrasive particles and reduces performance.
• Inspect scoring wheel regularly: Replace worn wheels (8mm, 18mm, etc.) to ensure clean scoring on porcelain and ceramic tiles.
• Check alignment & breaker mechanism: The high-pressure breaking system (≈3300 lb force) must stay properly aligned for straight, chip-free cuts.
• Wipe and dry after light oiling (if needed): Use minimal oil on rails, then wipe completely dry to prevent dust adhesion.
• Store in carrying case: Protect the foldable structure and guide system from impacts during transport.
• Tighten components periodically: Ensure handles, guides, and lateral stops stay secure for consistent professional results.
• Routine weekly maintenance: Regular inspection and cleaning extend lifespan and preserve cutting power, precision, and durability—key factors for heavy-duty tile cutter performance.
