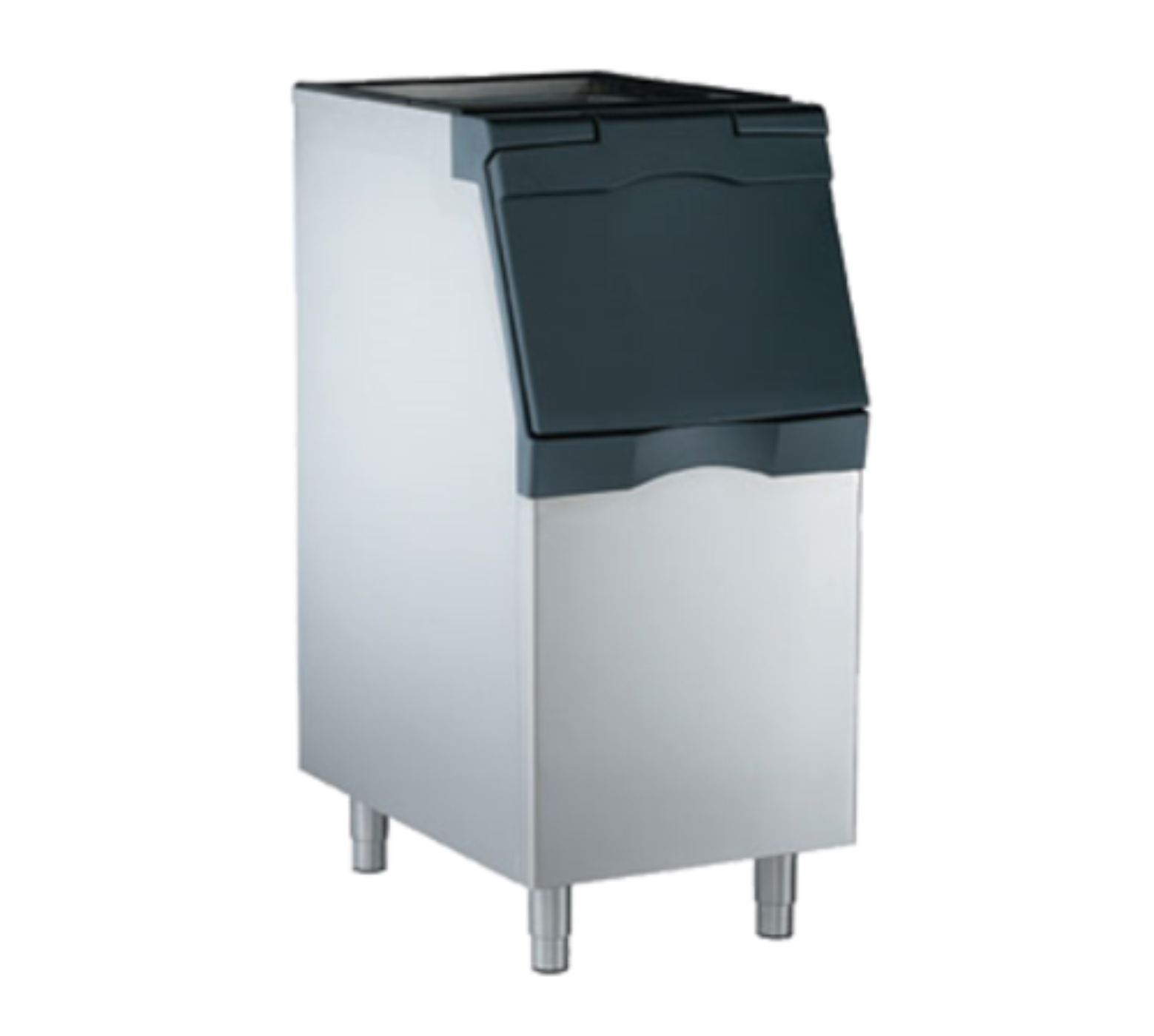

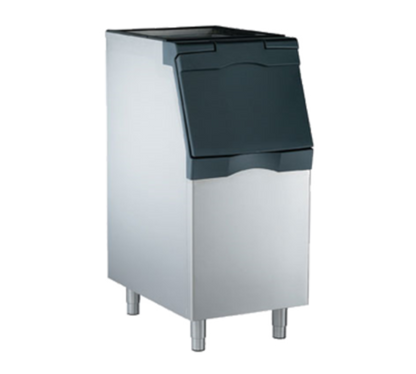

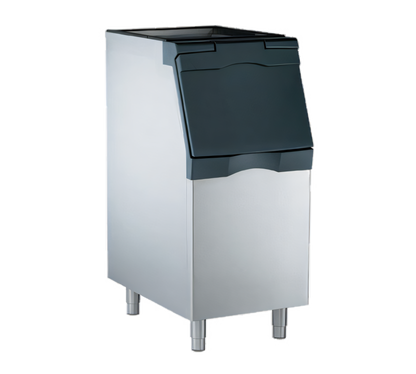

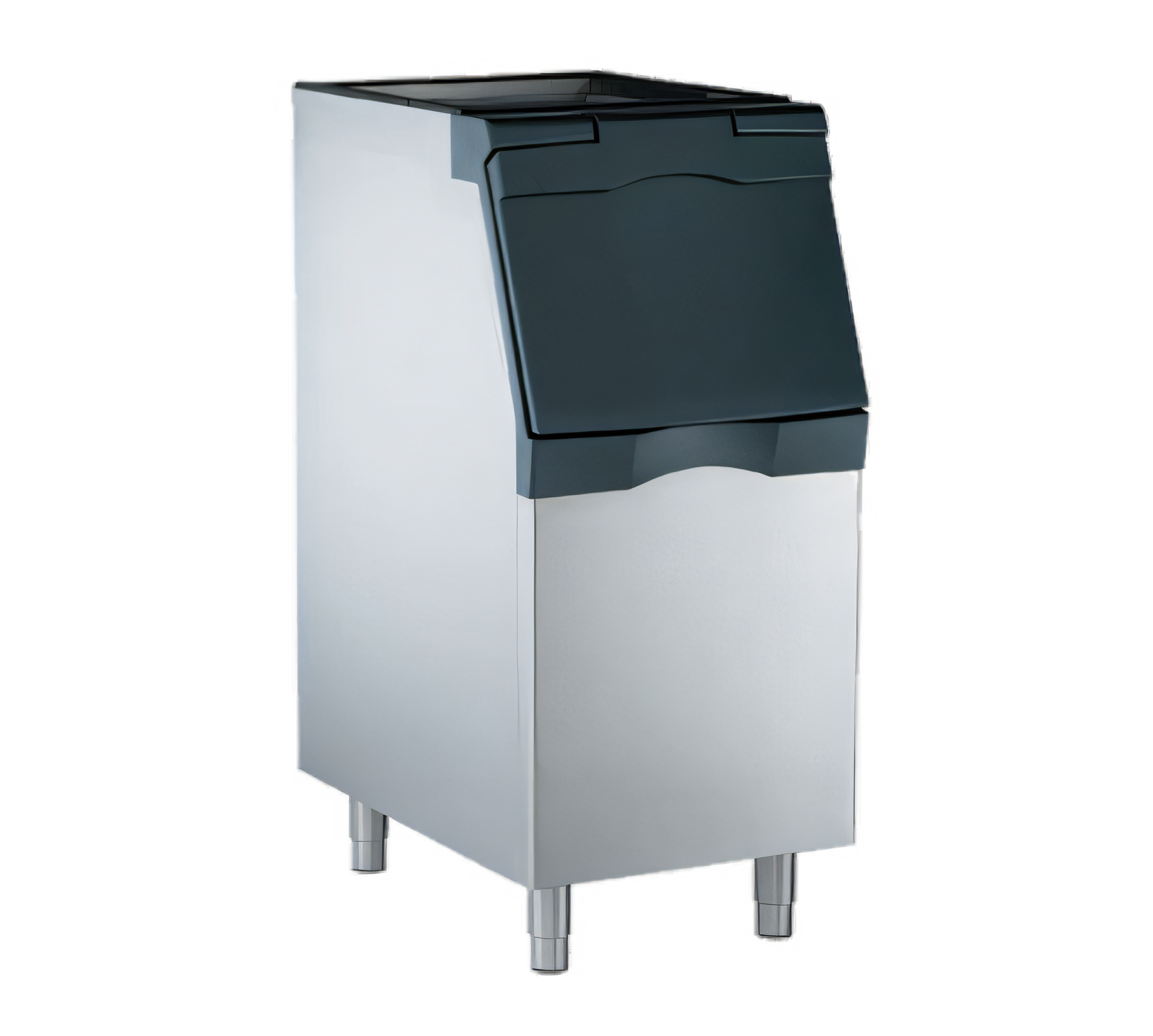

Scotsman B322S Ice Machine Bins
Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, 22" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF |
| Height |
50.0 in |
| Width |
22.0 in |
| Depth |
34.0 in |
| Shipping Weight |
140.0 lbs |
| Width (side - side) |
20" - 29" wide |
| Interior Finish |
Plastic |
| Exterior Finish |
All stainless steel exterior |
| Style |
Top hinged front door(s) |
| Capacity |
250 - 455 lb |
| Specifications |
Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, 22" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High-Capacity Storage: Holds up to 370 lbs of ice—perfect for restaurants, hospitals, and high-volume operations.
-
Durable Exterior: Stainless steel finish resists corrosion and wear, ideal for busy commercial environments.
-
Superior Insulation: Foamed-in-place polyurethane insulation keeps ice colder for longer, reducing waste.
-
Hygienic Interior: Polyethylene liner with antimicrobial protection helps maintain sanitation with easy cleaning.
-
Easy Access & Cleaning: Spring-loaded front-opening door and tool-free removable baffle streamline maintenance.
-
Flexible Installation: Recessed drain and adjustable legs make setup simple in a variety of layouts.
-
Built-In Scoop Holder: Keeps the scoop off the ice and within easy reach—enhancing hygiene and efficiency.
-
NSF Certified: Meets health and safety standards for commercial foodservice applications.
-
Compact Footprint: Slim 22" width fits smaller spaces while maximizing ice storage efficiency.
Q&A
Q: What is the Scotsman B322S Ice Machine Bin used for?
A: It stores and preserves ice produced by compatible Scotsman ice machines, ensuring a steady, hygienic supply for commercial use.
Q: How much ice can the B322S hold?
A: The Scotsman B322S has a storage capacity of up to 370 lbs of ice.
Q: Is the B322S compatible with all Scotsman ice machines?
A: It’s designed to work with most top-mounted Scotsman cube and nugget ice makers, but always check model compatibility before purchasing.
Q: What are the key features of the B322S bin?
A: It features a rotationally molded polyethylene interior, stainless steel exterior, spring-loaded door, and a hinged front-access panel for easy cleaning and ice retrieval.
Q: Is the Scotsman B322S NSF-certified?
A: Yes, the B322S is NSF-certified, ensuring it meets strict standards for sanitation and food safety.
Q: What are the dimensions of the Scotsman B322S?
A: It measures approximately 22" W x 34" D x 44" H, making it ideal for compact commercial spaces.
Q: Where is the Scotsman B322S best used?
A: Perfect for restaurants, bars, healthcare facilities, and any business requiring reliable ice storage.
Maintenance Tips
-
Wipe door gasket, liner, and frame with mild soap and warm water.
-
Wash and air-dry the ice scoop to prevent bacteria buildup.
-
Empty bin, remove internal baffle, and clean interior with a scale-removing solution.
-
Rinse thoroughly and sanitize all food-contact surfaces using a food-safe sanitizer.
-
Do not store items other than ice inside the bin.
-
Check for and remove mineral scale or mold regularly.
-
Ensure the drain line remains clear and free of blockages.
