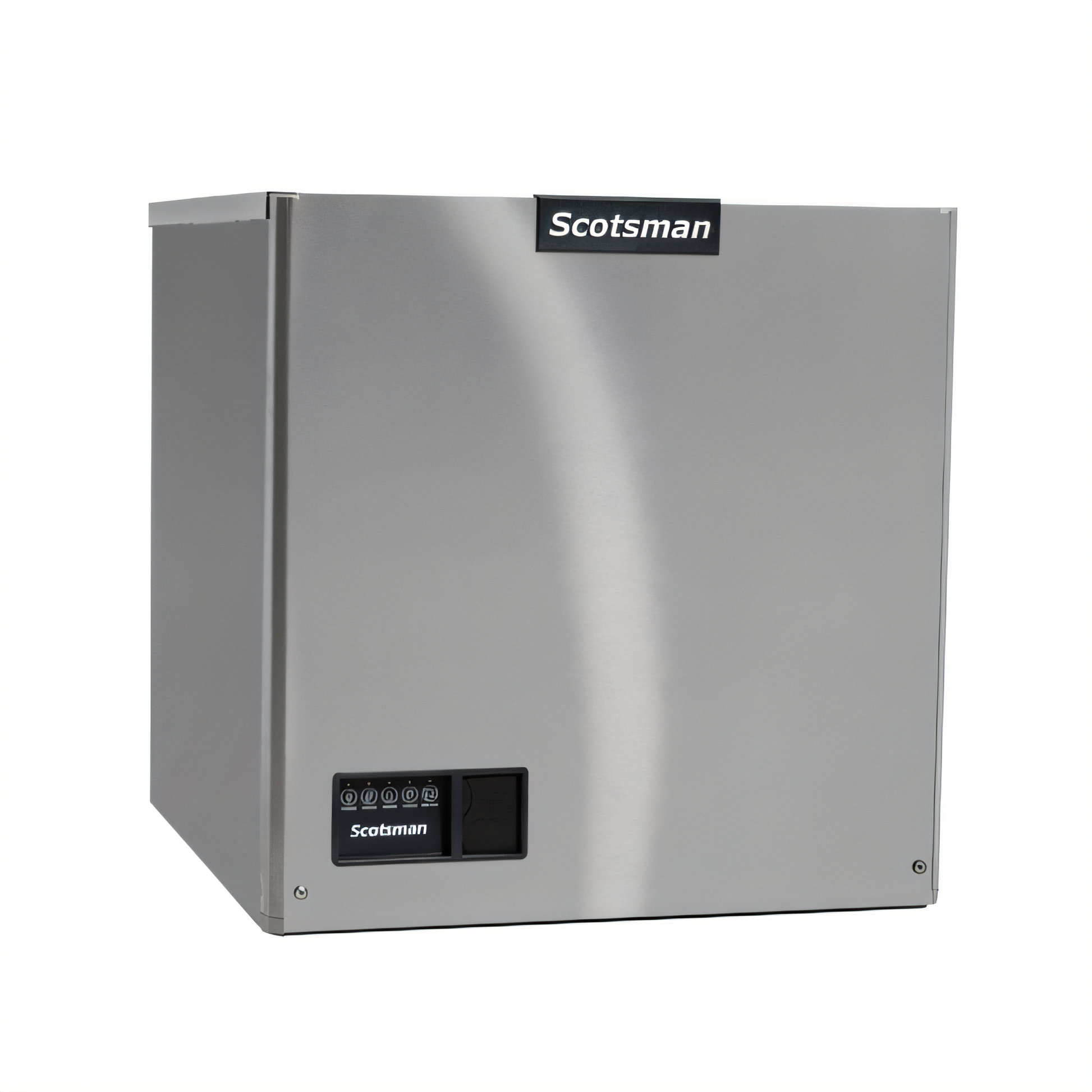

Scotsman MC0522SW-1 Prodigy ELITE Ice Machines - MC0522SW-1
Prodigy ELITE Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), small cube size, ICELINQ mobile app, Bluetooth connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Height |
23.0 in |
| Width |
22.0 in |
| Depth |
24.0 in |
| Width (Side to Side) |
20" – 29" wide |
| Condenser Type |
Air-cooled |
| Refrigeration |
Self-contained refrigeration |
| Ice Type |
Half size / half dice cubes |
| Production per 24 hr |
401 – 500 lb = 183 – 227 kg |
| Specifications |
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hr at 70°/50° (340 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ lights, WaterSense purge control, one-touch cleaning, harvest assist, front removable air filter, unit specific QR code, stainless steel finish, AgION™ protection, 208-230v/60/1-ph, 6.5 amps, NSF, cULus, AHRI, engineered and assembled in USA |
What our Experts Think
-
Consistent Ice Output: Produces up to 480 lbs of small cube ice per 24 hours, making it a strong performer in busy restaurants, cafeterias, and event spaces.
-
Smart Connectivity: Integrated Bluetooth® and ICELINQ® mobile app provide real-time diagnostics, guided cleaning, and remote monitoring—reducing downtime and improving efficiency.
-
Easy Maintenance: Features AutoAlert™ indicator lights, one-touch cleaning, and a front-facing, removable air filter for simplified servicing and upkeep.
-
Water-Cooled Efficiency: Designed with a self-contained, water-cooled condenser for quiet operation and optimal performance, especially in hot or enclosed environments.
-
Scale Management: WaterSense adaptive purge control system reduces scale buildup, extending machine life and lowering water consumption.
-
Hygienic & Durable Build: Stainless steel exterior combined with AgION™ antimicrobial protection ensures long-lasting performance and cleanliness.
-
Space-Saving Design: At just 22" wide, this model fits into tighter installations without sacrificing output or reliability.
Q&A
Q: What is the Scotsman MC0522SW-1 Prodigy ELITE Ice Machine?
A: The Scotsman MC0522SW-1 is a high-efficiency, water-cooled modular ice machine that produces up to 480 lbs of small cube ice per day, designed for commercial use in foodservice and hospitality.
Q: What type of ice does it produce?
A: It produces small cube ice, measuring 7/8" x 7/8" x 3/8", ideal for drinks and food display in commercial environments.
Q: How energy-efficient is the MC0522SW-1?
A: This model is ENERGY STAR certified, featuring WaterSense adaptive purge control to optimize water and energy usage, making it highly efficient.
Q: What smart features does it offer?
A: The machine includes AutoAlert™ indicator lights for maintenance alerts, one-touch cleaning, and Bluetooth compatibility with the ICELINQ® app for remote monitoring and diagnostics.
Q: What are its dimensions and storage compatibility?
A: The unit measures 22" W x 24" D x 23" H and is compatible with storage bins like the Scotsman B530P, which holds up to 536 lbs of ice.
Q: Is it easy to maintain?
A: Yes, it features one-touch cleaning, antimicrobial protection, and a front-facing removable air filter for easy maintenance.
Q: Is it certified for safety and sanitation?
A: Yes, the MC0522SW-1 is NSF listed and complies with cULus safety standards.
Q: Is it suitable for international use?
A: The unit operates on 115V/60Hz, so a voltage converter may be required for use in regions with different voltage standards, such as Pakistan.
Maintenance Tips
-
Clean and Sanitize Regularly: Perform a full cleaning every 6 months. Use a scale remover followed by a sanitizing solution to prevent mineral buildup and bacteria growth.
-
Clean Components: Remove and clean components such as air filters, water distributors, sensors, and the splash panel. Use a nylon brush for scrubbing, and ensure all parts are rinsed and dried before reassembling.
-
Maintain the Ice Storage Bin: Empty and clean the ice bin with a scale remover solution, then rinse thoroughly and sanitize to avoid contamination.
-
Air Filter and Condenser Maintenance: Clean the air filter every 3-6 months. Inspect and clean the condenser coils to ensure proper airflow and cooling efficiency.
-
Replace Water Filters: Change the water filter every 6 months or sooner if water quality is poor to avoid scale buildup and maintain clear, high-quality ice.
