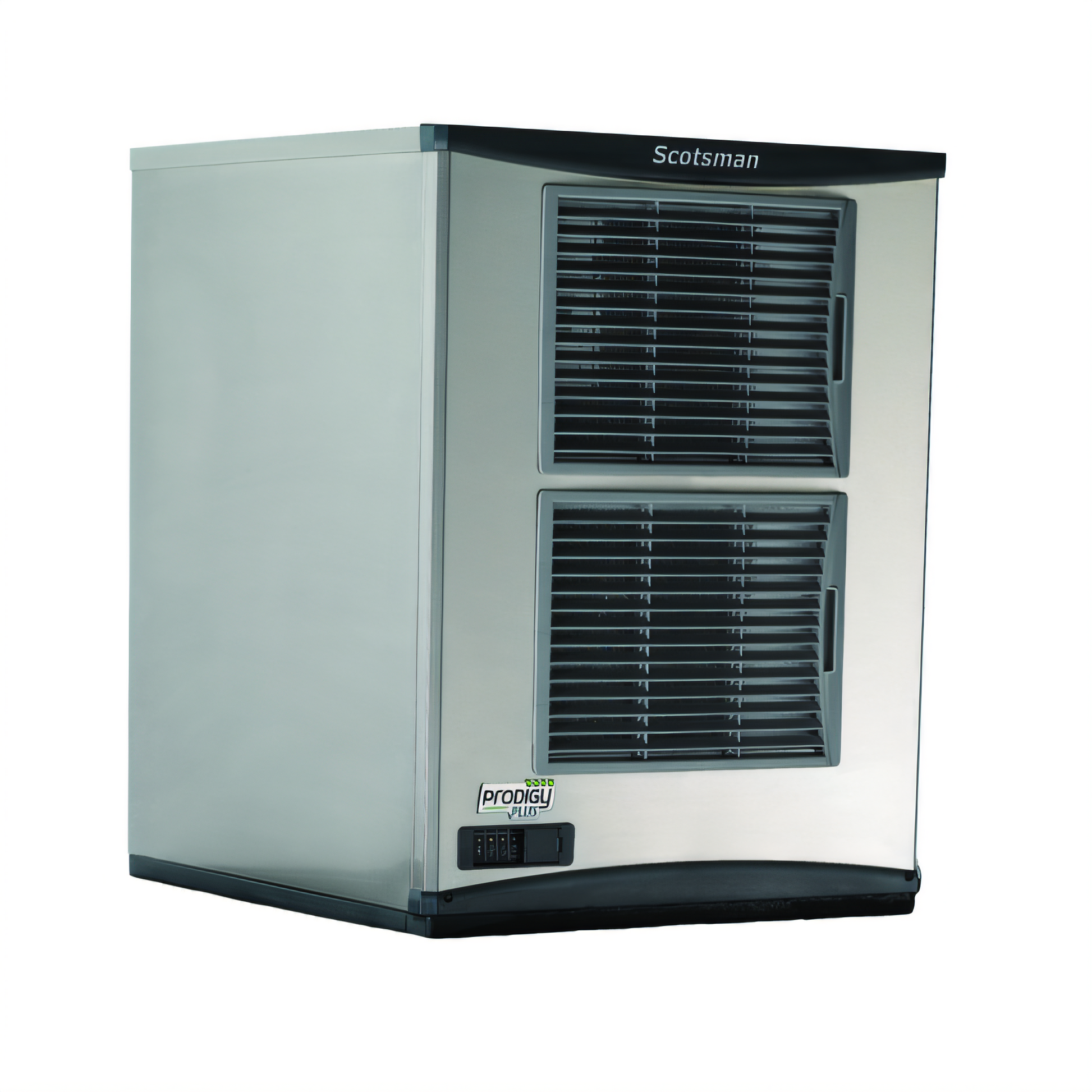

Scotsman Prodigy™ Plus Ice Machines - NH1322A-32

Scotsman Prodigy™ Plus Ice Machines -  NH1322A-32

Prodigy Plus Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 1186 lb/24 hours at 70°/50° (944 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 17.8 amps, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922a_ns-nh_1322a_cat.zip

Documents

• Cutsheet
• Sell sheet
• Installation manual
• Flyer
• Parts list
• Product presentation

What our Experts Think

• High Ice Production: Produces up to 896 lbs of hard H² nugget ice per day at 70°F air and 50°F water conditions, with an AHRI-certified output of 758 lbs at 90°F air and 70°F water conditions.

• Remote-Cooled Design: Features a remote condenser (sold separately), allowing for quieter operation in the ice production area and flexibility in placement.

• Energy and Water Efficiency: Consumes 3.65 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.

• User-Friendly Features: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.

• Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.

• Compact Footprint: Measures 22.9" W x 24" D x 27" H, fitting into tight spaces while providing high ice production capacity.

• Easy Installation: Comes with a power cord and NEMA 5-15P plug, making setup straightforward.

Q&A

Q: What type of ice does the Scotsman NH0922W-32 produce?
A: It produces H2 Nugget Ice, offering 85% hardness compared to traditional nugget ice's 74%, resulting in a firmer texture suitable for various applications.

Q: What is the daily ice production capacity?
A: Capable of producing up to 908 lbs of ice per day under optimal conditions.

Q: What are the electrical requirements?
A: 208-230V/60Hz/1-phase, drawing 11.7 amps; hardwired installation required.

Q: What maintenance features are included?
A: Features include one-touch cleaning, sealed maintenance-free bearings, AutoAlert™ indicator lights, unit-specific QR code, and AgION™ antimicrobial protection.

Maintenance Tips

• Descaling and Sanitization: Use Scotsman Clear One Scale Remover every 6 months or more frequently in hard water areas. Follow the manufacturer's instructions for descaling and sanitizing the machine.

• Air Filter Cleaning: Remove and clean the front-located air filter every 6 months or more often if needed. Ensure proper airflow around the machine by keeping vents clear and clean.

• Condenser Coil Cleaning: Clean remote condenser coils every 6 months or as needed. Ensure the remote condenser unit is properly maintained.

• Sensor Maintenance: Clean photoelectric sensors during each scale removal to ensure proper operation.

• Bin Cleaning: Clean and sanitize the ice storage bin every 6 months or as needed. Remove all ice, clean the interior surfaces, and sanitize thoroughly.

• Water Filter Replacement: Replace water filters every 6 months or as recommended by the manufacturer. This ensures optimal water quality and ice production.

• Bearing Check: Inspect and grease the top bearing every 6 months or during each scale removal. If grease is watery, all gray, or rust is visible, have the bearing replaced
