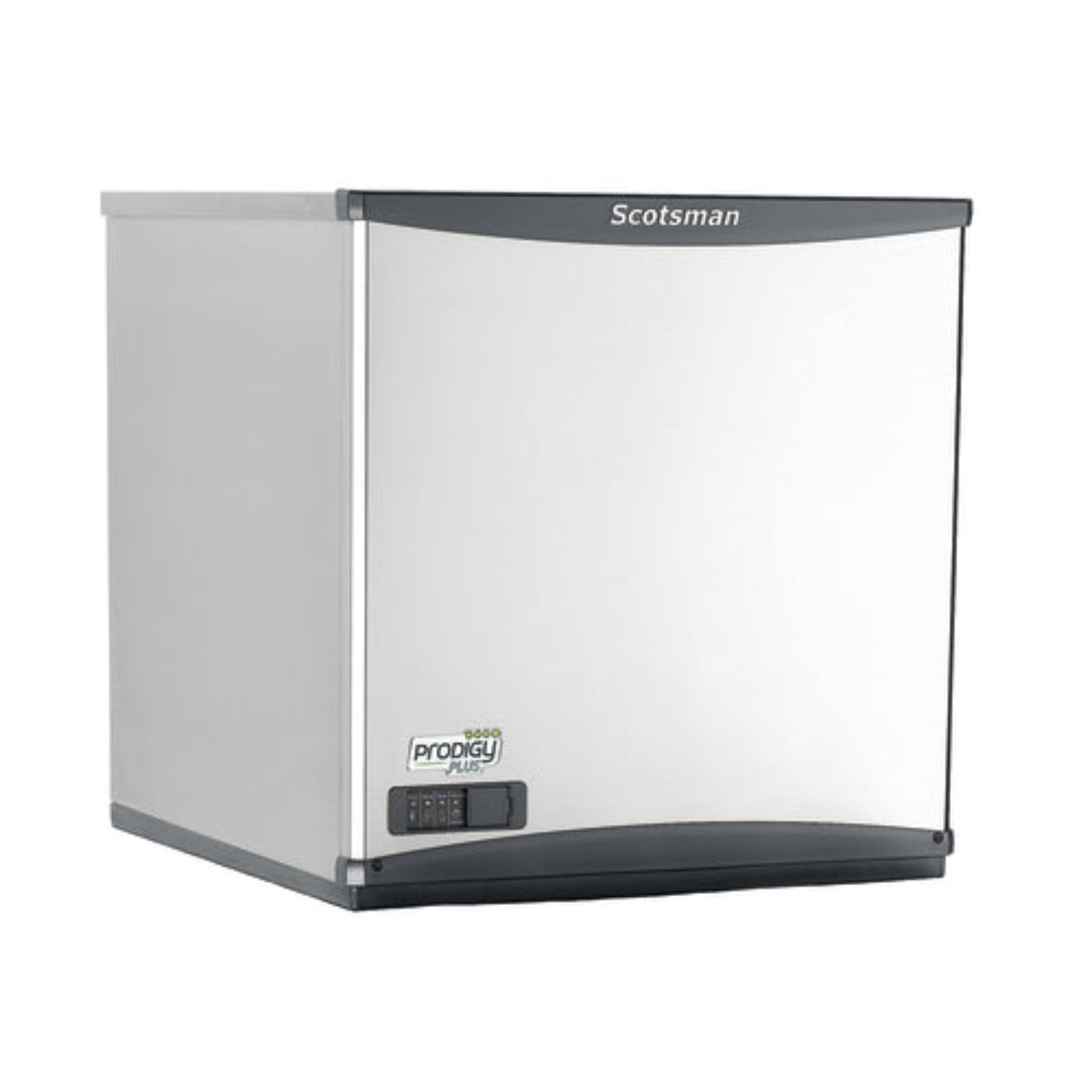

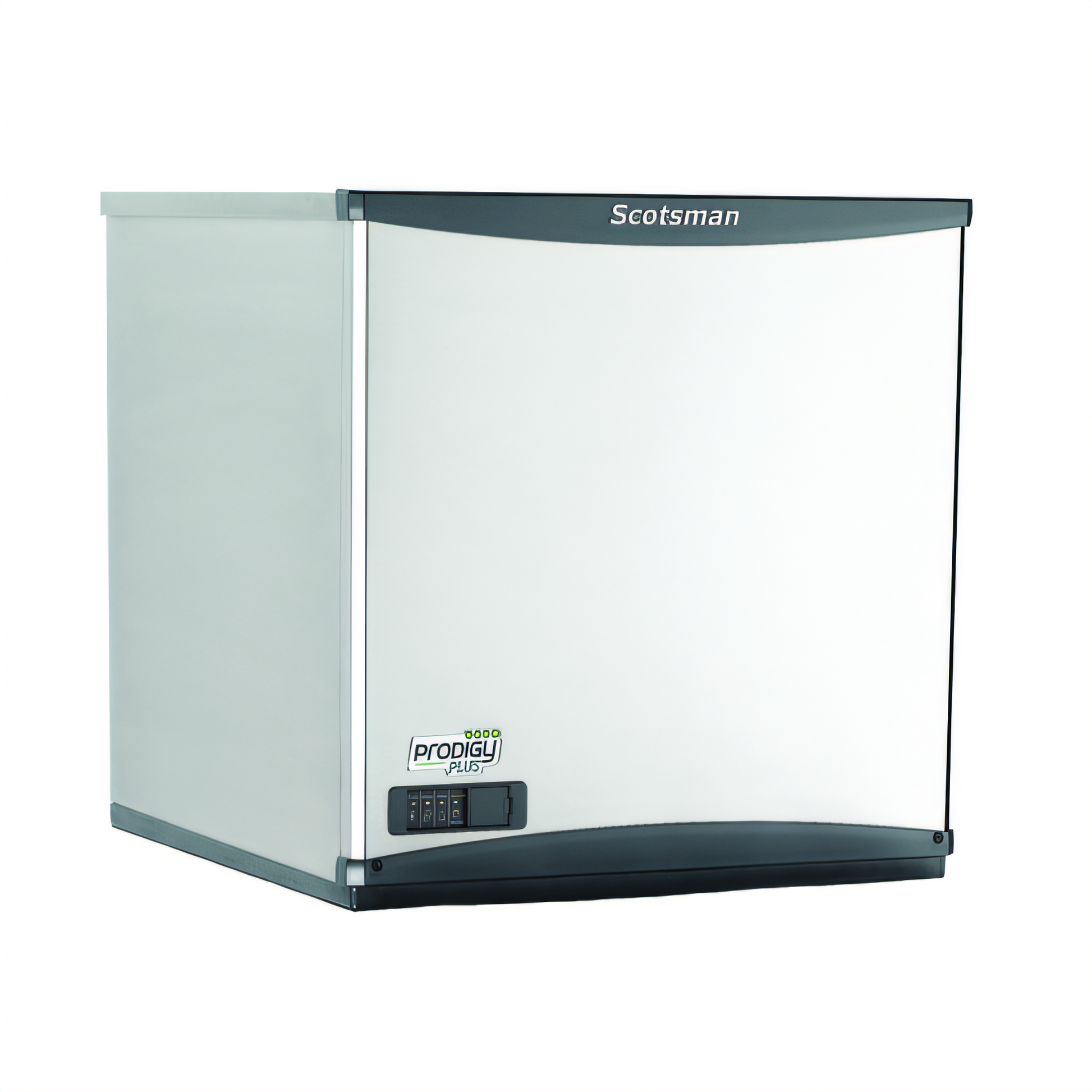

Scotsman Prodigy™ Plus Ice Machines - NS0622R-1

Scotsman Prodigy™ Plus Ice Machines - NS0622R-1

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice, remote-cooled, production capacity up to 660 lb/24 hours at 70°/50° (579 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 17.1 amps, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0622r_cat.zip

Documents

• Cutsheet
• Flyer
• Parts list
• Sell sheet
• Installation manual
• Product presentation

What our Experts Think

• High Ice Output – Produces up to 660 lbs of Original Chewable Nugget Ice per day at 70°F air / 50°F water (579 lbs AHRI certified at 90°F air / 70°F water), ensuring a consistent supply even during peak demand.

• Energy & Water Efficient – Uses 40% less water and 15% less energy than cube ice machines, helping reduce utility costs while meeting environmental standards.

• Advanced Sanitation Features – Equipped with AgION™ antimicrobial protection and one-touch cleaning, promoting sanitary ice production and simplifying maintenance.

• Durable Construction – Built with a stainless steel finish, stainless steel auger, and evaporator, ensuring long-lasting performance.

• User-Friendly – Features AutoAlert™ indicating lights for at-a-glance operational status updates and a unit-specific QR code for quick access to service manuals and guides.

• Remote-Cooled Operation – Offers flexibility in installation, reducing heat and noise in the immediate environment.

Q&A

Q: What type of ice does the Scotsman NS0622R-1 produce?
A: It produces soft, chewable nugget ice, known as Original Chewable Ice®, ideal for beverages and healthcare applications.

Q: What is the daily ice production capacity?
A: Up to 660 lbs per 24 hours at 70°F air/50°F water conditions; 579 lbs AHRI certified at 90°F air/70°F water.

Q: Is the condenser self-contained?
A: No, it requires a remote condenser (sold separately).

Q: What are the electrical requirements?
A: 115V/60Hz/1-phase, drawing 17.1 amps.

Q: What maintenance features are included?
A: One-touch cleaning, sealed maintenance-free bearings, and AgION™ antimicrobial protection.

Maintenance Tips

• Biannual Deep Cleaning
  Perform a thorough cleaning of the machine's water system at least twice a year. This includes scale removal and sanitization to prevent mineral buildup and maintain ice quality.

• Descale Internal Components
  Prepare a solution by mixing 8 ounces of Scotsman Clear One Scale Remover with 3 quarts of warm potable water (95°F to 115°F). Pour the solution into the reservoir and initiate the clean cycle by pressing the Clean button.

• Sanitize the Ice Bin
  After descaling, sanitize the ice storage bin using an approved sanitizer to prevent microbial growth. Mix 4 oz (118 ml) of NuCalgon IMS sanitizer with 2.5 gallons (9.5 liters) of warm potable water (90°F to 110°F) to create a 200 ppm solution.

• Clean the Air Filter
  Regularly remove and clean the front-facing air filter to maintain proper airflow and efficient cooling. This should be done every six months or more frequently if needed.

• Monitor AutoAlert Indicators
  Pay attention to the AutoAlert control panel's LED lights, which notify you of scale buildup and when it's time to descale or sanitize.

• Inspect the Drain Line
  Ensure the drain line is clear and unobstructed to prevent water backup and potential overflows. This should be checked during each cleaning cycle.
