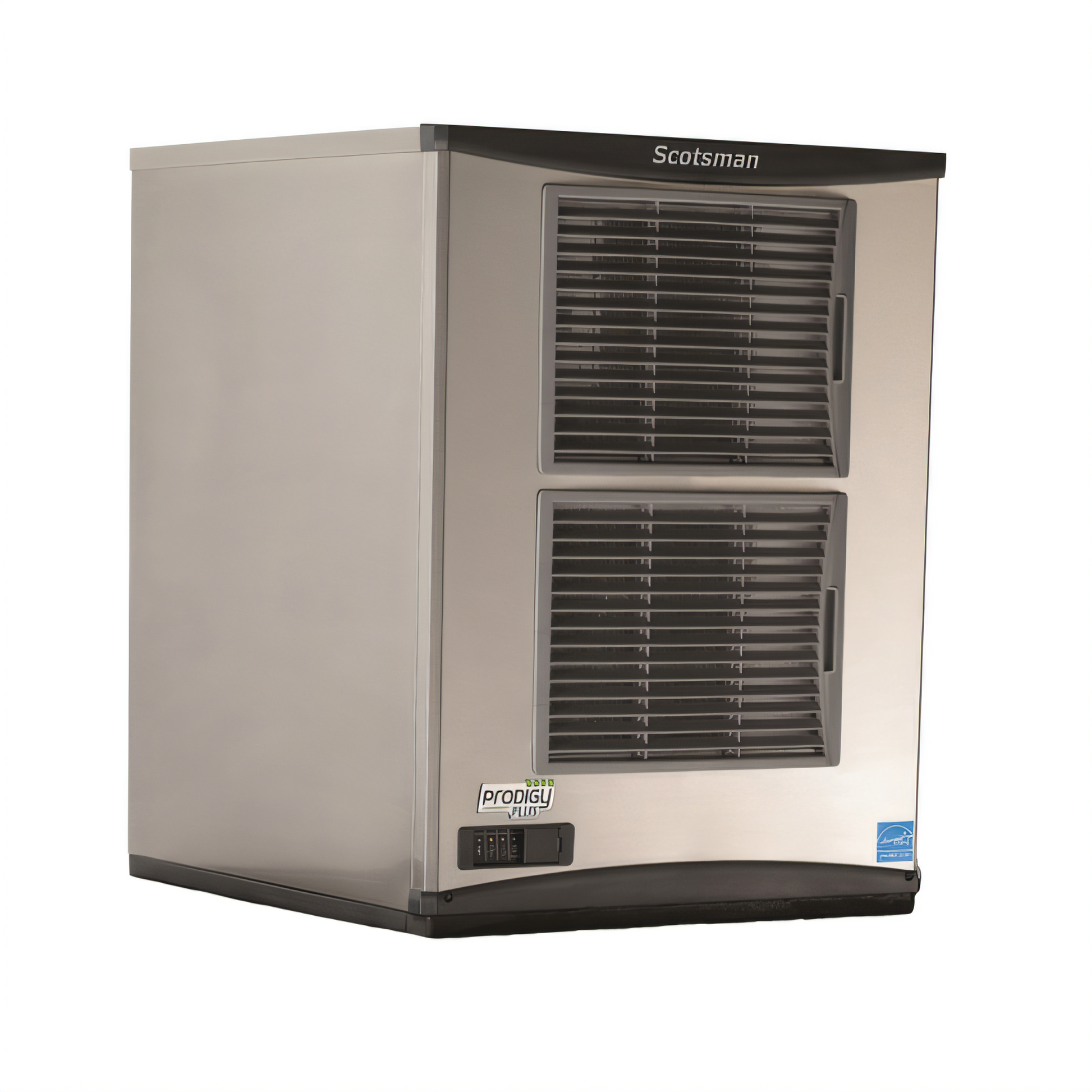

Scotsman Prodigy™ Plus Ice Machines - NS1322A-32

Scotsman  Prodigy™ Plus Ice Machines - NS1322A-32

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 1385 lb/24 hours at 70°/50° (990 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 17.8 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922a_ns-nh_1322a_cat.zip

Documents

• Cutsheet
• Sell sheet
• Product presentation
• Installation manual
• Flyer
• Parts list

What our Experts Think

• High Ice Production: Produces up to 1,094 lbs of soft, chewable nugget ice per day at 70°F air and 50°F water conditions, with an AHRI-certified output of 863 lbs at 90°F air and 70°F water conditions, making it ideal for high-demand environments like restaurants, bars, and healthcare facilities.

• Water-Cooled Efficiency: Utilizes a water-cooled condenser, making it suitable for installations where air-cooled units are not feasible, and ensuring consistent performance in warmer environments.

• Energy and Water Efficient: Consumes 3.09 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.

• User-Friendly Features: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.

• Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.

• Compact Footprint: Measures 22.9" W x 24" D x 27" H, fitting into tight spaces while providing high ice production capacity.

• Easy Installation: Comes with a power cord and NEMA 5-15P plug, making setup straightforward.

Q&A

Q: What is the Scotsman NS0922W-32 Ice Machine?
The Scotsman NS0922W-32 is a 22" wide, water-cooled, self-contained nugget ice machine from the Prodigy Plus® series, capable of producing up to 1,094 lbs of soft, chewable nugget ice per day under optimal conditions (70°F air / 50°F water).

Q: What type of ice does it produce?
It produces "The Original Chewable Nugget Ice®," a soft and chewable ice ideal for beverages and fountain drinks.

Q: Is it energy-efficient?
Yes, it uses 3.09 kWh of energy per 100 lbs of ice and 12.0 gallons of water per 100 lbs of ice, resulting in lower operational costs.

Q: What does it have?
The NS0922W-32 is NSF, cULus, and AHRI certified, ensuring compliance with industry standards for safety and performance.

Q: Where is it manufactured?
The Scotsman NS0922W-32 is engineered and assembled in the USA.

Maintenance Tips

• Utilize One-Touch Cleaning
  Activate the machine's built-in one-touch cleaning feature regularly to initiate an automatic cleaning cycle, simplifying maintenance and ensuring consistent ice quality.

• Monitor AutoAlert™ Indicators
  Pay attention to the AutoAlert™ indicator lights, which signal when it's time to descale or sanitize the unit, helping to maintain optimal performance.

• Clean the Air Filter
  Regularly remove and clean the front-facing air filter to maintain proper airflow and efficient cooling. This should be done every six months or more frequently if needed.

• Sanitize the Ice Bin
  After descaling, sanitize the ice storage bin using an approved sanitizer to prevent microbial growth. Mix 4 oz (118 ml) of NuCalgon IMS sanitizer with 2.5 gallons (9.5 liters) of warm potable water (90°F to 110°F) to create a 200 ppm solution.

• Inspect the Drain Line
  Ensure the drain line is clear and unobstructed to prevent water backup and potential overflows. This should be checked during each cleaning cycle.
