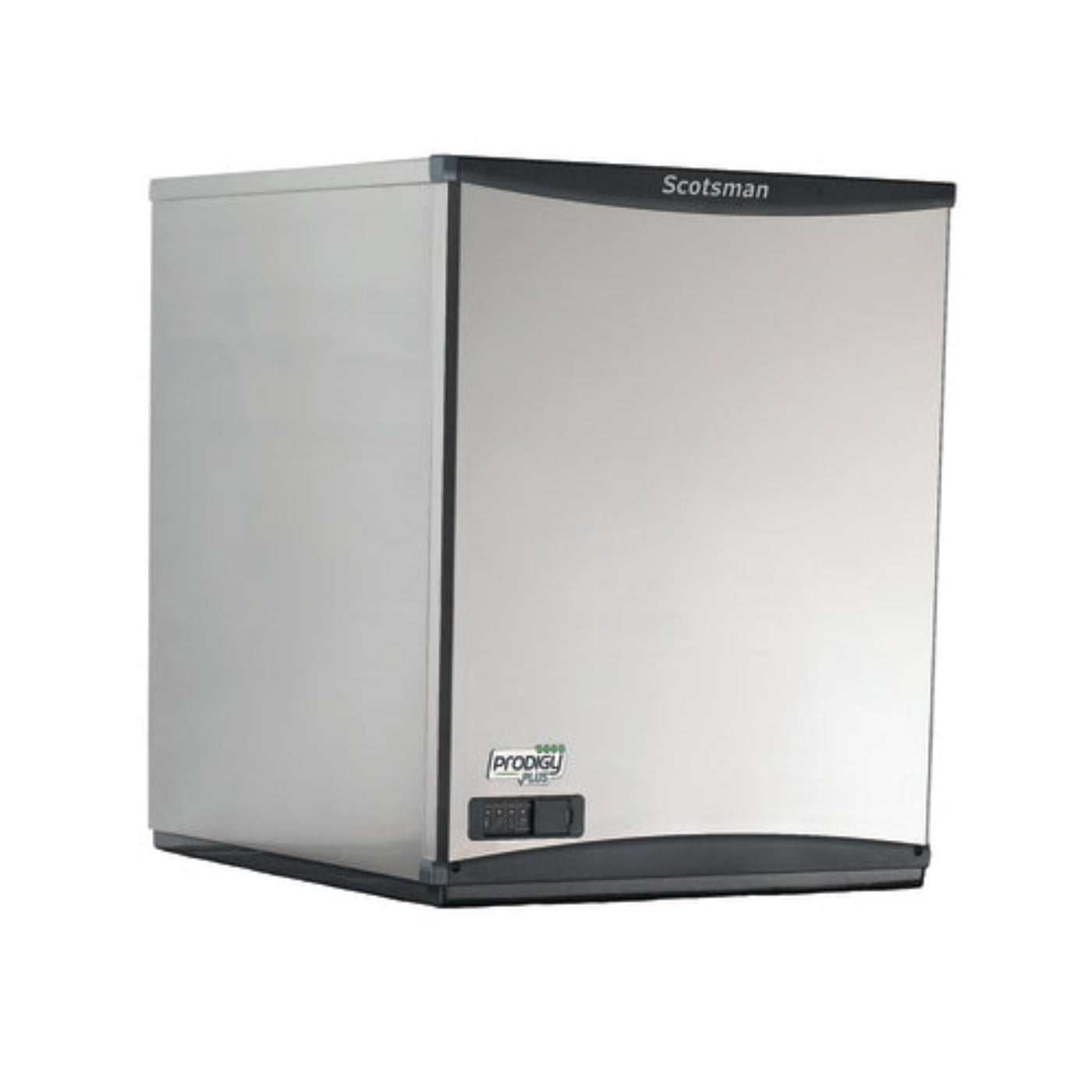

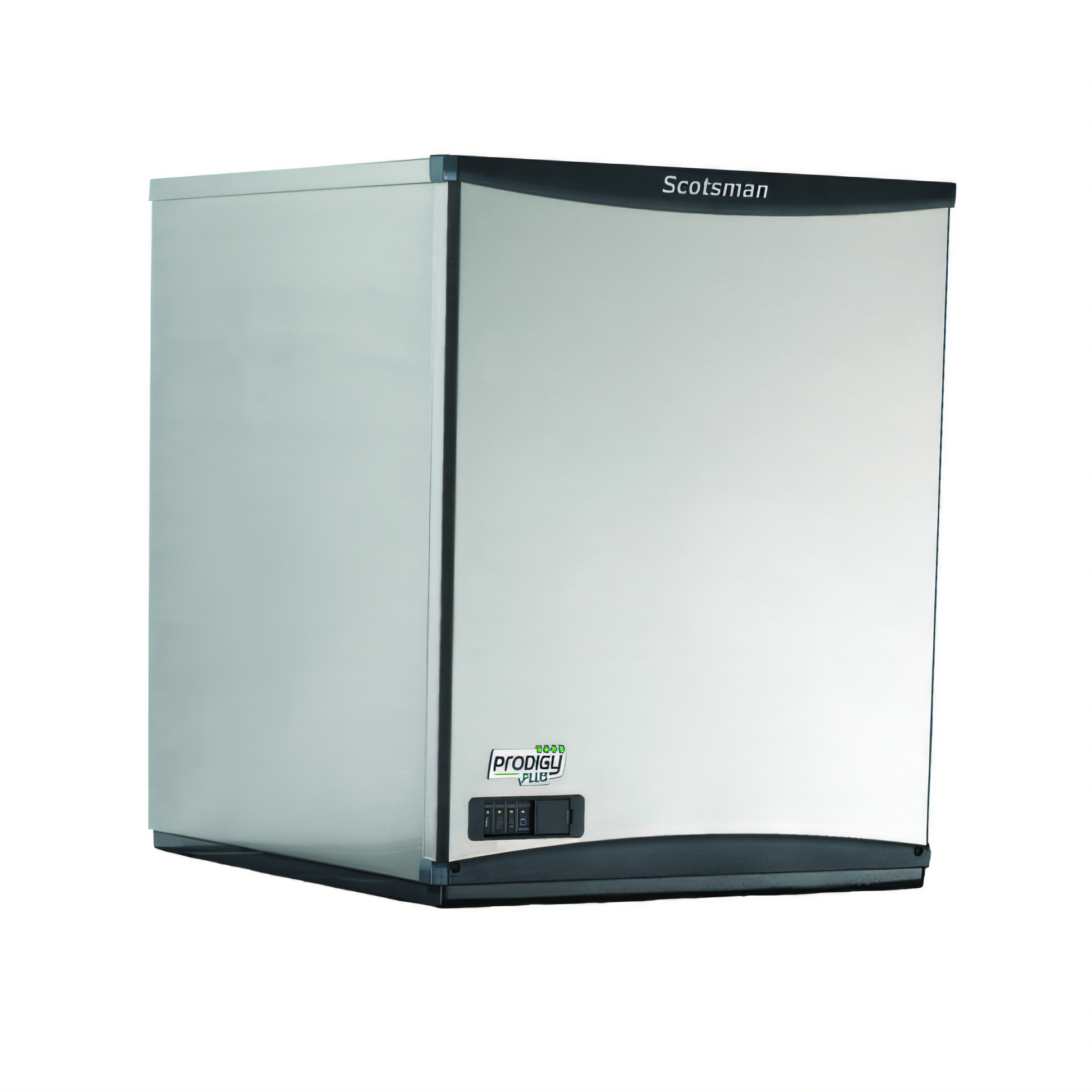

Scotsman Prodigy™ Plus Ice Machines - NS1322R-32

Scotsman  Prodigy™ Plus Ice Machines - NS1322R-32

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice, remote-cooled, production capacity up to 1360 lb/24 hours at 70°/50° (1061 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 17.6 amps, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922r_ns-nh_1322r_cat.zip

Documents

• Cutsheet
• Product presentation
• Sell sheet
• Flyer
• Parts list
• Installation manual

What our Experts Think

• High Ice Production: Produces up to 1,360 lbs of soft, chewable nugget ice per day at 70°F air and 50°F water conditions, with an AHRI-certified output of 1,061 lbs at 90°F air and 70°F water conditions, making it ideal for high-demand environments like restaurants, bars, and healthcare facilities.

• Remote-Cooled Efficiency: Utilizes a remote condenser (sold separately), allowing for quieter operation in the ice production area and flexibility in placement.

• Energy and Water Efficient: Consumes 4.04 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.

• User-Friendly: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.

• Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.

Q&A

Q: What type of ice does the Scotsman NS1322W-3 produce?
A: It produces soft, chewable nugget ice, known as Original Chewable Ice®, ideal for beverages and healthcare applications.

Q: What is the daily ice production capacity?
A: Up to 1,513 lbs per 24 hours at 70°F air/50°F water conditions; 1,129 lbs AHRI certified at 90°F air/70°F water.

Q: Is the condenser self-contained?
A: Yes, it features a self-contained, water-cooled condenser for efficient operation.

Q: What are the electrical requirements?
A: 208-230V/60Hz/3-phase, drawing 9.9 amps.

Q: What maintenance features are included?
A: One-touch cleaning, sealed maintenance-free bearings, AutoAlert™ indicator lights, unit-specific QR code, stainless auger and evaporator, and AgION™ antimicrobial protection.

Maintenance Tips

• Utilize One-Touch Cleaning
  Activate the machine's built-in one-touch cleaning feature regularly to initiate an automatic cleaning cycle, simplifying maintenance and ensuring consistent ice quality.

• Monitor AutoAlert™ Indicators
  Pay attention to the AutoAlert™ indicator lights, which signal when it's time to descale or sanitize the unit, helping to maintain optimal performance.

• Descale the Water System Biannually
  Perform a thorough descaling of the machine's water system at least twice a year to prevent mineral buildup and maintain ice quality.

• Sanitize the Ice Bin
  After descaling, sanitize the ice storage bin using an approved sanitizer to prevent microbial growth.

• Clean the Condenser Coils
  Regularly clean the condenser coils to maintain efficient cooling and prevent overheating. This should be done every six months or more frequently if needed.

• Inspect and Clean the Ice Thickness Sensor
  Regularly inspect and clean the ice thickness sensor to ensure accurate ice production and prevent scale buildup.
