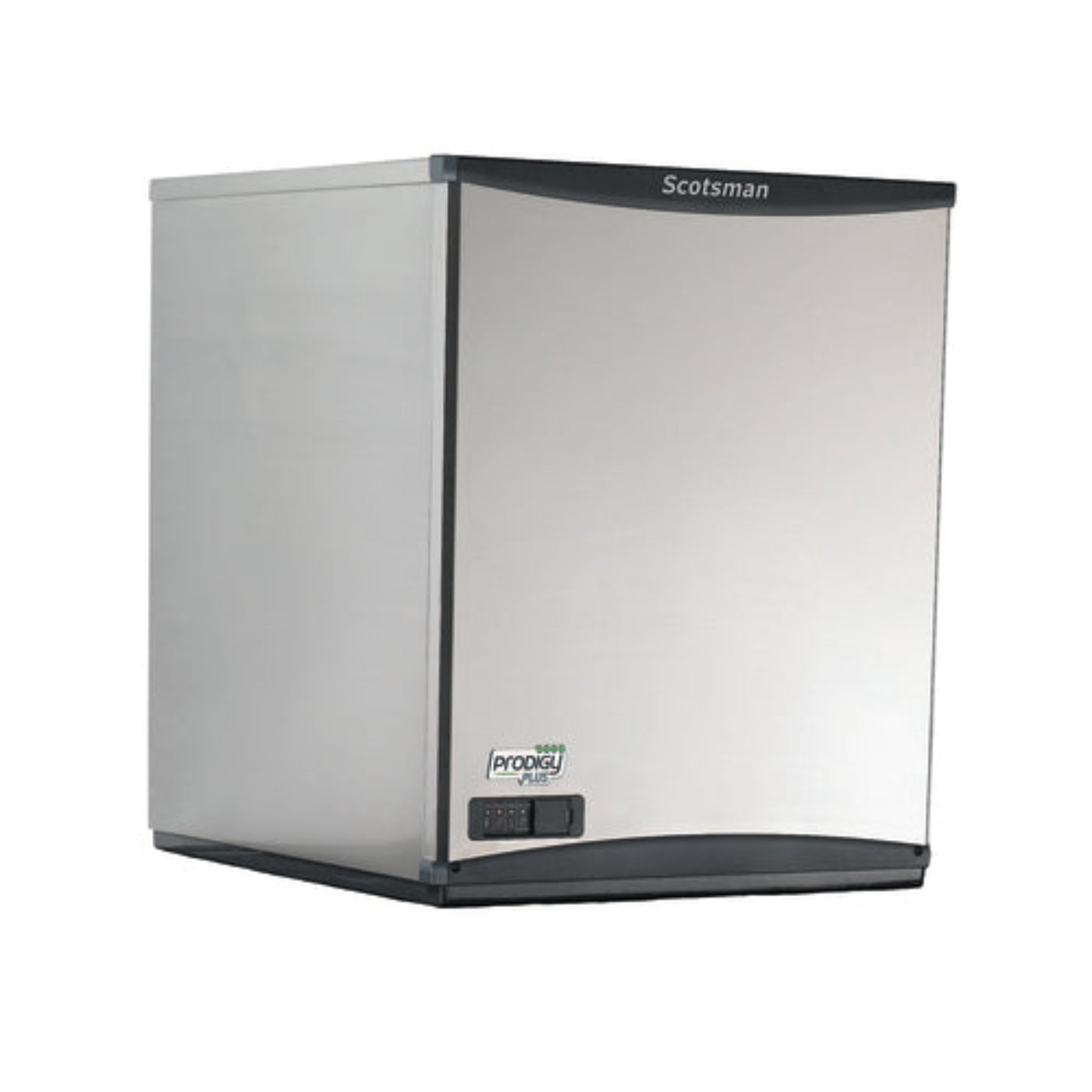

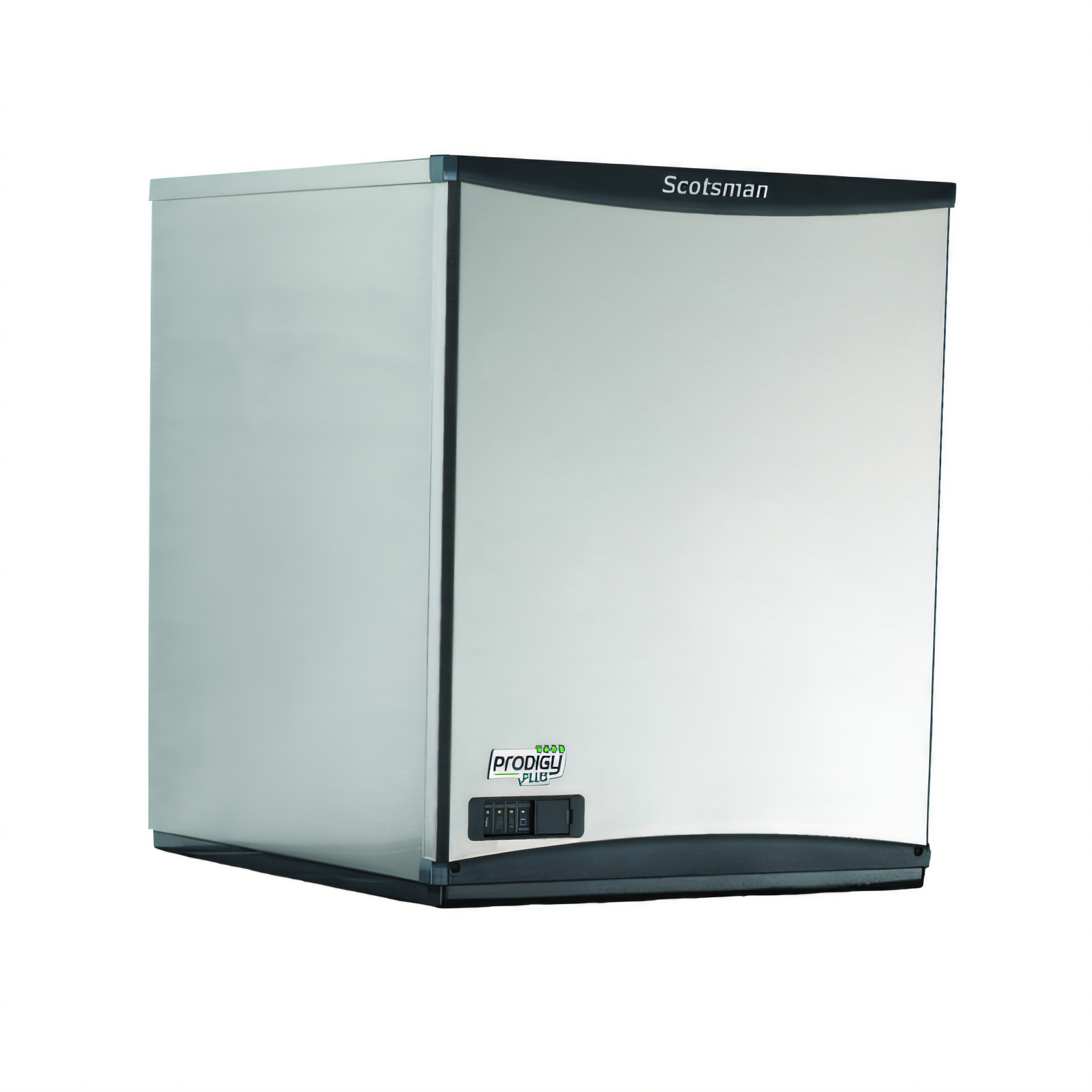

Scotsman Prodigy™ Plus Ice Machines - NS1322W-3

Scotsman  Prodigy™ Plus Ice Machines - NS1322W-3

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1129 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 9.9 amps, 208-230v/60/3-ph, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922w_ns-nh_1322w_cat.zip

Documents

• Cutsheet
• Flyer
• Sell sheet
• Parts list
• Product presentation
• Installation manual

What our Experts Think

• High Ice Production: Produces up to 1,360 lbs of soft, chewable nugget ice per day at 70°F air and 50°F water conditions, with an AHRI-certified output of 1,061 lbs at 90°F air and 70°F water conditions, making it ideal for high-demand environments like restaurants, bars, and healthcare facilities. .

• Remote-Cooled Efficiency: Utilizes a remote condenser (sold separately), allowing for quieter operation in the ice production area and flexibility in placement.

• Energy and Water Efficient: Consumes 4.04 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.

• User-Friendly: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.

• Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.

Q&A

Q: What is the Scotsman NS1322R-32 Ice Machine?
The Scotsman NS1322R-32 is a 22" wide, remote-cooled nugget ice machine from the Prodigy Plus series, capable of producing up to 1,360 lbs of soft, chewable nugget ice per day under optimal conditions (70°F air / 50°F water).

Q: What type of ice does it produce?
It produces "The Original Chewable Nugget Ice®," a soft and chewable ice ideal for beverages and fountain drinks.

Q: Is it energy-efficient?
Yes, it uses 4.04 kWh of energy per 100 lbs of ice and 12.0 gallons of water per 100 lbs of ice, resulting in lower operational costs.

Q: Where is it manufactured?
The Scotsman NS1322R-32 is engineered and assembled in the USA.

Q: Is a remote condenser required?
Yes, the NS1322R-32 requires the Scotsman ERC311-32 remote condenser (sold separately) for operation.

Maintenance Tips

• Descaling and Sanitization: Use Scotsman Clear One Scale Remover every 6 months or more frequently in hard water areas. Follow the manufacturer's instructions for descaling and sanitizing the machine.

• Air Filter Cleaning: Remove and clean the front-located air filter every 6 months or more often if needed. Ensure proper airflow around the machine by keeping vents clear and clean.

• Condenser Coil Cleaning: Clean remote condenser coils every 6 months or as needed. Ensure the remote condenser unit (e.g., Scotsman ERC311-32A) is properly maintained.

• Sensor Maintenance: Clean photoelectric sensors during each scale removal to ensure proper operation.

• Bin Cleaning: Clean and sanitize the ice storage bin every 6 months or as needed.

• Water Filter Replacement: Replace water filters every 6 months or as recommended by the manufacturer.

• Bearing Check: Inspect and grease the top bearing every 6 months or during each scale removal. If grease is watery, all gray, or rust is visible, have the bearing replaced
