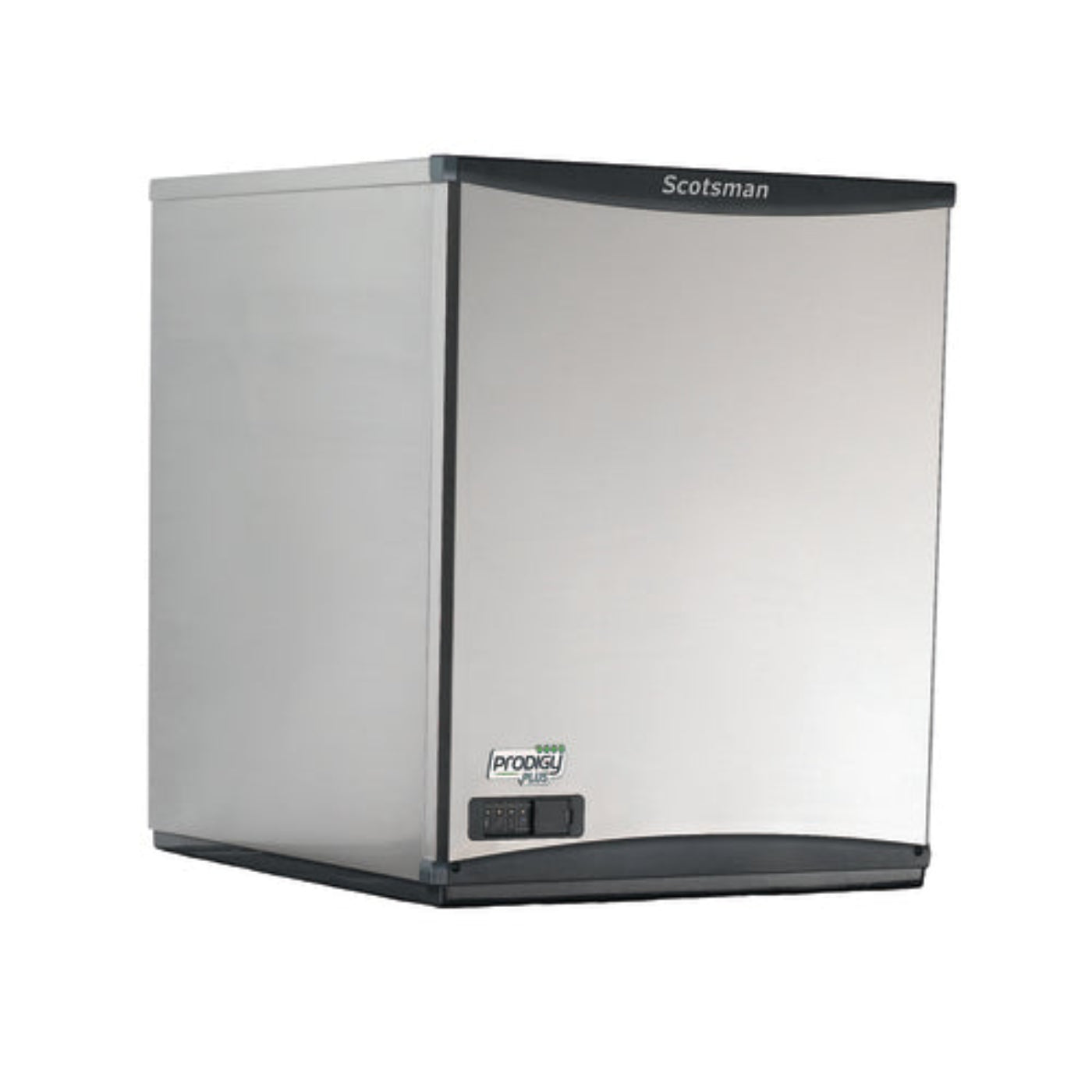

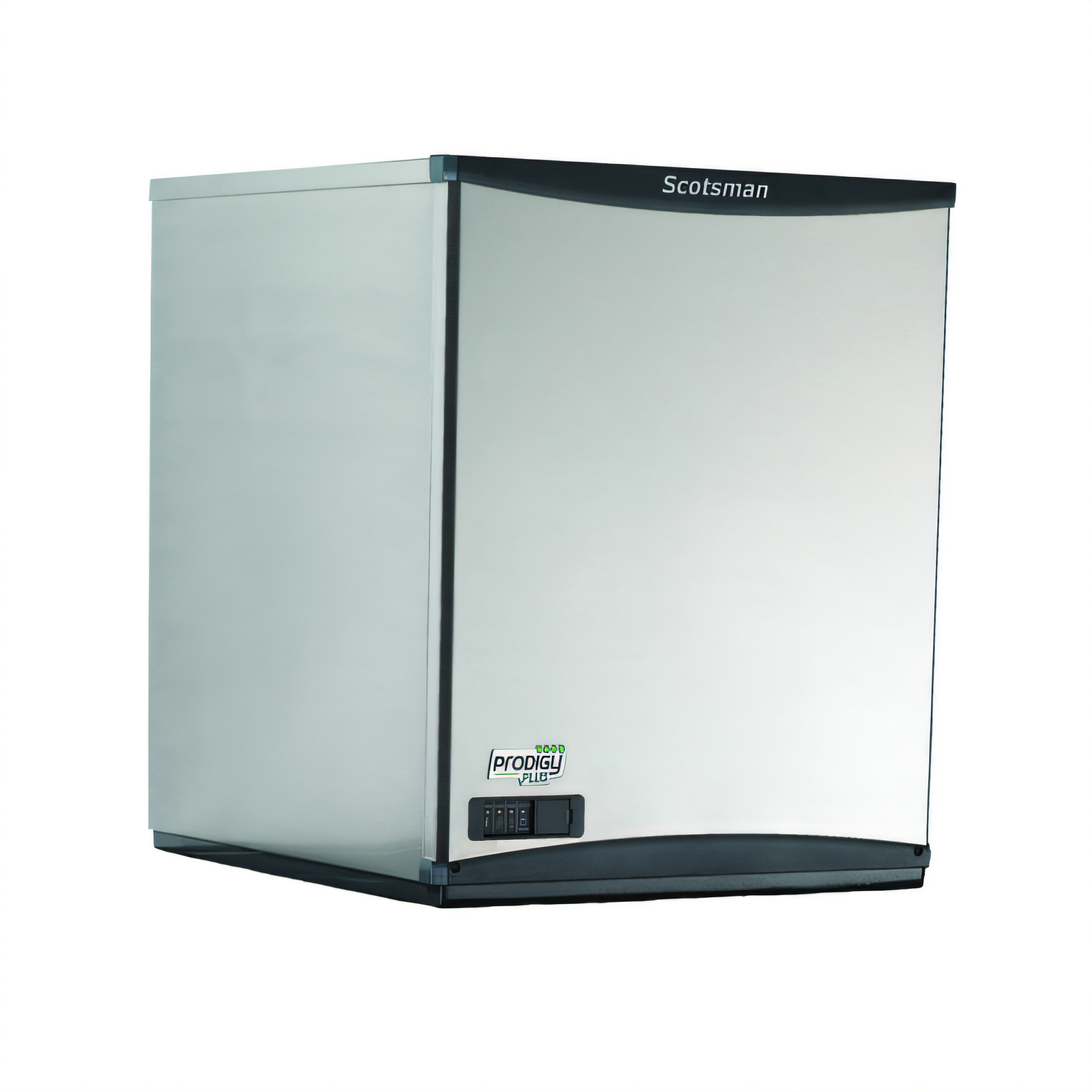

Scotsman Prodigy™ Plus Ice Machines - NS1322W-32
Prodigy Plus Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1129 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 16.6 amps, NSF, cULus, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Prodigy™ Plus |
| Certifications |
NSF, cULus, AHRI |
| Height |
27.0 in |
| Width |
22.9 in |
| Depth |
24.0 in |
| Shipping Weight |
225.0 lbs |
| Production per 24 hr |
Up to 1513 lb at 70°/50° (1129 lb AHRI certified at 90°/70°) |
| Cube Type |
Nugget (Original Chewable Ice®) |
| Cooling System |
Water-cooled |
| Refrigeration |
Self-contained refrigeration |
| Construction |
Stainless steel finish, stainless auger and evaporator |
| Additional Features |
Sealed maintenance-free bearings, AutoAlert™ indicating lights, unit-specific QR code, one-touch cleaning, AgION™ antimicrobial protection |
| Refrigerant |
R-404A |
| Electrical |
208–230 V / 60 Hz / 1 phase, 16.6 amps |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High-Capacity Production – Produces up to 1,513 lbs of soft, chewable nugget ice per 24 hours at 70°F air / 50°F water (1,129 lbs AHRI certified at 90°F air / 70°F water), ensuring a consistent supply for high-demand environments.
-
Water-Cooled Efficiency – Features a self-contained, water-cooled condenser, ideal for installations where air-cooled units may not be suitable.
-
Energy & Water Efficient – Uses up to 40% less water and 15% less energy than cube ice machines, helping reduce utility costs while meeting environmental standards.
-
Advanced Sanitation – Equipped with AgION™ antimicrobial protection and one-touch cleaning, promoting sanitary ice production and simplifying maintenance.
-
Durable Construction – Built with a stainless steel finish, stainless steel auger, and evaporator, ensuring long-lasting performance
Q&A
Q: What type of ice does the Scotsman NS1322W-32 produce?
A: It produces soft, chewable nugget ice, known as Original Chewable Ice®, ideal for beverages and healthcare applications.
Q: What is the daily ice production capacity?
A: Up to 1,513 lbs per 24 hours at 70°F air/50°F water conditions; 1,129 lbs AHRI certified at 90°F air/70°F water.
Q: Is the condenser self-contained?
A: Yes, it features a self-contained, water-cooled condenser for efficient operation.
Q: What are the electrical requirements?
A: 208-230V/60Hz/1-phase, drawing 16.6 amp
Maintenance Tips
-
Utilize One-Touch Cleaning
Activate the machine's built-in one-touch cleaning feature regularly to initiate an automatic cleaning cycle, simplifying maintenance and ensuring consistent ice quality.
-
Monitor AutoAlert™ Indicators
Pay attention to the AutoAlert™ indicator lights, which signal when it's time to descale or sanitize the unit, helping to maintain optimal performance.
-
Descale the Water System Biannually
Perform a thorough descaling of the machine's water system at least twice a year to prevent mineral buildup and maintain ice quality.
-
Sanitize the Ice Bin
After descaling, sanitize the ice storage bin using an approved sanitizer to prevent microbial growth.
-
Clean the Condenser Coils
Regularly clean the condenser coils to maintain efficient cooling and prevent overheating. This should be done every six months or more frequently if needed.
-
Inspect and Clean the Ice Thickness Sensor
Regularly inspect and clean the ice thickness sensor to ensure accurate ice production and prevent scale buildup.
