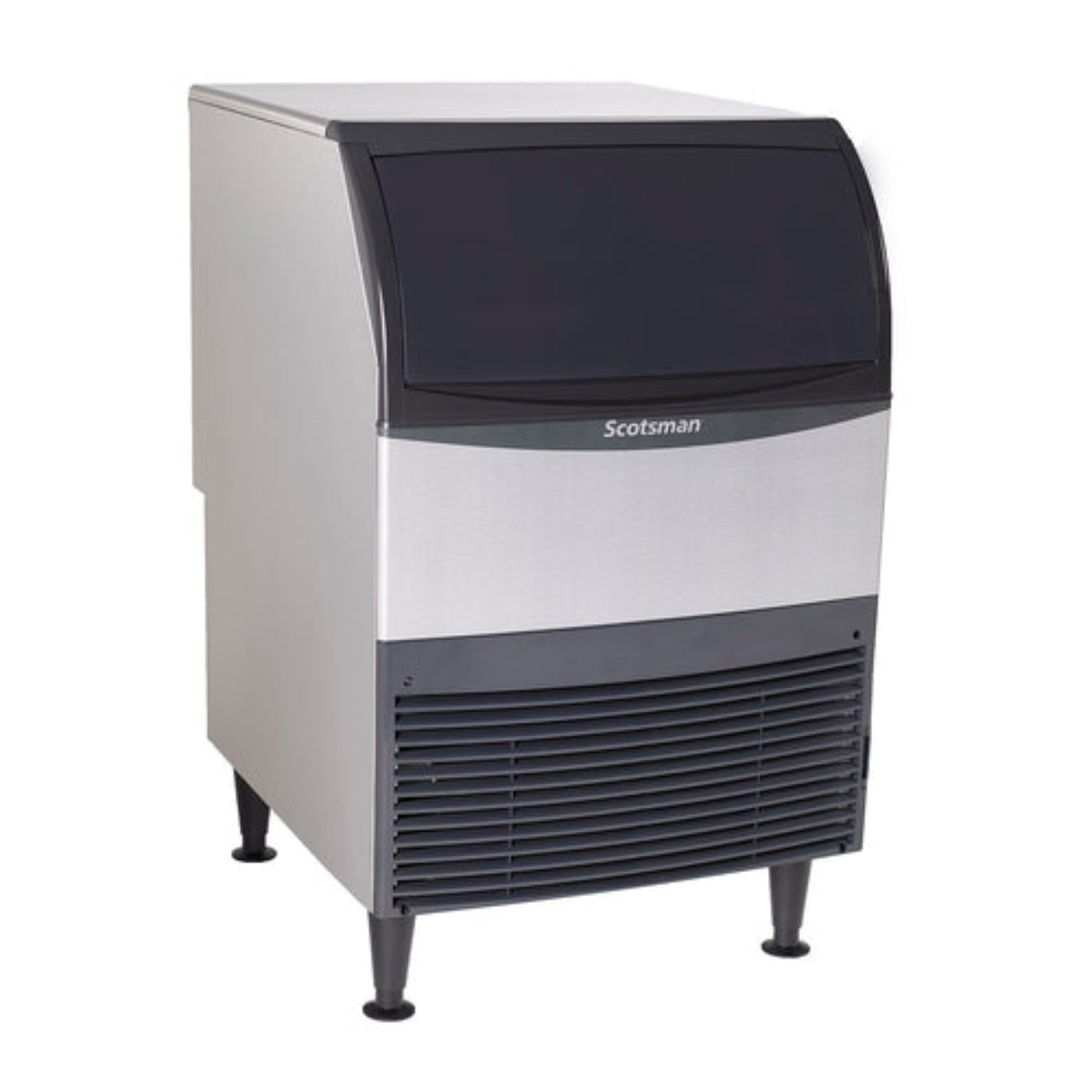

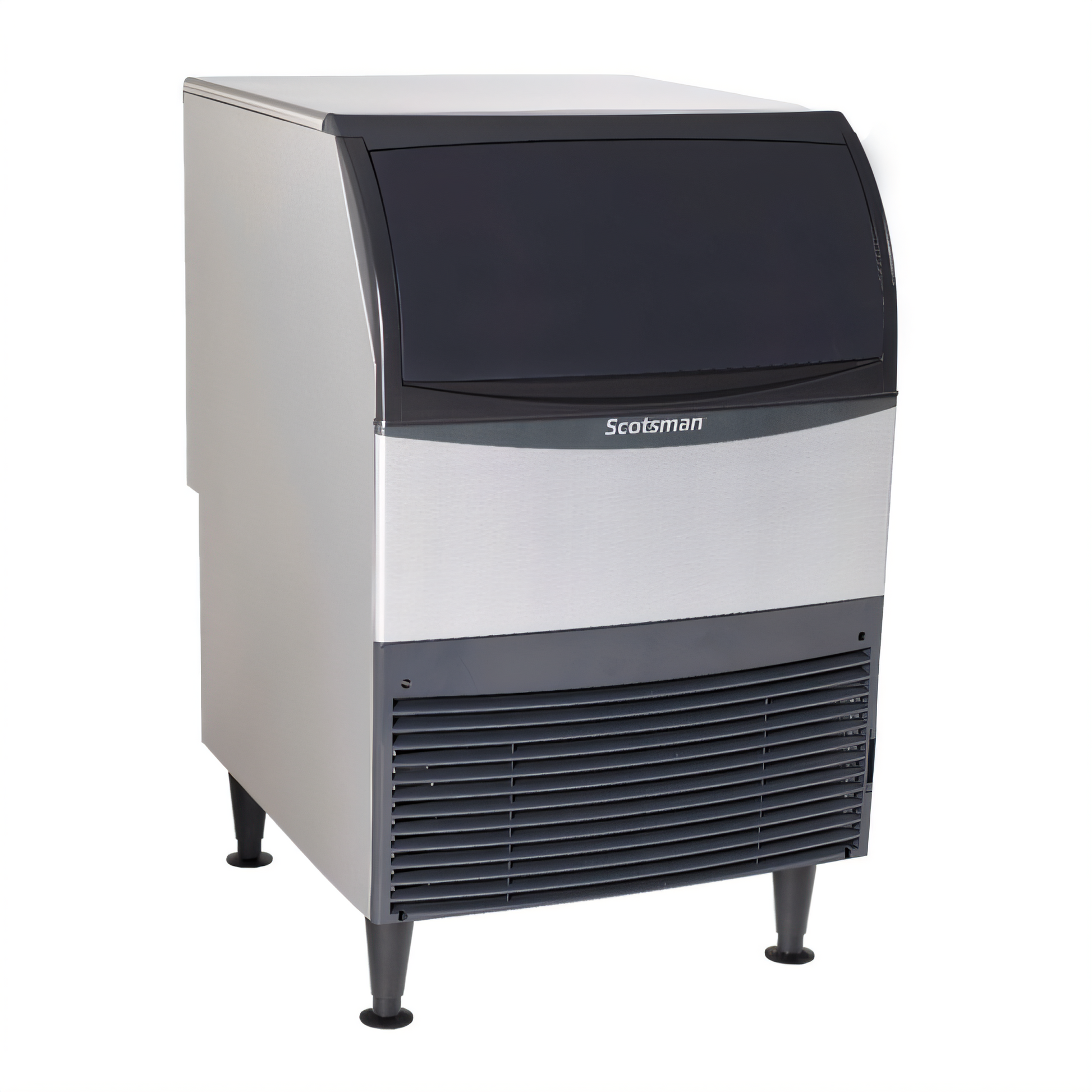

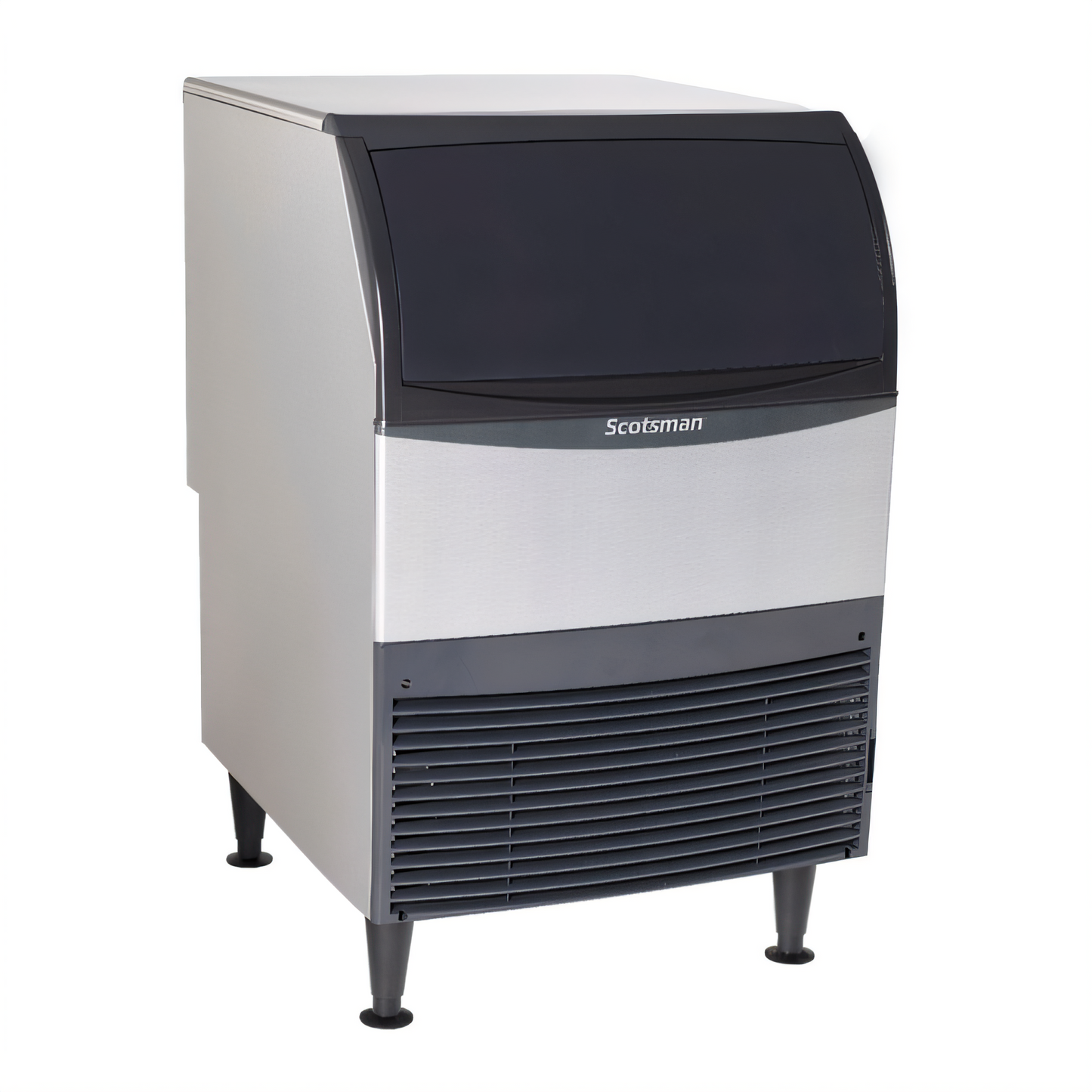

Scotsman Ice Machines - UC2724SA-6
Undercounter Ice Maker with Bin, cube style, air-cooled, 24" width, self-contained condenser, production capacity up to 270 lb/24 hours, 80 lb bin storage capacity, small cube size, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 230v/50/1-ph, engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
29.0 in |
| Shipping Weight |
175.0 lbs |
| Production per 24 hr |
Up to 270 lb |
| Condenser Type |
Air-cooled |
| Cube Type |
Full size / Dice |
| Bin Storage Capacity |
80 lb |
| Cooling System |
Self-contained condenser |
| Cube Size |
Small cube size (Note: This may be an error as it's listed as full/dice cube type—please confirm) |
| Additional Features |
Front facing removable air filter, recessed utility chase, unit-specific QR code, ice scoop included, 6″ adjustable legs |
| Electrical |
230 V / 50 Hz / 1 ph (Export Model) |
| Country of Origin |
Engineered and assembled in USA |
What our Experts Think
-
High Ice Output – Produces up to 270 lbs of small cube ice per day, with an 80 lb built-in storage bin—ideal for restaurants, cafes, and healthcare facilities.
-
Compact & Flexible Design – At just 24" wide, this undercounter unit fits tight spaces and features front-breathing ventilation, requiring no side clearance.
-
Energy Efficient – Operates on 230V/50Hz, helping reduce utility costs while meeting environmental standards.
-
User-Friendly – Equipped with an ergonomic slide-back door, removable external air filter, and unit-specific QR code for quick access to service manuals and guides.
-
Durable Construction – Built with a rust-free front panel and corrosion-resistant aluminum alloy side panels, ensuring long-lasting performance.
-
Easy Installation – Includes a power cord, NEMA 5-15P plug, ice scoop, and adjustable legs for quick setup.
Q&A
Q: What type of ice does the Scotsman UC2724SA-6 produce?
A: It produces small cube-style ice, ideal for beverages and food displays.
Q: What is the daily ice production capacity?
A: The UC2724SA-6 can produce up to 270 lbs (122.5 kg) of ice per 24 hours.
Q: How much ice can the built-in bin store?
A: It has an integrated storage bin that holds up to 80 lbs (36.3 kg) of ice.
Q: Is the UC2724SA-6 suitable for undercounter installation?
A: Yes, its compact 24-inch width and front-breathing design make it ideal for undercounter installations in tight spaces.
Q: What are the electrical requirements?
A: This model operates on 230V/50Hz/1-phase power, suitable for international markets.
Q: Does it have a self-contained condenser?
A: Yes, the UC2724SA-6 features a self-contained, air-cooled condenser for easy installation and maintenance.
Maintenance Tips
-
Biannual Deep Cleaning
Clean the machine at least twice a year using a food-grade scale remover like Scotsman Clear 1. This prevents mineral buildup and maintains ice quality.
-
Descale Internal Components
Prepare a solution by mixing 5 oz (150 cc) of Scotsman Clear 1 with 2.5 quarts (2.4 liters) of warm potable water (95°F to 115°F). Remove the spray bar and ice level control plate, soak them in the solution, and clean thoroughly.
-
Sanitize the Ice Bin
After descaling, sanitize the ice storage bin with an approved sanitizer to prevent microbial growth.
-
Clean the Air Filter
Regularly remove and clean the front-facing air filter to maintain proper airflow and efficient cooling.
-
Monitor AutoAlert Indicators
Pay attention to the AutoAlert control panel's LED lights, which notify you of scale buildup and when it's time to descale or sanitize.
-
Inspect the Drain Line
Ensure the drain line is clear and unobstructed to prevent water backup and potential overflows.
-
Check for Cleaning Indicators
Be alert for signs like unusual ice taste, reduced ice production, or the "Time to Clean" light, indicating the need for maintenance.
