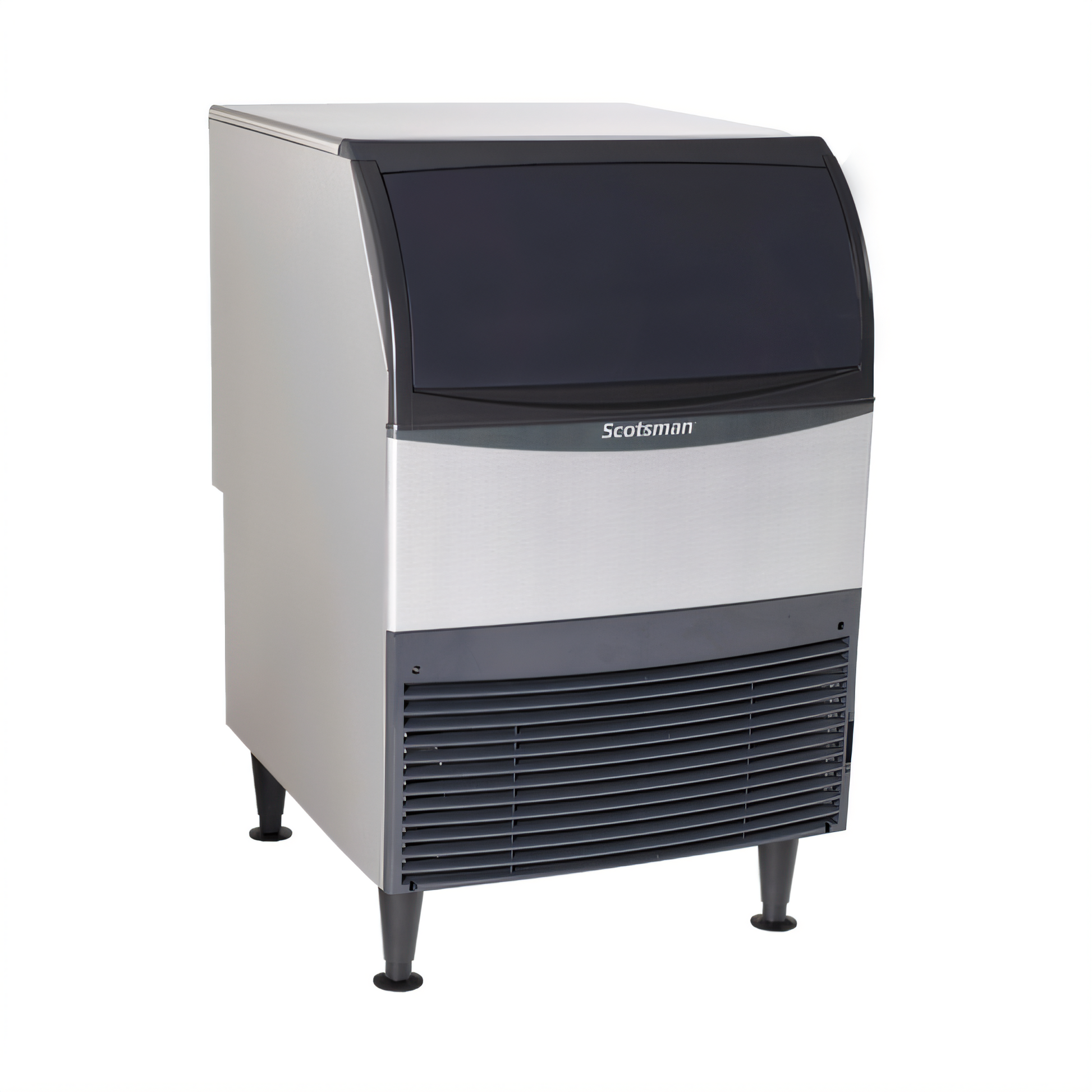

Scotsman Ice Machines - UF424A-6
Undercounter Ice Maker with Bin, Flake Style, air cooled, 24" width, self contained condenser, production capacity up to 370 lb production/24 hours at 70°/50°, 80 lb bin storage capacity, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 230v/50/1-ph, cULus, NSF, engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
29.0 in |
| Shipping Weight |
200.0 lbs |
| Bin Storage Capacity |
80 lb (0 - 99 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 370 lb at 70°F air / 50°F water |
| Ice Type |
Flake |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Materials |
Stainless steel auger & evaporator |
| Bearings |
Sealed, maintenance-free |
| Air Filter |
Front-facing, removable |
| Utility Chase |
Recessed |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
230v / 50Hz / 1-ph (Export Model – 50Hz version) |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High-Capacity Production – Delivers up to 380 lbs of flake ice per day, perfect for large-scale operations in restaurants, hotels, or healthcare.
-
Flake Ice Quality – Soft, quick-melting ice ideal for food displays, beverages, and medical use.
-
Space-Saving Design – The compact, undercounter design maximizes floor space while maintaining impressive ice output.
-
Energy Efficient – Air-cooled system reduces electricity usage while maintaining consistent performance.
-
Built for Durability – Made with durable stainless steel to withstand heavy use in commercial environments.
-
Easy Maintenance – Equipped with a self-cleaning system, simplifying upkeep and extending the lifespan of the unit.
Q&A
Q: What is the ice production capacity of the Scotsman UF424A-6?
The Scotsman UF424A-6 produces up to 370 lbs of flake ice per day, making it suitable for high-demand commercial environments.
Q: What type of ice does the UF424A-6 produce?
This model produces flake-style ice, known for its soft texture and slow melting properties, ideal for seafood displays and beverage cooling
Q: What is the storage capacity of the ice bin?
The integrated bin can store up to 80 lbs of ice, ensuring a steady supply during peak hours.
Q: Is the Scotsman UF424A-6 energy-efficient?
Yes, it operates with R-134A refrigerant, which is non-ozone-depleting, and meets the latest EPA and DOE energy efficiency codes.
Q: Can the UF424A-6 be installed in compact spaces?
Yes, with a width of just 24 inches, it fits into tight spaces and features front-facing air intake and exhaust for flexible placement.
Maintenance Tips
-
Clean the exterior with a soft, damp cloth to prevent buildup.
-
Descale and sanitize the interior at least twice a year.
-
Replace water filters every 6 months for optimal water quality.
-
Inspect and clean the air filter regularly to maintain airflow.
-
Ensure proper ventilation around the unit for efficient cooling.
-
Check and clean the drain line to avoid blockages.
-
Periodically inspect the ice storage bin for cleanliness and ice quality.
