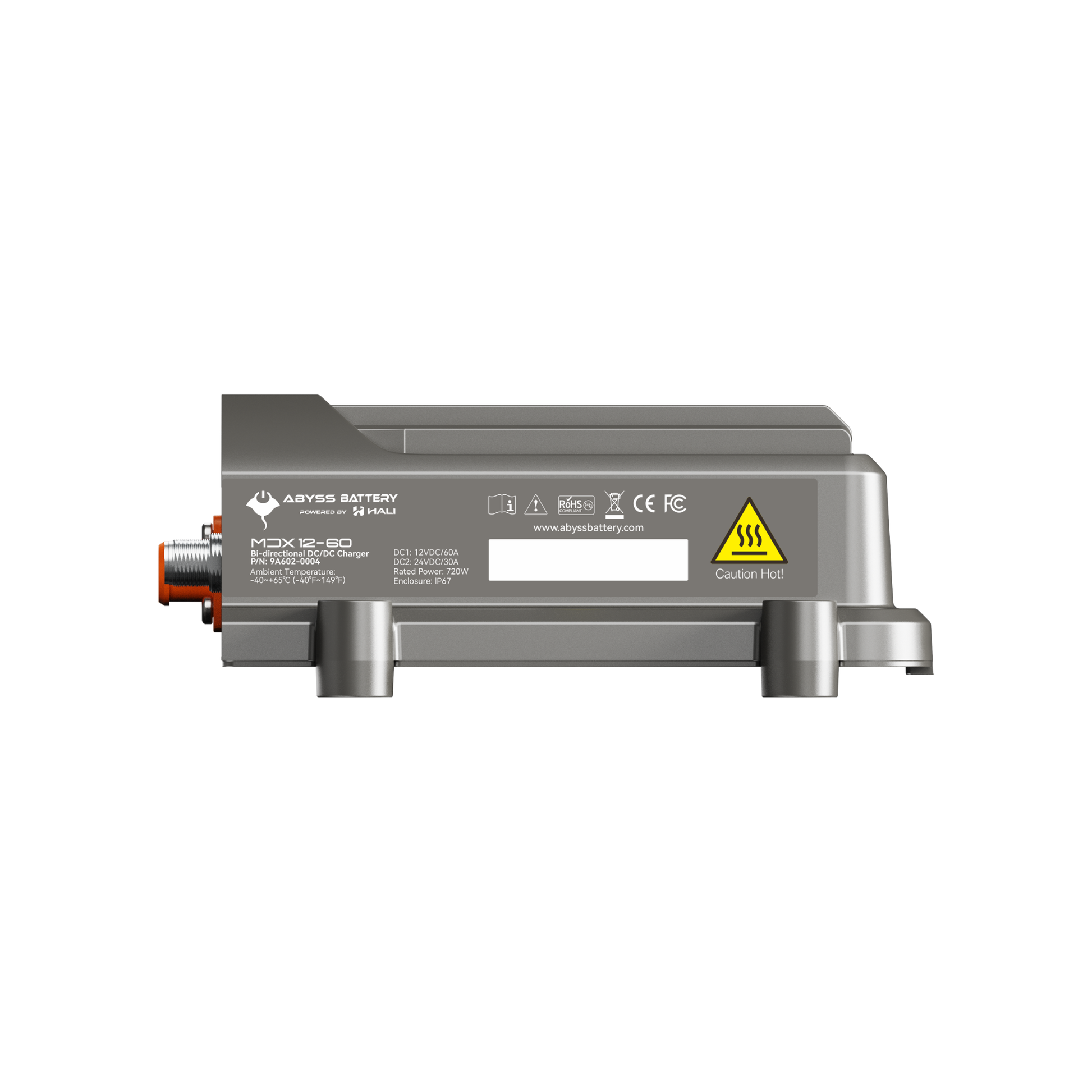

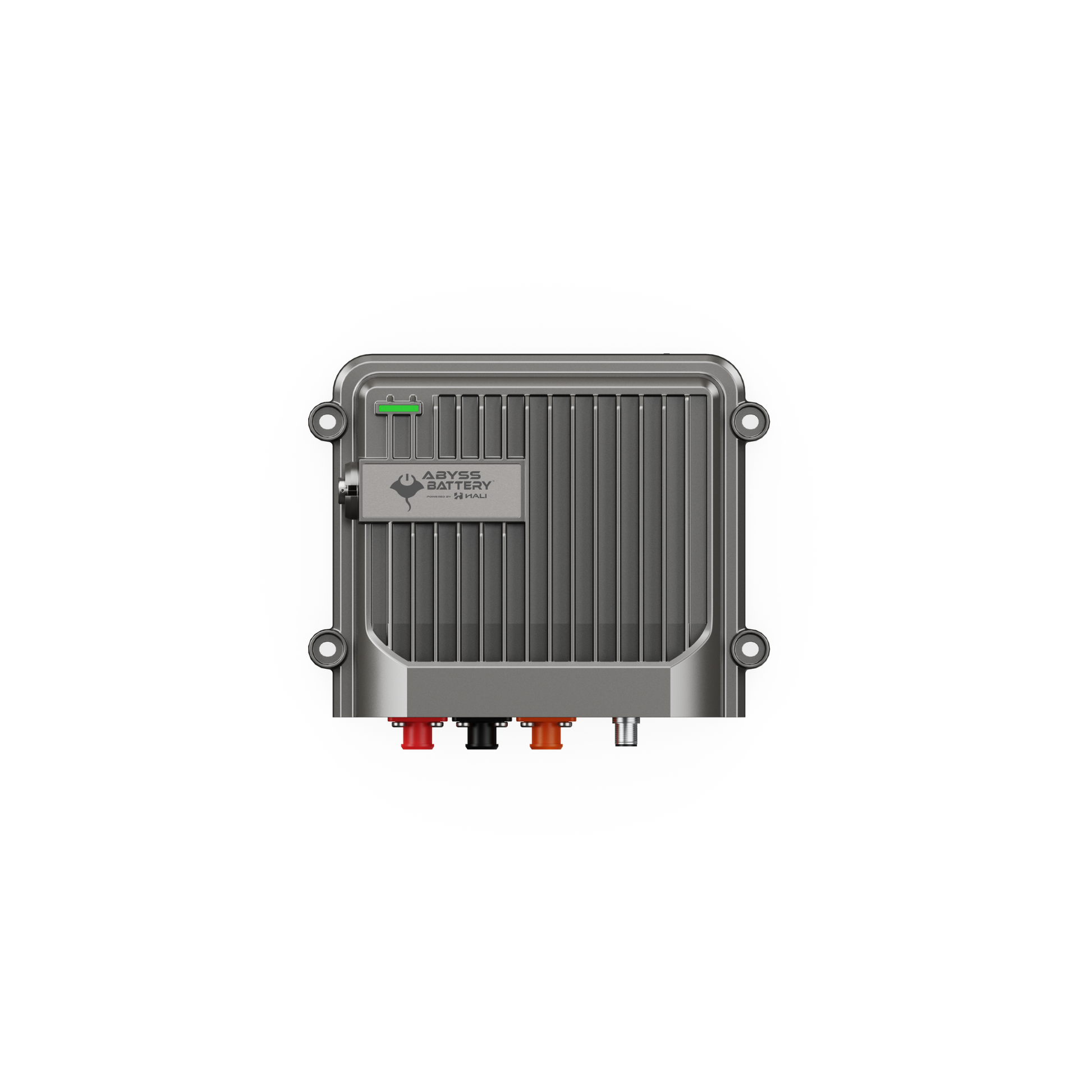

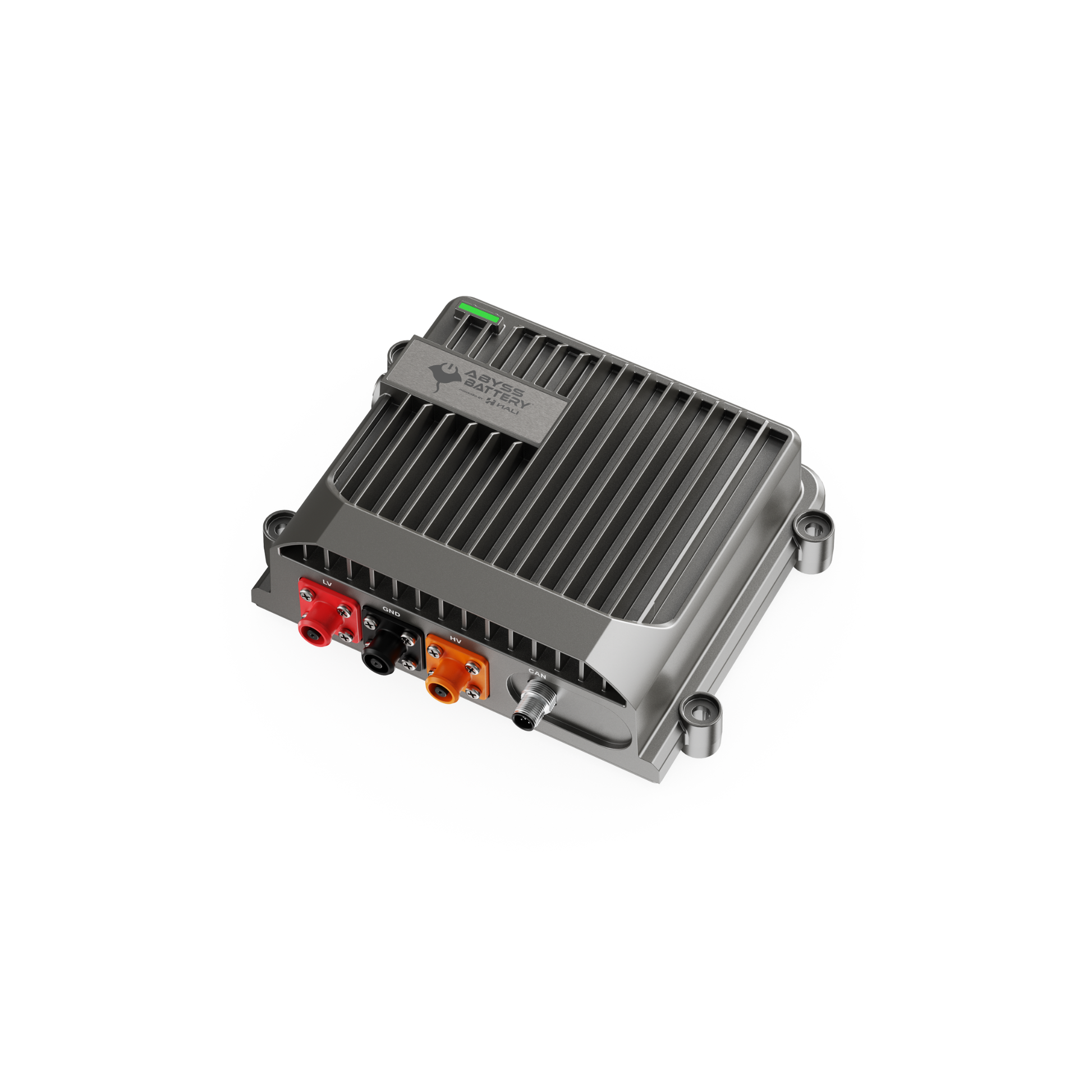

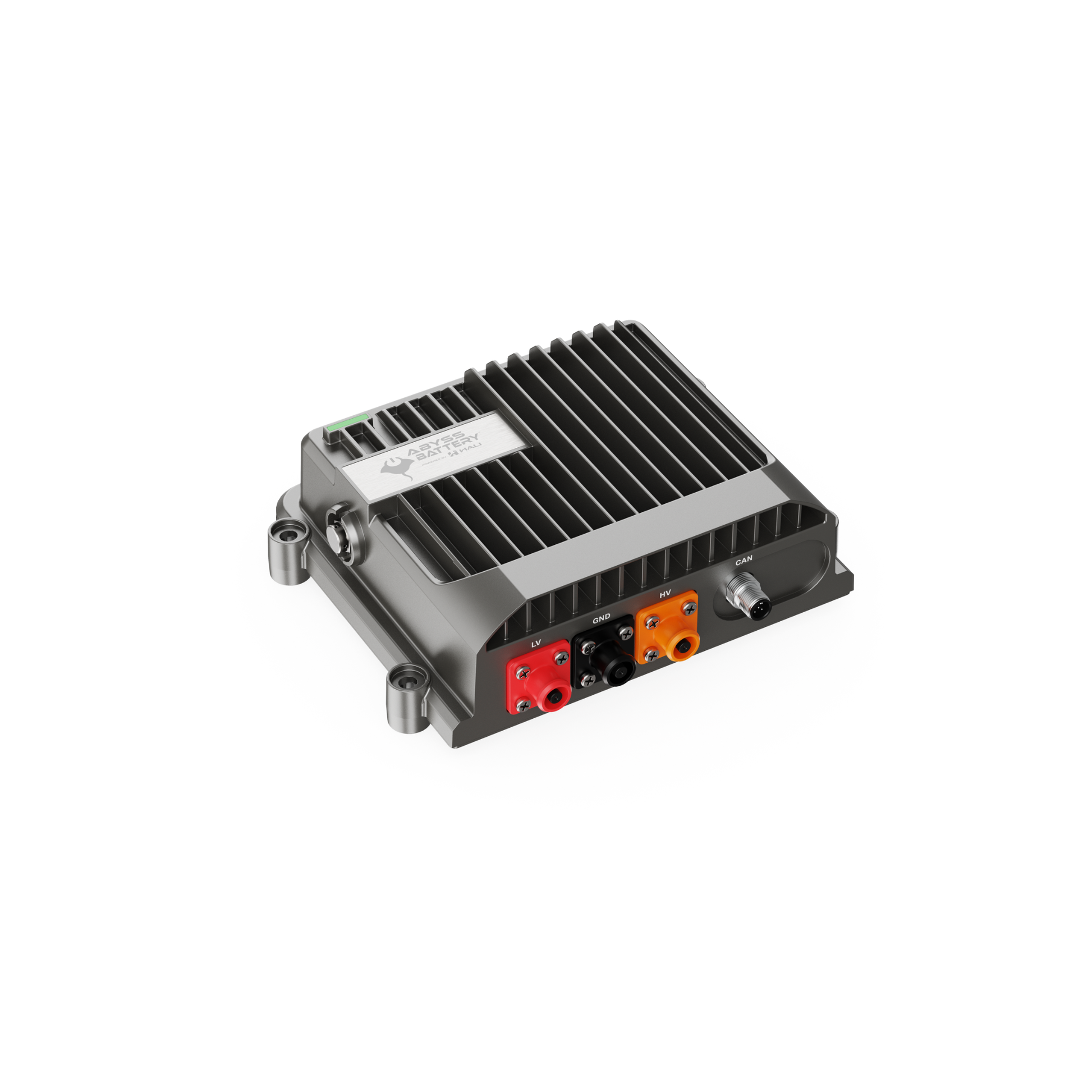

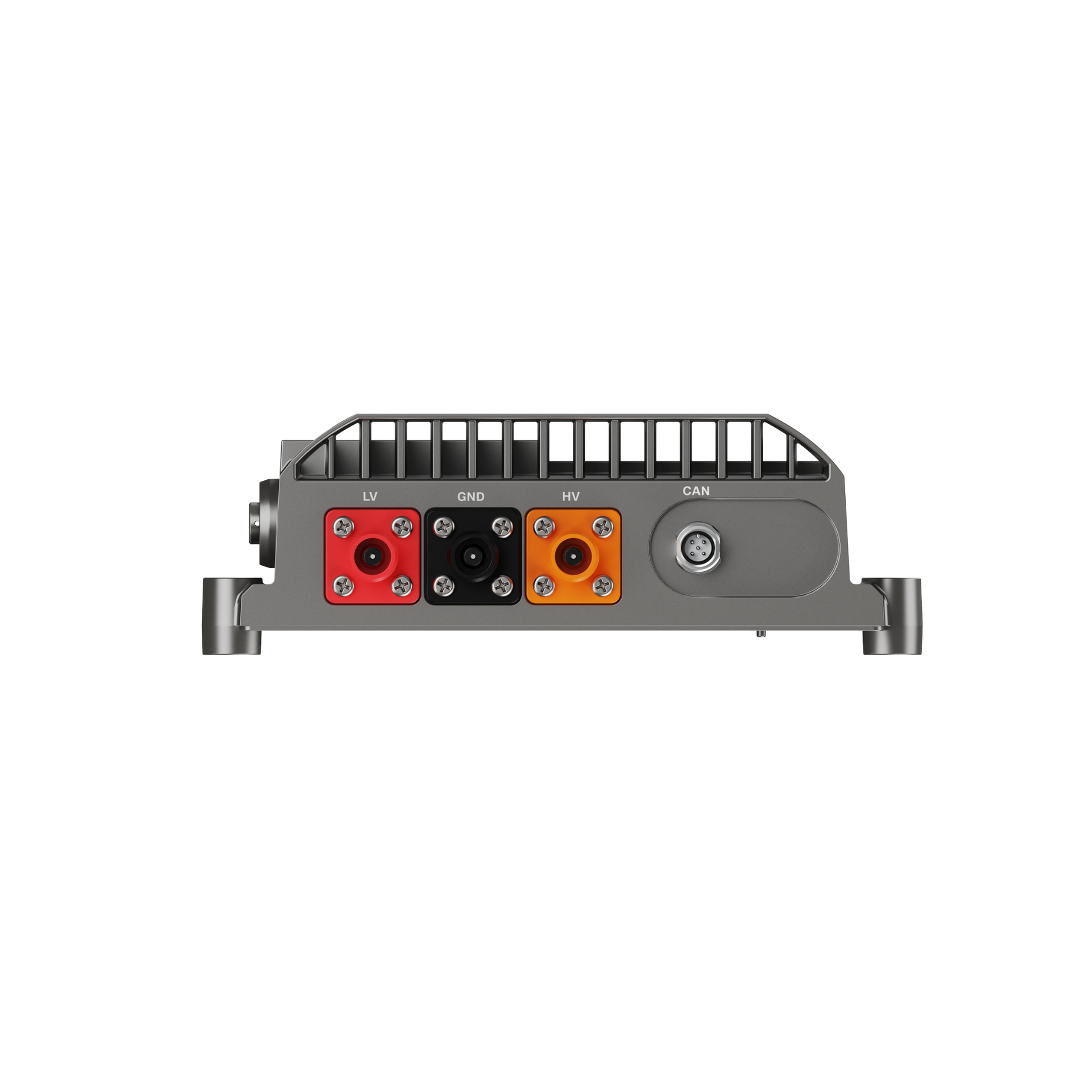

Abyss Battery Bi-Directional DC-DC Charger - AB-MDX13-60

Abyss Battery  Bi-Directional DC-DC Charger - AB-MDX13-60

 The  from Abyss Battery is a marine-grade, high-performance power management device designed to transfer electrical energy seamlessly between different battery systems. Its bi-directional functionality allows it to operate as both a charger and a converter, making it suitable for managing 12V and 36V lithium battery systems onboard boats.

Materials and Construction: The charger features a corrosion-resistant aluminum casing with marine-grade sealing, ensuring durability in harsh marine environments. Internally, it employs electronic components rated for continuous operation at a maximum output of 720W, with protection circuits against overcurrent, overvoltage, and thermal overload for enhanced reliability.

Dimensions and Weight: The unit measures approximately 12 inches in length, 8 inches in width, and 4 inches in height, with an estimated weight of 4.5 kilograms. It is designed for easy installation within standard marine battery compartments or electrical panels.

Features

• Bi-directional power transfer capabilities facilitate charging and power sharing between 12V engine and 24V/36V lithium systems
• Maximum output power of 720W (12V 60A) for efficient charging of lithium batteries
• Adaptive transfer mode based on battery status and load demands
• Built-in protection features include overcurrent, overvoltage, thermal regulation, and short-circuit protection
• Compatible with lithium, AGM, and lead-acid batteries, emphasizing versatility for different marine applications
• Battery management system integration supports optimal charge cycles and prolongs battery lifespan
• LED indicators display operational status, voltage levels, and fault conditions
• Weather-resistant construction ensures sustained operation in marine environments

What our Experts Think

• True bi-directional energy management – The AB-MDX13-60 intelligently transfers power both ways, charging 36V/24V lithium trolling systems from 12V alternators and sending power back to maintain the starter battery when the engine is off.
• High-output 720W performance – Delivers up to 12V 60A input power, enabling fast recharge of large lithium banks and significantly reducing downtime between fishing runs.
• Marine-grade IP67 protection – Fully sealed, die-cast aluminum construction ensures reliable operation in wet, saltwater, and high-vibration environments.
• Smart automatic switching – Software-controlled logic automatically manages boost (12V → 36V) and buck (36V → 12V) modes with no manual intervention required.
• Ultra-efficient power transfer – Achieves up to ~95% efficiency, minimizing energy loss and maximizing usable onboard power.
• System simplification advantage – Reduces or eliminates the need for separate house batteries, cutting weight, wiring complexity, and installation cost.
• Advanced safety integration – Built-in protections against over-voltage, over-temperature, and short circuits ensure stable operation in demanding marine conditions
