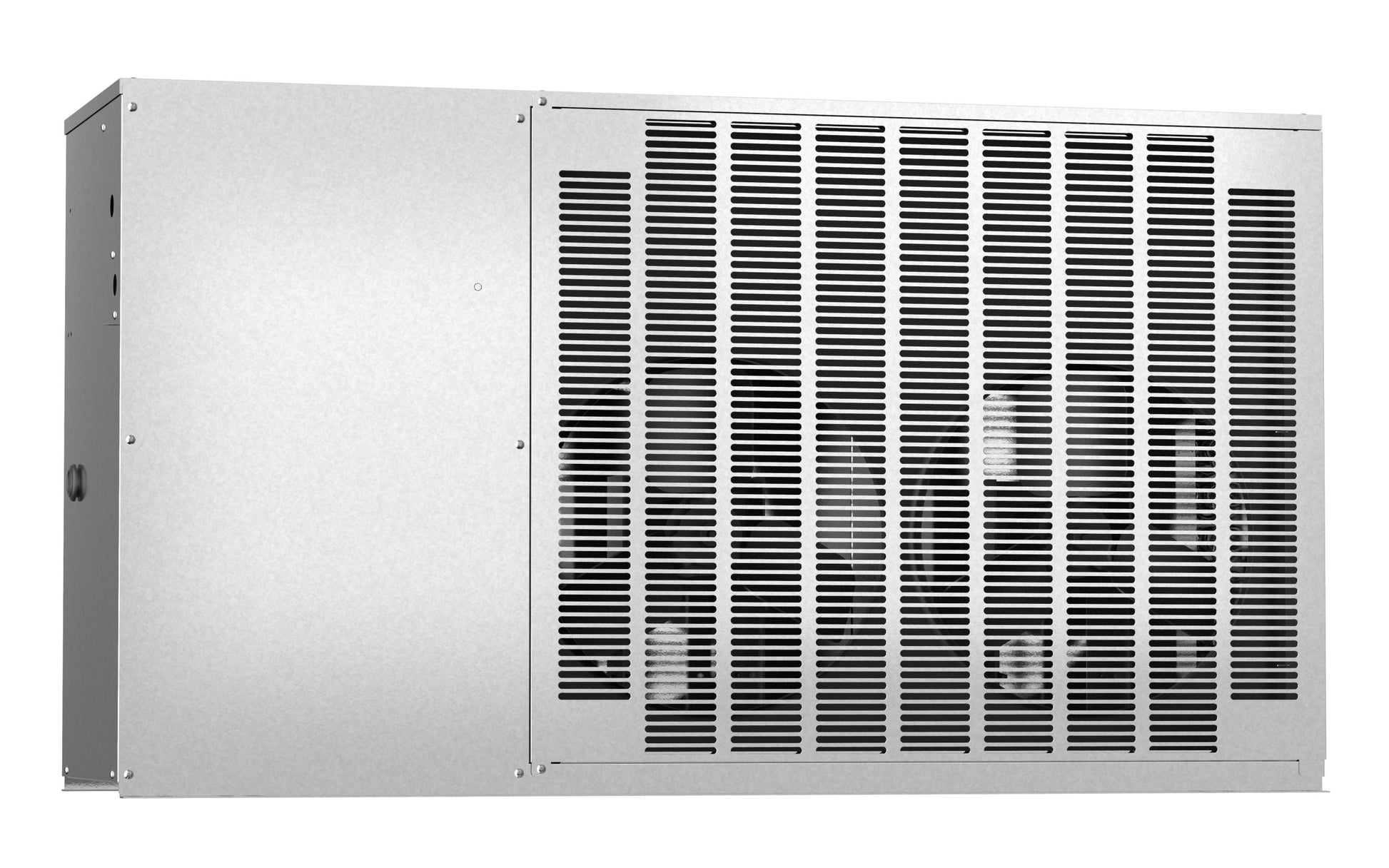

Hoshizaki SRK Series Remote Condenser - SRK-12J
The SRK-12J, SRK Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-12J Remote Condenser operates on Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (15 lbs. 14 oz. / 7200 g). Compatible icemakers, sold separately: KMS-1122MLJ. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
- Dimensions: 52-3/8″ W x 19-1/2″ D x 43″ H
- Remote condenser for KMS-1122MLJ
- Quiet operation
- Weather resistant cabinet for longer life
- Must be hardwired at the site (4 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground)
- R-404a refrigerant (15 lbs. 14 oz. / 7200 g)
- Compatible icemakers, sold separately: KMS-1122MLJ
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
SRK-12J |
| Weight |
275 lbs |
| Width |
52.38" |
| Depth |
19.5" |
| Height |
43" |
| Voltage |
208/230 |
| Phase |
1 |
| Part & Accessory Type |
remote condenser unit |
What Our Experts Think
-
Enhanced Cooling Efficiency: Designed to optimize ice machine performance by reducing heat and noise in the kitchen.
-
Powerful Remote Condensing: Ensures consistent refrigeration while improving energy efficiency.
-
Durable Construction: Built with high-quality materials to withstand commercial use and harsh environments.
-
Quiet Operation: Moves the condenser away from the workspace, reducing noise levels for a more comfortable environment.
-
Energy-Saving Design: Helps lower utility costs by improving overall cooling efficiency.
-
Easy Maintenance: Accessible components for hassle-free servicing and upkeep.
-
Reliable Hoshizaki Performance: Engineered for long-term durability and optimal ice production support.
Q&A
Q: What is the Hoshizaki SRK-12J Remote Condenser?
A: A remote air-cooled condenser designed to optimize performance and efficiency for compatible Hoshizaki ice machines.
Q: What ice machines is it compatible with?
A: Works with select Hoshizaki ice makers, including certain KML, KMH, and F series models.
Q: What are the benefits of a remote condenser?
A: Reduces noise and heat in the kitchen while improving ice production efficiency.
Q: What is the cooling capacity?
A: Engineered to support high ice production with optimized refrigeration performance.
Q: Where should it be installed?
A: Typically mounted outdoors or on a rooftop for maximum heat dissipation.
Q: What type of refrigerant does it use?
A: Uses environmentally friendly R-404A refrigerant for reliable cooling.
Q: What are the electrical requirements?
A: Operates on a standard 208-230V electrical connection.
Q: Is it weather-resistant?
A: Yes, built with durable, weather-resistant materials for outdoor installation.
Maintenance Tips
-
Clean Condenser Coils: Dust and debris can reduce efficiency—clean coils every 3-6 months using a soft brush or vacuum.
-
Inspect Fan Blades & Motor: Check for dust buildup or obstructions and ensure the fan operates smoothly.
-
Monitor Refrigerant Levels: Low refrigerant can reduce cooling performance; schedule professional inspections as needed.
-
Ensure Proper Airflow: Keep the area around the condenser clear to prevent overheating and maintain efficiency.
-
Check Electrical Connections: Inspect wiring and connections periodically for signs of wear or damage.
-
Schedule Routine Maintenance: Professional servicing at least once a year helps ensure long-term performance and reliability.
