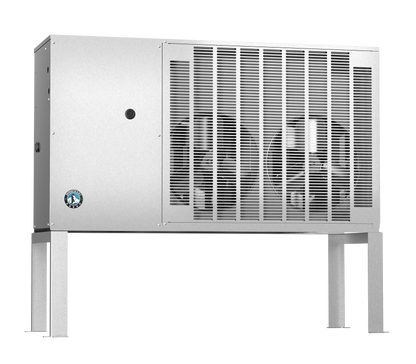

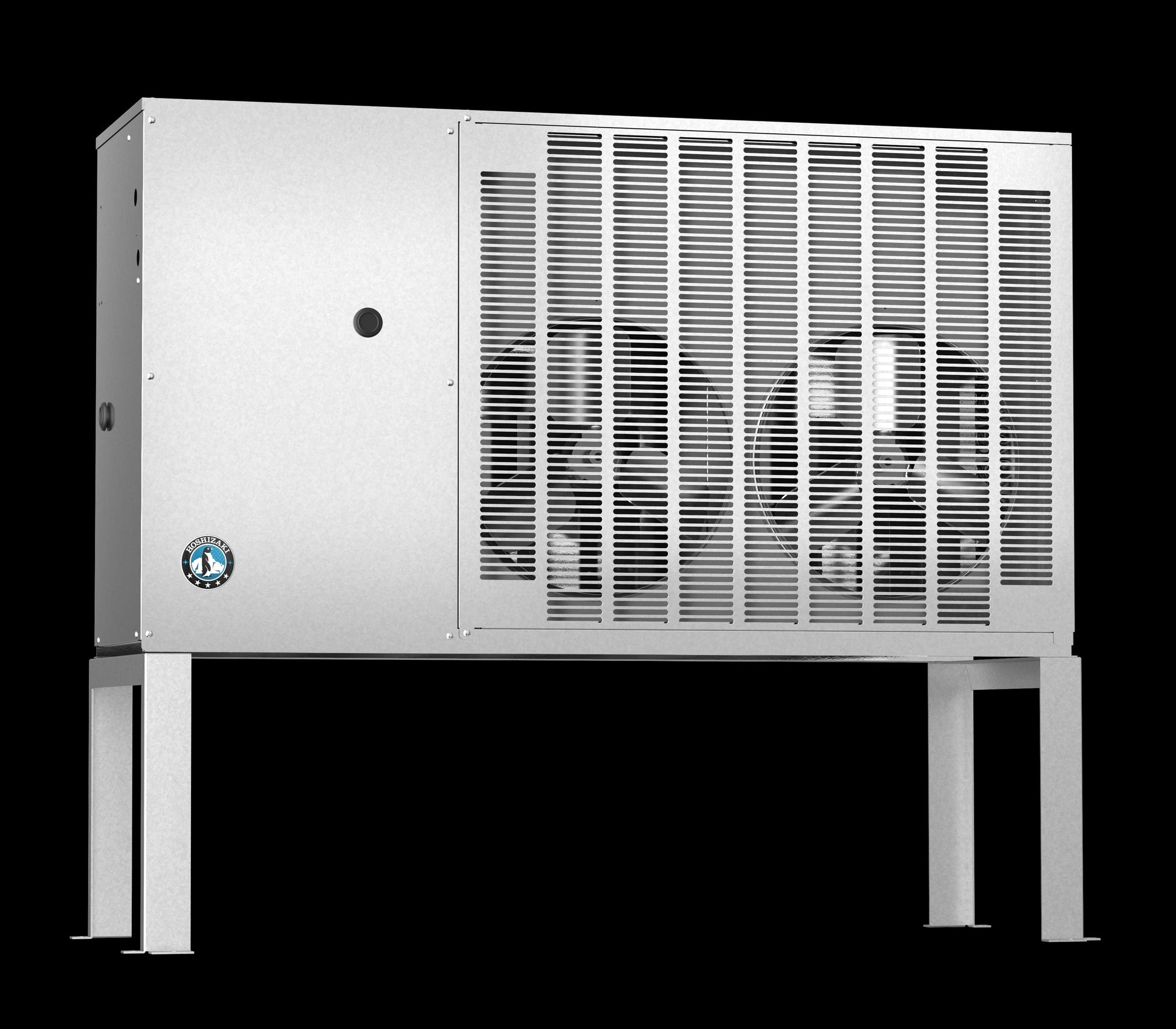

Hoshizaki SRK Series Remote Condenser - SRK-15J
The SRK-15J, SRK Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-15J Remote Condenser operates on Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (15 lbs. 14 oz. / 7200 g). Compatible icemakers, sold separately: KMS-1402MLJ. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
- Dimensions: 52-3/8″ W x 19-1/2″ D x 43″ H
- Remote condenser for KMS-1402MLJ
- Quiet operation
- Weather resistant cabinet for longer life
- Must be hardwired at the site (4 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 230v/60/1, Must be hardwired at the site (4 wire, including ground)
- R-404a refrigerant (15 lbs. 14 oz. / 7200 g)
- Compatible icemakers, sold separately: KMS-1402MLJ
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
SRK-15J |
| Weight |
275 lbs |
| Width |
50" |
| Depth |
19.5" |
| Height |
43" |
| Voltage |
208/230 |
| Phase |
1 |
| Part & Accessory Type |
remote condenser unit |
What Our Experts Think
-
Powerful Cooling: Designed to efficiently support Hoshizaki ice makers, ensuring optimal performance and reliability.
-
Quiet Operation: Remote installation reduces noise levels in the workspace, making it ideal for commercial environments.
-
Energy Efficient: Enhances ice production while minimizing energy consumption, lowering operational costs.
-
Durable Construction: Built with high-quality materials for long-lasting performance and resistance to harsh conditions.
-
Easy Installation & Maintenance: Compact design with accessible components for simplified servicing.
Q&A
Q: What is the Hoshizaki SRK-15J Remote Condenser used for?
A: It is designed to efficiently dissipate heat for compatible Hoshizaki ice makers, improving performance and reducing noise.
Q: What ice maker models is it compatible with?
A: The SRK-15J is compatible with select Hoshizaki ice machines. Check the manufacturer’s specifications for exact model compatibility.
Q: What are its key features?
A: It features a durable, weather-resistant design, energy-efficient operation, and quiet performance for optimal ice production.
Q: Can it be installed outdoors?
A: Yes, it is built for outdoor installation, helping to free up indoor space while maintaining efficiency.
Q: Does it improve energy efficiency?
A: Yes, by reducing the ice maker’s internal heat load, it helps optimize energy usage and performance.
Q: What are the dimensions and power requirements?
A: The exact specifications depend on the model; refer to the product manual for detailed sizing and electrical requirements.
Maintenance Tips
-
Clean Coils Regularly: Use a soft brush or vacuum to remove dust and debris for optimal airflow.
-
Inspect Fan Blades: Check for dirt buildup or damage and clean as needed.
-
Check Refrigerant Levels: Ensure proper levels to maintain cooling efficiency.
-
Tighten Electrical Connections: Prevent performance issues by securing loose wiring.
-
Monitor for Unusual Noises: Strange sounds may indicate fan or motor issues—address promptly.
