Tamarack Solar Horizontal Pole Mount Modules - 2 Pole - UNI-PGRM/5P2

Tamarack Solar Horizontal Pole Mount Modules - 2 Pole - UNI-PGRM/5P2

by Tamarack
SKU UNI-PGRM/5P2
Save up to 6% Save 6%
$619.00
$619.00 - $662.00
$619.00
$581.99
$581.99 - $622.99
$581.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Tamarack Solar Horizontal Pole Mount Modules - 2 Pole - UNI-PGRM/5P2

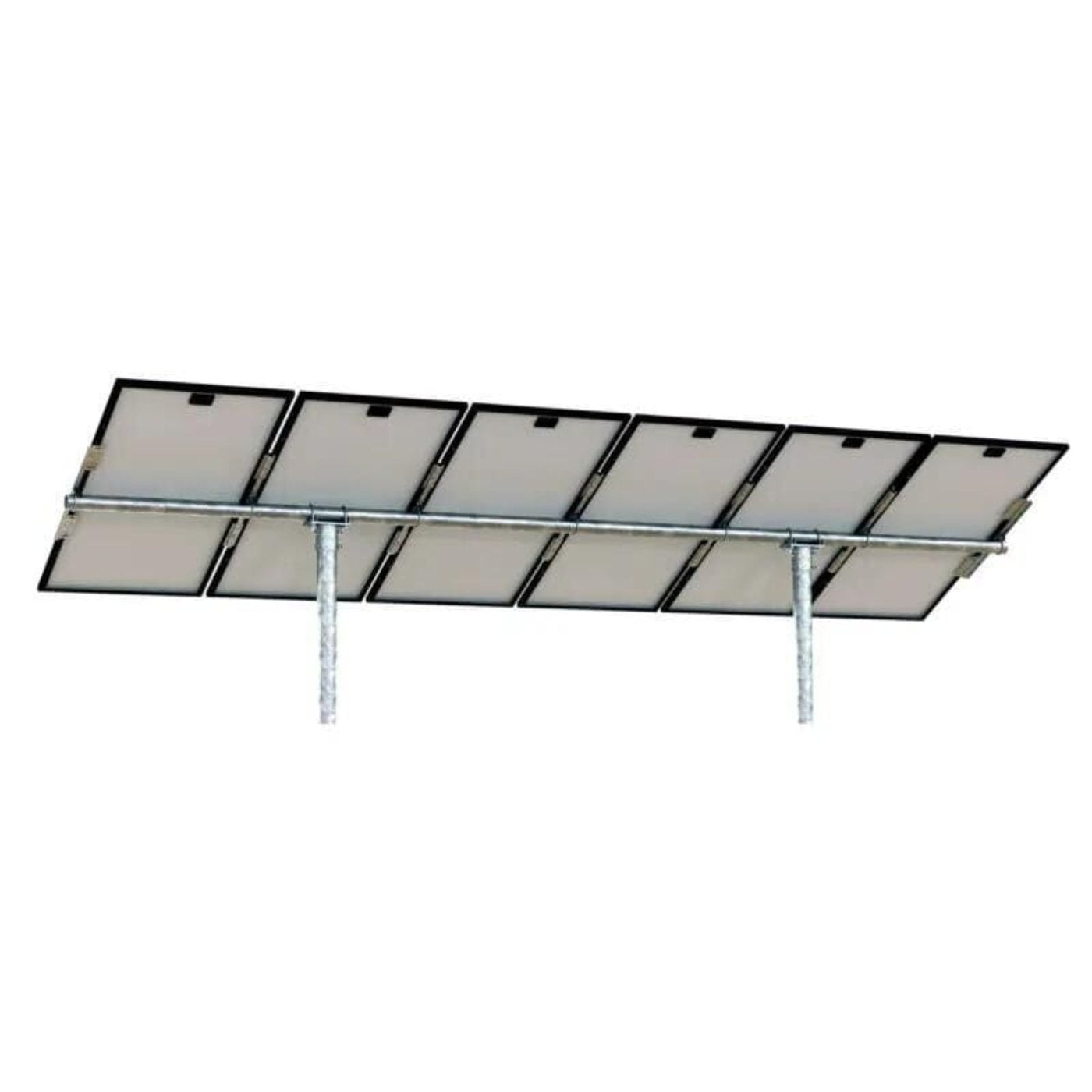

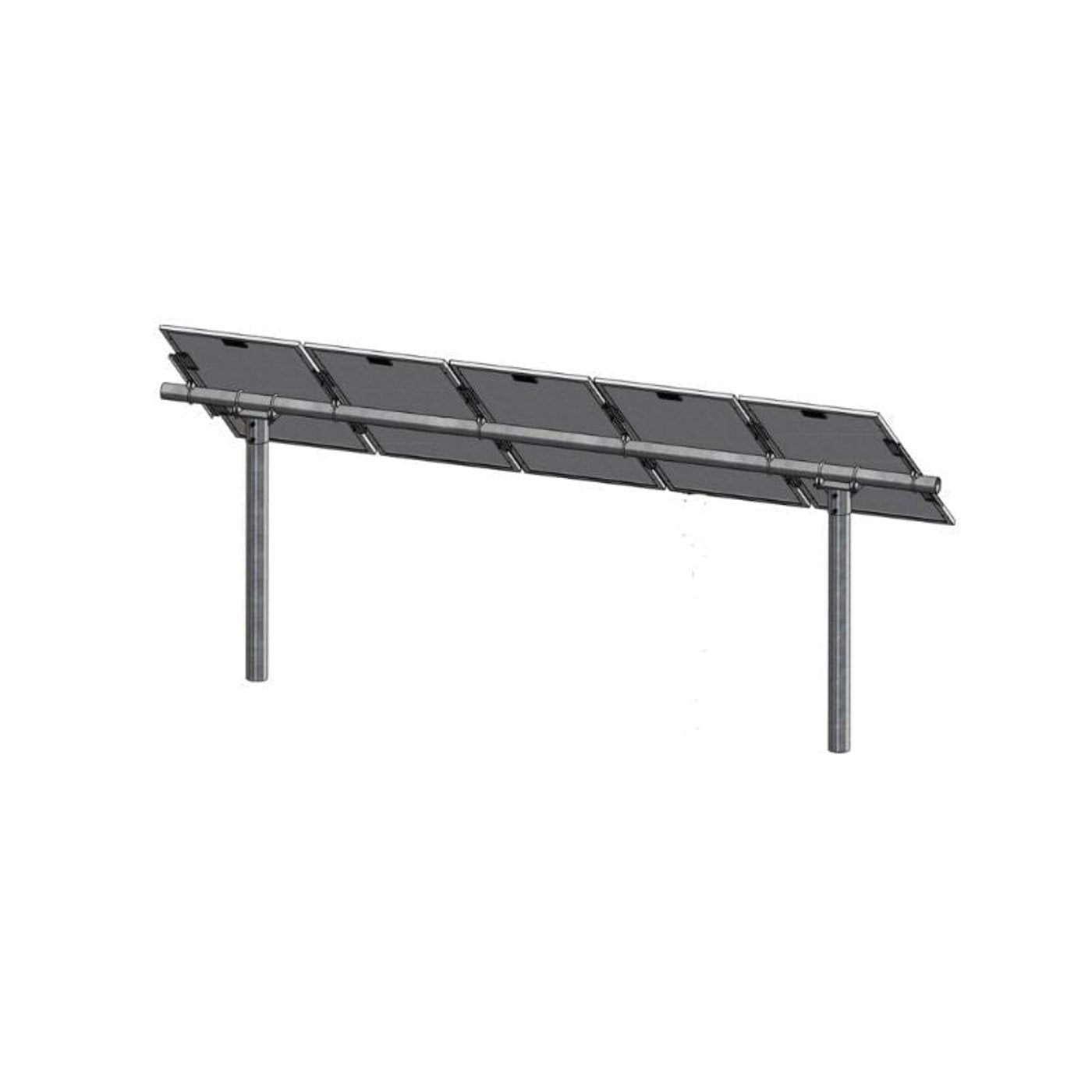

Tamarack Solar Horizontal Pole Mount Modules - 2 Pole NEW from Tamarack Solar! Newly designed, economy horizontal pole mounts can be used to mount up to 6 solar panels in portrait orientation. The PGRM series pole mounts are suitable for wind speeds up to 115 MPH. Higher wind locations would need a second vertical pole mount. (*Due to varying site conditions, mounting poles are NOT included, and must be supplied by the user.)

PORTRAIT ORIENTATION MOUNT FOR MODULES WITH A SQUARE FOOTAGE OF 24.78 OR LESS

Top of Pole – Portrait Orientation (PGRM)

The popular PGRM Mounts are designed for up to 6 modules per mount in portrait orientation. Available tilt angle ranges from 0° to 90° and allows easy seasonal adjustability. Use for modules with a minimum length of 35.5-inches and a maximum sq. footage of 24.78. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. Rated for windspeeds up to 115 MPH. Install up to 92 square feet of modules on a single 4” Schedule 40 pole and up to 130 square feet of modules on two 4” schedule 40 poles.
  • Can mount up to 6 solar panels with frame thickness between 30-50 mm (1.18 - 2 in)
  • Square footage of mount can be up to 92 sq ft on a single 4" schedule 40 pole, and up to 130 sq ft on two poles
  • Designed for wind speeds up to 115 MPH, with higher wind locations needing to add an additional vertical pole
  • The two pole version is necessary when mounting 5 or 6 60 or 72-cell modules
  • Tilt angle can be easily adjusted from 0 to 90 degrees, on a seasonal basis, to get the most production
  • Mounts ship UPS ground
  • Simple one-person installation and adjustment
  • 10 Year Warranty

Not included with PRGM Mount: 4” schedule 40 steel pipes for vertical poles and a 3” schedule 40 steel pipe for the horizontal beam.

  • 1 x Cap, 4" Pipe
  • 2 x GALV Steel U-Bolt 1/2-13 3" PIPE
  • 2 x U-Bolt Clamp, 3" Pipe 1/2" U-Bolt
  • 4 x Washer, Flat 1/2 Galv
  • 4 x Washer, Lock 1/2 Galv
  • 4 x Nut, 1/2-13 HDG
  • 4 x Steel Square Head Cup Point Set Screw 1/2"-13 Thread, 1.5" Length MECH GALV
  • 4 x NUT, JAM 1_2-13 GALV
