ELEVATE your members' workout experience with the ELEVATE Encompass, a comprehensive functional training system that delivers a full-body workout in one intuitive machine.
This system engages multiple muscle groups simultaneously, providing a well-rounded workout that challenges proprioception and activates core stabilizers. By incorporating multi-plane movements and offering an unrestricted range of motion, the ELEVATE Encompass enhances nearly every exercise for maximum effectiveness. The ELEVATE Encompass works on an incline, relying on body weight resistance, strengthening the way the body executes daily physical activities. The ELEVATE Encompass works with GRAVITY programming for a full class workout.
Item #: 5200-B2
Benefits
Benefits for the individual exerciser:
Short, efficient, full body workout producing fast, observable, body-changing results
Body sculpting â recruits core abdominal and back muscles in every exercise
Increased strength and endurance
Improved coordination and balance
Weight and inch loss, improved BMI
Increased metabolism
Enhanced functional performance of daily activities and athleticism
Cardio-endurance gains during resistance training
Low impact, safe, complete back support
Training applications and biomechanics:
Closed-chain partial loading of the joints
Work in all three cardinal planes plus multi-plane (3-D) movement
Unrestricted range of motion
Adjust cable-pulley force angles based on client size, girth, and training objective
Train prime stabilizers & proprioception
Activity-specific work hardening, including sports-specific movement
Explosive plyometric training for upper & lower extremities
Full body support, joint friendly, non-compressive
Over 200 exercises & variations
Pilates evolved training & education
Reliable tool for assessing lower body strength
Full spectrum of training DVDs available
Key Features
Adjustable glideboard promotes optimal spinal alignment during transverse movements and allows for new additional training variations.Â
Automatic rail locks allow for explosive plyometric jumping.
Hydraulic rail lift assists level changes and easy two-step folding.
Multiple center-pulley attachment points double arm-cable load and increase lower extremity range of motion.

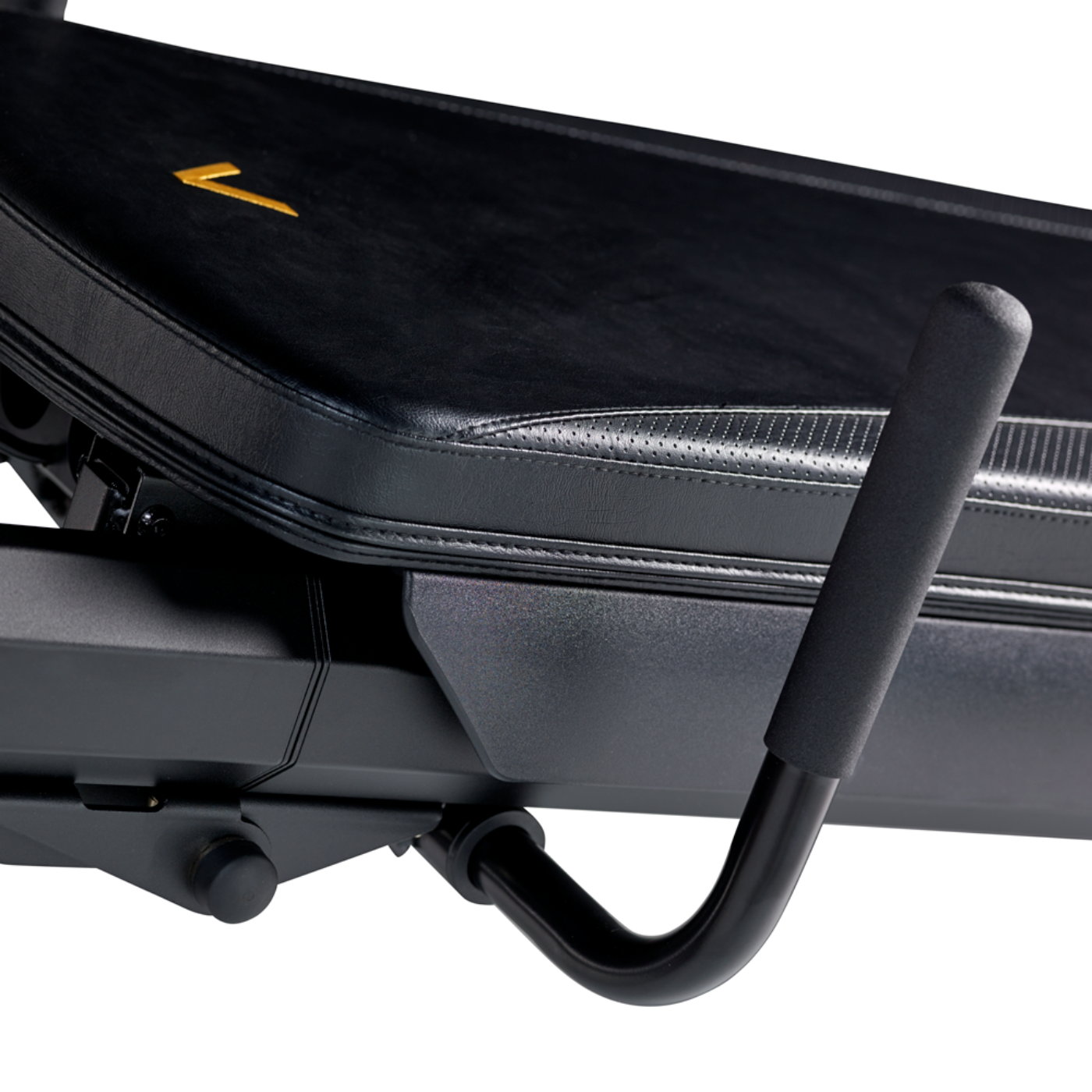

Retractable Dip Bars included as standard
LAT bars promote line-of-pull specificity for arm-cable exercises.
More than 250 exercises and variations from resistance training to Pilates.
Resistanceâ1% to 62% of bodyweight.
Key Specification'sÂ
Unfolded: 106â x 38â x 57â [L/W/H] (2.69 m x 0.96Â m x 1.45 m)

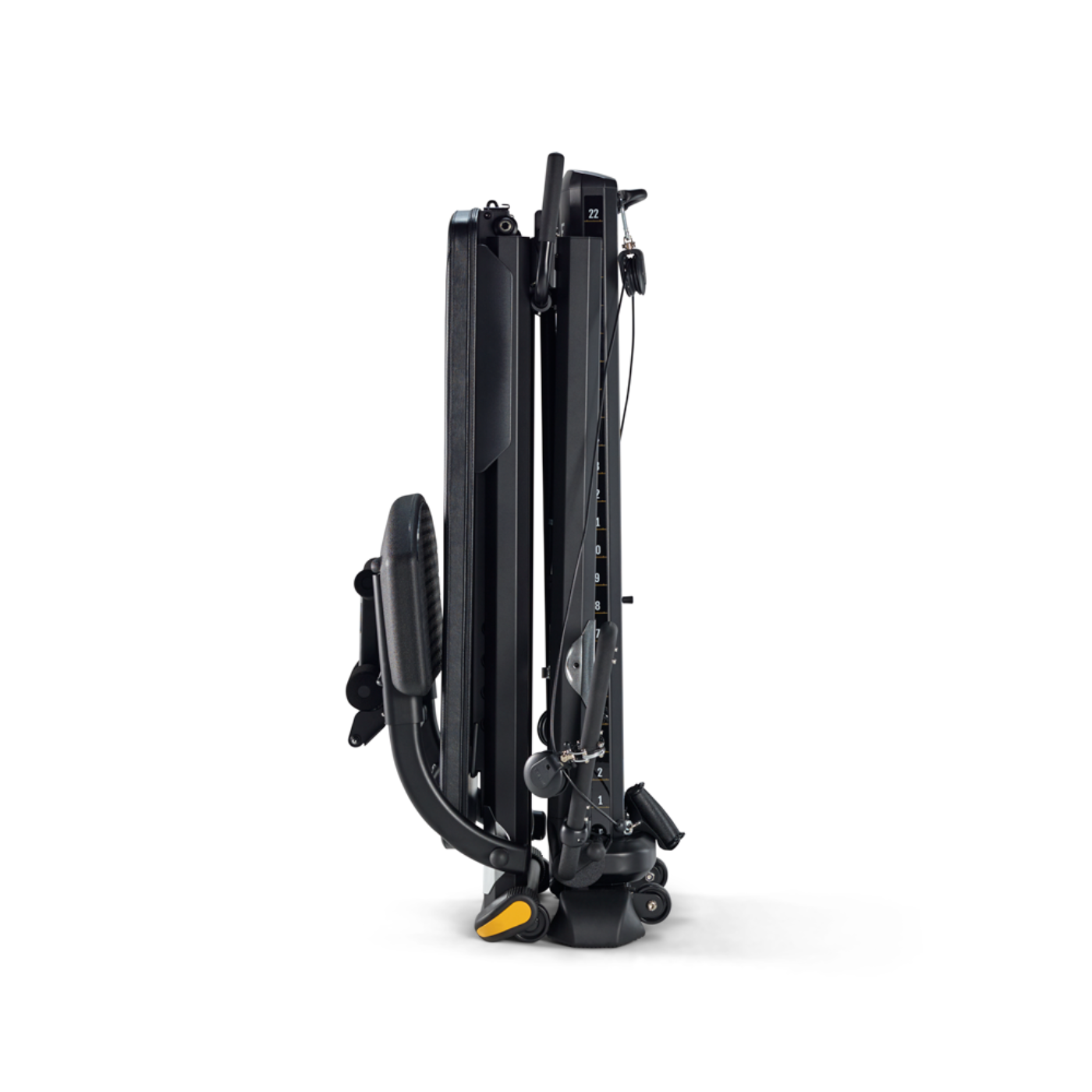

Folded:20â x 38â x 57â [L/W/H] (0.51Â m x 0.96Â m x 1.45 m)
Tubing: 1.7" x 3.2" Aluminum Extrusion (4.4cm x 8.1cm)
User Weight: Rated to 350 lbs. body weight. (159 kg)
Maximum Load Capacity:Â 500 lbs. (295 kg) Inclusive of glideboard
User Height Limit: 6' 5" (2.0 meters)
Glideboard: 16" x 48" (41 cm x 122 cm). 7 position adjustable angles. Heavy duty, two-tone design, box stitched, tear resistant vinyl
Foam Padding: 1 1/2" (4 cm) high rebound, high density foam.
Rollers: Better Sealed precision ball bearings
Pulleys: ABS plastic protective shield over a steel frame, Nylon roller with precision ball bearings
Cables: 2000 lb. test (907.2 kg) nylon 12 coated steel aircraft cable
Handles: Soft synthetic rubber Padded Handles with ABS swivel handle and nylon webbing for hammer grip action
Frame & Rail Construction: Anodized Aluminum Rails with all connections reinforce by steel or forged aluminum
Unit Weight: 180 lbs (82 Kg)
Electrical: N/A
Resistance Levels: 22 calibrated incline levels, with release lever to lock rails into place. 1% - 62% bodyweight
Storage Capabilities: Hydraulic lift assists folding. Folds and stores upright. Rolls in hand-truck fashion.
Included Equipment: 7 position Adjustable Glideboard; Dynamic [unilateral/bilateral] Pulley System; Multi-point pulley attachment to tower; soft grip LAT Bars with 7 pulley positions; Folding Foot Holder; Telescoping Squat Stand with 3 height positions and folding platform
Owner's Guide
