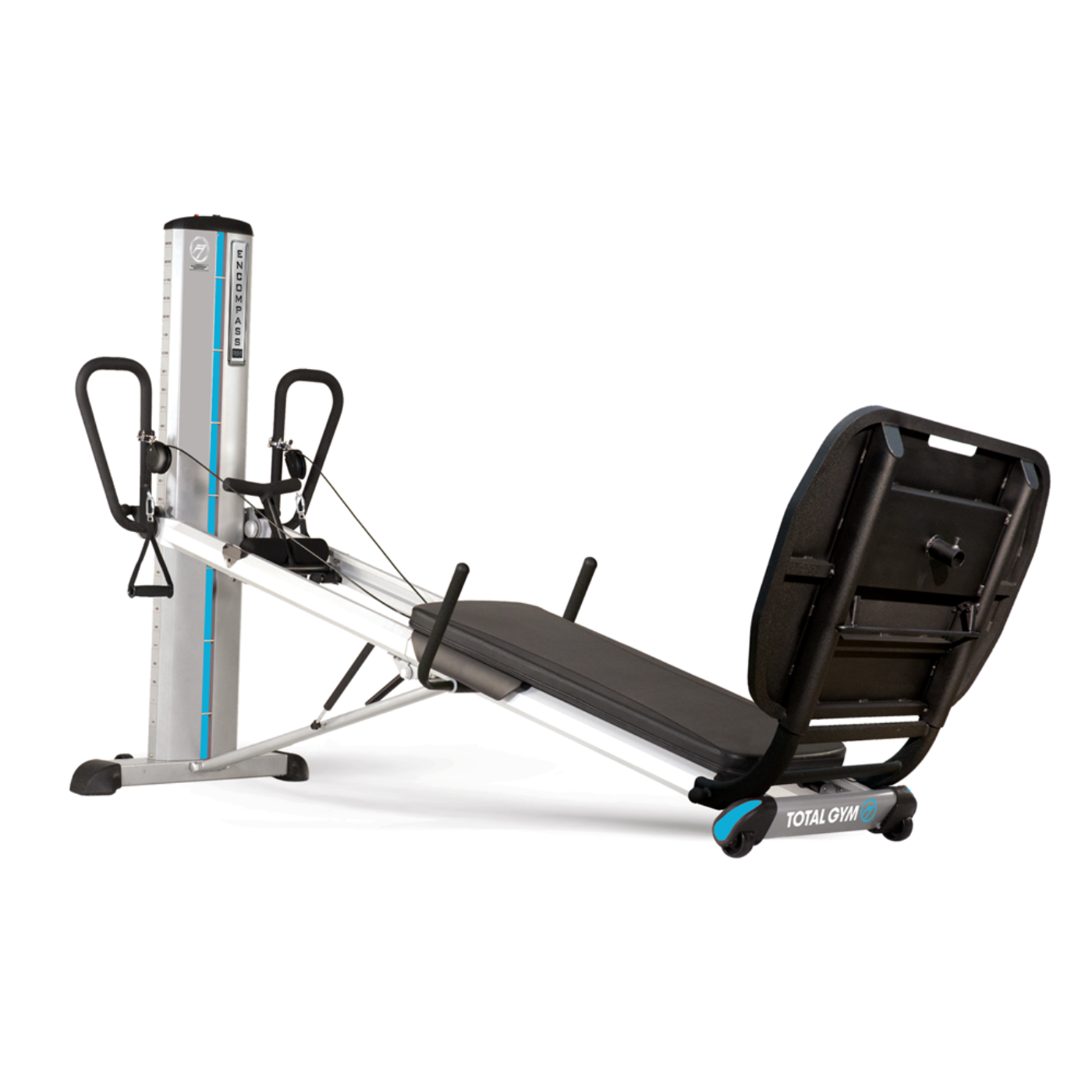

Total Gym RS Encompass Multifunctional PowerTower - 5300-04
Designed and built for commercial use in rehabilitation clinics, the Recovery Series Encompass PowerTower enables motorized, incremental load adjustments at the push of a button. Remote control handles provide easy, touch-controlled level adjustments during exercise, offering seamless functionality for users.
Featuring an adjustable glideboard the RS Encompass PowerTower provides the utmost versatility for high-performance sports-specific conditioning, athletic training and rehabilitation. Able to load from 1%-72% bodyweight the RS Encompass PowerTower station is for those who simply want the best.
Now featuring a built-in Slide Distance Regulator! Also comes standard with the Closed Chain Platform, Retractable Dip Bars, Squat Handle Bar.
Body sculpting – recruits core abdominal and back muscles in every exercise
Increased strength and endurance
Improved coordination and balance
Weight and inch loss, improved BMI
Increased metabolism
Enhanced functional performance of daily activities and athleticism
Cardio-endurance gains during resistance training
Motorized lift assist allows the fitness professional or physical therapist to raise or lower the levels while the user is still exercising - ie. no dismounting needed
Remote control handles allow touch-control level adjustments while exercising
Low impact, safe, complete back support.
Training applications and biomechanics:
Closed-chain partial loading of the joints
Work in all three cardinal planes plus multi-plane (3-D) movement
Unrestricted range of motion
Adjust cable-pulley force angles based on client size, girth, and training objective
Train prime stabilizers & proprioception
Activity-specific work hardening, including sports-specific movement
Explosive plyometric training for upper & lower extremities
Full body support, joint friendly, non-compressive
Over 200 exercises & variations
Pilates evolved training & education
Reliable tool for assessing lower body strength
Full spectrum of training DVDs available.
Features
Remote control handles allow touch-control level adjustments while exercising
Motorized level lift assist
Adjustable glideboard promotes optimal spinal alignment and training variations.
Automatic rail locks allow for explosive plyometric jumping.
Closed Chain Platform now included as standard.
Retractable Dip Bars now included as standard.
Now featuring a built-in Slide Distance Regulator.
LAT bars promote line-of-pull specificity for arm-cable exercises.
More than 200 exercises and variations from resistance training to Pilates.
Resistance—1% to 72% of bodyweight.
Specifications
Unfolded: 106” x 38” x 65” [L/W/H] (2.69 m x 0.96 m x 1.65 m)
Folded: 20” x 38” x 65” [L/W/H] (0.51 m x 0.96 m x 1.65 m)
Tubing: 1.7" x 3.2" Aluminum Extrusion (4.4 cm x 8.1 cm)
Tower Construction: Tower is all reinforced steel, silver powder coating with self locking motorized lead screw level changer
User Weight: Rated to 350 lbs. body weight. (159 kg)
Maximum Load Capacity: 650 lbs. (295 kg) Inclusive of glideboard
User Height Limit: 6' 5" (2.0 meters)
Glideboard: 16" x 48" (41 cm x 122 cm). 7 position adjustable angles
Rollers: Better Sealed precision ball bearings
Pulleys: ABS plastic protective shields over a steel frame, Nylon roller with precision ball bearings
Cables: 2000 lb. test (907.2 kg) nylon 12 coated steel aircraft cable
Handles: Soft synthetic rubber Padded Handles with ABS swivel handle and nylon webbing for hammer grip action
Frame & Rail Construction: Anodized Aluminum Rails with all connections reinforce by steel or forged aluminum
Unit Weight: 218 lbs (99 Kg)
Electrical: 115~230 VAC 50~60 Hz
Board Upholstery: Glideboard - Heavy duty, Two tone design, box stitched, tear resistant vinyl
Foam Padding: 1 1/2" (4 cm) high rebound, high density foam.
Resistance Levels: 26 calibrated incline levels, with infinite adjustment between levels. 1% - 72% bodyweight.
Storage Capabilities: Hydraulic lift assists folding. Folds and stores upright. Rolls in hand-truck fashion.
Included Equipment: 7 position Adjustable Glideboard; Dynamic [unilateral/bilateral] Pulley System; Multi-point pulley attachment to tower; Motor & Rocker Switch with dual handle remote control level adjustments; soft grip LAT Bars with 7 pulley positions; Folding Foot Holder;
Perfect for both early-stage rehab and advanced performance training
Built tough for continuous commercial use while still easy to operate
Q&A
Q: What makes the PowerTower different from the regular Encompass? A: The PowerTower features motorized incline adjustments, making it easier for clinicians to control progression without manual adjustments.
Q: Can patients use it independently? A: Typically it’s clinician-guided, but advanced patients may use it safely with minimal supervision.
Q: Is it suitable for athletes as well as rehab patients? A: Yes, it bridges rehab and performance, making it excellent for clinics serving both.
Q: Does it require installation? A: It comes mostly assembled but may require setup by facility staff.
Maintenance Tips
Keep all moving parts clean and free of dust
Check motorized incline system regularly for smooth operation
Wipe upholstery and frame after sessions to maintain hygiene
Lubricate rails occasionally for consistent glide performance
Inspect safety mechanisms every 3–6 months
