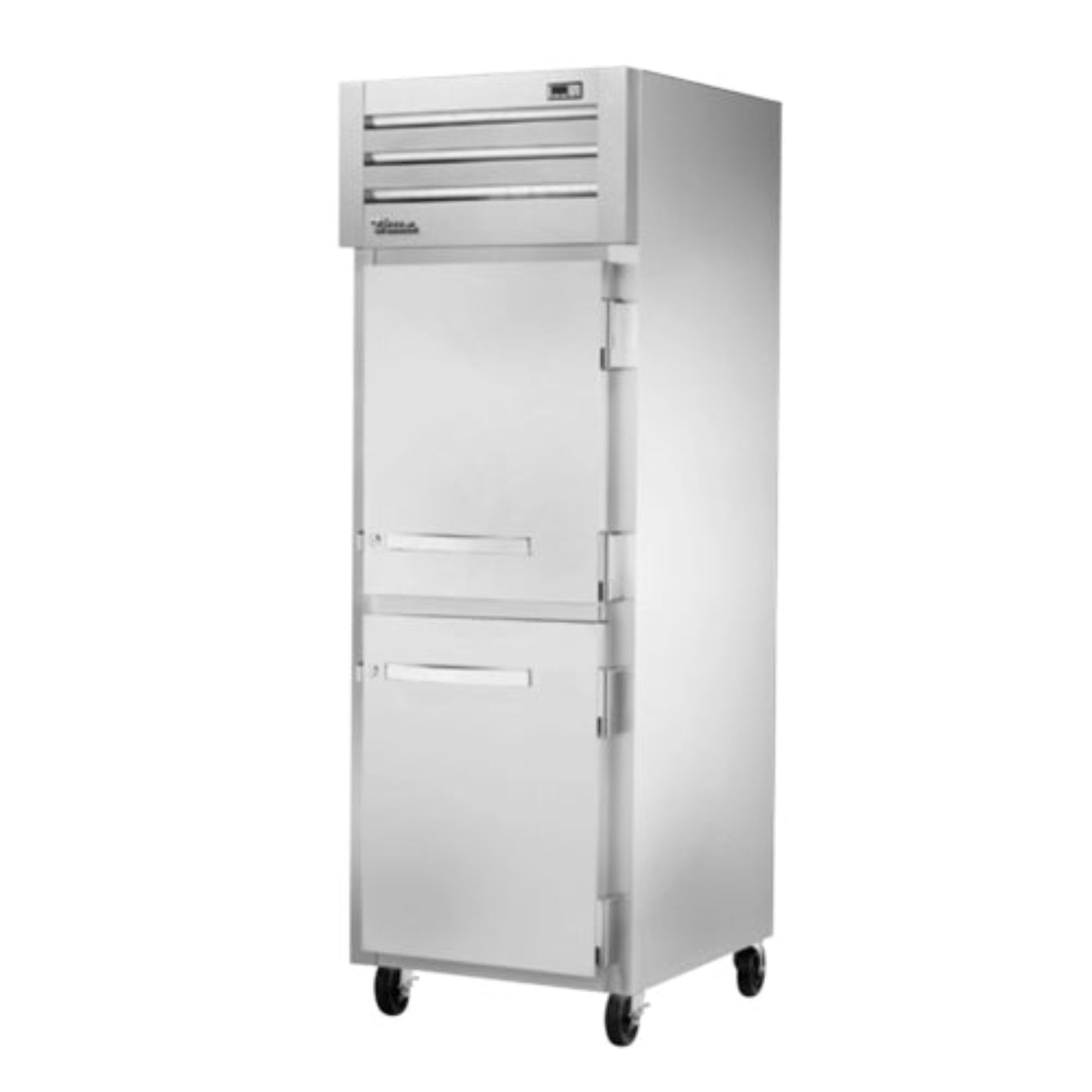

True Mfg. - General Foodservice STG1F-2HS-HC SPEC SERIES Reach-In Refrigerators & Freezers
SPEC SERIES Freezer, reach-in, one-section, -10°F, (2) stainless steel half doors with locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 6.0 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Brand Name |
SPEC SERIES® |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Model Type |
Reach-In Freezer, One-Section |
| Temperature |
-10°F |
| Height |
77.75 in |
| Width |
27.5 in |
| Depth |
33.75 in |
| Shipping Weight |
410 lbs |
| Capacity |
24 – 37 cu. ft. |
| Door Style |
Half hinged |
| Door Type |
(2) Stainless steel half doors with locks, cam-lift hinges |
| Exterior Finish |
Stainless steel front, aluminum sides |
| Interior Finish |
All aluminum interior |
| Interior Configuration |
(3) Gray shelves |
| Lighting |
LED interior lighting |
| Refrigeration |
Self-contained, top mounted |
| Compressor HP |
1/2 HP (Note: conflicting spec listed 3/4 HP; verified as 1/2 HP in details) |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Electrical Requirements |
115v/60/1-ph, 6.0 amps, NEMA 5-15P |
| Mobility |
5" castors |
What our Experts Think
-
Compact, High-Performance Freezer
Features two half-height solid doors for better organization and energy retention during frequent access.
-
Reliable Freezing Power
Maintains consistent temperatures at -10°F, ideal for long-term preservation of frozen goods.
-
Built to Withstand Heavy Use
-
Stainless steel door with an anodized aluminum interior for long-term durability in commercial environments.
-
Self-closing doors and durable door hinges ensure longevity and performance.
-
Eco-Friendly & Energy Efficient
Utilizes R290 hydrocarbon refrigerant and high-density polyurethane insulation to reduce environmental impact and operating costs.
-
Organized Storage
Comes with adjustable, heavy-duty wire shelves to customize storage and maximize usable space.
Q&A
Q: What is the True STG1F-2HS-HC SPEC SERIES Reach-In Freezer?
A: It’s a single-section, reach-in commercial freezer with two half-height solid doors, built for efficient frozen food storage in demanding kitchen environments.
Q: What temperature range does it maintain?
A: Maintains consistent freezer temperatures between -10°F and 0°F (-23.3°C to -17.8°C), ideal for safe frozen storage.
Q: Is it energy efficient?
A: Yes, it is ENERGY STAR® certified, using energy-efficient components and environmentally friendly refrigerant for reduced energy consumption.
Q: Where is it best used?
A: Ideal for commercial kitchens, restaurants, and institutional foodservice operations needing reliable, space-saving frozen storage.
Maintenance Tips
-
Clean condenser coils monthly to optimize cooling performance and reduce energy use.
-
Inspect door gaskets for tears or loose seals; replace if compromised to maintain temperature.
-
Keep interior vents clear to allow proper air circulation and avoid temperature fluctuations.
-
Wipe down stainless steel exterior and interior weekly with a mild detergent; avoid harsh chemicals.
-
Monitor temperature settings daily (freezer: -10°F) to ensure food safety compliance.
-
Check fan operation and defrost cycles quarterly to prevent ice buildup.
-
Schedule annual maintenance with a certified technician for system longevity.
