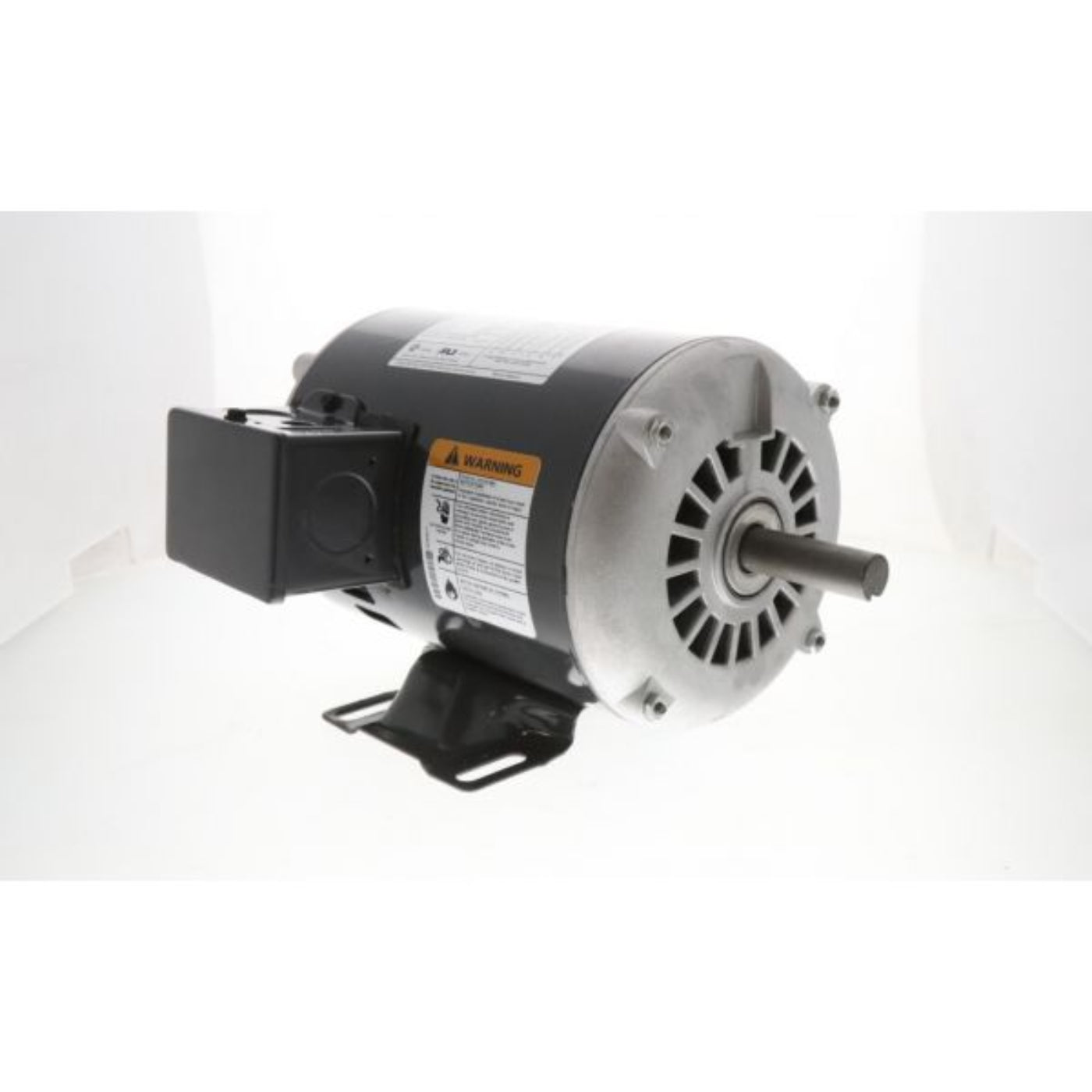

U.S. Motors D1P1A General Purpose Three Phase ODP Rigid Motor - D1P1A
The U.S. Motors D1P1A is a three-phase electric motor designed for general purpose applications. It features a horsepower rating of one at a rotation speed of three thousand six hundred RPM. This motor operates effectively at a voltage rating of two hundred eight to four hundred sixty volts.
Product Highlights
This motor is suitable for various industrial uses, including HVAC systems, manufacturing, and material handling. The robust construction includes a rigid mount for stability and efficiency, making it ideal for demanding environments.
Features
- Three-phase power configuration
- Open Drip Proof (ODP) enclosure
- Continuous duty operation
Specifications
| Horsepower |
1 HP |
| Voltage Rating |
208-230/460 V |
| Full Load Amps |
2.8-2.8/1.4 A |
| Phase |
Three Phase |
| Frequency (Hz) |
60 Hz |
| RPM |
3600 RPM |
| Frame Size |
56 |
| Enclosure |
ODP – Open Drip Proof |
| Insulation Class |
B |
| Service Factor |
1.25 |
| Weight |
24.7 LB |
| Brand |
U.S. Motors |
| MPN |
D1P1A |
What our Experts Think
-
Powerful Performance: Delivers 1 HP at 3600 RPM, ideal for applications that require consistent, high-speed operation.
-
Durable Construction: Features a 56 frame and Open Drip Proof (ODP) enclosure, providing protection against dust and moisture.
-
Energy Efficient: Operates at 208-230/460V with a 1.25 service factor, ensuring reliable performance while maintaining energy efficiency.
-
Versatile Applications: Perfect for use in pumps, fans, compressors, and various other general-purpose industrial applications.
-
Maintenance-Friendly: Equipped with ball bearings and a rigid base, making installation and ongoing maintenance simple.
Q&A
Q: What applications is the D1P1A motor suitable for?
A: This motor is ideal for use in applications like pumps, fans, compressors, conveyors, blowers, and HVAC systems.
Q: What is the benefit of the ODP enclosure?
A: The ODP design allows for ventilation while offering protection against moisture and dust, making it ideal for indoor environments that aren't exposed to excessive humidity or corrosive materials.
Q: Is the D1P1A motor reversible?
A: Yes, the D1P1A motor is reversible, offering flexibility for different installation orientations.
Q: Does the D1P1A motor include thermal protection?
A: No, the D1P1A motor does not have built-in thermal protection. It is recommended to use external overload protection to safeguard against overheating.
Maintenance Tips
-
Regular Inspections: Check for unusual vibrations, noises, or overheating to identify potential issues early.
-
Clean Air Vents: Ensure the Open Drip Proof (ODP) motor housing is free from debris to maintain proper ventilation and cooling.
-
Lubrication: Follow the manufacturer's guidelines for lubricating bearings to minimize friction and wear.
-
Monitor Operating Conditions: Regularly check motor temperature, voltage, and current to ensure it’s functioning within optimal parameters.
-
Check Alignment: Verify the alignment of the motor with driven equipment to avoid unnecessary strain and reduce wear.
-
Inspect Electrical Components: Tighten electrical connections and check cables for any damage or wear.
-
Replace Filters: If the motor has filters, replace them periodically to keep contaminants from affecting its performance.
-
Test Motor Rotation: Periodically verify the motor's rotation direction to ensure correct operation.
