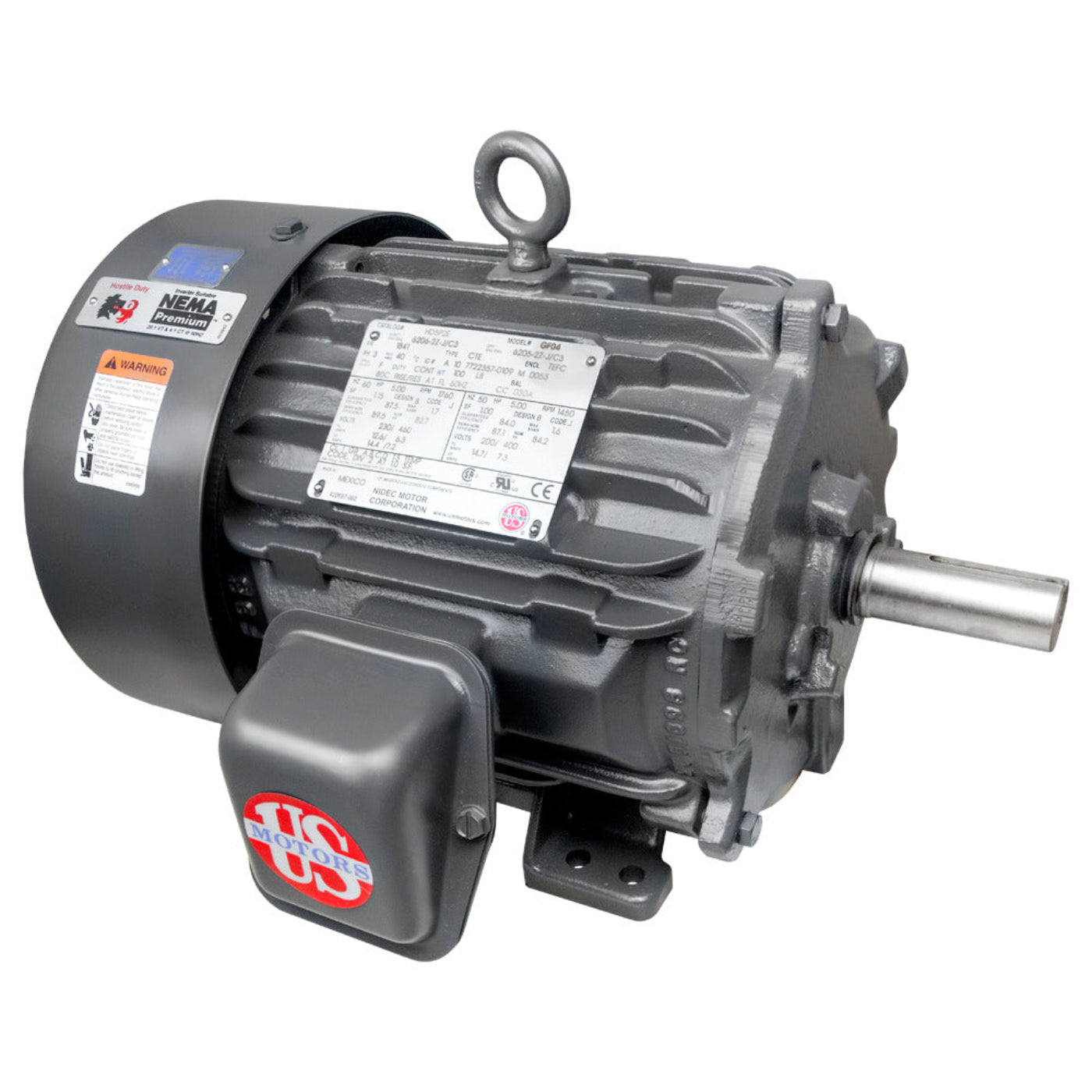

U.S. Motors HD10V2B General Purpose Three Phase TEFC Horizontal - Footed Motor - HD10V2B
The U.S. Motors HD10V2B is a general purpose three-phase motor designed for robust applications. This motor features a horizontal, footed mount and a totally enclosed fan-cooled (TEFC) design to withstand various environments and conditions.
Product Highlights
Ideal for continuous duty applications, the HD10V2B operates efficiently and reliably.
Features
- 10 horsepower output
- Rated at 1800 RPM
- Voltage options of 230/460 volts
Specifications
| Mounting |
Horizontal - Footed |
| Frame Material |
Cast Iron |
| Full Load RPM |
1770 RPM |
| Poles |
4 |
| Frequency (Hz) |
60 Hz |
| C Dimension |
19.1 inches |
| Enclosure |
TEFC - Totally Enclosed Fan Cooled |
| Voltage Rating |
230/460 V |
| Service Factor |
1.15 |
| Frame |
215T |
| Duty |
Continuous Duty |
| Insulation Class |
F |
| Full Load Efficiency |
91.7% |
| Full Load Amps |
25.7 / 12.8 A |
| Phase |
Three Phase |
| Brand |
U.S. Motors |
| MPN |
HD10V2B |
What our Experts Think
-
10 HP Output:
Delivers robust power at 1800 RPM, suitable for heavy-duty applications.
-
Three-Phase Operation:
Compatible with 230/460V, 60 Hz three-phase power systems, ensuring efficient performance.
-
Totally Enclosed Fan Cooled (TEFC) Enclosure:
Provides protection against dust and moisture, ensuring durability in various environments.
-
Horizontal Foot Mounting:
Designed for easy and secure installation, facilitating stable operation.
-
Frame Size 215T:
Standard frame size for compatibility with a wide range of equipment.
-
Service Factor of 1.15:
Allows the motor to handle occasional overloads, enhancing its resilience.
-
Premium Efficiency:
Engineered for energy efficiency, reducing operational costs over time.
-
Corrosion-Resistant Coating:
Features a mill and chemical duty paint for enhanced durability in harsh conditions.
Q&A
Q: What applications is the HD10V2B motor suitable for?
A: The motor is ideal for use in machinery such as pumps, conveyors, compressors, and other heavy-duty industrial equipment requiring reliable power and high efficiency.
Q: Is the HD10V2B motor reversible?
A: Yes, this motor can be wired for both clockwise and counter-clockwise rotation, providing flexibility for different installations.
Q: Does this motor include thermal protection?
A: No, it does not include built-in thermal overload protection. External protection is recommended for safe operation.
Q: What are the benefits of a TEFC motor?
A: The TEFC design protects the motor from dust, dirt, and moisture, making it ideal for demanding environments, ensuring longevity and reducing maintenance needs.
Q: What is the duty cycle and temperature range of the motor?
A: The HD10V2B motor is designed for continuous duty and operates efficiently in ambient temperatures up to 40°C.
Maintenance Tips
-
Regular Cleaning: Keep the motor's exterior free from dust and debris to ensure proper ventilation.
-
Electrical Inspections: Periodically check all electrical connections for signs of wear or corrosion.
-
Lubrication: Ensure bearings are properly lubricated according to the manufacturer's guidelines.
-
Thermal Protection Check: Verify that the manual reset thermal protection is functioning correctly to prevent overheating.
-
Storage: If the motor is not in use for extended periods, store it in a dry, clean environment to prevent rust and corrosion.
