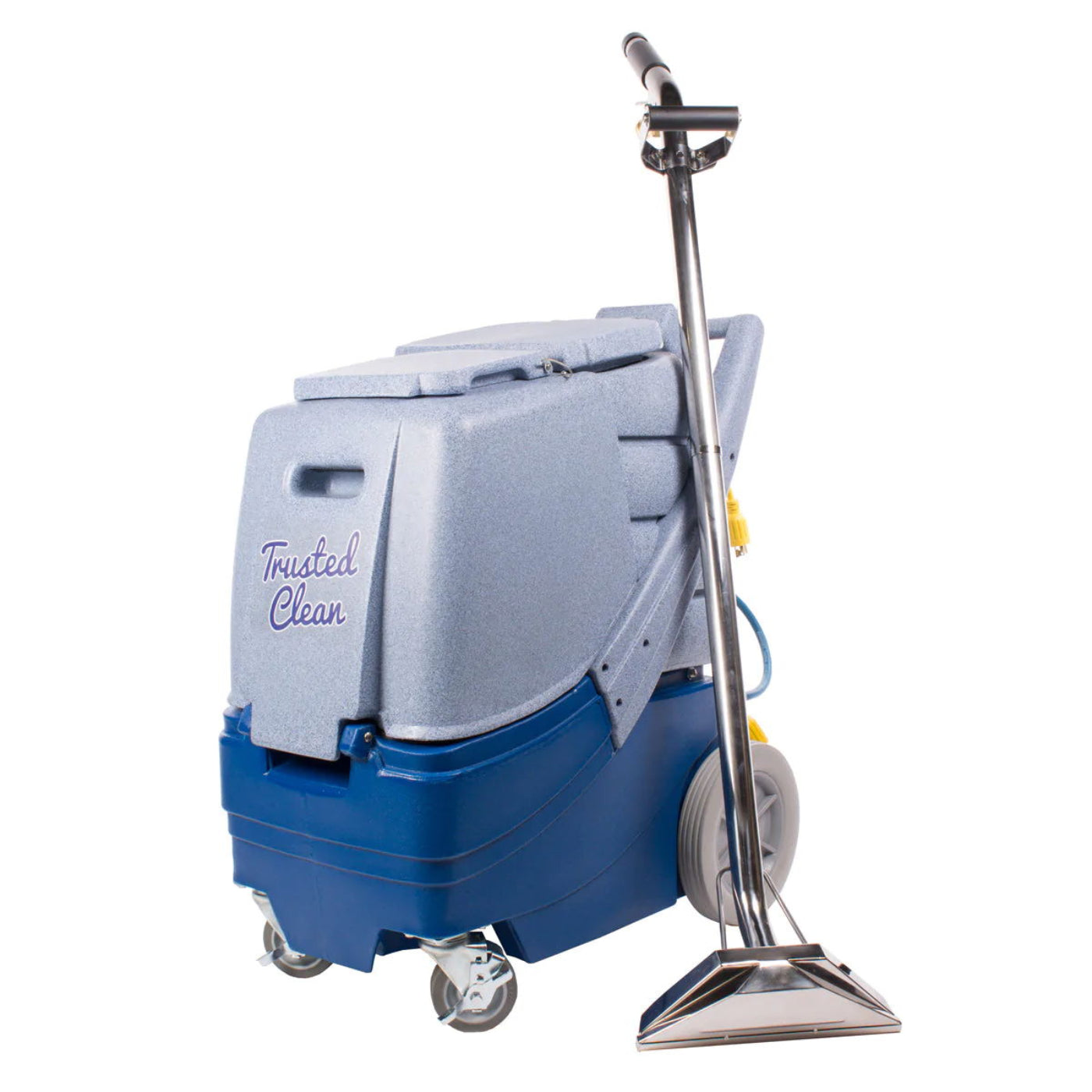

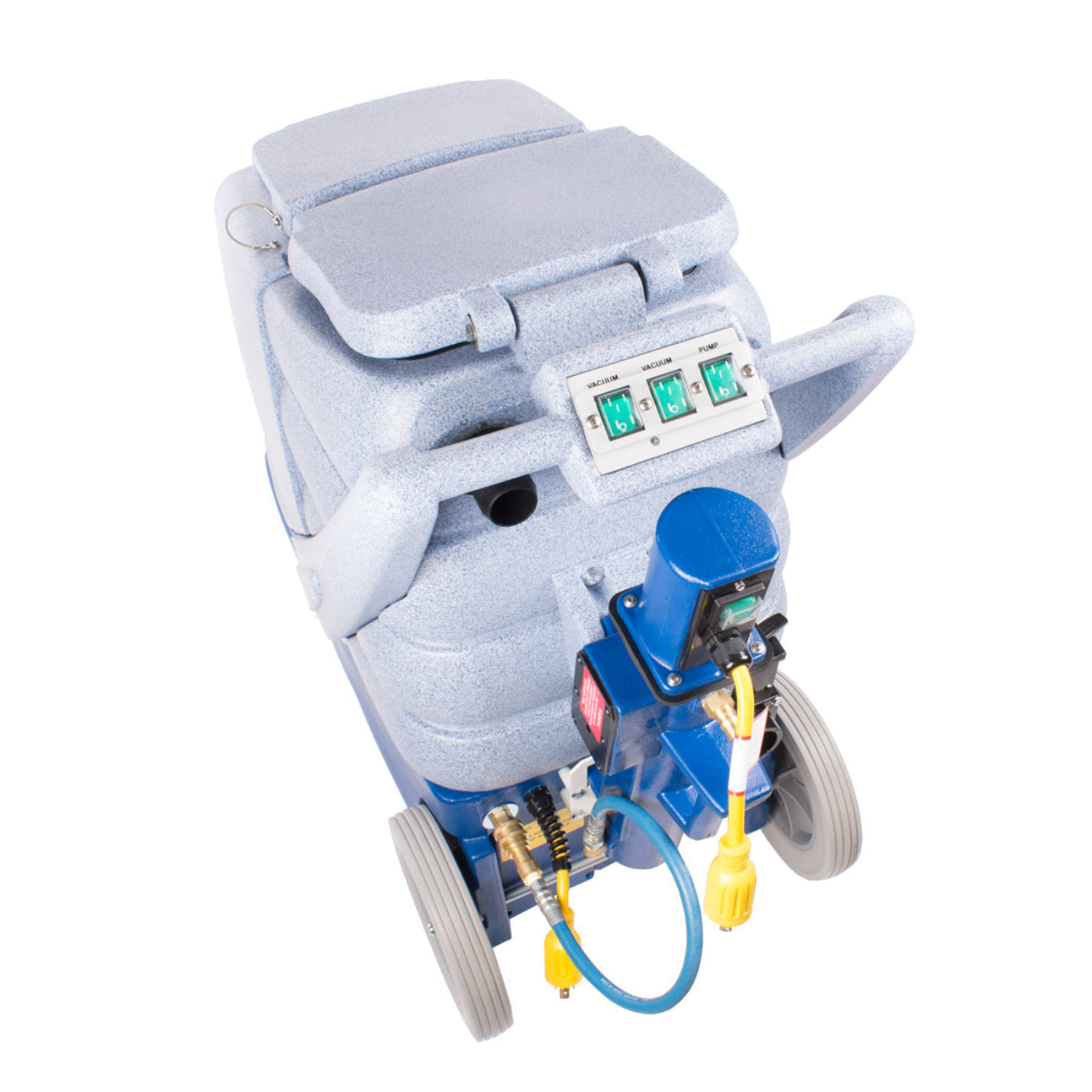

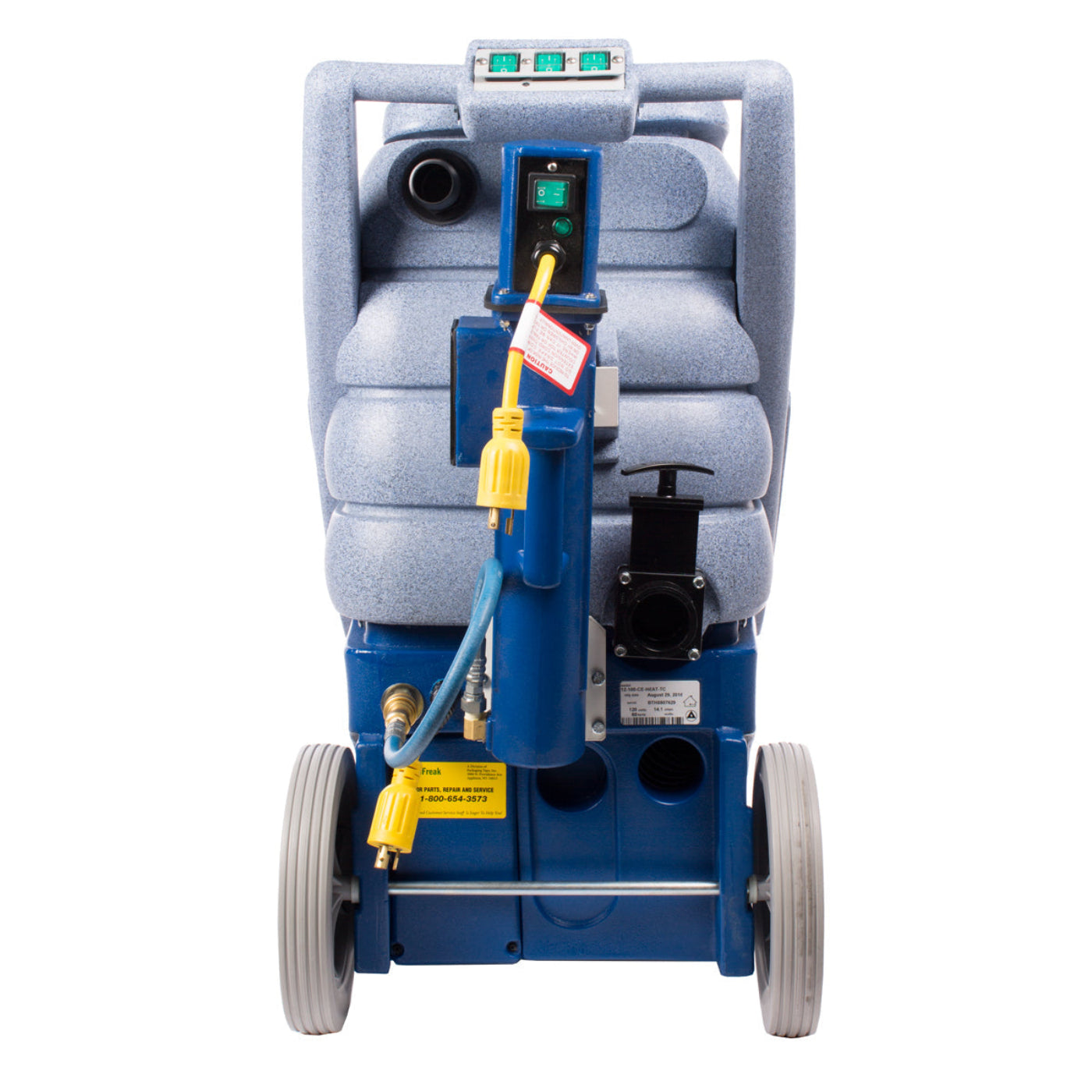

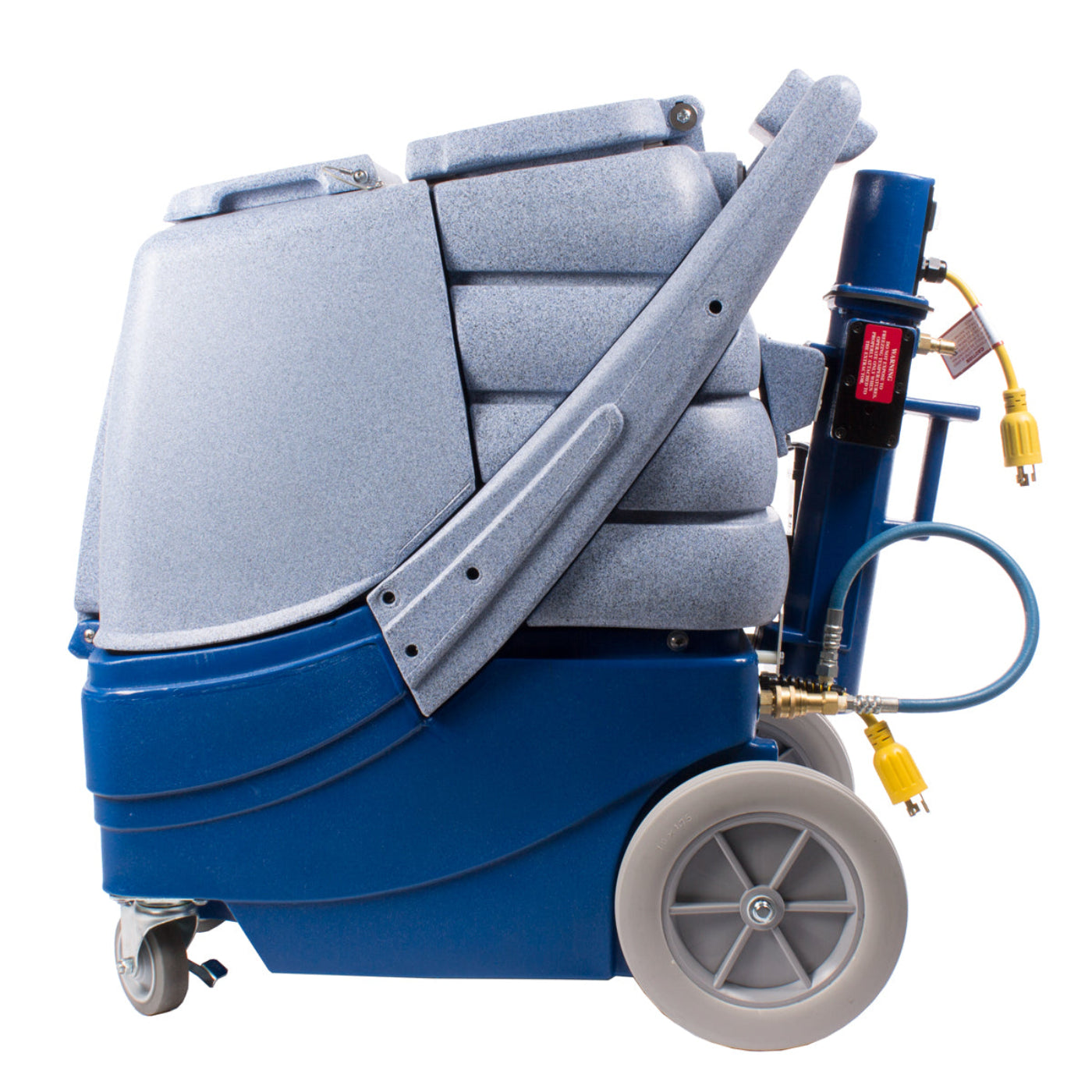

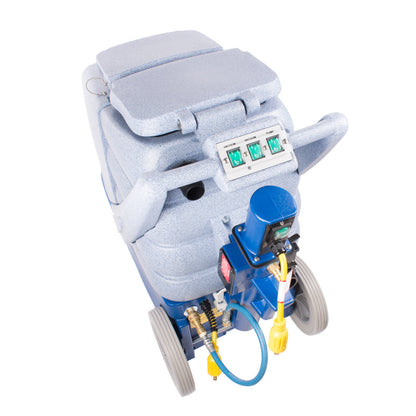

Trusted Clean 'Ultimate' Heated Carpet Cleaning Box Extractor w/ 12" Wand & 25' Hose - TPL-12-100-CE-HEAT-TCP

Trusted Clean 'Ultimate' Heated Carpet Cleaning Box Extractor w/ 12" Wand & 25' Hose - TPL-12-100-CE-HEAT-TCP

The Trusted Clean 'Ultimate' is a 12-gallon box extractor that comes with a 12" carpet cleaning wand, a 25' hose, and an external heater for extreme cleaning. The heater can be disconnected in limited power situations, or if it happens to fail, you can still use your extractor as a non-heated unit. It is considered to be a state-of-the-art extractor because of the game changing technology with the external heater. The power and large capacity, combined with a compact size and minimal weight, make this model ideal for a single operator.

The 'Ultimate' extractor has a hi-tech design that holds a total of 12 gallons inside a surprisingly compact body. This provides you with maximum efficiency and portability, all at a very affordable price! This very powerful model delivers the 'Ultimate' in both pressure and suction, leaving carpets clean and virtually dry in record time. Comes complete with a 12" deluxe dual jet stainless steel S-bend wand and 25' hose assembly.

With an external heater the Trusted Clean extractor becomes even more powerful. The heater is detachable for those jobs where heat is not needed. You can also continue to use your unit if the heater goes out. Simply detach it and send it back for warranty replacement. Comes with a lifetime warranty on the heating element. No more downtime for you, or your customers!

Please feel free to take a look at our complete line of box extractors, or take a look at our carpet cleaning package deals, and see what you can get for FREE when ordering this machine!!

We want to make sure you're 100% prepared when your machine arrives, so we encourage you to look through our carpet cleaning chemicals, external scrubbing power brushes, upholstery tools departments to make sure you have the right supplies on hand.

Caring for Your Carpet Extractor

Your carpet extractor should be winterized between uses if it is to be exposed to freezing temperatures. To winterize your machine, pour 1/2 gallon of windshield wiper fluid into the empty solution tank. Run the pump until fluid flows through the tank. Then run 1 gallon of water through the extractor before the next use.

Your new Trusted Clean extractor may come with some pink or blue solution in the tanks depending on what time of year it is. This is a winterizing solution to help protect the internal components from freezing during shipping. Simply flush it out by running a gallon of clean water through the pump before using the machine.

Features

• Dump valve w/ an angled PVC elbow directs dirty water down & into a 5-gallon bucket or slop sink.
• "No drip" motor cavity guarantees water spilled on the outside of the machine stays out!
• Upright-mounted motors along with a special intercooler that guarantees long life & durability.
• Standard 5-gallon bucket fits under drain valve for easy emptying.
• Opens quickly like a clamshell for easy servicing.
• Small, compact body with a stair-climbing handle for exceptional portability.


Included

• 12" carpet cleaning dual-jet drag wand
• 25’ vacuum/solution hose combo
• 2 – 50’ power cords w/ twist-lock connector
• External 2000 watt heater
• Circuit locator w/ twist-lock connector
• 90° PVC dump valve
• Owner’s manual

What our Experts Think

• Professional-Grade Deep Cleaning
  Delivers powerful hot water extraction that penetrates deep into carpet fibers, removing embedded dirt, allergens, and tough stains effectively.
• Integrated Heating System
  Maintains consistent water temperature for enhanced cleaning performance—especially important for grease, oils, and heavy soil.
• Wide 12" Wand Coverage
  Speeds up cleaning time while ensuring even extraction, making it ideal for both residential and commercial jobs.
• Extended 25’ Hose Reach
  Improves mobility and efficiency—clean larger areas without constantly relocating the unit.
• Durable & Reliable Build
  Designed for frequent use with robust components that withstand demanding cleaning environments.
• User-Friendly Operation
  Straightforward controls and ergonomic design reduce fatigue and simplify operation for professionals and beginners alike.
• Versatile Application
  Suitable for carpets, upholstery, and auto interiors—an all-in-one solution for diverse cleaning needs.

Q&A

Maintenance Tips

• Flush After Every Use: Run clean hot water through the system for 1–2 minutes to prevent chemical and mineral buildup in pumps and lines.
• Clean Filters & Screens Daily: Remove lint and debris from recovery tank filters to maintain strong airflow and suction.
• Empty & Dry Recovery Tank: Always drain after use and run vac motors briefly to remove moisture and protect internal components.
• Maintain Heater Efficiency: Descale periodically (vinegar solution flush) to keep the 2000W external heater performing at peak heat output.
• Inspect Hoses & Connections: Check the 25’ hose and fittings for leaks or blockages to ensure consistent pressure and suction.
• Use Proper Cleaning Chemicals: Avoid residue buildup and pump damage by using recommended solutions and correct dilution ratios.
• Lubricate Moving Parts: Apply light oil to drain valves and quick-connect fittings to prevent sticking and wear.
• Store Properly: Keep the unit clean, dry, and with the drain valve open during long storage to extend lifespan.
