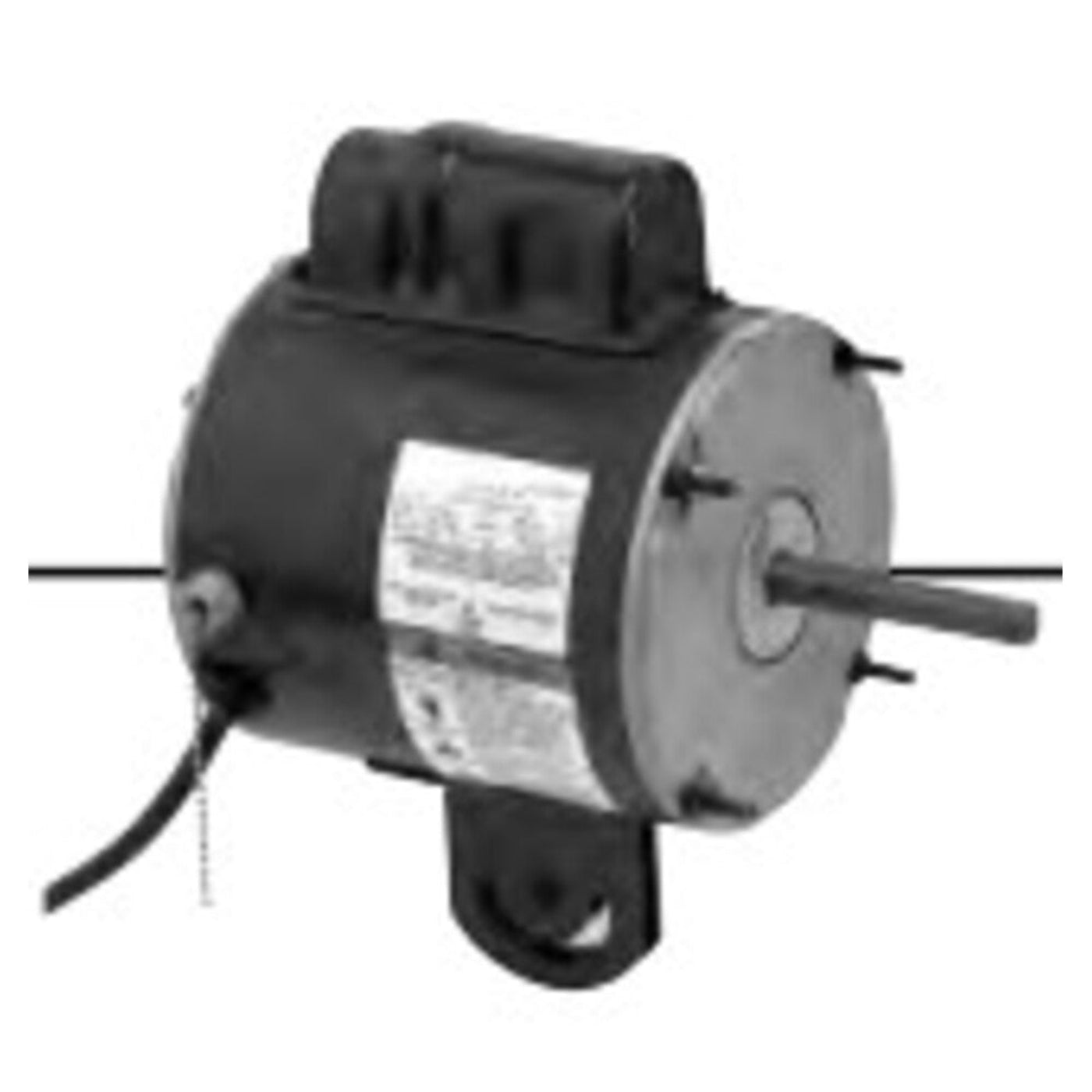

US-Nidec FD12EA4B4Z7 Pedestal Fan Motor 1/2 HP 825 RPM - FD12EA4B4Z7
The US-Nidec FD12EA4B4Z7 is a pedestal fan motor designed for efficient operation. This three-phase motor operates at half horsepower and runs at eight hundred twenty-five RPM. It features a TEAO enclosure and fits within a frame size of forty-eight YZ.
Product Highlights
Ideal for various ventilation and cooling applications, this motor combines reliable performance with durability.
Features
- Type: Three Phase
- Voltage: Two hundred thirty to four hundred sixty
- Material: Rolled Stee
Specifications
| Horsepower |
1/2 HP |
| Frame Size |
48YZ |
| Phase |
Three Phase |
| Rotation |
Reversible (REV) |
| Amperage |
2.3/1.2 A |
| Overload Protector |
Automatic |
| Electrical Type |
Three Phase |
| Diameter |
5.6 inches |
What our Experts Think
-
Designed for Agricultural Use
-
Ideal for providing reliable ventilation in poultry and livestock environments, ensuring optimal airflow.
-
Sturdy Construction
-
Built with a 48YZ frame and rolled steel housing for durability in demanding conditions.
-
Features a 1/2" diameter by 2 1/2" long keyed shaft for secure operation.
-
Efficient Operation
-
Operates at 825 RPM, delivering 1/2 horsepower to maintain effective airflow.
-
Enhanced Protection and Reliability
-
Equipped with automatic overload protection to safeguard against motor damage and ensure continuous, reliable performance.
Q&A
Q: What applications is the U.S. Motors Nidec FD12EA4B4Z7 motor suitable for?
A: This motor is designed for use in ventilation systems, such as exhaust and vent fans in poultry and livestock houses, and other similar air circulation applications.
Q: What are the key specifications of the FD12EA4B4Z7 motor?
A: The motor delivers 1/2 horsepower at 825 RPM, operates on 230/460V three-phase power, and features a 48YZ frame size. It has a yoke mount and is Totally Enclosed Air-Over (TEAO) for protection against dust and moisture.
Q: What are the mechanical specifications of the FD12EA4B4Z7 motor?
A: The motor features a 1/2" diameter x 2 1/2" long keyed shaft, ball bearings, and Class B insulation. It also has a service factor of 1.0 and includes automatic overload protection.
Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the FD12EA4B4Z7 motor is compatible with VFD applications, allowing for adjustable speed control to meet the demands of various ventilation needs.
Maintenance Tips
-
Regular Inspections: Check for signs of wear or damage to the motor and its components.
-
Cleanliness: Keep the motor and surrounding area free from dust and debris to maintain optimal airflow.
-
Lubrication: Ensure bearings are properly lubricated as per manufacturer's guidelines.
-
Electrical Connections: Inspect wiring and connections for signs of corrosion or loose connections.
-
Overload Protection: Test the automatic overload protection to ensure it functions correctly.
