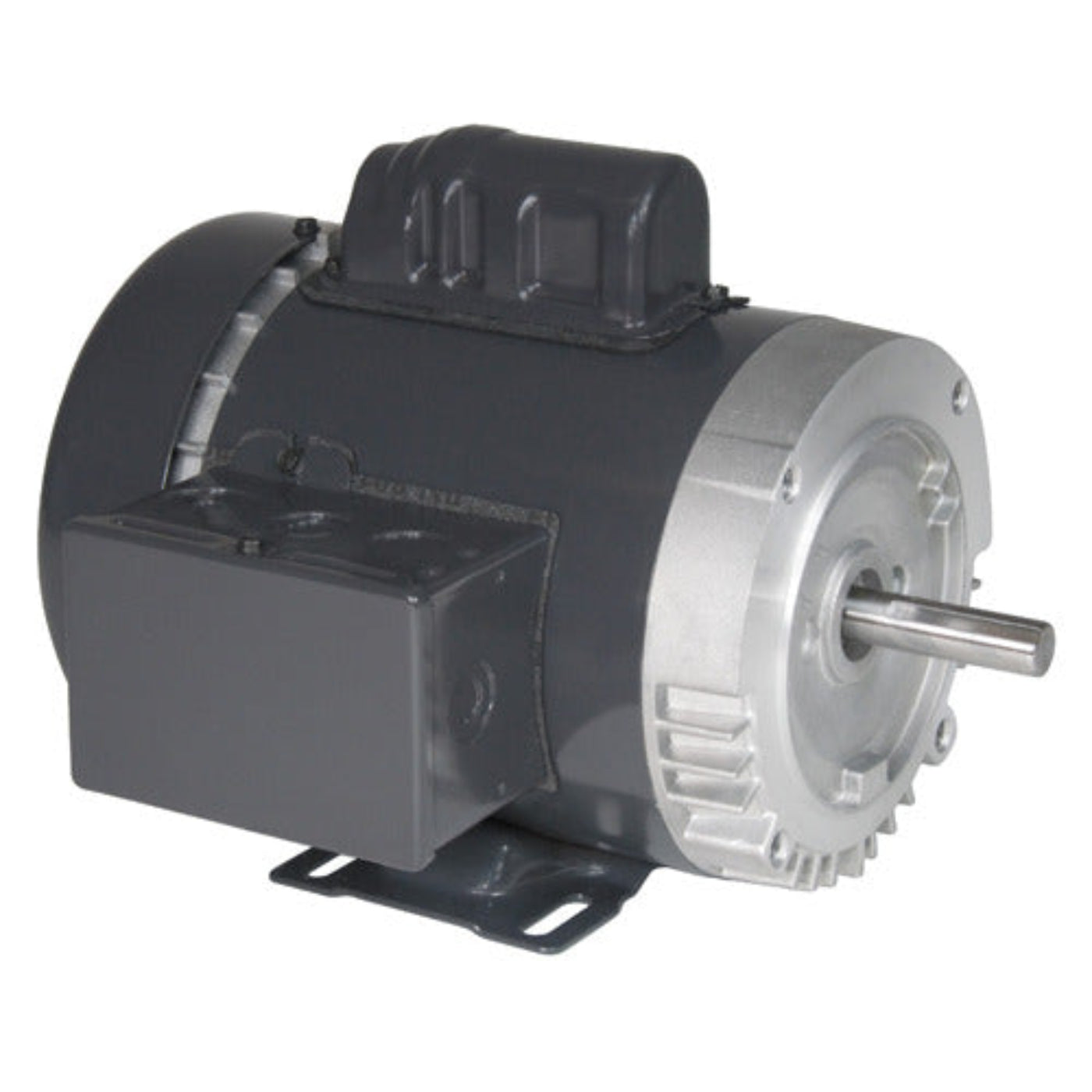

US-Nidec T13C2JC General Purpose Motor 1/3 HP 56 Frame TEFC - T13C2JC
The US-Nidec T13C2JC is a versatile general purpose motor ideal for various applications. This motor features a one-third horsepower capacity, making it suitable for small machinery and equipment that require reliable performance. With a TEFC enclosure, this motor is designed to operate in environments that need protection from dust and moisture. It operates on both 115 and 208-230 volts, allowing for flexible installation in different setups.
Product Highlights
This motor offers strong performance with a rolled steel design and efficient operation for general use in various settings, providing reliable torque and efficiency.
Features
- HP: 1/3
- Voltage: 115/208-230
- Frame: 56
Specifications
| Amperage |
6.6 / 3โ3.3 A |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6203 / 6203 |
| Mounting Type |
C-Face / Footed |
| Rotation |
REV (Reversible) |
| Material |
Rolled Steel |
| Frame Size |
56 |
| Diameter |
6.5 inches |
| Electrical Type |
Capacitor Start |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
What our Experts Think
-
Water Treatment: Motors designed for pumps and mixers in water and wastewater facilities.
-
Mining: Durable motors for conveyors, crushers, and other mining equipment.
-
Oil and Gas: Motors built to withstand harsh environments in drilling and processing operations.
-
Power Generation: Reliable motors for turbines and auxiliary equipment.
-
Commercial Applications: Motors for HVAC systems, refrigeration units, and other commercial machinery.
Q&A
Q: What is the U.S. Motors D13CP3PH9 used for?
A: This motor is designed for general-purpose applications such as air compressors, pumps, conveyors, and blowers in industrial and commercial settings.
Q: What are the key specifications of this motor?
A: It delivers 1/3 horsepower at 1140 RPM, operates on 115/230V single-phase power, and features a 56H frame with an Open Drip-Proof (ODP) enclosure.
Q: What is the mounting and shaft configuration?
A: The motor uses a cradle (resilient) mount and includes a keyed shaft that is 5/8" in diameter and 1 7/8" long.
Q: What are the electrical and performance details?
A: It operates at 4.4/2.3 amps, has a service factor of 1.35, and features a capacitor-start/capacitor-run design for reliable starting and smooth performance.
Q: What are its construction and protection features?
A: Built with a durable rolled steel frame and cast aluminum end bells, the motor includes ball bearings and Class B insulation for durability and protection.
Q: Why choose the D13CP3PH9 model?
A: It offers reliable performance, versatile mounting options, and robust construction, making it suitable for various general-purpose applications.
Maintenance Tips
-
Regular Inspection: Before each use, check for signs of wear, unusual vibrations, or overheating.
-
Keep Clean: Remove dust and debris from the motor housing and vents to maintain proper ventilation and cooling.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions to ensure smooth operation.
-
Check Electrical Connections: Ensure all wiring and connections are secure and free from corrosion to guarantee safe operation.
-
Monitor Load & Voltage: Avoid overloading the motor and verify that the voltage is within the recommended range to prevent potential damage.
-
Proper Storage: If not in use, store the motor in a dry, clean, and well-ventilated area to avoid moisture-related damage.
