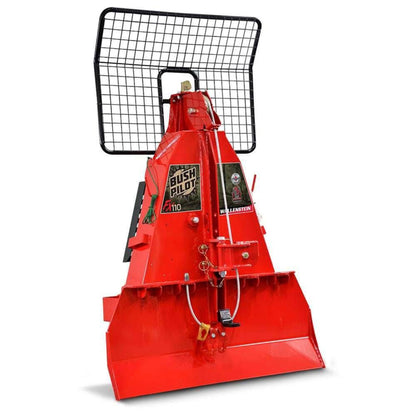

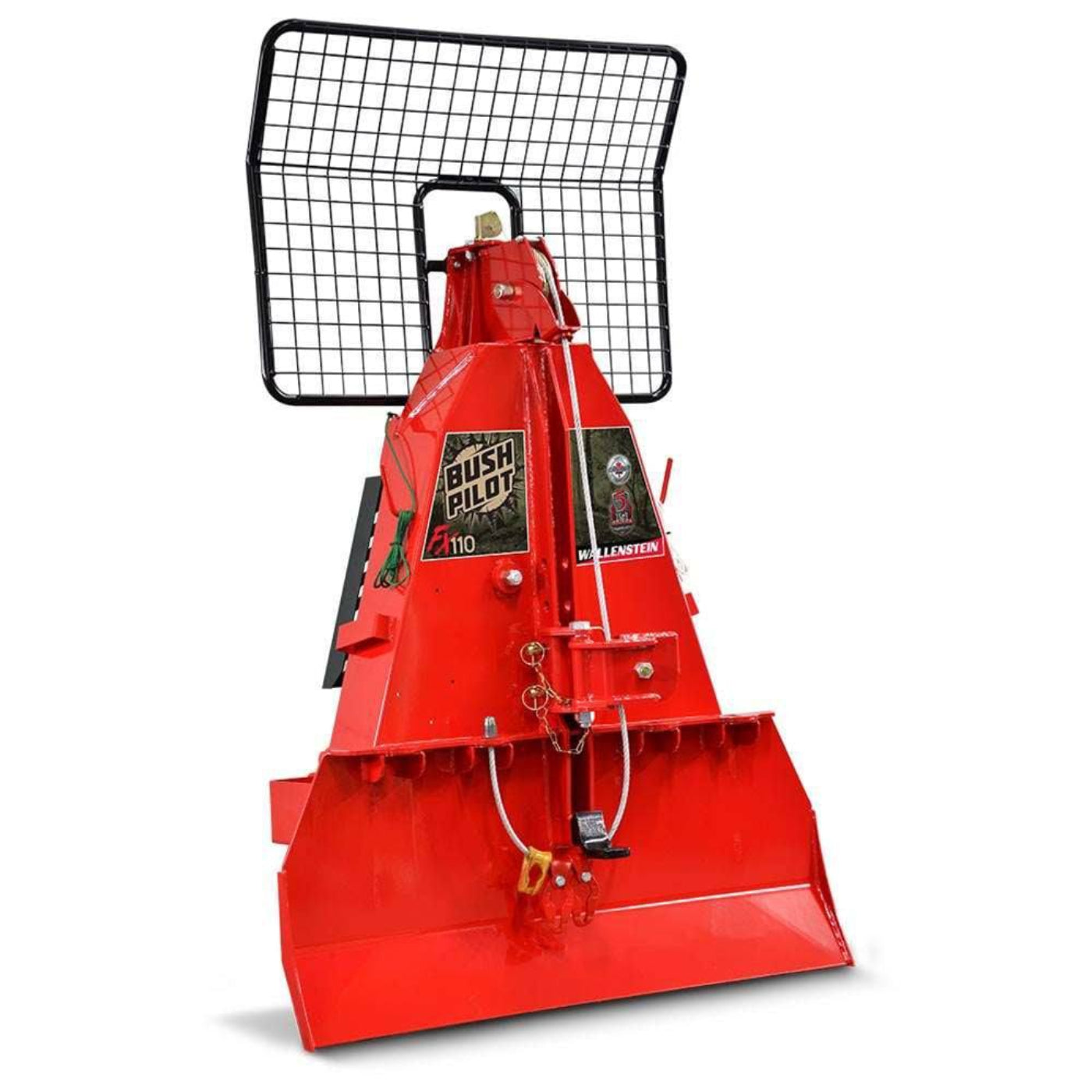

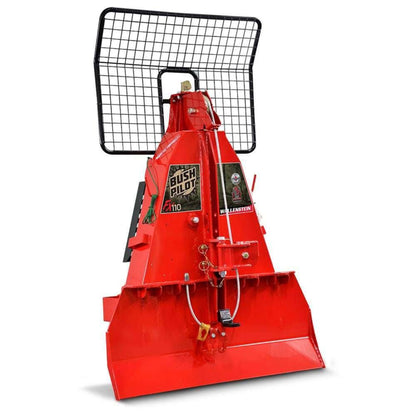

Wallenstein FX110R Remote Control Winch Attachment - FX110R
This is the Wallenstein FX110R remote control winch attachment that is designed for tractors and is able to tow 11,000 lbs with ease. When looking at the attachment it offers a controlled brake/clutch system for enhanced control and operation.
- 2 Choker chains
- Tow bar
- Factory-installed remote control winch kit
- Snatch block pulley system
- Rope controlled brake/clutch system
- Removable clutch assembly
- Shearbolt protected pto drivetrain
- Trailer hitch
- 2 Keyhole sliders
What Our Experts Think
-
The Wallenstein FX110R Remote Control Winch Attachment delivers a pulling capacity of approximately 11,000 lbs (4,989 kg), ideal for demanding log skidding and utility tasks.
-
Designed for tractors in the 50–90 HP range with PTO input at 540 rpm for wide compatibility.
-
Features a 165 ft (50 m) steel cable with a diameter of 7/16″ (11 mm) for versatile operations over distance.
-
Includes a factory-installed remote control winch kit, tow-bar, snatch block pulley system, and clutch/brake mechanism for operator safety and control.
-
Built with serviceability in mind, including removable clutch assembly and shear-bolt protected PTO drivetrain.
Q&A
Q: What is the pulling capacity of this winch?
A: Approximately 11,000 lbs (4,989 kg).
Q: What tractor HP is required?
A: Designed for tractors in the 50–90 HP range.
Q: How long is the cable and what diameter?
A: 165 ft (50 m) with a 7/16″ (11 mm) steel cable.
Q: Does it include remote operation?
A: Yes, a factory remote control kit is included.
Q: What are the weight and dimensions?
A: Weight ~796 lbs (361 kg); dimensions approx. 28″ × 51″ × 79″; PTO height ~21″ (53 cm).
Maintenance Tips
-
Inspect the steel cable and attachment points regularly for fraying, corrosion, or damage.
-
Maintain the clutch/brake mechanism and ensure smooth, clean operation.
-
Check remote control components for proper operation before use.
-
Inspect the PTO driveline and shear-bolt system; replace shear-bolts if activated.
