Wallenstein LXG430S Skidsteer Log Grappler Attachment - LXG430S

Wallenstein LXG430S Skidsteer Log Grappler Attachment - LXG430S

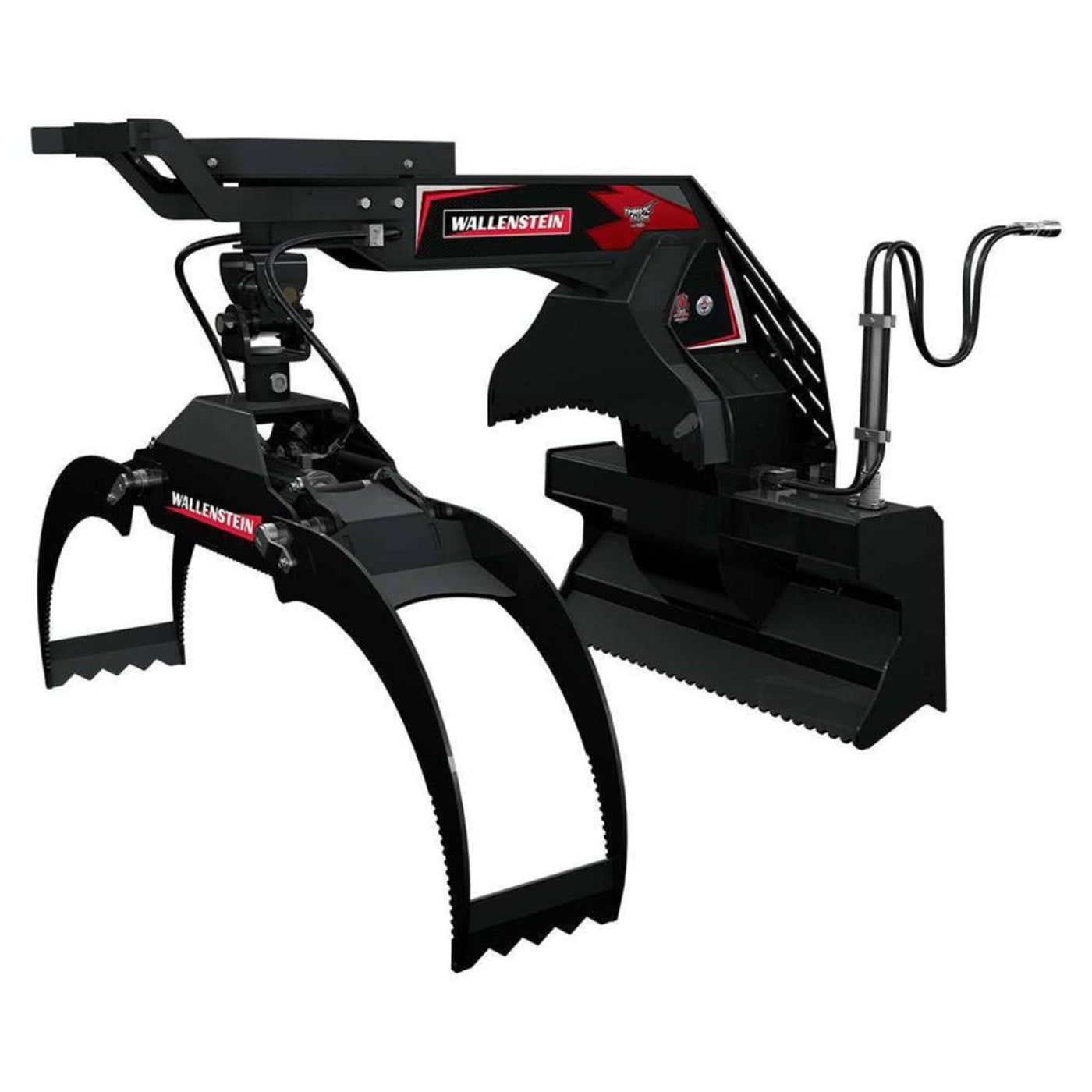

This is the Wallenstein LXG430S skidsteer log grappler attachment that is designed to be compact and move through areas that larger equipment would be unable to. When looking at the design the attachment gives you full control inside the cab with increased agility.

Features

• Bypass grapples
• Spring centered grapple with locking positions
• Cantilever cradle
• Push bar

What Our Experts Think

• The Wallenstein LXG430S Skid-Steer Log Grappler is a heavy-duty attachment designed for loading, transporting, and stacking logs efficiently.

• Lift capacity of approximately 4,500 lbs (2,041 kg) with a clamp force around 21,000 lbs (9,525 kg), suitable for demanding forestry and land-clearing tasks.

• Grapple opening ranges from roughly 3″ to 72″ (8 cm to 182 cm) to accommodate large logs and bundles.

• Mounts directly to skid-steers using a standard quick-attach plate, allowing excellent control from the cab.

• Designed for skid-steers in the 60–100 HP range, depending on configuration and application.

Q&A

Q: What is the grapple opening width?
A: Approximately 3″ to 72″.

Q: Can the grapple rotate?
A: Yes, it can have either 180° spring-return or full 360° hydraulic rotation depending on the variant.

Q: Is it compatible with typical skid-steers?
A: Yes, it uses a universal skid-steer quick-attach plate for straightforward installation.

Q: What is the lift and clamp capacity?
A: Lift capacity ~4,500 lbs, clamp force ~21,000 lbs.

Maintenance Tips

• Regularly inspect and tighten mounting bolts, pivot points, and quick-attach plate for safe operation.

• Check grapple jaws and cylinder rods for wear or bending; replace parts as needed.

• Clean debris, resin, or bark buildup to ensure smooth operation.

• Monitor hydraulic hoses and connectors for leaks or wear.

• Store the grapple in a compact, lowered position when not in use to reduce stress and exposure.
