Wave Wifi Freedom Wifi Dome - WAVFREEDOM

Wave Wifi Freedom Wifi Dome - WAVFREEDOM

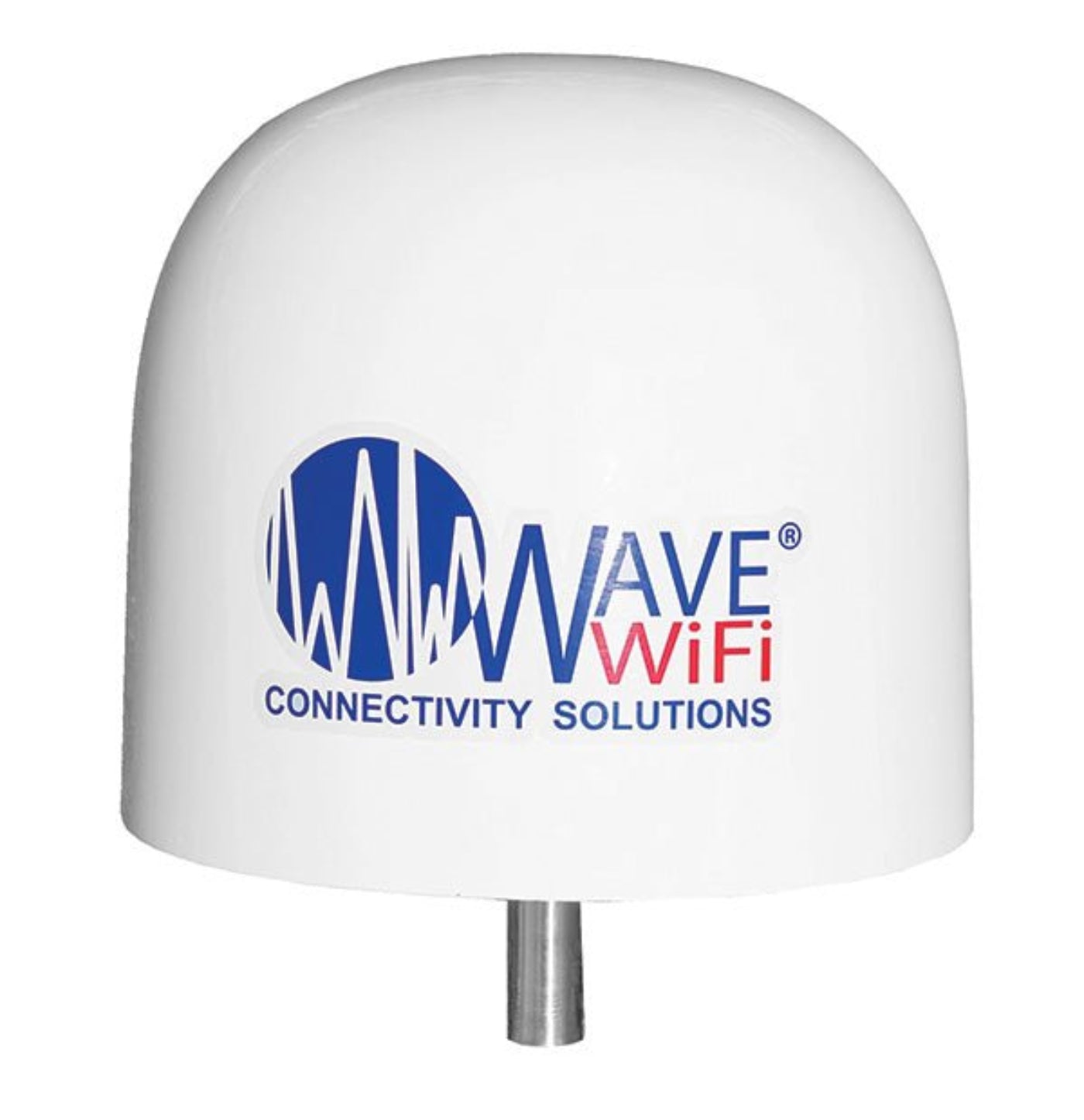

The Freedom Dome is a Dual Band MU-MIMO 2.4Ghz + 5Ghz WiFi transceiver. The WiFi antennas are conveniently housed in the easy to mount dome. The dome comes complete with stainless steel 1-14" female thread mount so it can be used with standard marine mounts (not included). Power and connection are provided by a single 12vdc PoE (Power Over Ethernet) cable for easy installation. When connected to one of Wave’s wireless routers, marine network controllers or access points, the Freedom can provide Internet connectivity for numerous connected devices. The system comes with a user-friendly web-based interface and there is no software to install.

Features

• Dual-Band WiFi Supports 802.11 a/b/g/n/ac 2.4GHz / 5GHz (5.1-5.8) frequencies
• MIMO (Multiple Input/Multiple Output) enclosed antenna array
• Single cable 12vdc PoE (Power Over Ethernet)
• Easy install with standard 1"-14 threaded base
• 10" X 12" and weighs only 4lbs

Specifications

What's in the Box

• FREEDOM Dome
• 25ft CAT 5e Cable
• PoE Injector
• 12VDC - 1A Regulated Power Adapter
• Right-angle PH2 Philips head Screwdriver

What Our Experts Think

• Dual-Band Connectivity
  Operates on both 2.4GHz and 5GHz bands (802.11 a/b/g/n/ac) for better signal strength, less interference, and wider compatibility.

• MIMO Performance
  Equipped with a built-in MU-MIMO antenna array to maintain stable, high-speed connections even with multiple users on board.

• Simple Installation
  Uses a single Power Over Ethernet (PoE) cable for both power and data—clean, efficient, and easy to set up.

• Marine-Grade Construction
  Enclosed in a durable, weather-resistant dome with a 1"-14 stainless steel thread mount for secure installation on any standard marine base.

• User-Friendly Interface
  Web-based setup with no software required; easily manage settings from any browser on your network.

• Efficient Power Use
  Runs on 12VDC with low power draw, ideal for boats and vessels running off battery systems.

• Compact & Lightweight
  Measures approximately 10" x 12" and weighs around 4 lbs—designed to fit unobtrusively on your vessel.

• Complete Kit Included
  Comes with a 25' Ethernet cable, PoE injector, stainless mounting adapter, power supply, and installation hardware.

Q&A

Q: What is the Wave WiFi Freedom Dome?
The Wave WiFi Freedom Dome is a marine-grade dual-band WiFi transceiver that boosts long-range internet connectivity on vessels. It's designed for reliable access to marina and shoreside networks.

Q: Who is this WiFi dome for?
Ideal for boaters, cruisers, and yacht owners who need dependable internet access offshore or at marinas with challenging WiFi conditions.

Q: How does it enhance connectivity at sea?
Its high-gain MIMO antennas and dual-band design extend WiFi range and performance, helping users stay connected even when farther from shore-based networks.

Maintenance Tips

• Clean the Dome: Regularly wipe the exterior with a soft, dry cloth to remove dust and debris. Avoid harsh chemicals or abrasive materials.

• Inspect the Antenna: Periodically check for visible cracks or wear that could affect signal reception. Replace components if necessary.

• Check Cable Connections: Ensure all cables are securely connected to the dome and associated devices. Loose or damaged connections can affect performance.

• Verify Signal Strength: Regularly assess the Wi-Fi signal strength to ensure optimal performance. Address any interference sources.

• Avoid Obstructions: Place the dome in an open area with a clear line-of-sight for the best signal reception.

• Firmware Updates: Periodically check for firmware updates to ensure the device operates with the latest features and security improvements.

• Power Supply Check: Make sure the Power over Ethernet (PoE) injector and power supply are functioning correctly.

• Secure Mounting: Ensure the dome is securely mounted to avoid movement or damage.
