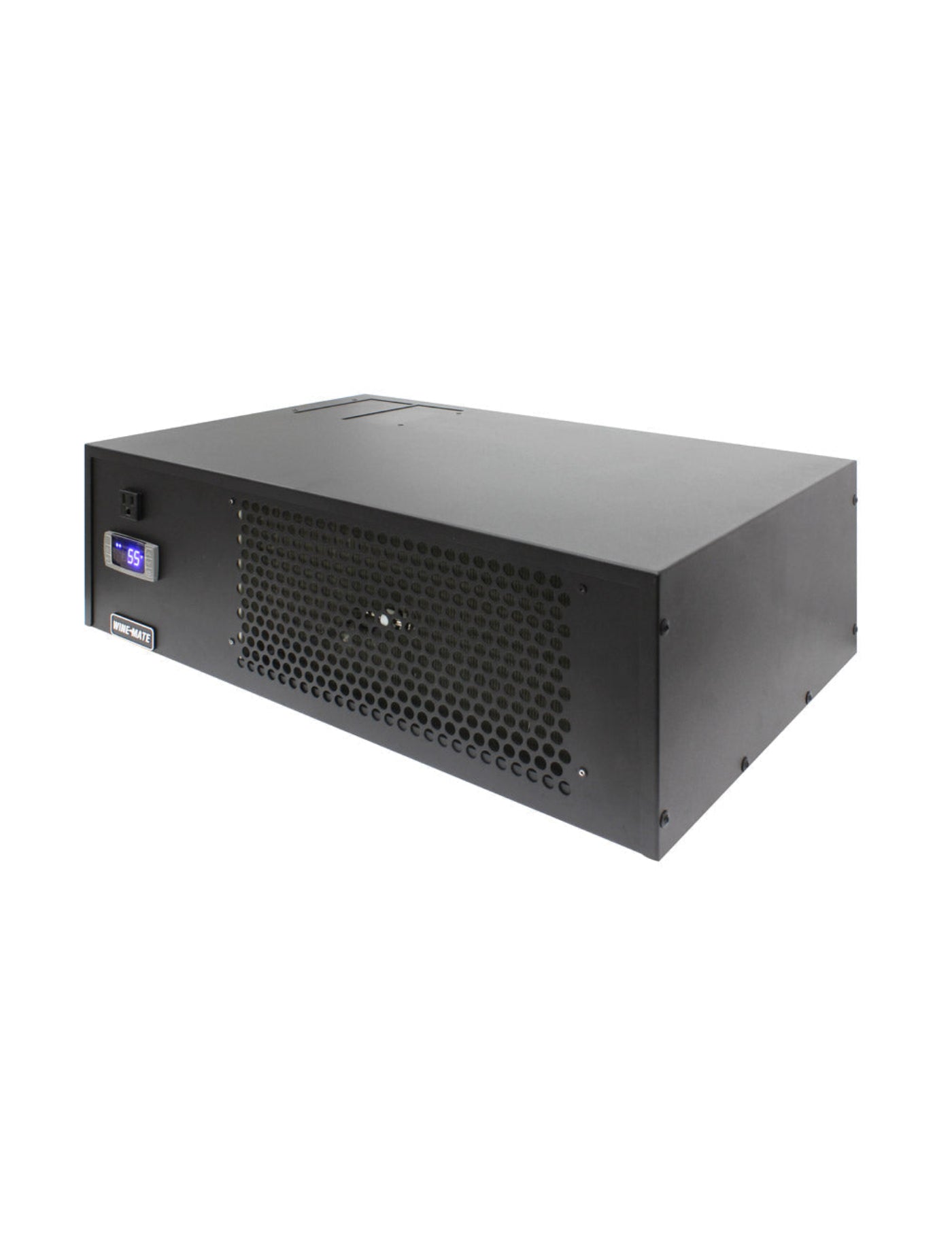

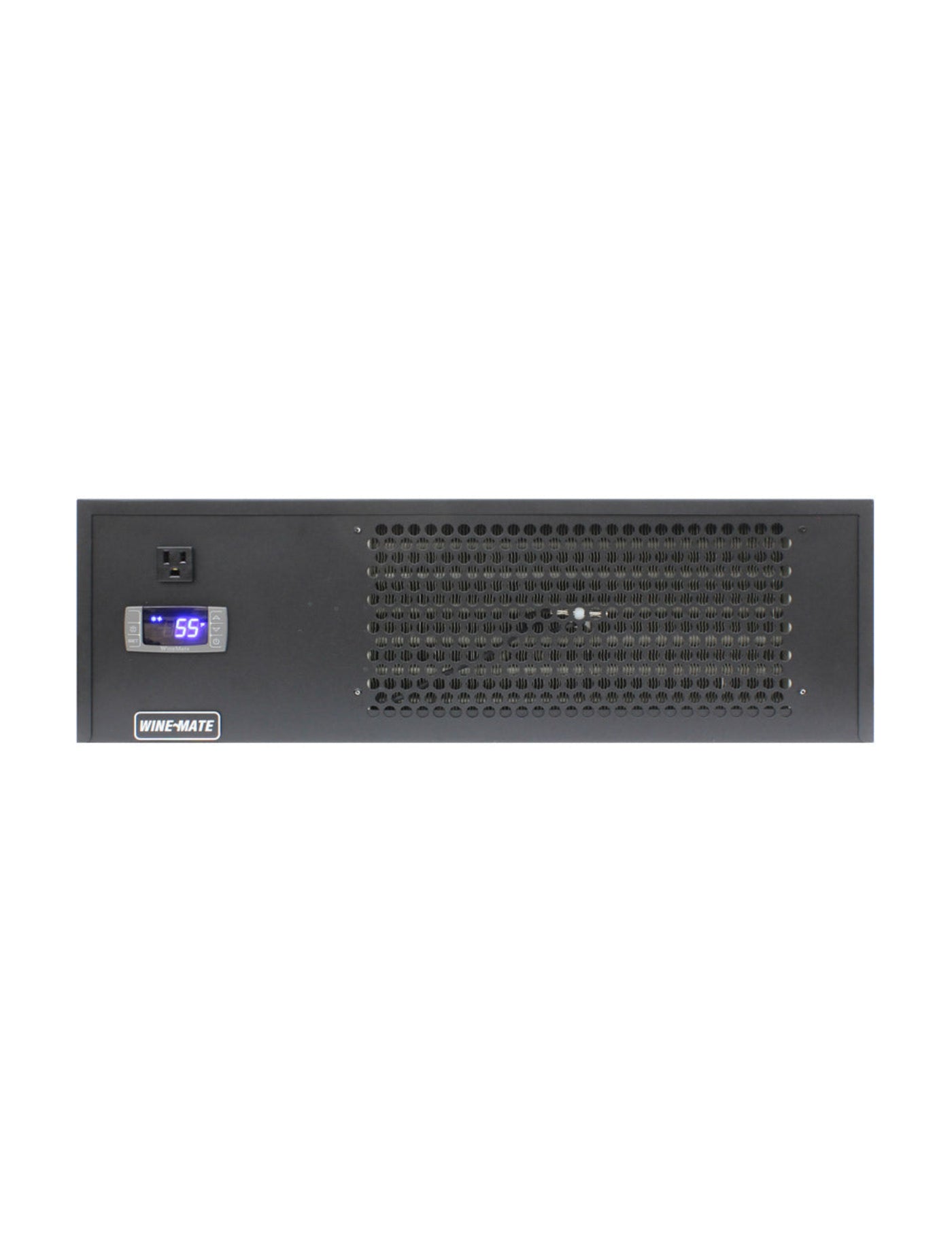

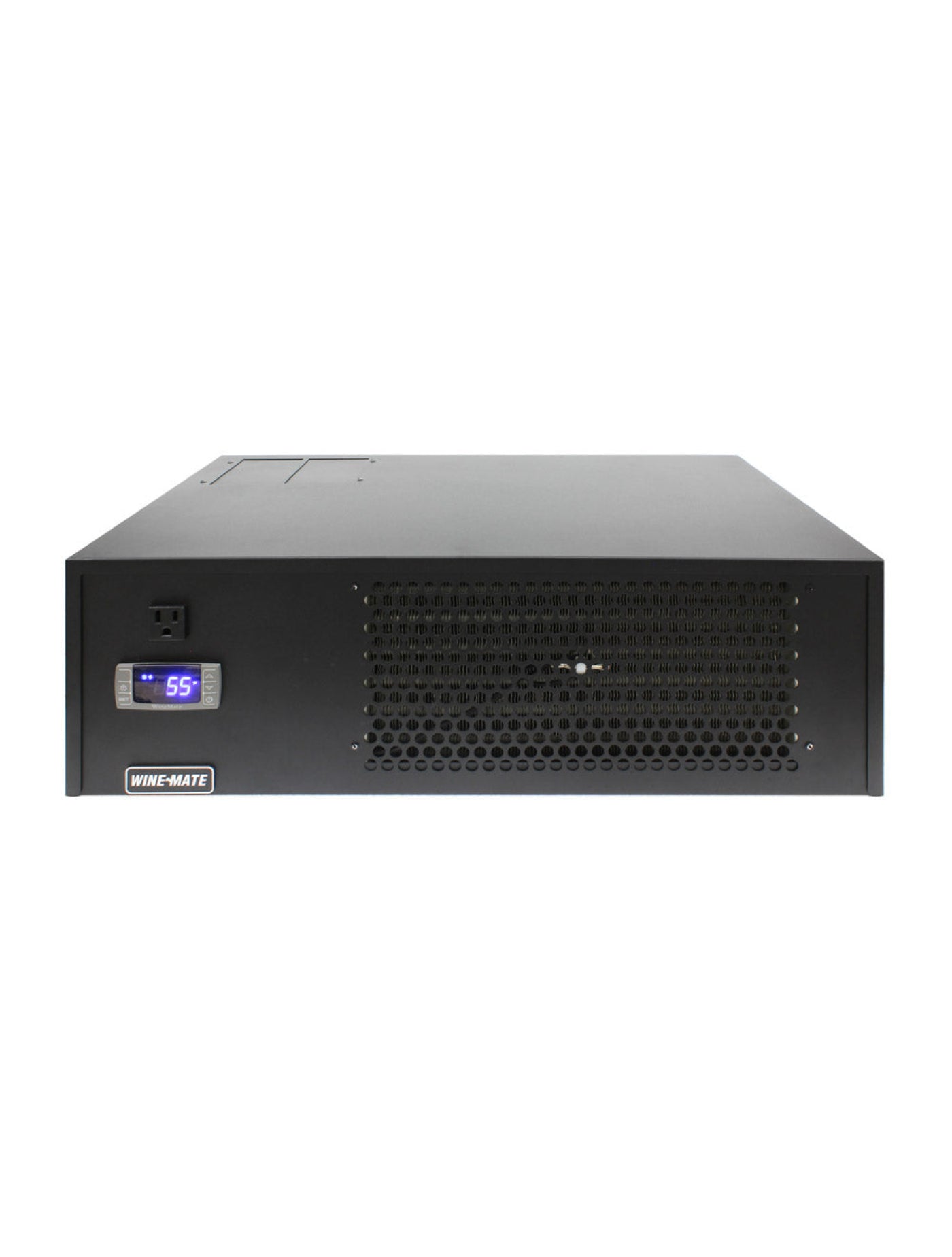

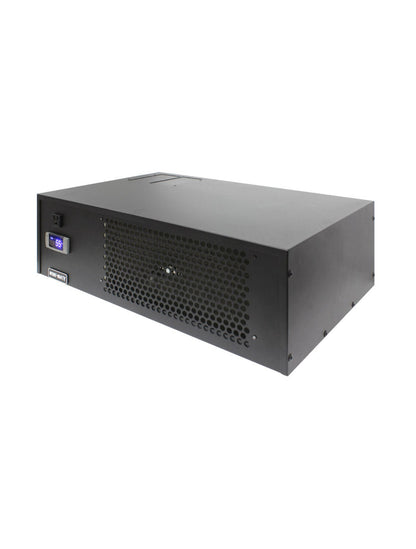

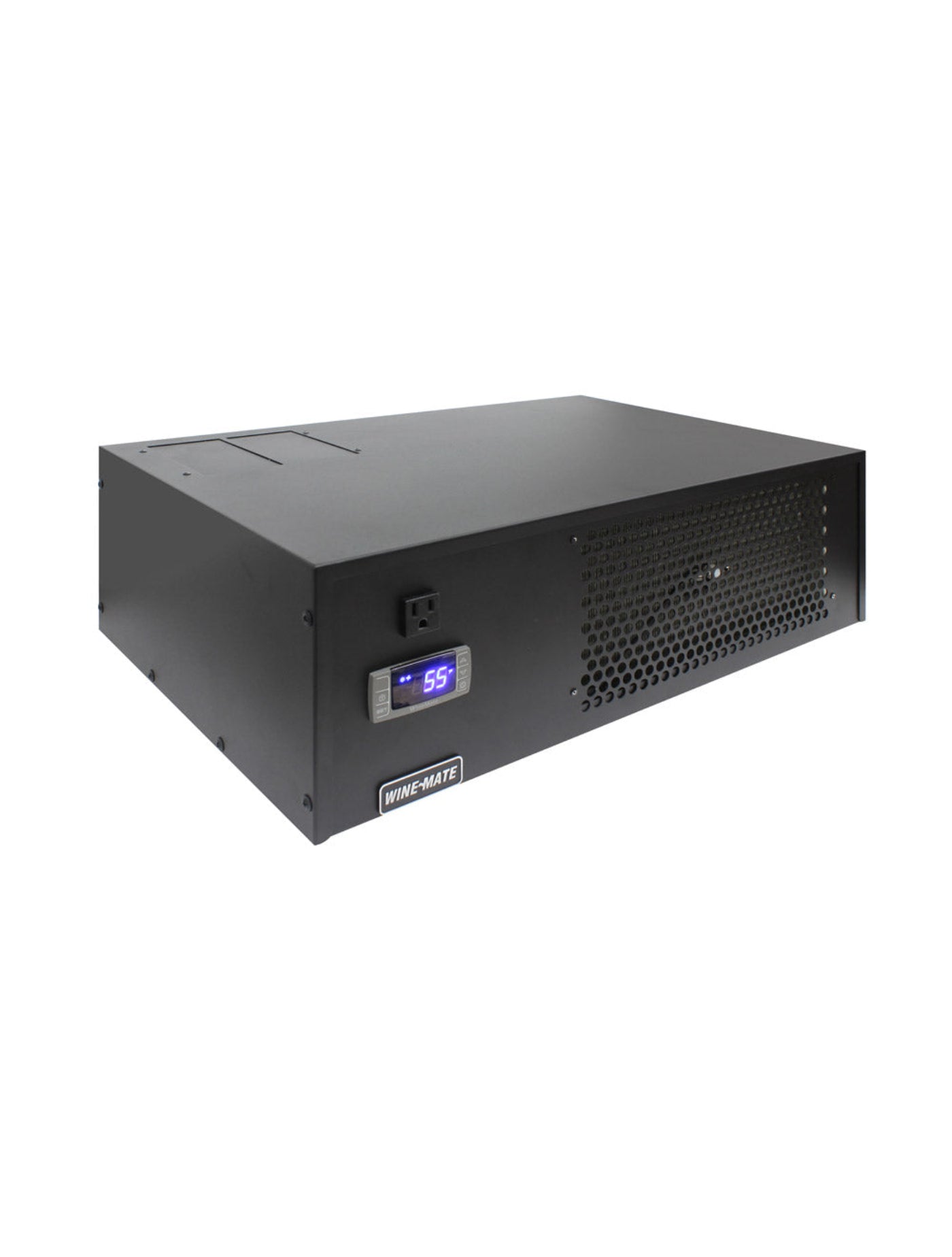

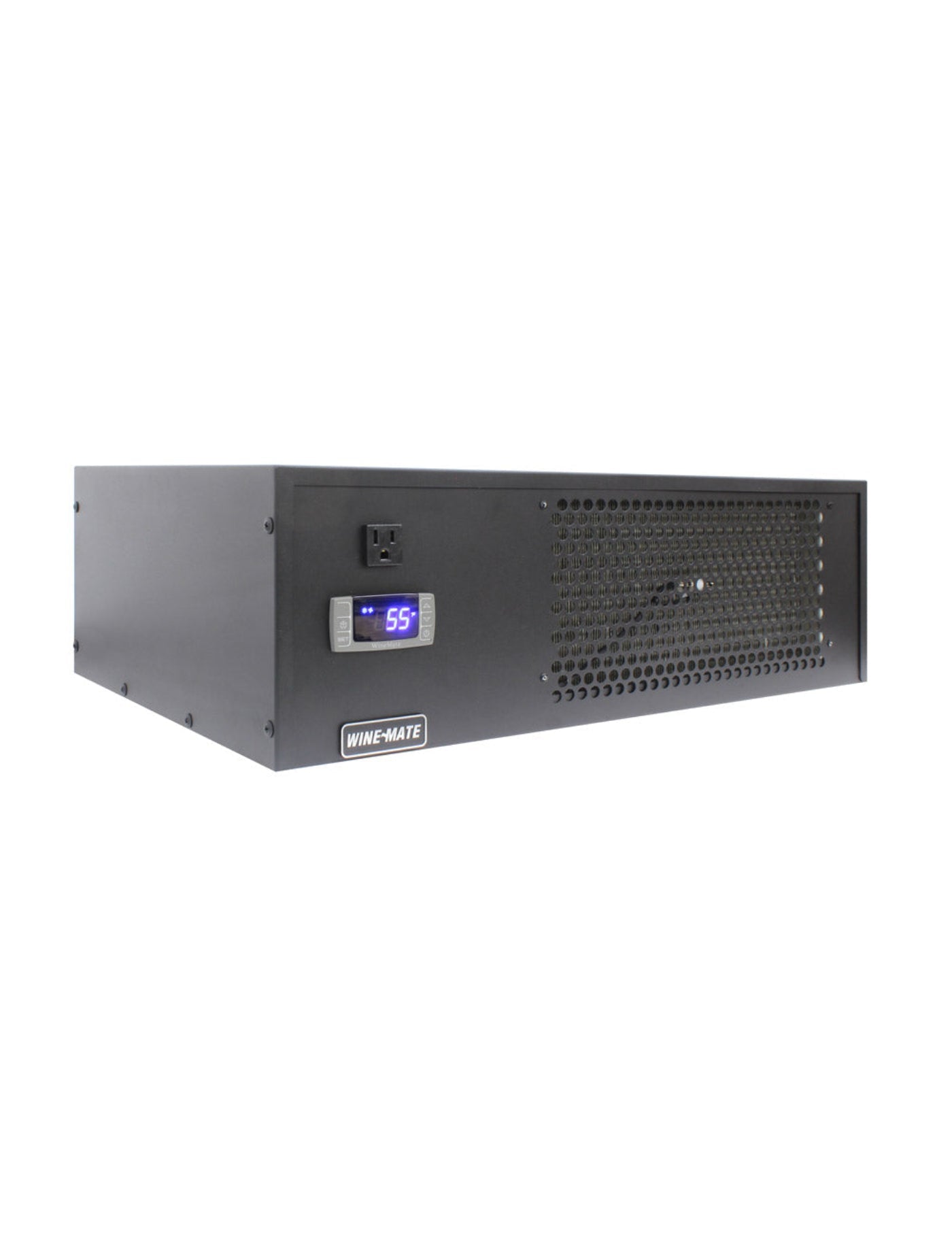

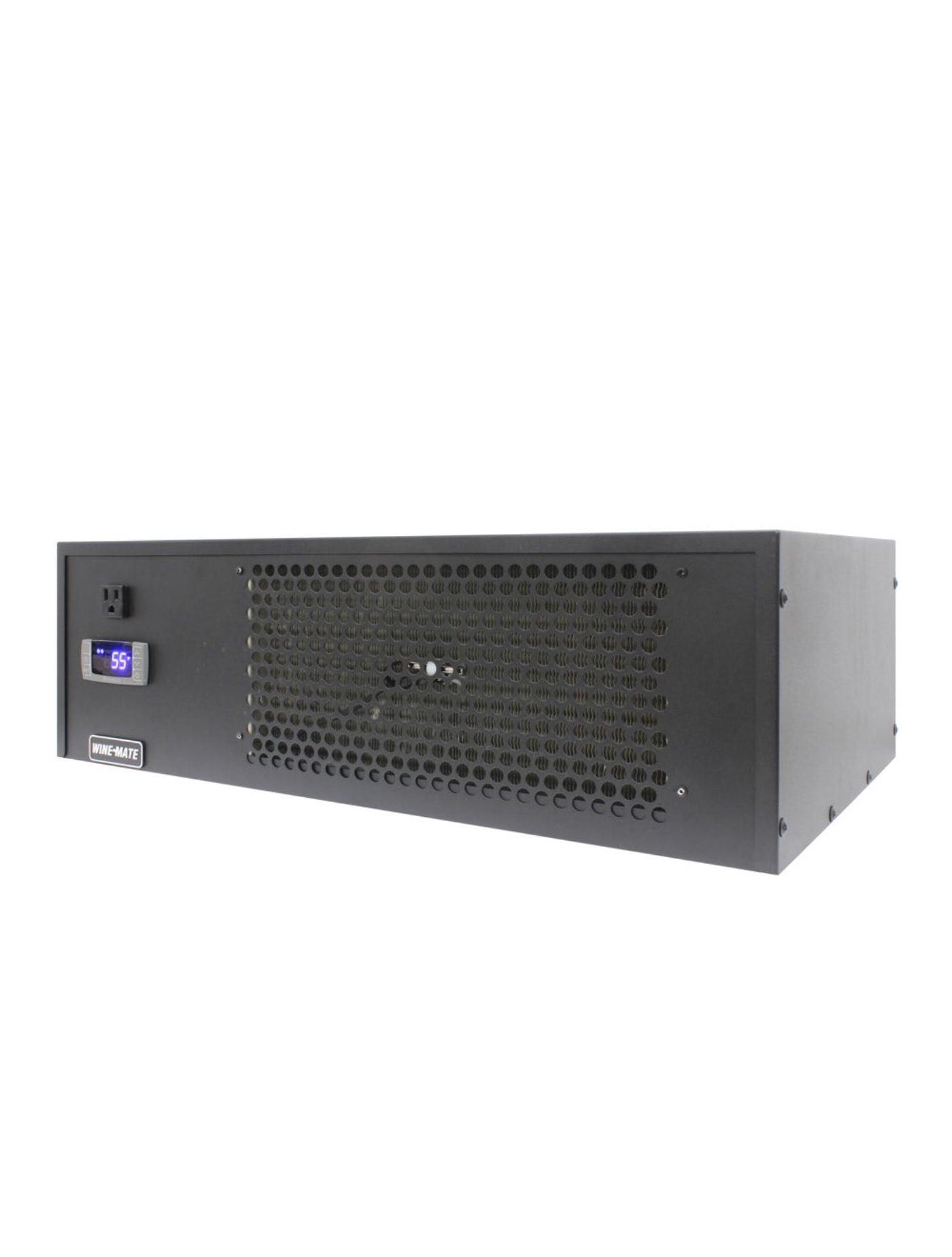

Vinotemp Wine-Mate Self-Contained Low-Profile Wine Cooling System - WM-1500LOWP

Vinotemp Wine-Mate Self-Contained Low-Profile Wine Cooling System - WM-1500LOWP

Provide a more stable temperature and humidity controlled environment for your wine with the Wine-Mate 1500LOWP self-contained cooling system. The Wine-Mate 1500LOWP has a cooling capacity of 90 cubic feet. With bottom cold air discharge and multiple top and rear hot air exhaust, this durable unit is equipped with an LED digital display which includes an alarm feature that will alert you to cooling issues, and easy power on/of switch, and reliable digital electronic thermostat. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. Top, rear and side exhaust options are available for convenient installation of this unit. Plus, no refrigeration specialists are needed--it ships to you fully-charged and ready to use.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

Do You Have the Right Wine-Mate Wine Cooling System For Your Project?
Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators. Wine Bottle Probe & Digital Control Panel
The probe provides an accurate reading of the temperature of your wine, and this easy-to-use digital control panel makes it simple to change settings.

Wine Bottle Probe inside a Wine Cabinet

Compare Sound Levels 3 Feet from the Cooling Unit vs 3 Feet from the Cellar

(Click image to enlarge PDF)

• SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
• EXHAUST: Rear (standard) or top
• VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
• TEMPERATURE: WM-1500LOWP cooling units are designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500LOWP should not be higher than 78°F or lower than 50°F in order to operate properly.
• If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• WM-1500LOWP cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
• REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.

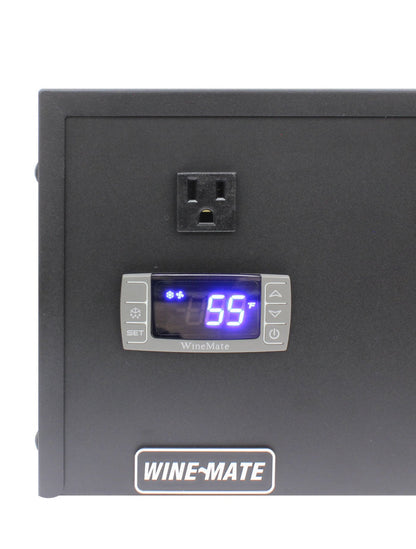

• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• LOWP cooling units have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.
• Removable grill for easy cleaning.
• In order to use a LOWP unit in a front exhaust wine cabinet, the bottom power cord is replaced with a front power cord.
• Modifications to make this unit front cord can be made at an additional cost.
• WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.

• Standard rear exhaust with the option to upgrade to top exhaust.
• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• FOR THE FOLLOWING OPTIONS, call to order: 1-800-777-VINO (8466).
• Standard left bottom rear power cord with the option to upgrade to the front cord for an additional fee.
• Mounting brackets are available for an additional fee.
• Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
  1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
  2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.


Click links to view

• Owner's Manual (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)

• Low-Profile Design – Compact yet powerful, perfect for tight spaces.
• Efficient Cooling – Maintains ideal conditions for wine cellars up to 90 cubic feet.
• Self-Contained System – No ducting required for easy installation.
• Digital Temperature Control – Ensures precise and consistent cooling.
• Quiet & Reliable Operation – Engineered for minimal noise and maximum efficiency.
• Durable Construction – Built with high-quality materials for long-lasting performance.

Q: What is the Vinotemp Wine-Mate Self-Contained Low-Profile Wine Cooling System - WM-1500LOWP?
A: It’s a compact, self-contained wine cooling system designed for wine cellars with limited space, efficiently maintaining temperature and humidity.

Q: What is the cooling capacity of this unit?
A: It is designed to cool wine cellars up to 150 cubic feet.

Q: How does this system control humidity?
A: It helps maintain proper humidity levels to prevent cork drying and ensure optimal wine preservation.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise adjustments.

Q: Is professional installation required?
A: No, it is a self-contained unit designed for easy through-the-wall installation.

Q: What type of ventilation does it require?
A: It requires proper ventilation to an adjacent space for optimal performance.

Q: Is this unit suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.

Q: Does it have noise-reduction features?
A: Yes, it is engineered for quiet and efficient operation in small wine storage spaces.

• Ensure Proper Ventilation – Maintain at least 6 inches of clearance around vents for optimal airflow.
• Clean Air Filter – Check and clean or replace the filter every 3-6 months to ensure efficiency.
• Dust Condenser Coils – Use a vacuum or soft brush every 6 months to remove dust buildup.
• Monitor Temperature & Humidity – Regularly check settings to maintain ideal wine storage conditions.
• Inspect Drain Line – Keep it clear to prevent water buildup and leaks.
• Check Door Seals (if applicable) – Ensure tight seals on connected wine cabinets to maintain insulation.
• Use a Dedicated Circuit – Plug into a dedicated power outlet to prevent electrical issues.
• Schedule Annual Maintenance – Professional servicing extends the unit’s lifespan and efficiency.
