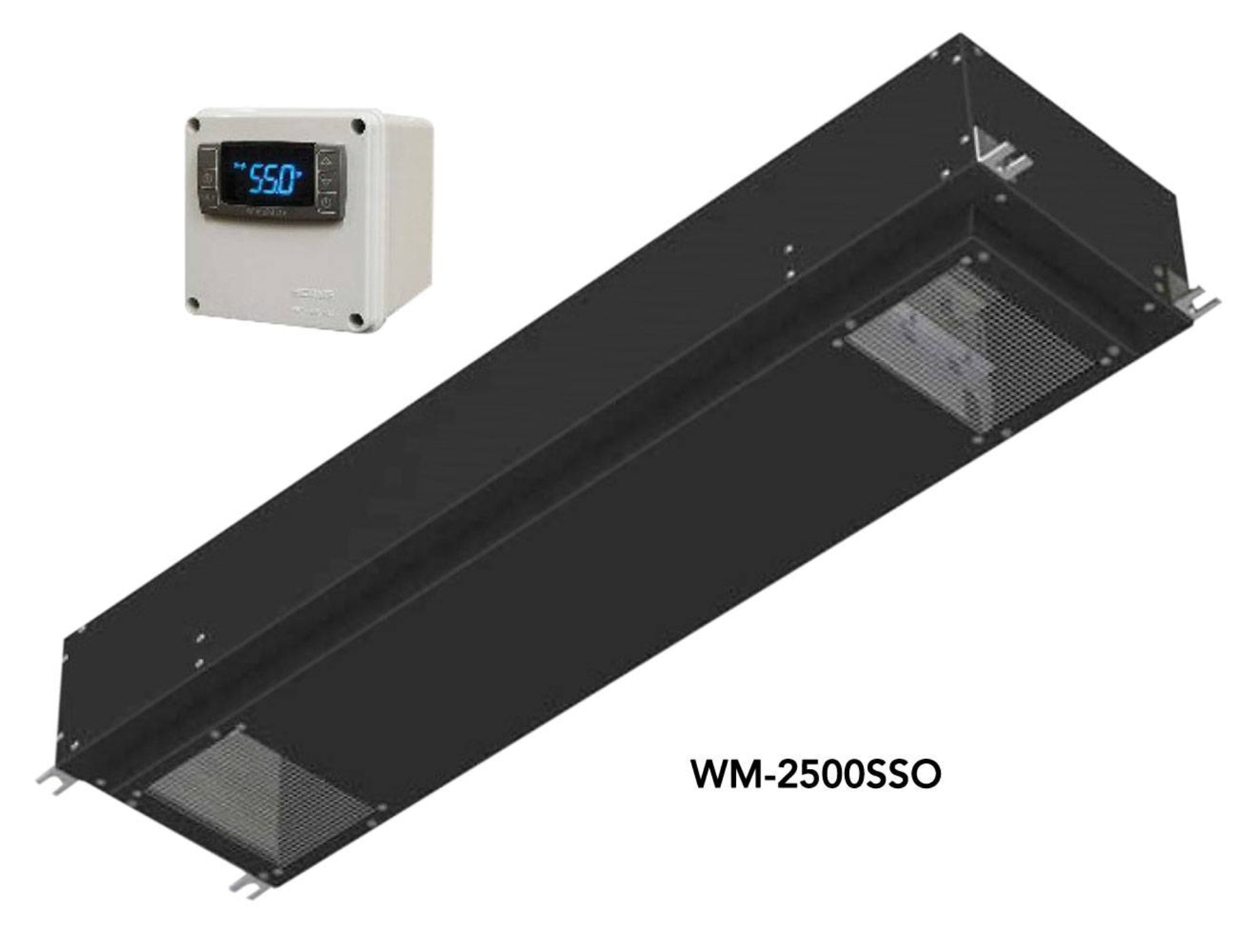

Vinotemp Wine-Mate Split Through-Ceiling Wine Cooling System - WM-2500SSO

Vinotemp Wine-Mate Split Through-Ceiling Wine Cooling System - WM-2500SSO

WINE~MATE split through-ceiling cooling systems WM-2500SSO are designed to provide a cold environment between 50~65 °F with a humidity range within 50~75% RH for a properly insulated wine cellar. These temperature and humidity ranges are optimized for long term storage of wine like that in natural caves. SSO evaporator units can be installed through the ceiling outside a wine cabinet or room, which can maximize storage space. The evaporator units have a special coil coating and provide hidden installation. SSO cooling systems consist of a remote condensing unit and an evaporator unit and they are connected by a liquid line and an insulated suction line. SSO condensing units can be located away from the wine cellars up to 75 ft so that noise and compressor vibration are isolated.

Wine~Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine~Mate systems can be customized for your exact storage needs - please call for more information! 1) Air temperature in the cabinet may fluctuate, but the wine temperature in the bottle is constant.
2) You can put a cooling unit in a full wine cabinet and show both the air temperature and bottle temperature.

Note: Wine-Mate cooling systems cannot have both the Bottle Probe and Wi-Fi optional features plugged in at the same time. It can only be one or the other.

Sound Level: 3 Feet from the Evaporator Unit in Cellar

(Click image to enlarge PDF)

• SSO Split Wine Cooling System provides through-ceiling hidden installation.
• SSO evaporator units have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.

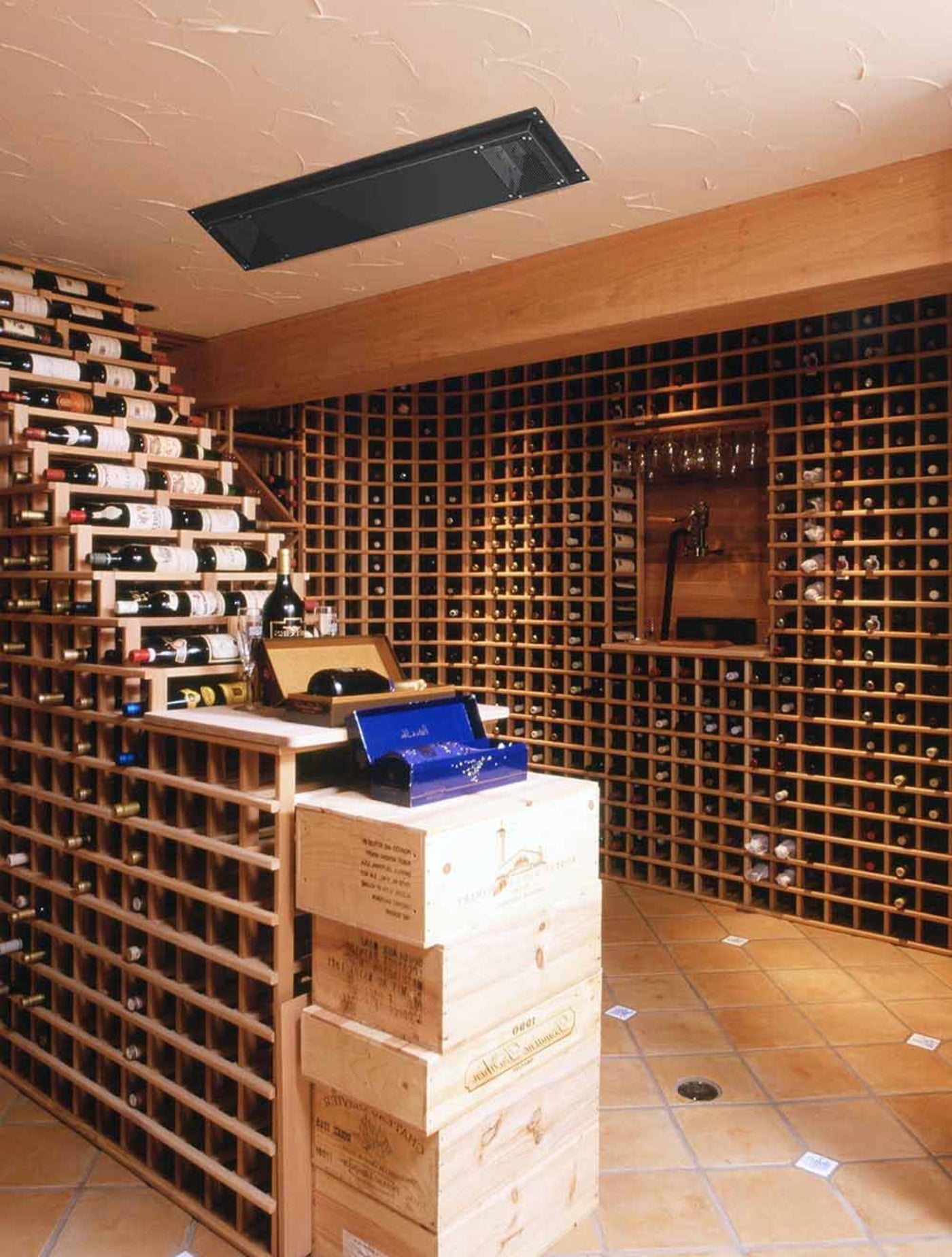

• SSO split through-ceiling cooling system can be mounted above the ceiling for concealed and quiet installation.
• SSO condensing units shall not be exposed to temperatures higher than 110°F or lower than 50°F.
• If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.
• Low ambient kit for below 50°F cold weather operation
• Outdoor enclosure is included with condensing unit.


• Optional Low Ambient Kit: Recommended for applications where the low ambient temperatures in the condensing unit mounting area will be between 0 and 50°F. Feature is factory-installed.
• Temperature Control Panel with Heating Function: Works in conjunction with your home's air forced electric heater to ensure that your cellar never goes below the programmed temperature.
• Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring
• Optional Wine Bottle Probe: Provides the most accurate reading of your wine's temperature. The probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• Our new digital controller provides 3 connections. One of them can be used as bottle probe, the other can be used for the alarm. Both bottle probe and alarm feature can be available at the same time.
• Note: The bottle probe, heating, and quick chill functions are not compatible with WI-FI thermostat.



• Owner's Manual (PDF)- This link will open a PDF document
• Spec Sheet (PDF)- This link will open a PDF document
• Quick Chilling & Energy Saving Instructions (PDF)- This link will open a PDF document
• Select a Cooling Unit for Glass Cellar

• High-Capacity Cooling – Designed for large wine cellars up to 3,000 cubic feet.
• Split System Design – Reduces noise and vibration by placing the condenser in a separate location.
• Floor-Mounted Installation – Ideal for cellars with limited wall or ceiling space.
• Precise Temperature Control – Digital controls ensure stable and consistent cooling.
• Humidity Management – Helps maintain proper moisture levels to protect wine quality.
• Quiet & Efficient Operation – Engineered for minimal noise while delivering powerful cooling.
• Durable & Reliable – Built with high-quality materials for long-term performance.

Q: What is the Vinotemp Wine-Mate Split Floor-Mounted Wine Cooling System - WM-12000SSA?
A: It’s a high-capacity, split-system wine cooling unit designed to regulate temperature and humidity in large wine cellars.

Q: What is the cooling capacity of this unit?
A: It can efficiently cool wine cellars up to 3,000 cubic feet.

Q: How does a split system work?
A: The evaporator and condenser are installed separately, reducing noise and vibration inside the wine cellar while ensuring efficient cooling.

Q: What type of installation does it require?
A: It is a floor-mounted unit that must be professionally installed for optimal performance.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise climate management.

Q: Does this system regulate humidity?
A: Yes, it helps maintain proper humidity levels to protect wine corks and labels.

Q: Is this suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.

Q: Does it operate quietly?
A: Yes, the split design minimizes noise inside the wine cellar, making it a quiet and efficient cooling solution.

• Clean Air Filters – Wash or replace filters every 3-6 months to maintain airflow.
• Inspect Refrigerant Levels – Have a technician check for leaks or low refrigerant annually.
• Ensure Proper Ventilation – Keep the unit clear of obstructions for efficient cooling.
• Monitor Temperature & Humidity – Regularly check settings to ensure proper wine storage.
• Clean Coils – Dust condenser and evaporator coils every 6 months to prevent overheating.
• Inspect Drain Line – Ensure drainage is clear to prevent water buildup.
• Check Electrical Connections – Tighten and clean wiring to avoid malfunctions.
• Listen for Unusual Noises – Address vibrations or abnormal sounds promptly.
