Vinotemp Wine-Mate 4500SSV Split Rack-Recessed Wine Cooling System - WM-4500SSV

Wine-Mate 4500SSV Split Rack-Recessed Wine Cooling System - WM-4500SSV

The Wine-Mate 4500SSV cooling unit is a split system design with a capacity of 1000 cubic feet. This cooling unit is designed to provide a subtle temperature between 50~65 °F for a properly insulated wine cellar. The humidity range of the refrigerated space can be maintained within 50~75%. With this split system, the condensing unit can be placed up to 75 feet away from the fan coil to allow for extremely quiet operation. SSV cooling systems are designed to be rack mounted, so you can easily install them inside a wine rack or between two ceiling joists. They are an ideal choice for small and medium wine rooms. Refrigeration technician is required for installation.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

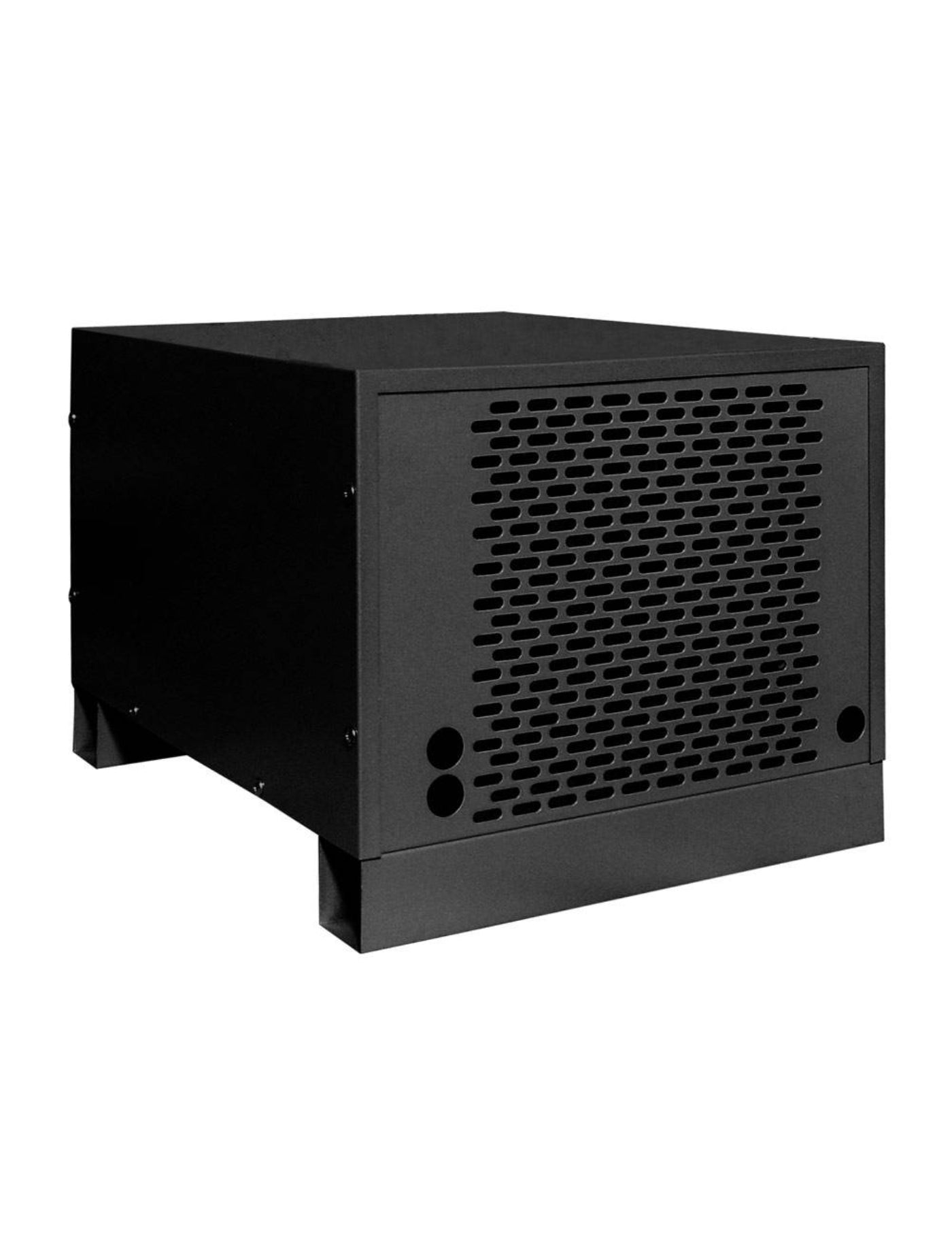

Quieter Operation with Condensing Unit
This condensing unit can be placed up to 75ft away, providing for a much quieter operation.
Add The Wine Bottle Probe & Wi-Fi Thermostat
The probe provides an accurate reading of the temperature of your wine, and the thermostat helps maintain a wine cellar at perfect temperature for long term storage of wine.

Note: Wine-Mate cooling systems cannot have both the Bottle Probe and Wi-Fi optional features plugged in at the same time. It can only be one or the other.

Sound Level: 3 Feet from the Evaporator Unit in Cellar

(Click image to enlarge PDF)

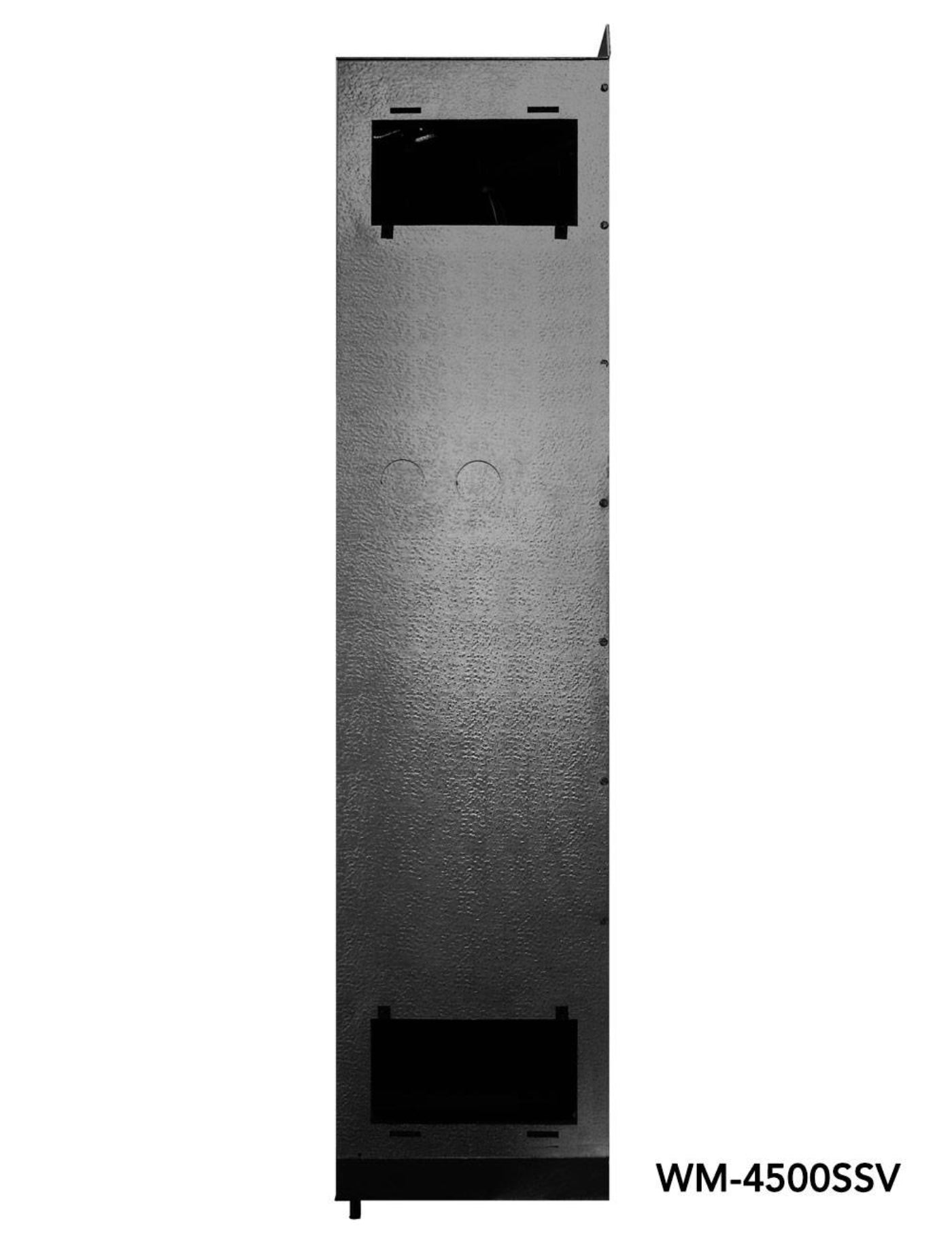

• SPLIT SYSTEM COOLING UNIT – rack-recessed design.
• SSV cooling systems consist of a remote condensing unit and an evaporator unit and they are connected by a liquid line and an insulated suction line.
• SSV evaporator/fan units have a special coil coating.

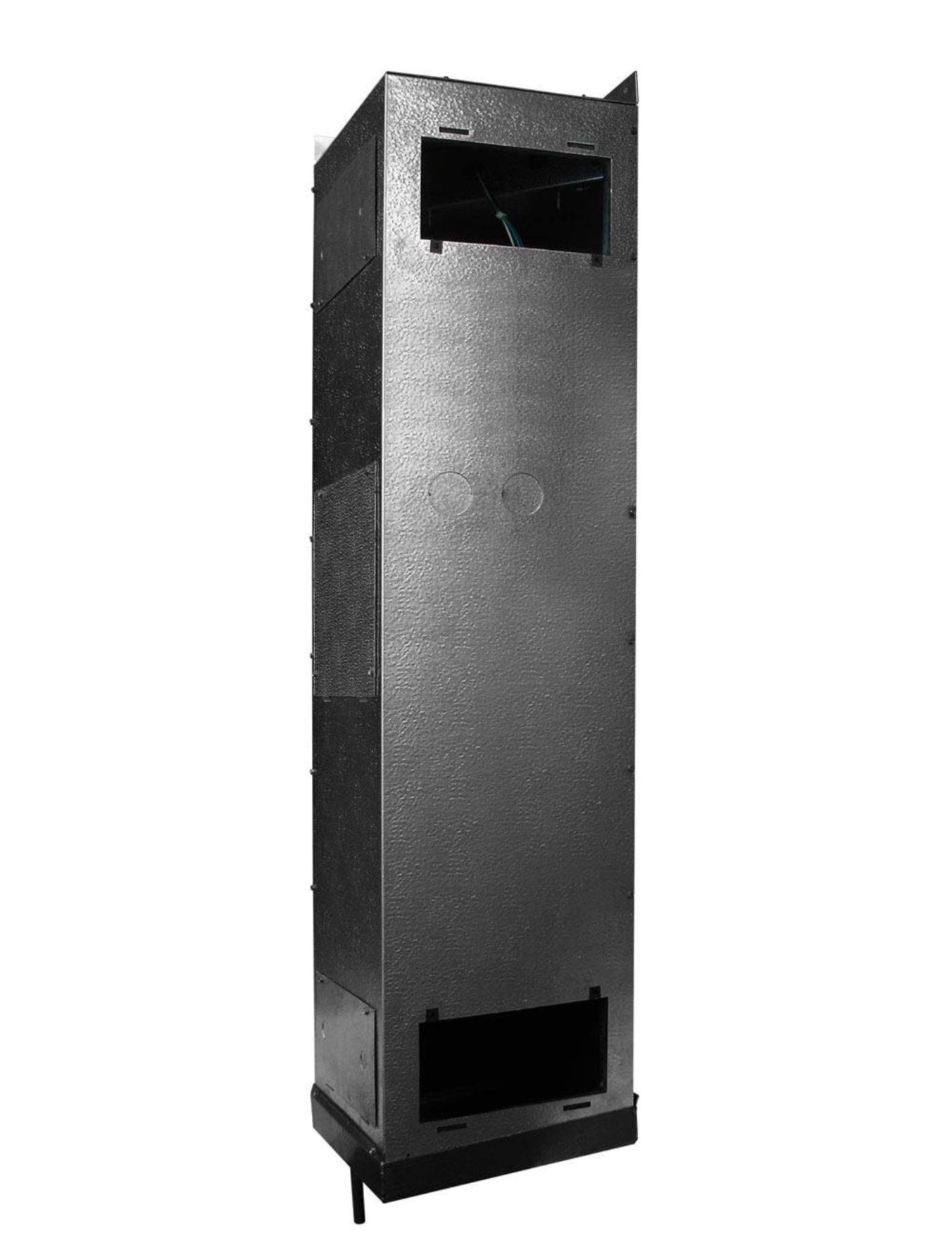

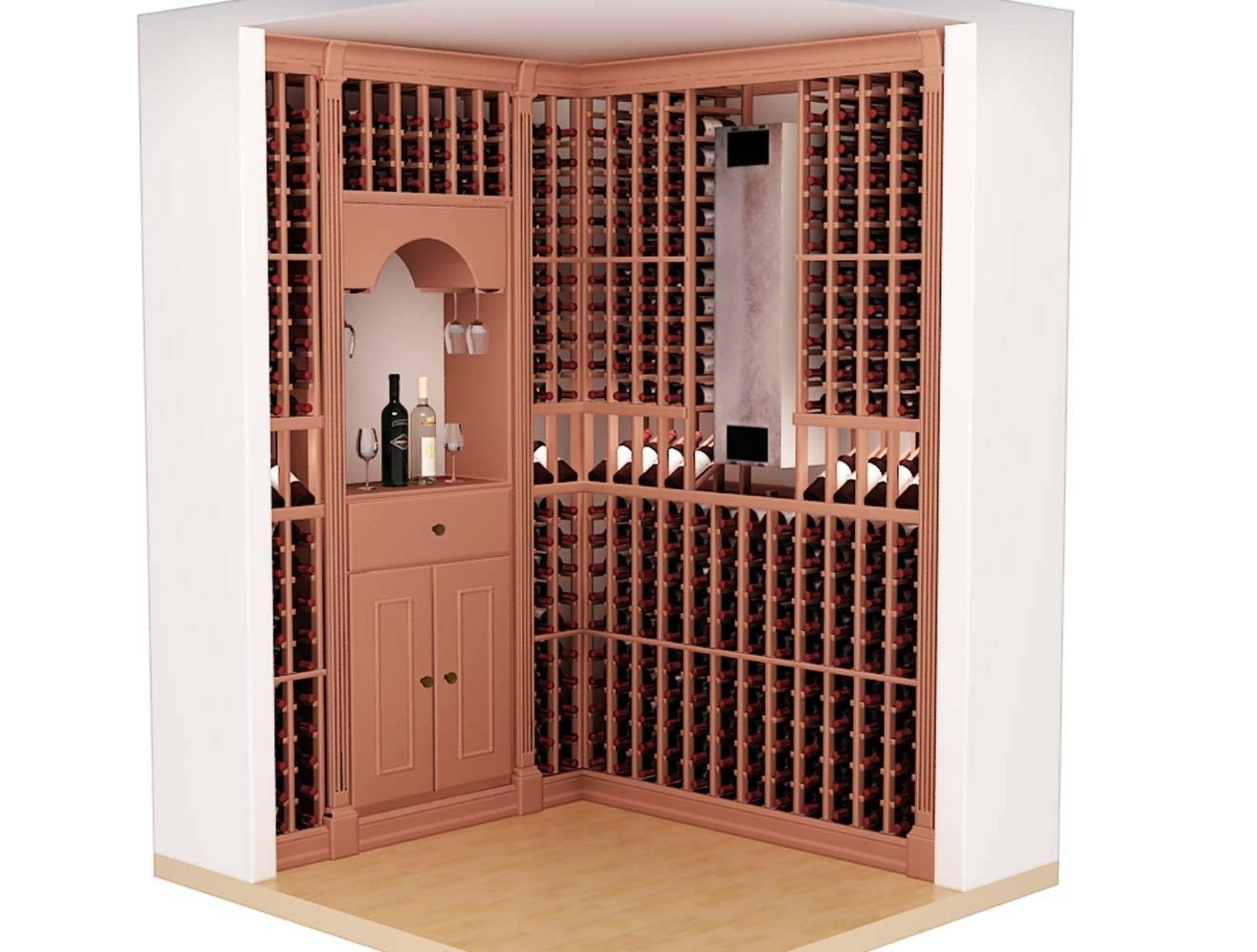

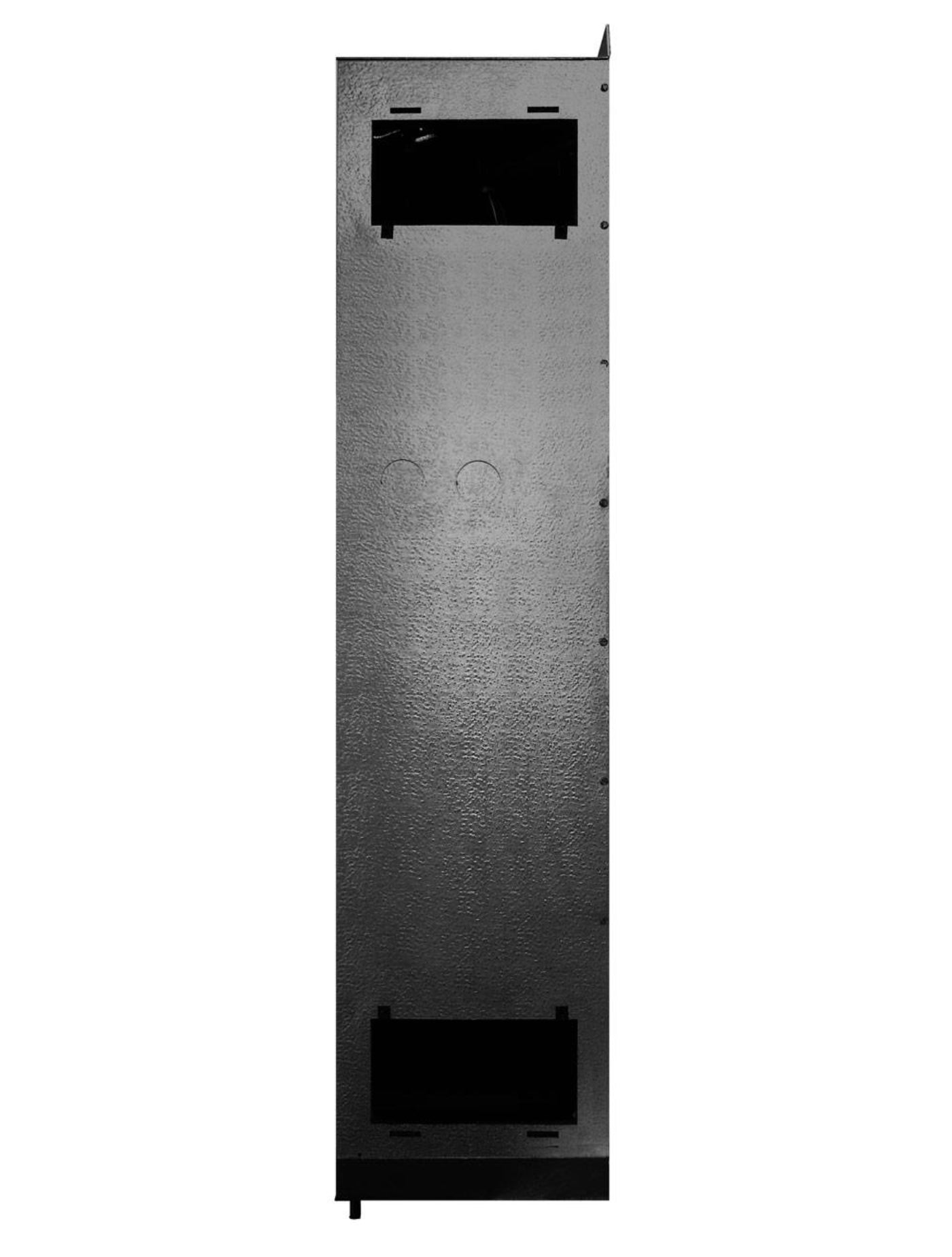

• SSV evaporator/fan units are designed to provide chilled air to a wine cellar and are designed for vertical installation inside a rack or wine room corner, making them an ideal choice for small and medium wine cellars. There are multiple air inlet and outlet doors for different installations.
• SSV condensing units can be located away from the wine cellar up to 75 ft so that noise and compressor vibrations are isolated.
• SSV condensing units shall not be exposed to temperatures higher than 110°F or lower than 50°F.
• If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.
• Low ambient kit for below 50°F cold weather operation
• TEMPERATURE: The WM-4500SSV cooling unit is designed and used to provide a stable temperature between 50~65°F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-4500SSV should not exceed the temperature of the cellar by more than 25°F. Cellar walls should not receive direct sun or strong wind. Lighting should be low wattage and installed on a timer to ensure that lights are not left on when the cellar is unoccupied.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• Outdoor enclosure is included with condensing unit
• WARRANTY: 1-year warranty on parts, 1-year labor.

• Optional Low Ambient Kit: Recommended for applications where the low ambient temperatures in the condensing unit mounting area will be between 0 and 50°F. Feature is factory-installed.
• Temperature Control Panel with Heating Function: Works in conjunction with your home's air forced electric heater to ensure that your cellar never goes below the programmed temperature.

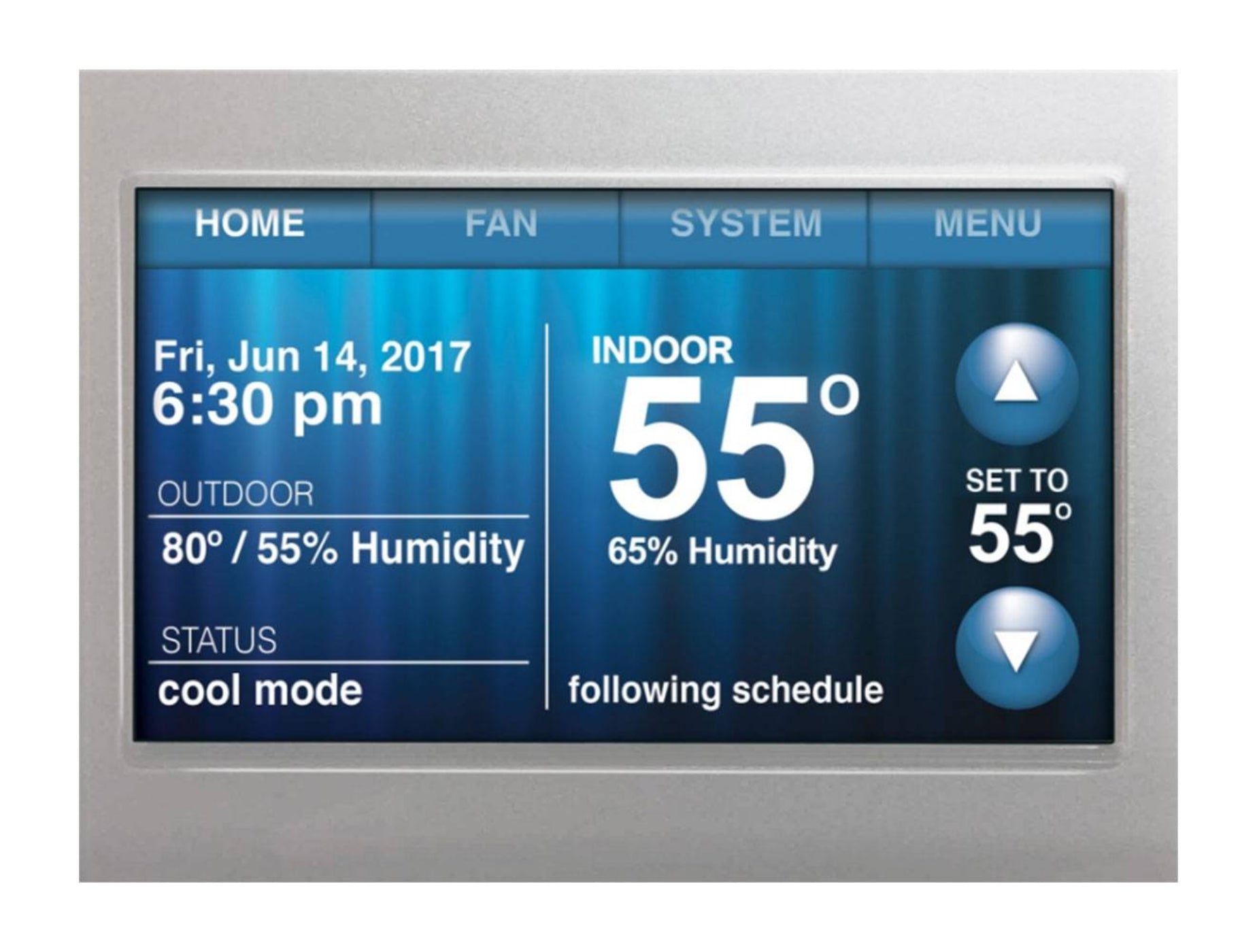

• Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring

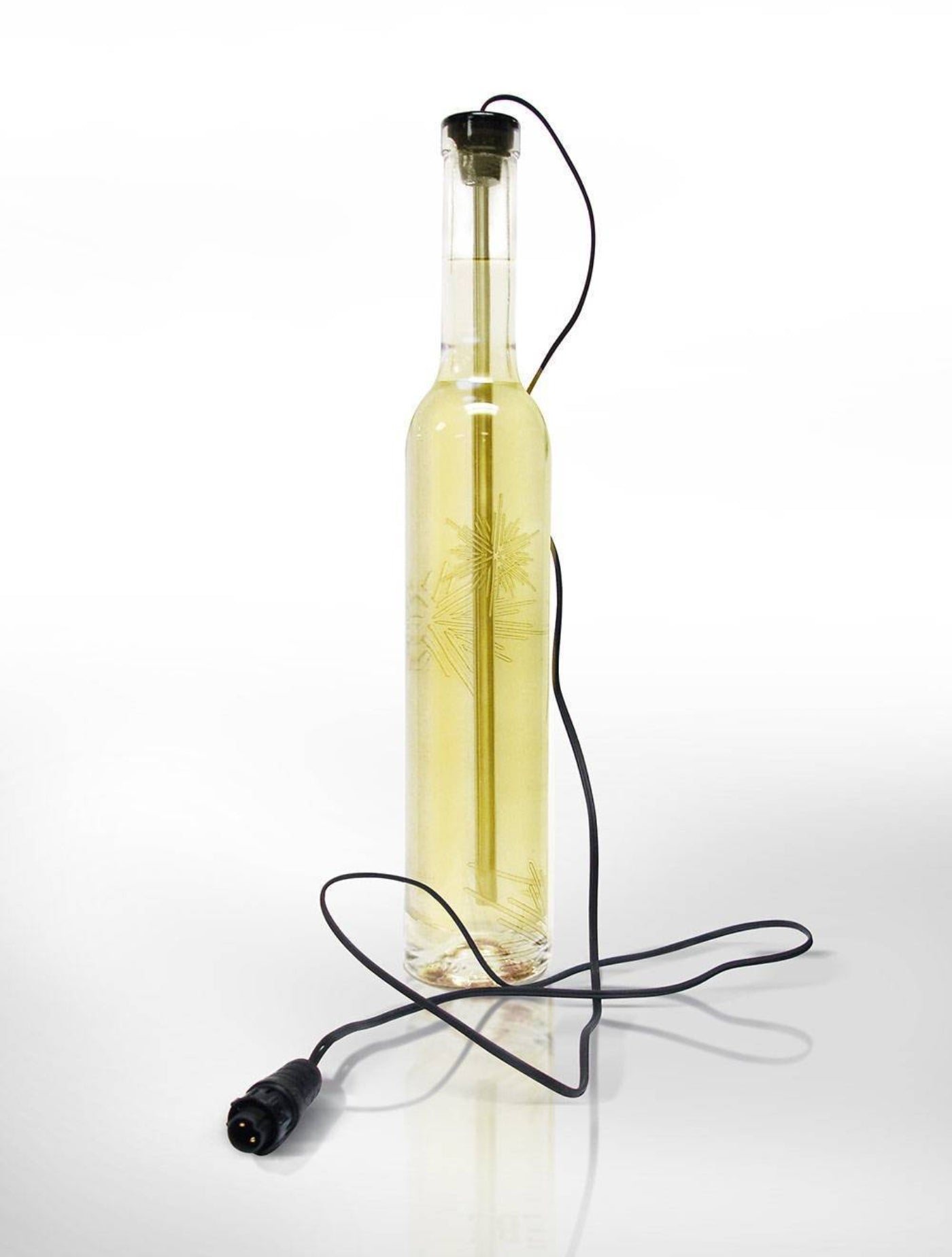

• Optional Wine Bottle Probe: Provides the most accurate reading of your wine's temperature. The probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• Our new digital controller provides 3 connections. One of them can be used as bottle probe, the other can be used for the alarm. Both bottle probe and alarm feature can be available at the same time.
• Note: The bottle probe, heating, and quick chill functions are not compatible with WI-FI thermostat.
• This unit can be configured for use with 220V outlets. Please call us at 1-800-777-8466 to order this unit with any of the above mentioned options or non-standard configurations.


Click links to view

• Owner's Manual (PDF)
• Spec Sheet (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)

• Ideal for Medium-Sized Cellars – Cools wine storage spaces up to 1,000 cubic feet.
• Split System Design – Separates the condenser for quieter operation and reduced vibration.
• Rack-Recessed Installation – Designed to fit seamlessly within wine racking for a discreet look.
• Precise Temperature Control – Digital controls ensure consistent and stable cooling.
• Humidity Management – Helps maintain proper moisture levels to protect corks and wine quality.
• Quiet & Efficient Performance – Engineered for minimal noise while delivering optimal cooling.
• Durable & Reliable – Built with high-quality materials for long-term use.

Q: What is the Vinotemp Wine-Mate 4500SSV Split Rack-Recessed Wine Cooling System - WM-4500SSV?
A: It’s a split, rack-recessed wine cooling system designed to provide precise temperature and humidity control for wine cellars up to 1,000 cubic feet.

Q: How does a split system work?
A: The evaporator and condenser are installed separately, reducing noise and vibration inside the wine cellar while ensuring efficient cooling.

Q: What type of installation does it require?
A: It is a rack-recessed unit, meaning the evaporator is designed to be mounted within a wine rack or cabinet for a seamless look.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise climate management.

Q: Does this system regulate humidity?
A: Yes, it helps maintain proper humidity levels to protect wine corks and labels.

Q: Is professional installation required?
A: Yes, a qualified HVAC technician should install this system for optimal performance.

Q: Is this suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.

Q: Does it operate quietly?
A: Yes, its split design minimizes noise and vibration inside the wine cellar.

• Clean Air Filters – Check and clean filters every 3-6 months for optimal airflow.
• Inspect Condenser Coils – Dust buildup can reduce efficiency; clean every 6 months.
• Monitor Temperature & Humidity – Maintain recommended levels for proper wine storage.
• Check for Refrigerant Leaks – If cooling efficiency drops, consult a professional for inspection.
• Ensure Proper Ventilation – Keep airflow unobstructed to prevent overheating.
• Inspect Electrical Connections – Secure all wiring to prevent operational failures.
• Test System Regularly – Run periodic checks to ensure consistent performance.
