Vinotemp Wine-Mate 8500HZD Self-Contained Wine Cooling System - WM-8500HZD

Vinotemp Wine-Mate Self-Contained Wine Cooling System - WM-8500HZD

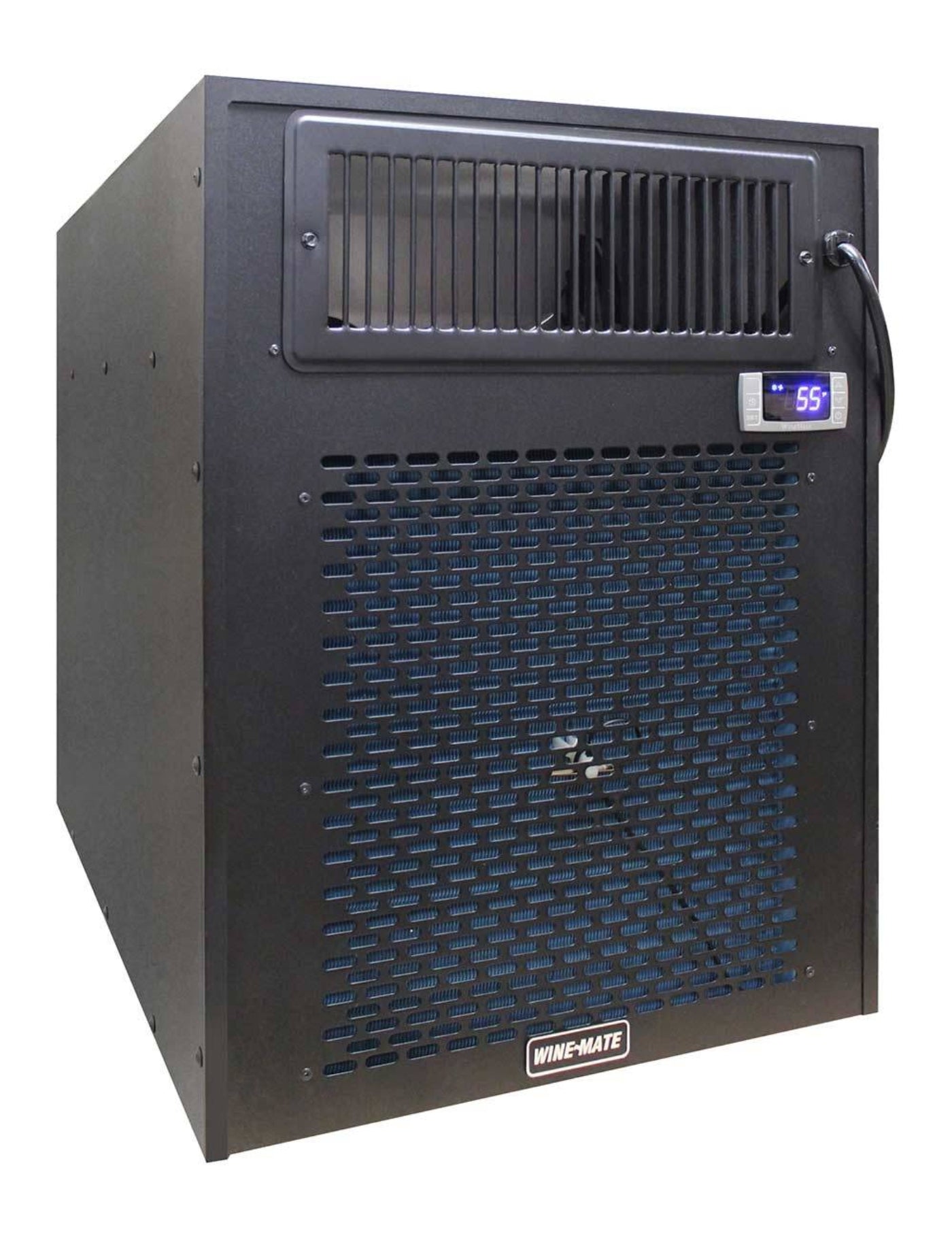

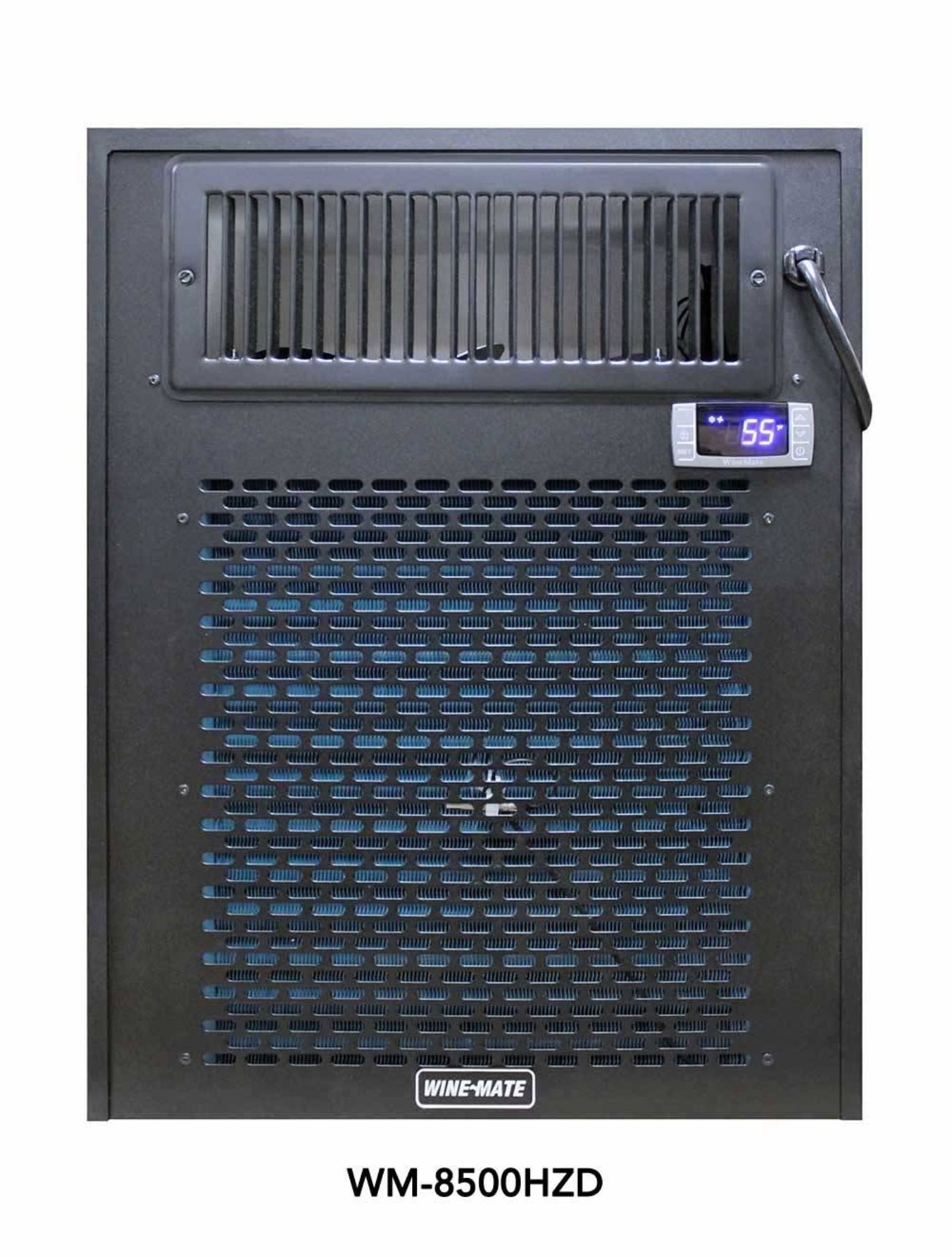

Wine-Mate 8500HZD self-contained cooling system provides horizontal cold air discharge that is optimized for use in wide cabinets or wine rooms. This durable unit is equipped with an LED digital display which includes an alarm feature that will alert you to cooling issues, an easy power on/off switch, and reliable digital electronic thermostat. This cooling unit can also be used inside a glass wine cellar. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. Top and rear exhaust options are available for convenient installation of this unit. Plus, no refrigeration specialists are needed--it ships to you fully-charged and ready to use.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

NOTE: For use in a frameless glass cellar, the cooling unit should be concealed wherever is possible. The glass must be completely sealed.

Do You Have the Right Wine-Mate Wine Cooling System For Your Project?
Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators.

Compare Sound Levels 3 Feet from the Cooling Unit vs 3 Feet from the Cellar

(Click image to enlarge PDF)

Air Filter Placement On Wall Grille

Air Filter Placement On a Wine Cabinet

• SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.

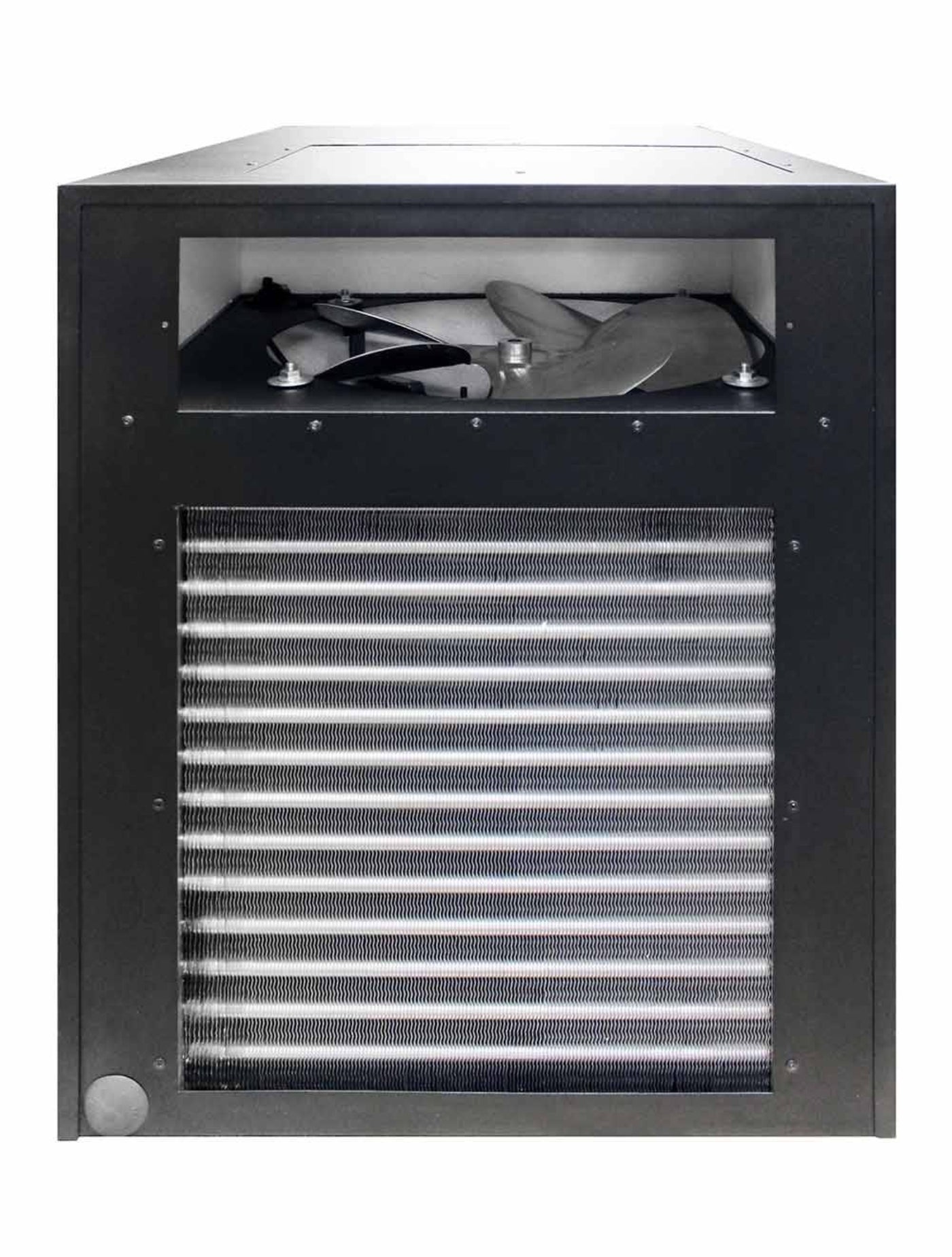

• EXHAUST: Rear (standard) or top

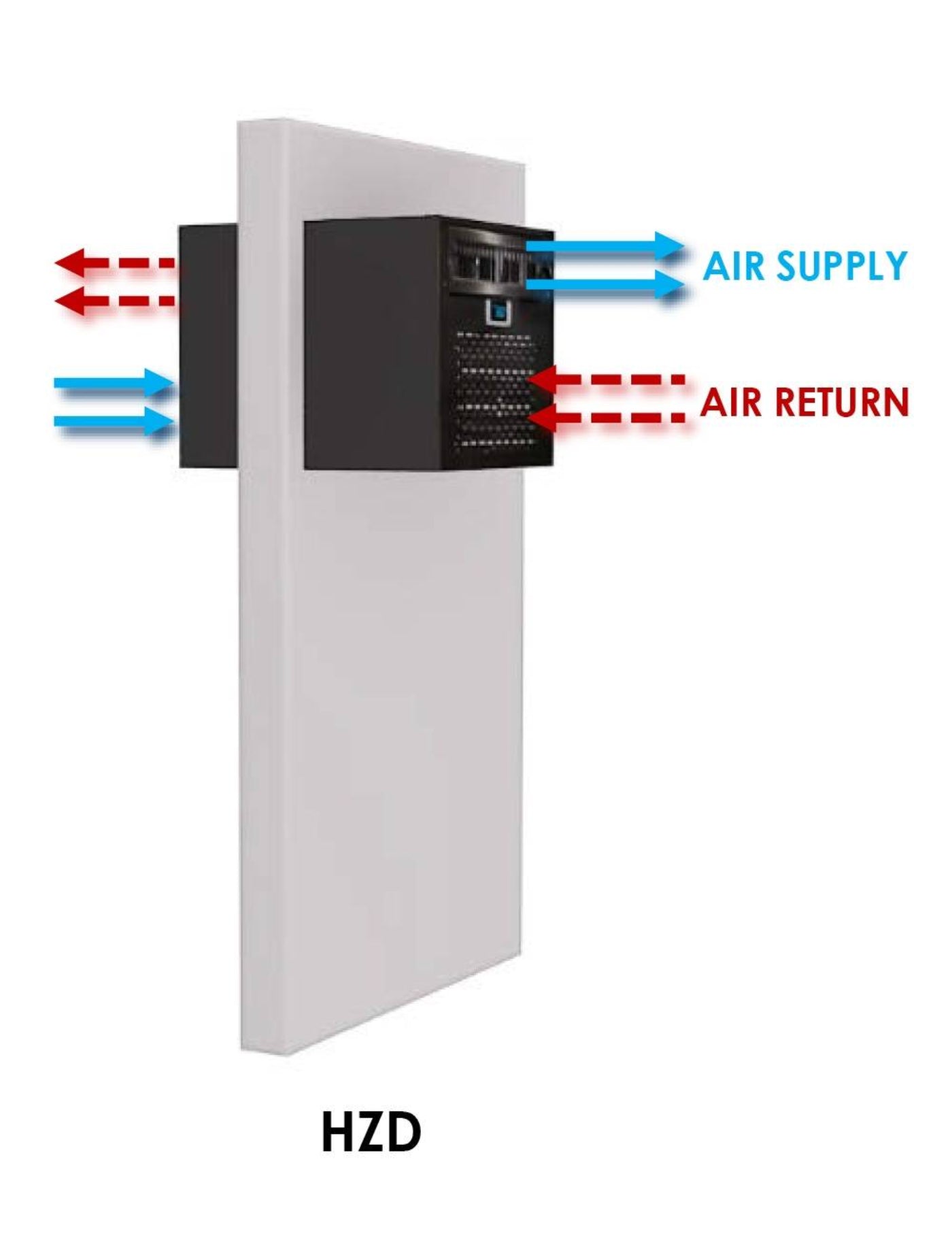

• SUPPLY: Horizontal cold air supply is optimized for use in wine rooms.
• VENTING: When installed into a wine cabinet or cellar, this unit must vent outside.
• TEMPERATURE: The WM-8500HZD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-8500HZD should not be higher than 95°F or lower than 50°F in order to operate properly.
• If the exhaust ambient temperature exceeds 95°F, one size larger unit must be used.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• WM-8500HZD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
• REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.

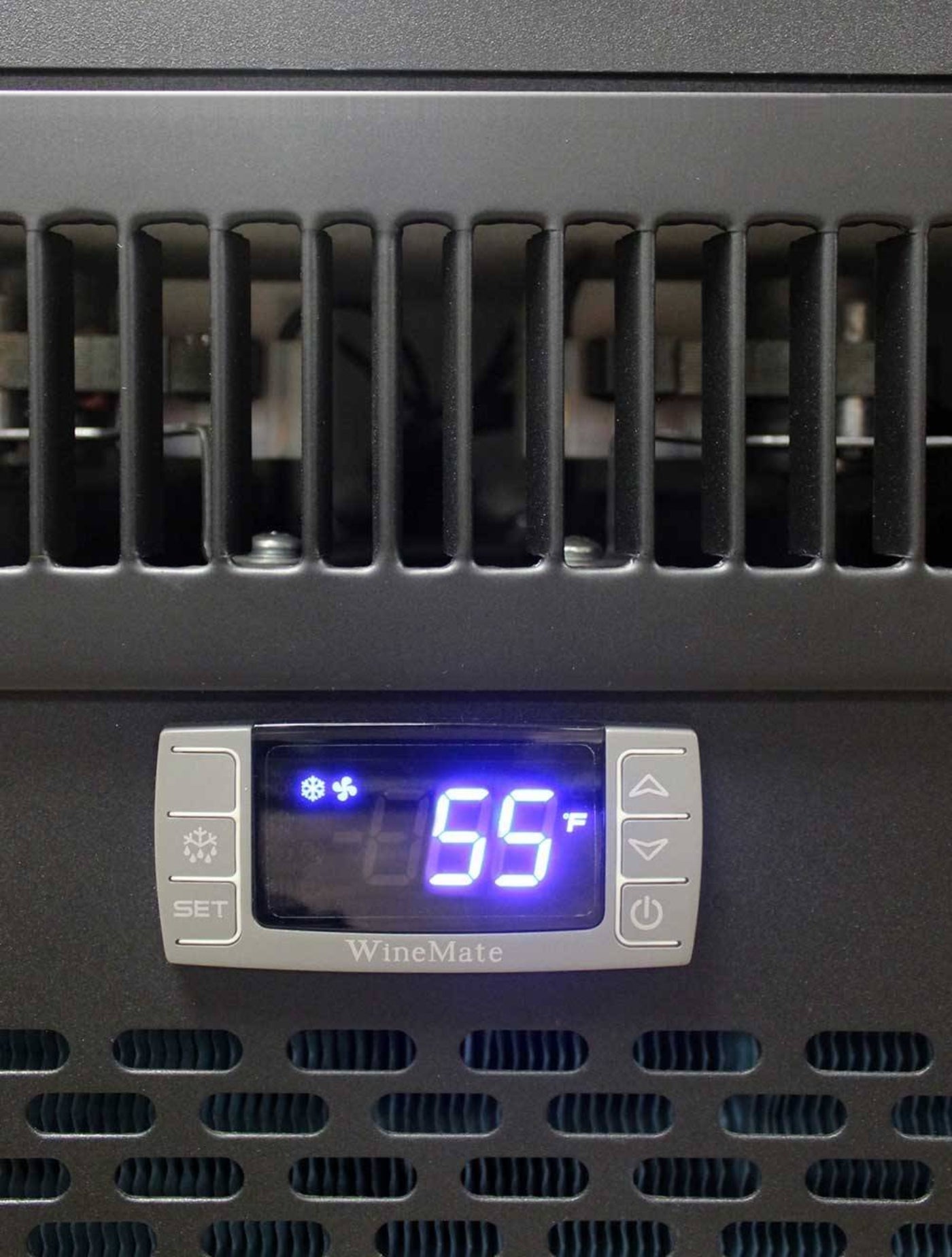

• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• WM-8500HZD is a wall unit, which can be mounted on or through a wall.
• Through-wall installation: This self-contained cooling system should be mounted through the wall for flushed installation.
• Four high speed fans for air efficiency
• Removable grill for easy cleaning
• WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.

• Standard rear exhaust with the option to upgrade to top exhaust.

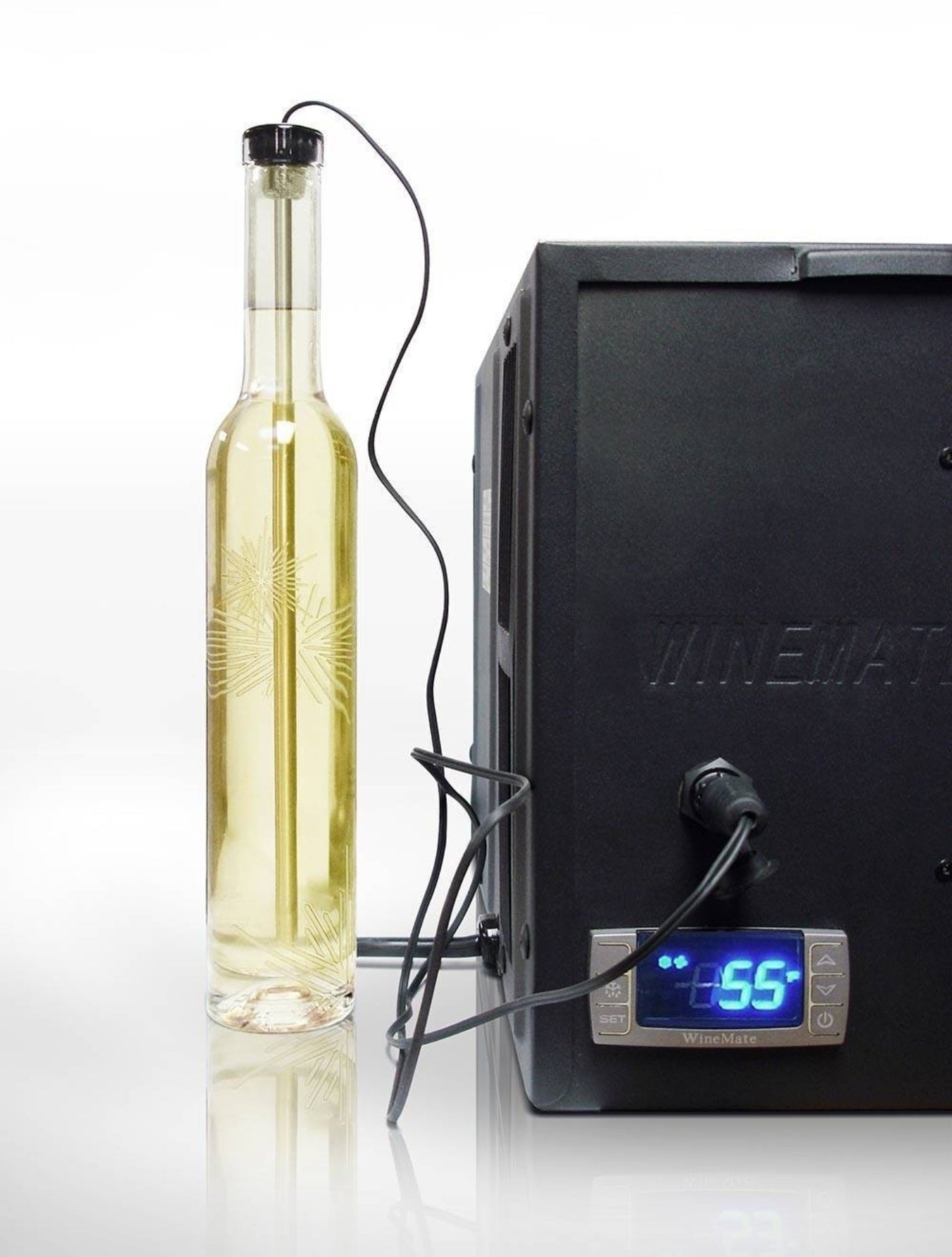

• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• FOR THE FOLLOWING OPTIONS, call to order: 1-800-777-VINO (8466).
• Standard front power cord with the option to upgrade to the rear cord for an additional fee.
• Mounting brackets are available for an additional fee.
• Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
  1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
  2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
• Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.

Click links to view

• View the Ventilation Guidelines for this unit (PDF)
• Owner’s Manual (PDF)
• Spec Sheet (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)
• Select a Cooling Unit for Glass Cellar

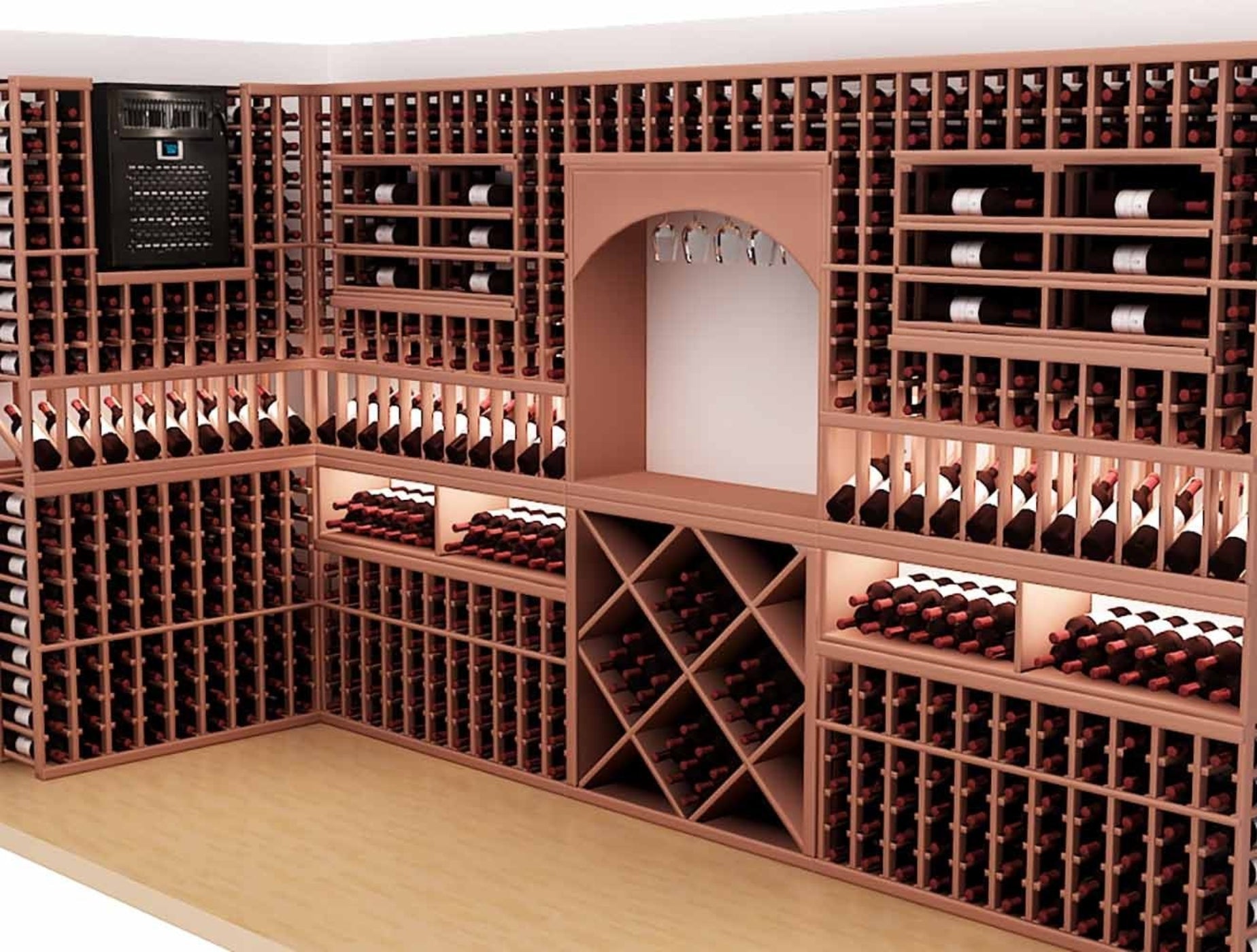

• Powerful Cooling Capacity – Effectively cools wine cellars up to 2,000 cubic feet.
• Self-Contained System – No ducting required, making installation straightforward.
• Precise Temperature Control – Digital panel ensures stable and consistent cooling.
• Humidity Management – Helps maintain ideal conditions for wine preservation.
• Quiet & Efficient Operation – Engineered for minimal noise while delivering reliable performance.
• Durable & Long-Lasting – Built with high-quality materials for years of dependable use.

Q: What is the Vinotemp Wine-Mate 8500HZD Self-Contained Wine Cooling System - WM-8500HZD?
A: It’s a high-capacity, self-contained wine cooling system designed to regulate temperature and humidity for wine cellars up to 2,000 cubic feet.

Q: How does this system control humidity?
A: It maintains proper humidity levels to prevent cork drying and ensure optimal wine storage conditions.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise adjustments.

Q: Is professional installation required?
A: No, it is a self-contained unit designed for easy through-the-wall installation.

Q: What type of ventilation does it require?
A: It requires proper ventilation to an adjacent space to ensure efficient operation.

Q: Is this unit suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.

Q: Does it have noise-reduction features?
A: Yes, it is engineered for quiet and efficient cooling performance.

• Ensure Proper Ventilation – Maintain at least 6 inches of clearance around vents for optimal airflow.
• Clean Air Filter – Check and clean or replace the filter every 3-6 months to ensure efficiency.
• Dust Condenser Coils – Use a vacuum or soft brush every 6 months to remove dust buildup.
• Monitor Temperature & Humidity – Regularly check settings to maintain ideal wine storage conditions.
• Inspect Drain Line – Keep it clear to prevent water buildup and leaks.
• Check Door Seals (if applicable) – Ensure tight seals on connected wine cabinets to maintain insulation.
• Use a Dedicated Circuit – Plug into a dedicated power outlet to prevent electrical issues.
• Schedule Annual Maintenance – Professional servicing extends the unit’s lifespan and efficiency.
