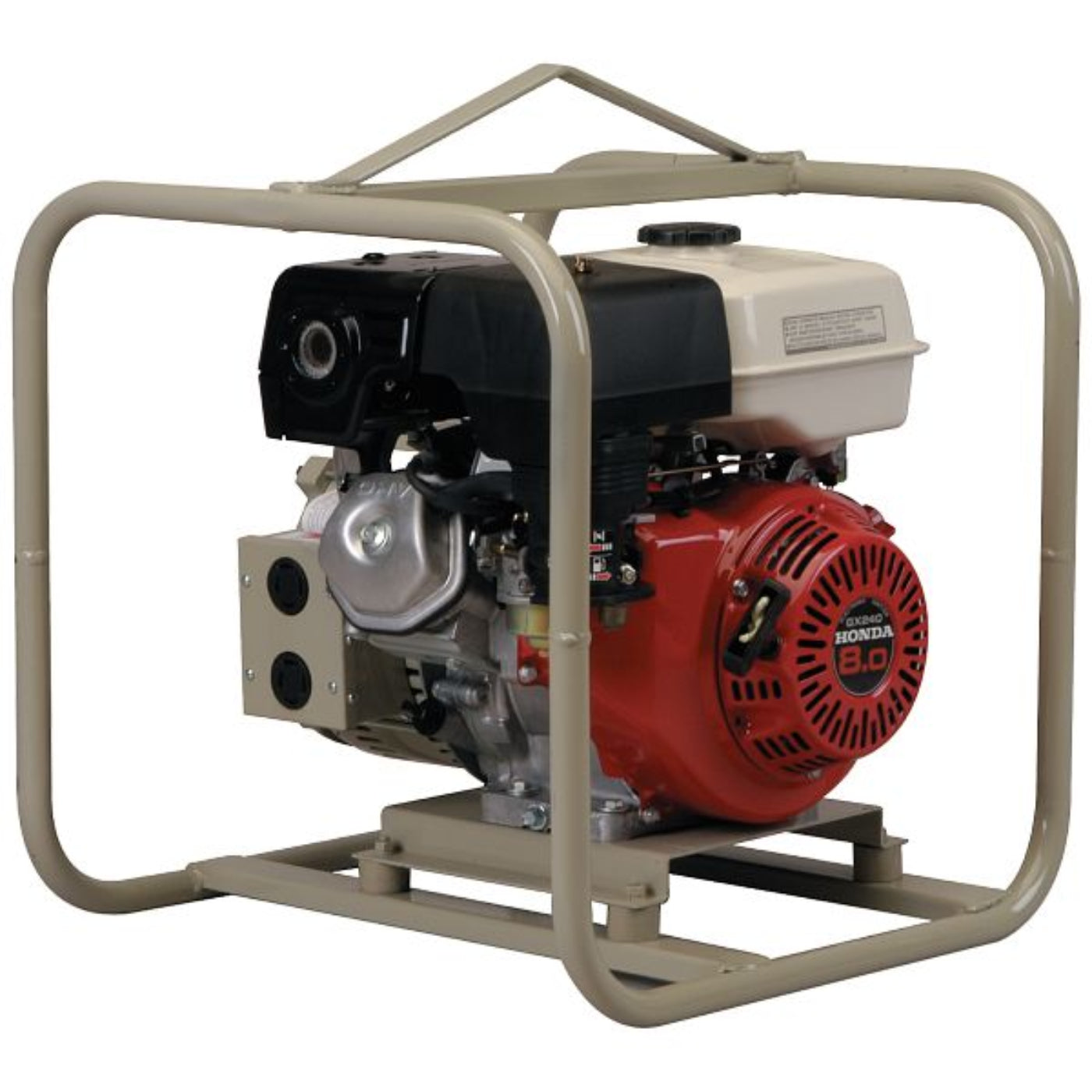

WYCO 3-Phase Generator - W511807
This three-phase generator is complete with an eight horsepower Honda engine that provides up to 3600 RPM. This product features the durability that is trusted by Wyco users, featuring cast iron cylinder sleeves, and a protective roll cage complete with a central lifting bar.
Features
- Two convenient output receptacles
- Protective roll cage with central lifting bar
- Solid-state exciter system
- All copper windings
- Brushless
- Conservative output rating
- Cast iron cylinder sleeves
- Shock mounted Honda engine
What our Experts Think
-
Reliable three‑phase power on the go: The WYCO 3‑Phase Generator – W511807 delivers 230 V AC, three‑phase output powered by a Honda 8 HP gasoline engine, giving dependable electrical power for tools and concrete consolidation equipment where grid power isn’t available.
-
Built‑for durability: A brushless generator design with all‑copper windings, solid‑state exciter, and protective roll cage stands up to rugged jobsite use and extends service life under frequent starts and heavy loads.
-
Portable and jobsite friendly: The central lifting bar and protective cage make transport and setup easier on construction sites or remote locations, while shock‑mounted engine components reduce vibration.
-
Conservative, steady output: Designed to provide consistent 3‑phase electrical power at 180 Hz (~3600 RPM), making it especially well suited for concrete vibrators and other three‑phase equipment used in construction and finishing work.
-
Trusted engine performance: Powered by a Honda GX‑series engine with recoil start and ~1.6 gal fuel capacity, the generator offers reliable running time and serviceability backed by Honda’s reputation.
Q&A
Q: What type of generator is the WYCO W511807?
A: It’s a 3‑phase high‑cycle portable generator set designed for construction and industrial use, providing reliable three‑phase power for tools and equipment.
Q: What engine powers the W511807 generator?
A: It’s driven by an 8 HP Honda gasoline engine (Honda GX240 series) with 1.59 gal fuel tank and recoil start for dependable performance.
Q: What electrical output does this generator deliver?
A: It produces 230 V, 3‑phase AC power at 180 Hz with approximately 4,000 W (4 kW) running capacity — ideal for powering vibrators and other construction equipment.
Q: What are some build and durability features?
A: The unit has a brushless alternator with all‑copper windings, solid‑state exciter, protective roll cage, central lifting bar, and cast‑iron motor sleeves for rugged jobsite reliability.
Q: How portable is the generator?
A: Weighing around 130–140 lbs with a built‑in lifting bar and shock‑mounted engine, it’s designed for mobile use on job sites.
Q: What applications is the WYCO W511807 generator good for?
A: Best suited for construction, concrete vibration systems, industrial equipment, and tools requiring stable three‑phase power in locations without main line 3‑phase service.
Maintenance Tips
-
Disconnect Power Before Maintenance: Always turn off and isolate the generator before servicing or cleaning.
-
Inspect Fuel & Oil Levels: Check fuel, oil, and coolant (if applicable) before each use; replace oil per manufacturer schedule.
-
Clean Air Filters & Cooling Fins: Remove dust, dirt, and debris to maintain proper airflow and prevent overheating.
-
Check Electrical Connections: Inspect terminals, wires, and grounding connections for tightness and corrosion.
-
Test Operation Periodically: Run the generator under load occasionally to ensure consistent output and identify issues early.
-
Inspect Hardware & Mounting: Ensure all bolts, fasteners, and supports are secure before operation.
-
Protect From Moisture & Corrosion: Store in a dry, covered location; wipe exposed metal surfaces with light oil to prevent rust.
