YEALINK HD conference phone with powerful voice - CP965-WIRELESSMIC

YEALINK HD conference phone with powerful voice - CP965-WIRELESSMIC

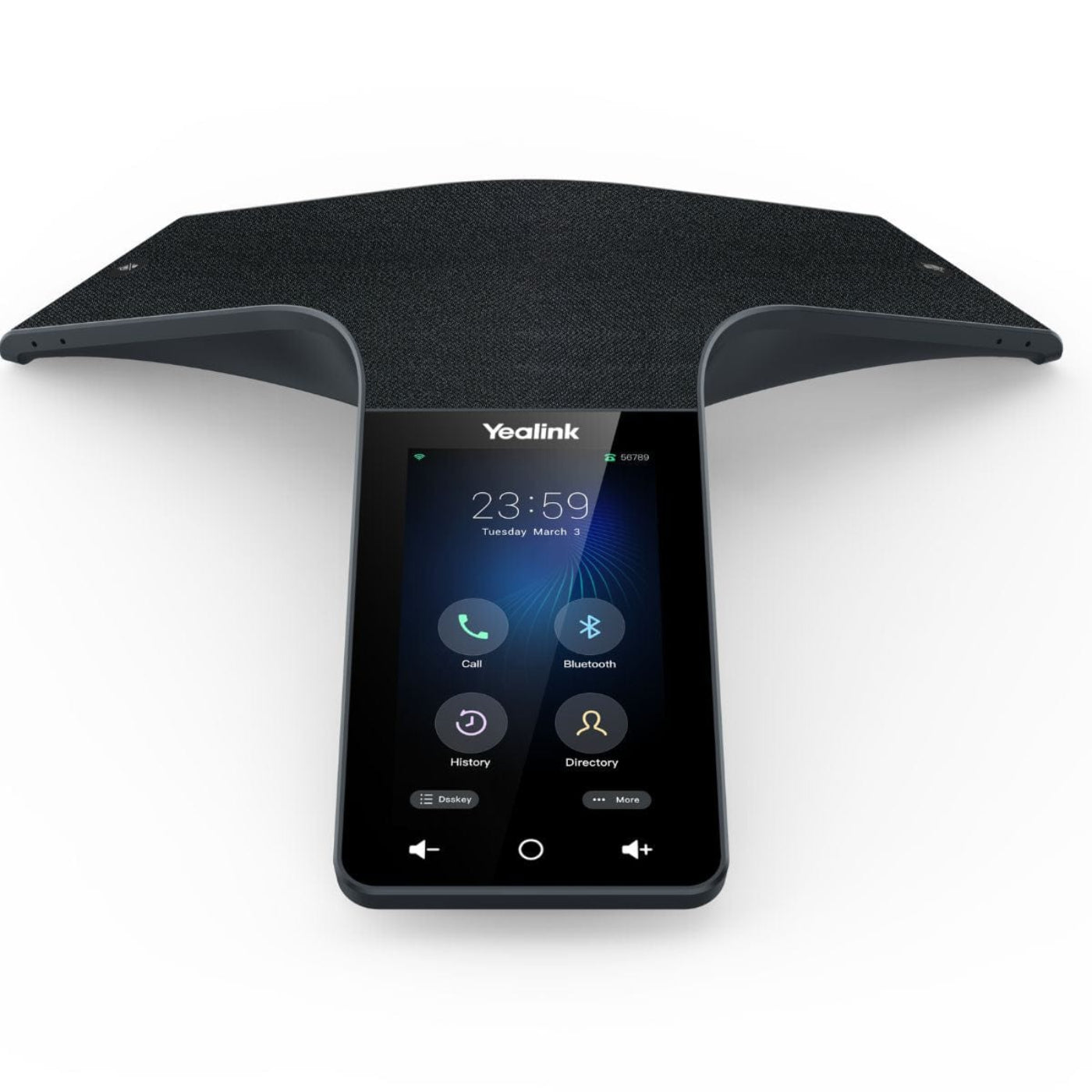

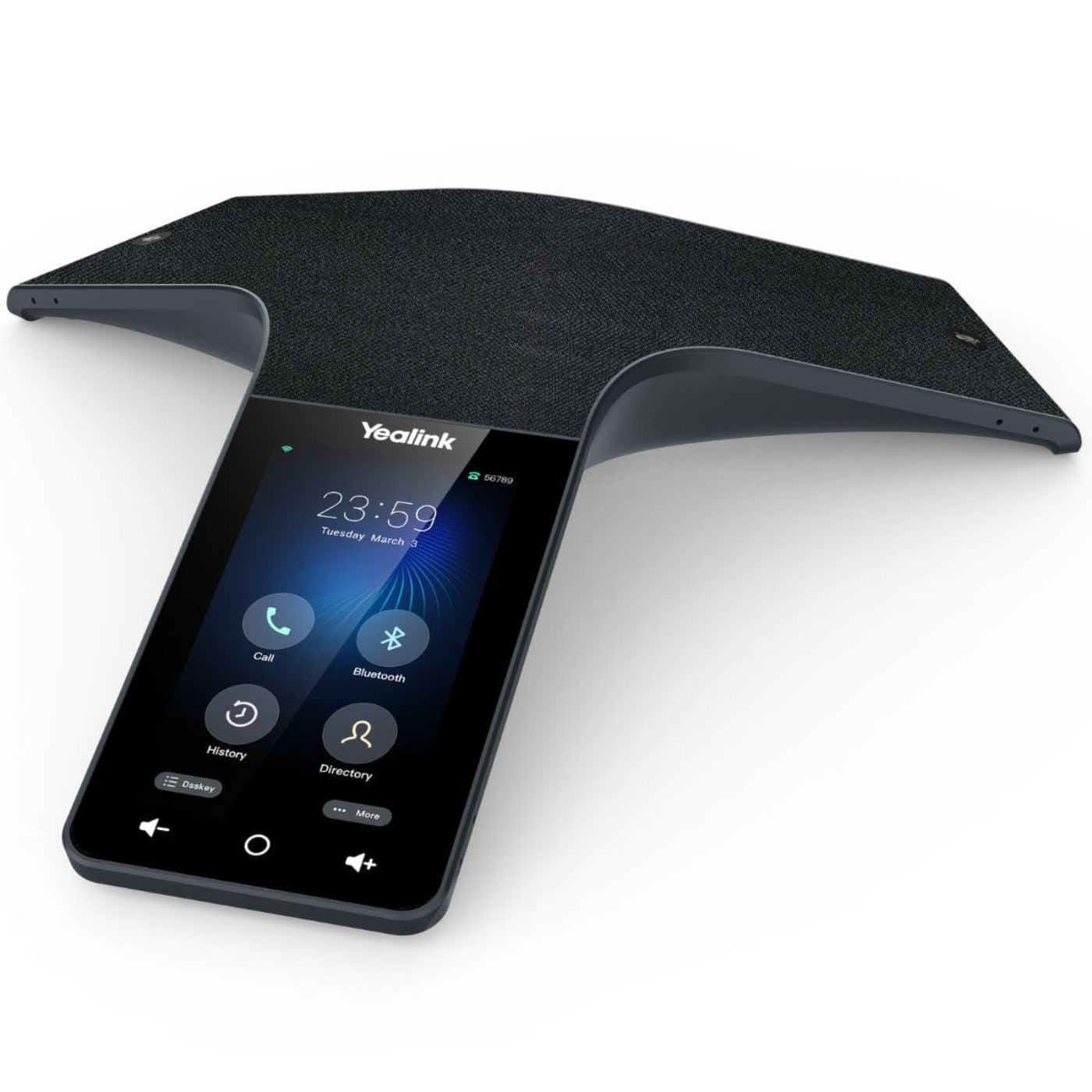

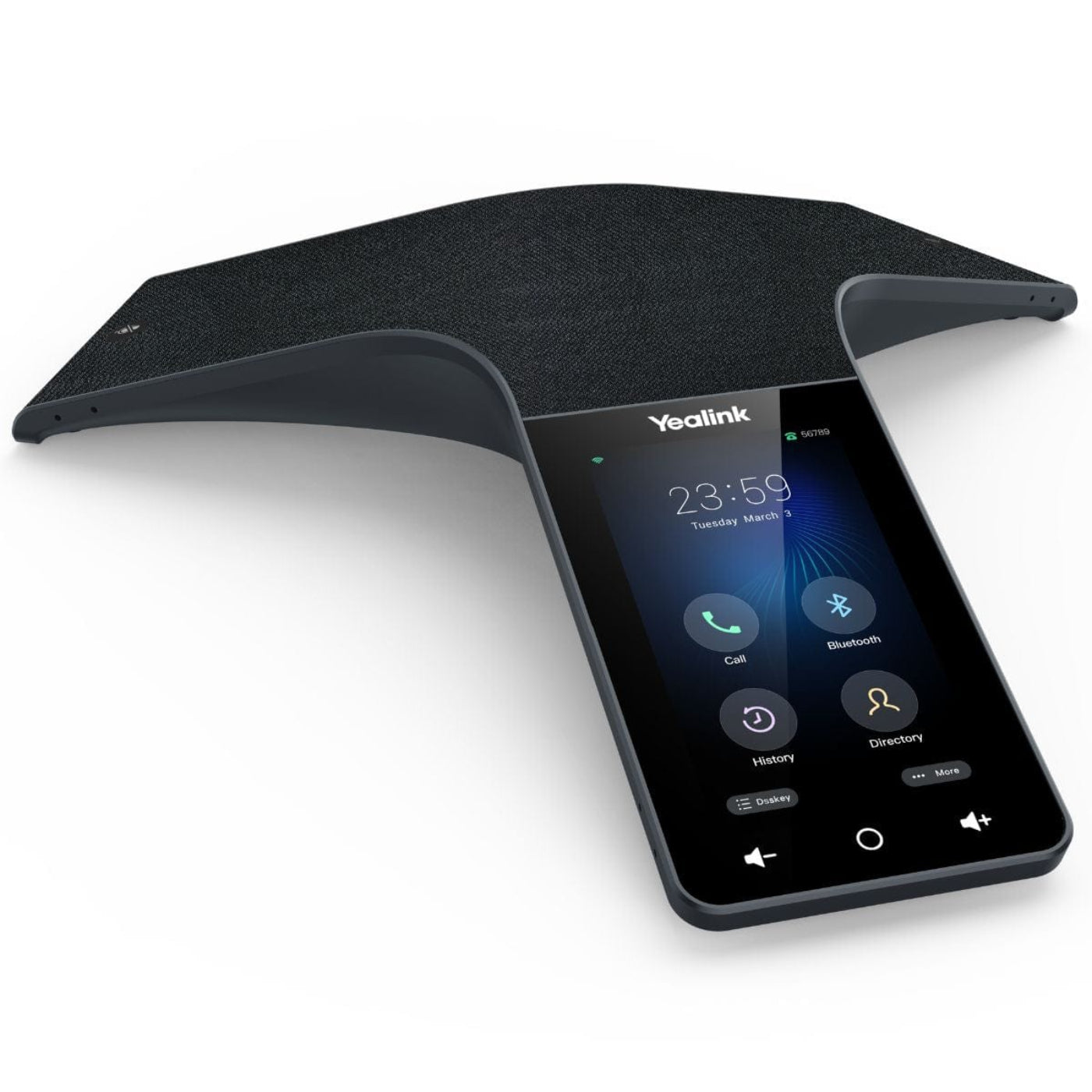

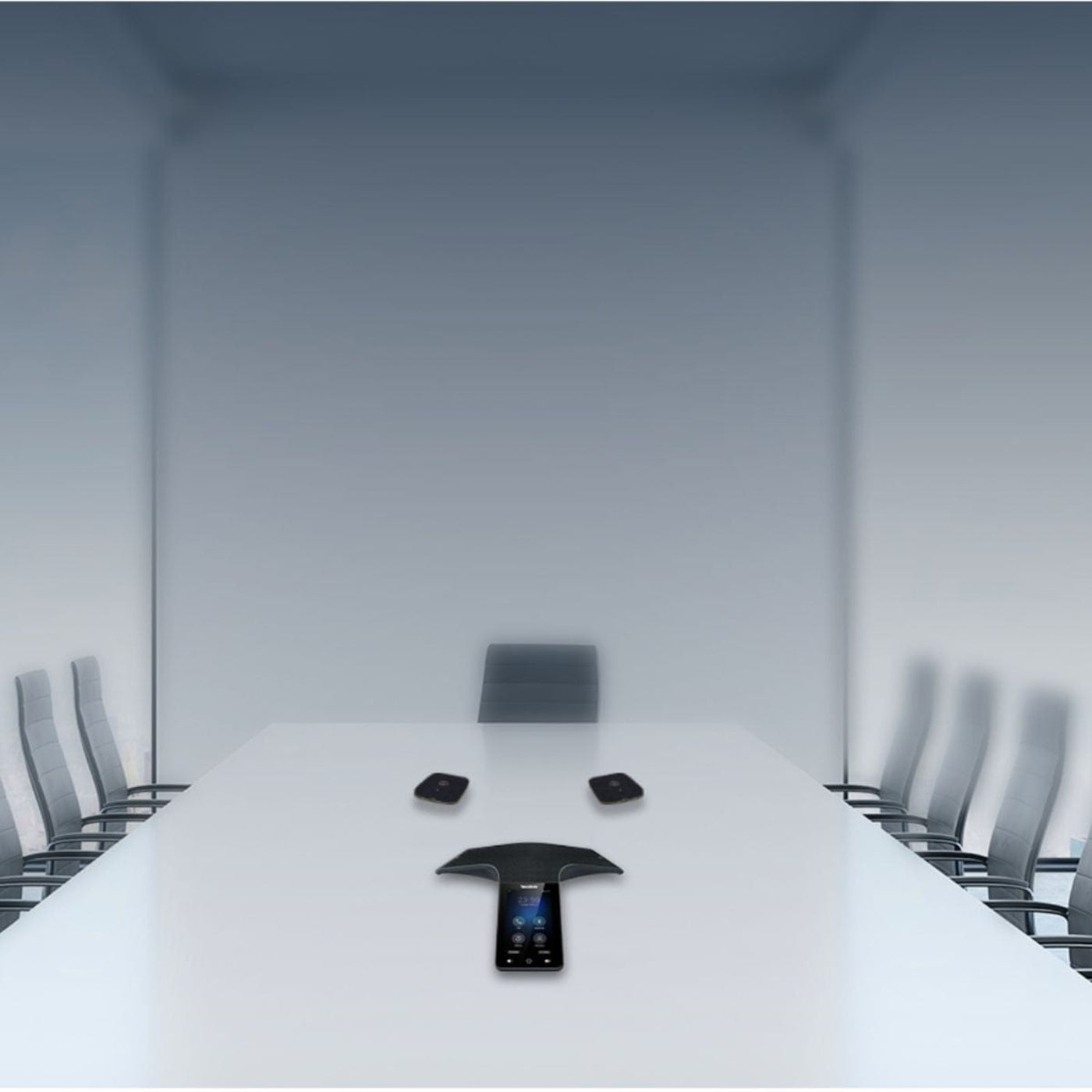

Yealink CP965 is designed for medium and large-sized conference rooms. Based on Android 9.0 system, it is a flagship HD conference phone with powerful voice conferencing features and easy control operation. CP965 adopts a business and introverted design that perfectly matches the calm style of the conference room, but also an acoustic fabric, which is impervious to any accidental liquid spills. Its fingerprint-proof LCD screen with a clear UI interaction page makes it easy for everyone to control the meeting. CP965 has 13 built-in microphones, providing you with a clear and natural conference call experience. In addition, you can also connect CP965 to your mobile device (such as PC device, smart phone, etc.) via Bluetooth or USB to achieve a variety of UC hybrid meeting modes. CP965 can be connected with 3 CPs in star shape to realize synchronous sound pickup and playback, providing users with an optimum audio experience. CP965 provides you with a new intelligent voice conferencing solution, which is the ideal office assistant for your conference room.

MODEST DESIGN, EASY-TO-USE USER INTERFACE

Yealink CP965 is a hermit in the conference room. Its black acoustics fabric can realize crystal-clear audio and is resistant to water, oil, and stain. Its ultra-thin body, appropriate desktop fit, and ingenious hidden wiring slot, perfectly fit for the simple business style in the conference rooms. Additionally, its built-in Android 9.0 system and easy-to-use UI interface, allow users to launch a meeting with one button and increase user adoption.

HD AUDIO, SMOOTH COMMUNICATION

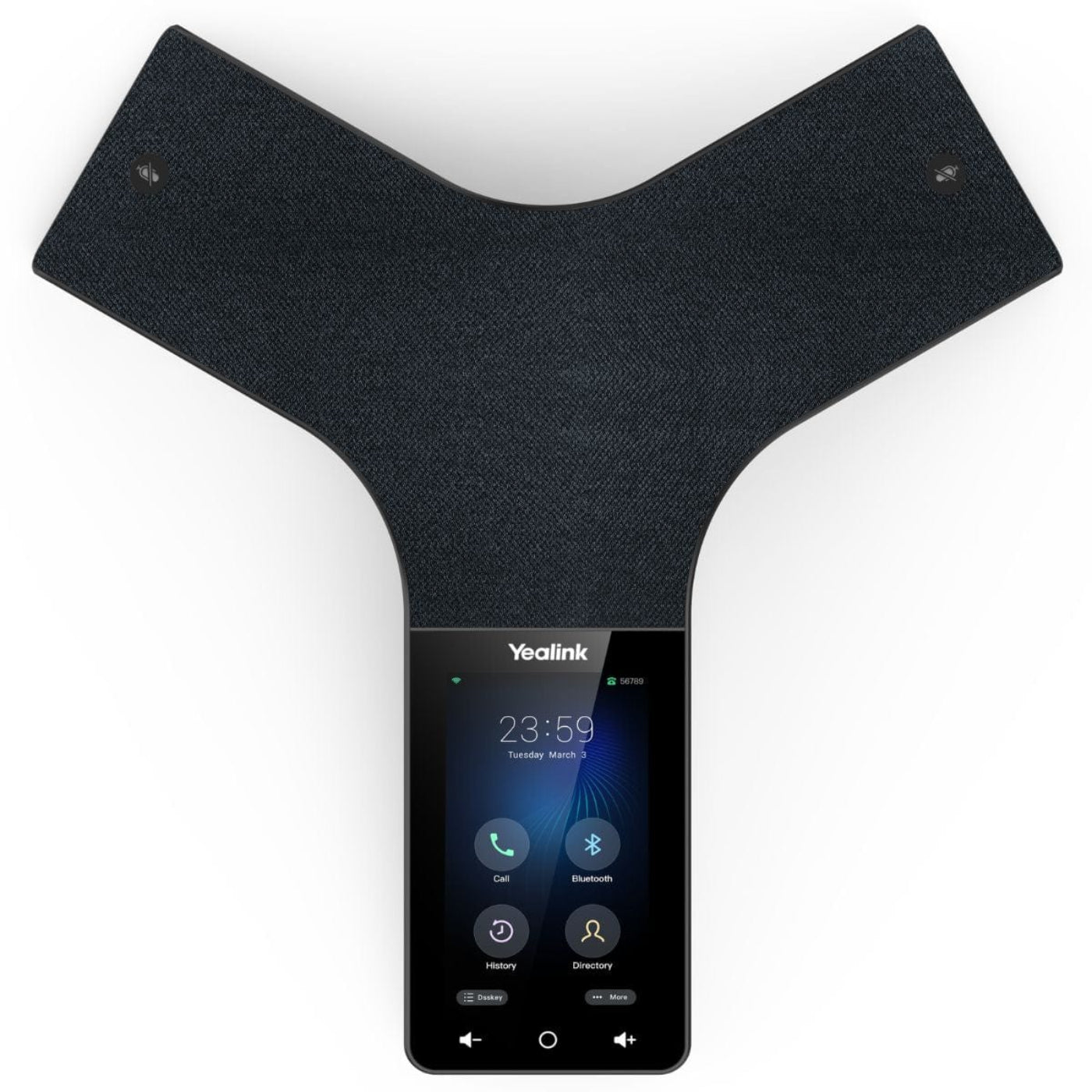

CP965 adopts Y-shaped design and has 12 built-in microphones for sound picking and 1 microphone for noise cancellation. Its 20-foot and 360° omni-direction voice pickup provides users with clear and natural voice conference experience.

RICH FEATURES AND HIGH EXPANDABILITY

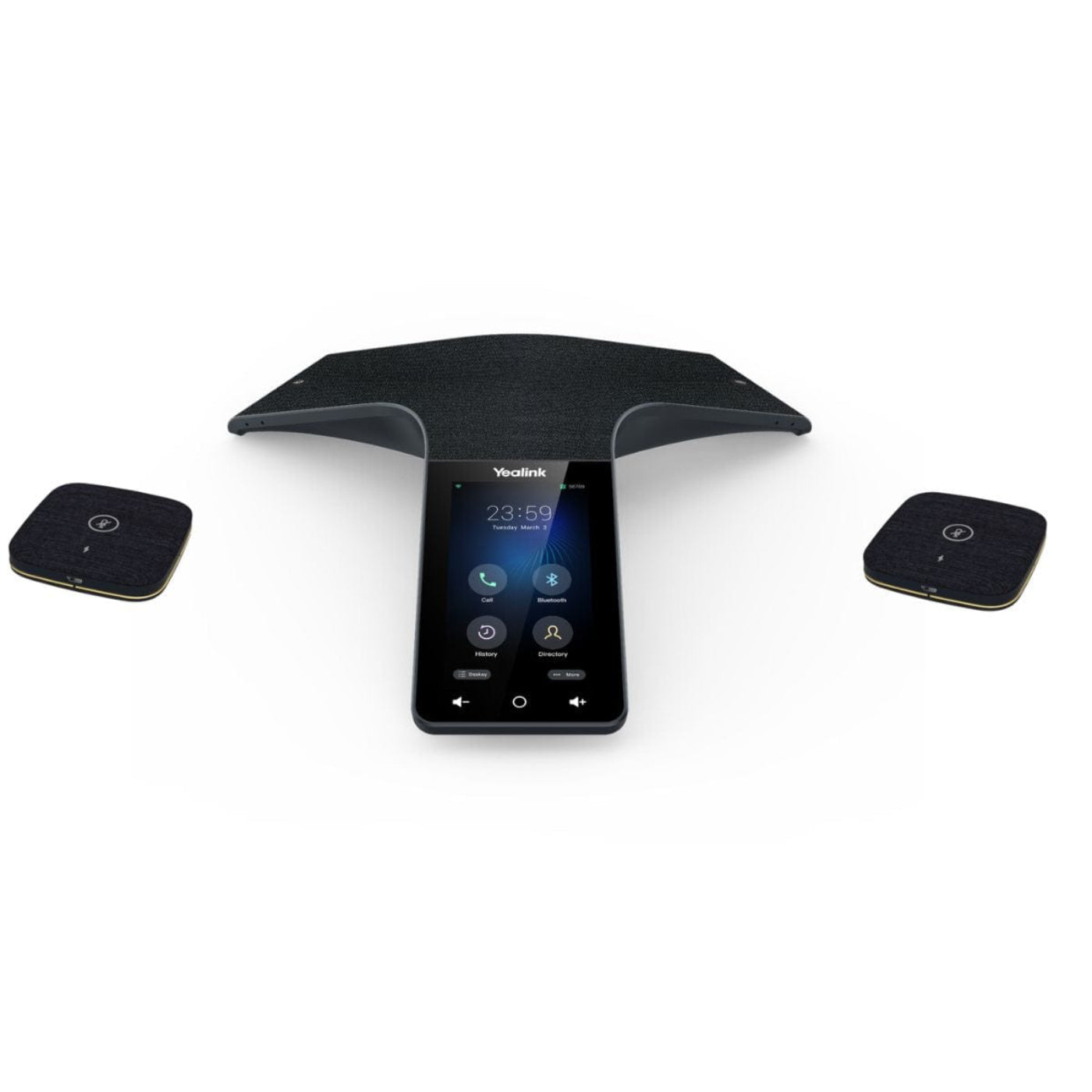

CP965 supports 10-way conference call, enabling participants from different locations to communicate smoothly, reducing costs for your company. You can connect the CP965 to your mobile devices (such as a computer, smartphone, etc.) using Bluetooth or Type C, or use the USB 2.0 port to connect the PSTN device CPN10, enabling Hybrid UC meetings that include PSTN, SIP, and mobile phone integration. Moreover, when working with the DECT wireless expansion microphone CPW65, a up to 30-meter connection distance with CP965 can be achieved while still keeping the conference room table clean.

Specifications

KEY FEATURES AND BENEFITS
- Red Dot[2021]
- Android 9.0
- 5-inch multi-touch screen with 720x1280 resolution
- Optimal HD audio, full duplex technology
- Yealink Noise Proof Technology
- 20-foot (6-meter) and 360-degree voice pickup
- Built-in 12-microphone array for voice pickup
- Built-in 1-microphone array for noise cancellation
- Power over Ethernet
- 10-way conference call
- Hybrid UC meeting
- Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)

AUDIO FEATURES
- Optimal HD audio
- Yealink Noise Proof Technology
- Smart Noise Filtering
- 13ft (4m) high-quality voice pickup range Maximum 20ft (6m) voice pickup range
- Apply to medium to large conference room
- Built-in 12-microphone array, 360-degree voice pickup
- Built-in 1-microphone array, decrease noise
- Loudspeaker
- Frequency: 100-20,000 Hz
- Volume: 94 dB at 0.5-m peak volume
- 56mm diameter and 5w speaker
- Full-duplex speakerphone with AEC
- Echo cancellation tail length is up to 320ms
- Background noise suppression
- Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, PCMU (G.711A), PCMA (G.711μ)
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- VAD, CNG, PLC, AJB, AGC

PHONE FEATURES
- 1 SIP account
- Call hold, mute, DND, call recording, hotline
- 10-way conference call
- Analog PSTN calls via CPN10
- Redial, call waiting, emergency call
- Call forward, call transfer, call return, dial plan
- Ring tone selection/import/delete
- Set date time manually or automatically
- Volume adjustment
- Pairing via Bluetooth
- Create meeting directly
- Join meeting seamlessly
- Active Speaker

STAR CONNECTION
- Up to four CP965: One Master CP, three Slave CP
- Wired network only
- Two expansion microphones for each CP965

DIRECTORY
- Local phonebook up to 1000 entries
- XML/LDAP remote phonebook
- Intelligent search method
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded

IP-PBX FEATURES
- Busy Lamp Field (BLF)
- Multicast paging
- Intercom
- Anonymous call
- Anonymous call rejection
- Voice mail
- Distinctive ringtone
- Call pickup

DISPLAY
- 5” 720x1280 capacitive touch screen
- Volume key
- Home button

INTERFACE
- 1 x RJ45 10/100M Ethernet port
- Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
- Built-in Bluetooth 4.2
- Power over Ethernet (IEEE 802.3at), class 4
- 1 x USB 2.0 Type-A device port
- 1 x USB 2.0 Type-C device port
- 1 x Security slot

NETWORK AND SECURITY
- SIP v1 (RFC2543), v2 (RFC3261)
- SIP server redundancy supported
- IPv4/IPv6
- NAT traversal: STUN mode
- Proxy mode and peer-to peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
- SRTP for voice encryption
- Transport Layer Security (TLS1.3)
- HTTPS certificate manager
- AES encryption for configuration file (AES256)
- Adb encryption authenticated
- Digest authentication using MD5/SHA1/SHA224/ SHA256/SHA384/SHA512
- OpenVPN, L2TP VPN
- WPA2/WPA3
- Secure boot
- GARP (Generic Attribute Registration Protocol)

MANAGEMENT
- Configuration: browser/phone/auto provision/Yealink Device Management Platform
- Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
- Auto-provision with PnP
- Zero-sp-touch, TR-069
- Reset to factory, reboot
- Package tracing export, system log

OTHER PHYSICAL FEATURES
- Color: Black
- External Yealink PoE adapter (Optional)
- Power consumption (PoE): 7.3W-20W
- Dimension (W*D*H): 328mm*322mm*62mm
- Operating humidity: 10~90%
- Operating temperature: -10 to +45°C (+14 to 113°F)
- Storage temperature: -30 to +70°C (-22 to +158°F)

PACKAGE FEATURES
- Package content:
- Yealink CP965 IP conference phone
- Ethernet Cable (7.5m CAT5E UTP cable)
- M2×5 screw
- Screwdriver
- Wireless Microphone CPW65 (Optional)
- Quick Start Guide
- Yealink PoE Adapter YLPOE30 (Optional)
- Qty/CTN: 5 PCS
- N.W/CTN: 7.964 kg
- G.W/CTN: 9.02 kg
- Giftbox size: 398mm*384mm*105mm
- Carton Meas: 552mm*392mm*410mm

What Our Experts Think

The Yealink CP965 is a premium HD conference phone designed to deliver powerful, crystal-clear audio in medium to large-sized meeting rooms. Here’s why it’s highly recommended:

• Superior Audio Performance – A 12-microphone array with noise-canceling technology ensures 360° voice pickup up to 20 feet, providing clear sound for every participant.
• Wireless Expansion – Supports Yealink CPW65 wireless expansion microphones, extending the voice pickup range by an additional 10 feet per microphone for larger spaces.
• User-Friendly Touchscreen – The 5-inch capacitive touch screen (720x1280) offers an intuitive interface for easy navigation and seamless meeting control.
• Hybrid UC Support – Allows Hybrid UC meetings with mobile device connectivity via Bluetooth or USB, enhancing collaboration flexibility.
• Durable Design – Features a robust black acoustics fabric resistant to water, oil, and stains for long-lasting performance in various environments.

Q&A

Q: What is the Yealink CP965 HD Conference Phone with Wireless Microphone?
A: The Yealink CP965 is a premium HD conference phone designed for medium to large conference rooms, offering 360-degree audio pickup with a 13-microphone array and the option to add wireless expansion microphones for extended coverage.

Q: How does the CP965 enhance audio quality during conferences?
A: The CP965 uses a 12-microphone array for 360-degree voice pickup within a 20-foot radius and features a 13th microphone for noise cancellation, ensuring clear, natural audio for all participants.

Q: Can the CP965 be expanded with additional microphones?
A: Yes, the CP965 supports wireless Yealink CPW65 expansion microphones, extending the voice pickup range by 10 feet (3 meters) for larger spaces or flexible microphone placement.

Q: What are the connectivity options for the CP965?
A: The CP965 offers Wi-Fi (2.4GHz/5GHz), Bluetooth 4.2, and USB 2.0 Type-A and Type-C ports for flexible, wired or wireless connections with mobile devices and computers.

Q: Is the CP965 suitable for large conference rooms?
A: Yes, it is ideal for medium to large conference rooms, with its 13 microphones and expandable wireless microphones ensuring full coverage of larger spaces.

Q: What is included with the Yealink CP965?
A: The Yealink CP965 package includes the conference phone, power adapter, and a quick start guide. The wireless expansion microphones are sold separately.

Maintenance Tips

• Regular Cleaning: Use a microfiber cloth to clean the device and wireless mic; avoid harsh chemicals.
• Battery Maintenance: Charge the wireless mic regularly and avoid overcharging.
• Firmware Updates: Ensure both the phone and mic have the latest software for optimal performance.
• Safe Storage: Store in a dry, dust-free place away from extreme temperatures.
• Mic Placement: Position the wireless mic away from obstructions for clear audio.
• Connection Stability: Ensure stable Wi-Fi or network connection for consistent call quality.
