YEALINK MEETING BAR A10 - A10-010

YEALINK MEETING BAR A10 - A10-010

Yealink MeetingBar A10, an all-in-one video collaboration bar for home office, huddle rooms, and small rooms. Featuring 4K camera and 120° lens, A10 delivers outstanding video quality. Together with the electric lens cap, its AI technologies including Auto Framing, Speaker Tracking, and so on, allow users to experience a smarter and safer video conference. With 8 MEMS microphone arrays and Yealink AI based noise proof technology, A10 brings excellent audio experience in small spaces even in full-duplex mode and ensures that everyone can be heard. Moreover, A10 combines computing unit, camera, microphones, speaker, adjustable TV Clamp, Wi-Fi, and Bluetooth, which provides you a solution of simple deployment. A10 is fully certified by Microsoft Teams and Zoom Rooms. A10 is capable of content sharing and whiteboard that makes the meeting more communicative and collaborative. Simple and flexible deployment but powerful features deliver excellent video collaboration performance.

TINY AND PORTABLE DESIGN FOR FAST START

Integrating the computing unit, camera, microphones, speaker, Bluetooth, Wi-Fi and its TV mount, the A10 measures just 380 mm x 55 mm x 55 mm, taking up less space and less clutter in your meeting spaces. Plugging in power and HDMI cable gets a video conference ready. In addition, the Yealink Device Management Platform ensures an easy management to you.

PRECISE SOUND LOCALIZATION, FULL-DUPLEX EXPERIENCE

8 MEMS microphone arrays make A10 have strong ability of noise proof and dereverberation. The new upgraded beamforming algorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full-duplex call and realizes more precise voice pickup.

 SMART VIDEO CONFERENCING WITH AI TECHNOLOGY

Featuring AI technology, including Auto Framing and Speaker Tracking, A10 not only supports framing the groups automatically according to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera, making the participants more focus on the conference.

ONE DEVICE FOR MULTI-PLATFORM

Based on Android 11 OS, A10 supports native Teams, Zoom, and Device Mode in one SKU. Cooperating A10 with Yealink Wireless Presentation Pod WPP30, users can start a meeting or presentation anywhere in the conference room with low latency. Also, you can experience a more collaborative meeting with the whiteboard feature of A10.

 REMOTE MANAGEMENT

The Meetingbar A10 supports multiple device management platforms, such as Yealink Https Web Portal, Yealink Device Management Platform, Yealink Management Cloud Service, Teams Admin Center, and Zoom Device Management. Using these platforms, the users can flawlessly manage, monitor, configure, update, and diagnose the devices remotely.

Specifications

CAMERA
- 4K Camera
- Resolution: 1080p30, 720p30
- 120° DFoV
- 105° HFoV
- 4x e-PTZ camera
- Electric privacy shutter
- Intelligence Features
- Auto Framing
- Speaker Tracking
- Smart Gallery (Zoom Only)

AUDIO
- Built-in 8 MEMS microphone array
- Built-in 5W high fidelity speaker
- Advanced AI Noise Cancellation Algorithm
- Excellent Full-duplex
- Incredible Echo cancellation Technology
- Speaker volume:88db SPL@1W, 93db SPL@3W both +/-2db at 0.5m
- Sensitivity : 88db SPL@1W,at 0.5m

OPERATING SYSTEM
- Android 11

MEETING FEATURES
- Calendar
- One-click join
- Meeting collaboration
- Content sharing
Meeting control:
- Add participates
- Hold/Resume
- Camera On/Off
- Mute/Unmute
- Volume Up/Down
- Hang up
- Teams Edition
- Microsoft TAC
- Proximity join
- Zoom Edition
- Zoom DM
- Direct sharing

VIDEO STANDARD AND NETWORK SUITABILITY
- Video codecs: H.264 High profile, H.264 SVC, H.264

NETWORK AND SECURITY FEATURES
- Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
- Built-in Bluetooth 4.2
- IPv4 and IPv6, DHCP/static IP
- HTTP/HTTPS web server
- TLS 1.2/1.3, AES 256-bit encryption
- QoS: 802.1p/q, Diff-serv
- VLAN, LLDP
- IEEE802.1X
- EAP-MD5/EAP-TLS
- PEAP-MSCHAPv2
- EAP-TTLS/EAP-MSCHAPv2
- Network diagnosis: Ping, Trace route
- Time and date synchronization using SNTP
- Built-in certificate

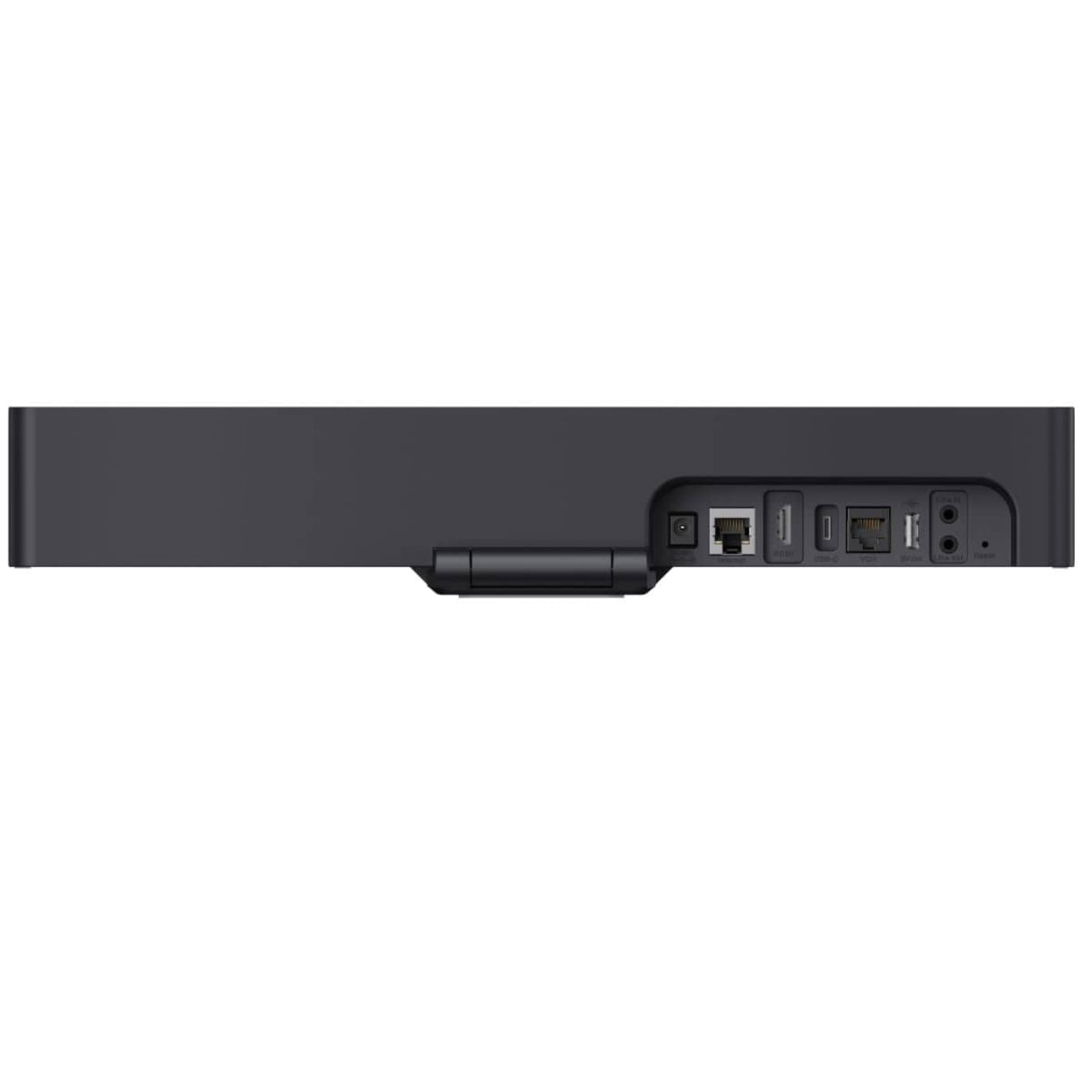

CONNECTIONS
- 1 x HDMI output (CEC supported)
- 1 x USB-A
- 1 x USB-C for content sharing
- 1 x 10 M/100 M/1000 M Ethernet port
- 1 x Yealink VCH port (RJ-45)
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot

OTHER PHYSICAL FEATURES
- Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
- USB Output: 5 V 0.5 A
- Power consumption (PSU): Idle < 10 W; Normal operating: 10.5 W; MAX: 14 W
- Dimension (W.D.H): 380 mm x 68 mm x 82 mm
- Operating humidity: 10-95%
- Operating temperature: 0-40°C
- Storage temperature: -30 to +70°C

MEETINGBAR A10 PACKAGE
- Package contents:
- MeetingBar A10 endpoint
- 3 m Ethernet cable
- 1.8 m HDMI cable
- Mounting Bracket and Accessories
- Power adapter
- Quick Start Guide
- Controller Device(optional):
- CTP18 Touch Console
- VCR11 Remote Control
- Sharing & BYOD Device(optional):
- WPP30 Wireless Presentation Pod
- VCH51 Adapter
- Carton Meas: 447 mm * 165 mm * 150 mm

DEVICE MANAGEMENT
- Yealink Https Web Portal
- Yealink Device Management Platform
- Yealink Management Cloud Service
- Teams Admin Center
- Zoom Device Management

What Our Experts Think

The Yealink Meeting Bar A10 (A10-010) is a compact yet powerful video conferencing solution designed for small rooms and huddle spaces. Here’s why it stands out:

• All-in-One Design – Integrated 4K camera, AI-powered audio, and built-in Android for seamless meetings.
• Smart AI Features – Auto-framing, speaker tracking, and noise suppression enhance clarity.
• Plug & Play Simplicity – No PC required; works with Microsoft Teams, Zoom, and more.
• Compact & Sleek – Ideal for small spaces without cluttering the setup.
• Secure & Manageable – Enterprise-grade security and remote management capabilities.

Q&A

Q: What is the Yealink Meeting Bar A10?
A: The Yealink Meeting Bar A10 is an all-in-one video conferencing bar designed for small meeting spaces, featuring AI-powered camera tracking, noise cancellation, and seamless integration with Microsoft Teams and Zoom.

Q: Is the Meeting Bar A10 compatible with Microsoft Teams and Zoom?
A: Yes, it offers native support for both platforms, ensuring a seamless meeting experience without needing a PC.

Q: Does it support wireless screen sharing?
A: Yes, it supports wireless content sharing via Miracast, AirPlay, and Yealink's WPP30 device.

Q: What makes the A10 ideal for small meeting spaces?
A: Its compact size, wide-angle AI camera, and built-in audio make it perfect for huddle rooms and small offices, delivering high-quality video and sound without extra hardware.

Maintenance Tips

• Firmware Updates – Regularly update firmware via Yealink’s official site to ensure optimal performance and security.
• Dust & Cleaning – Wipe with a soft, dry cloth; avoid harsh chemicals to prevent damage.
• Proper Ventilation – Ensure adequate airflow to prevent overheating and extend device lifespan.
• Cable Management – Secure connections and check for wear to avoid connectivity issues.
• Network & Audio Checks – Regularly test Wi-Fi, Bluetooth, and microphones for clear communication.
• Storage & Handling – Keep in a stable, dry environment away from direct sunlight and extreme temperatures.
