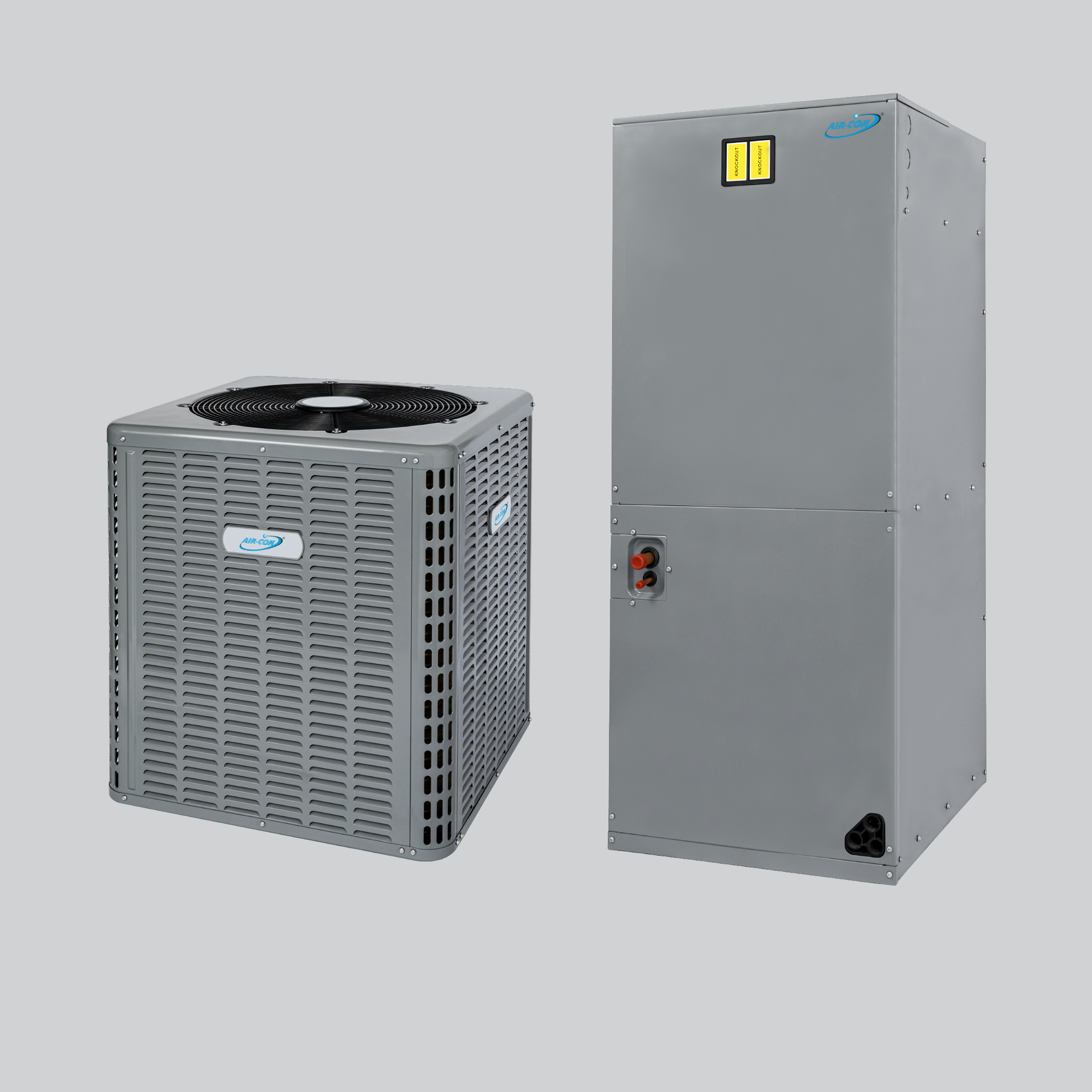

Air-Con 1.5 - 5 Ton 14.3 SEER2 Air-Con Saturn Series COOLING ONLY Air Conditioner System Multi Positional - ATSEM4H4T18/ATSCV4C4T18
Heat and Cool - Air-Con Saturn Series 18000 BTU model comes equipped with heating and cooling capabilities.
Specifications
Model
|
ATSEM4H4T18/
ATSCV4C4T18 |
ATSEM4H4T24/
ATSCV4C4T24 |
ATSEM4H4T30/
ATSCV4C4T30 |
ATSEM4H4T36/
ATSCV4C4T36 |
| Ton |
1.5 |
2 |
2.5 |
3 |
| Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
208/230V - 60Hz - 1 phase |
208/230V - 60Hz - 1 phase |
208/230V - 60Hz - 1 phase |
| Cooling Capacity |
17500
|
22000 |
28000 |
33000 |
| Amperage |
11.50 |
15.00 |
17.00 |
23.00 |
| SEER2 |
14.3 |
14.3 |
14.3 |
14.3 |

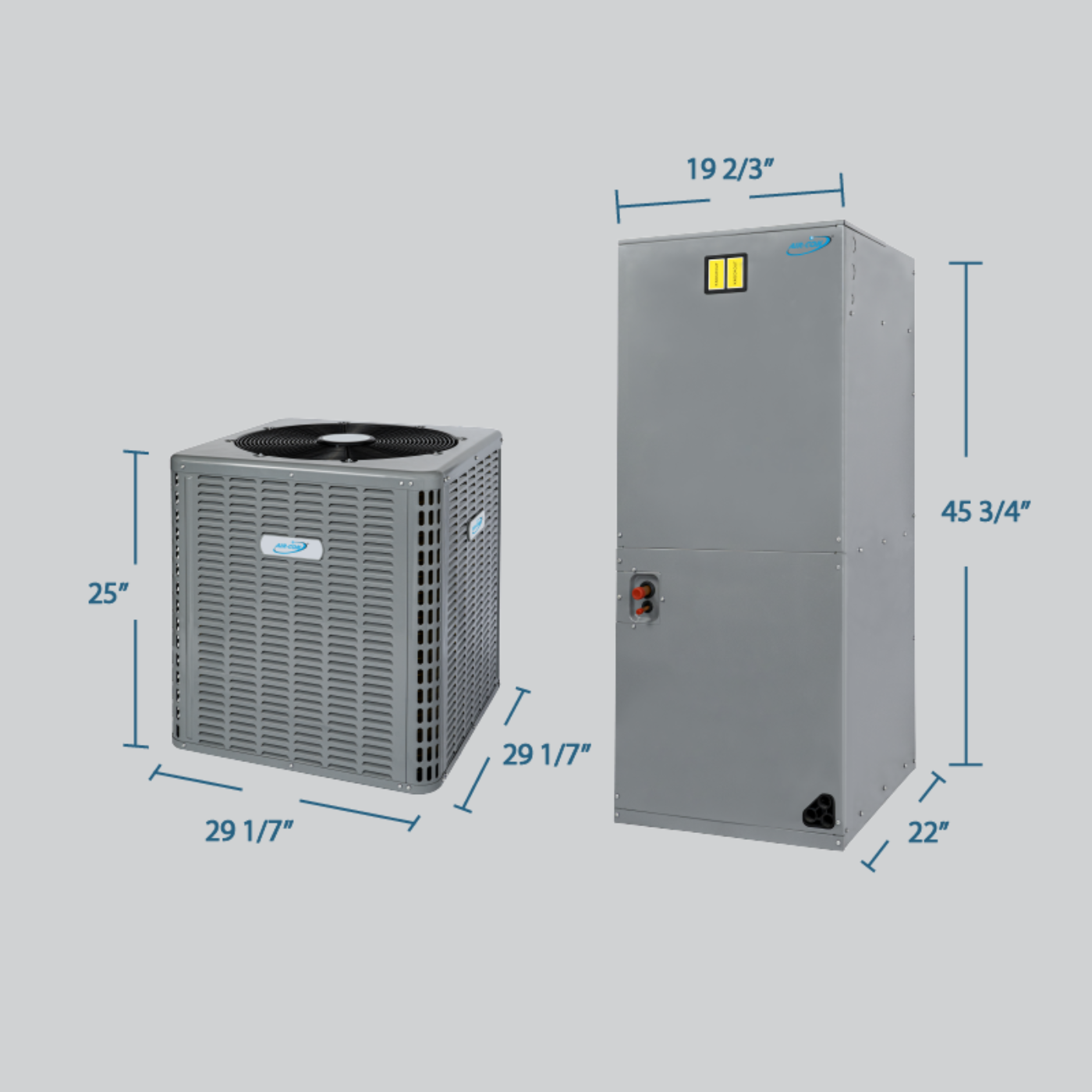

| Indoor Unit Dimensions |
19-2/3"×45-3/4"×22" |
19-2/3"×45-3/4"×22" |
19-2/3"×45-3/4"×22" |
19-2/3"×45-3/4"×22" |
| Outdoor Unit Dimensions |
23-3/5"×25"×23-3/5" |
23-3/5"×25"×23-3/5" |
23-3/5"×25"×23-3/5" |
29-1/7"×25"×29-1/7" |
| Lineset Size |
3/8" & 3/4" |
3/8" & 3/4" |
3/8" & 3/4" |
3/8" & 3/4" |
| AHRI # |
211597878 |
211597879 |
211597880 |
211597881 |
Model
|
ATSEM4H4T42/
ATSCV4C4T42 |
ATSEM4H4T48/
ATSCV4C4T48 |
ATSEM4H4T60/
ATSCV4C4T60 |
|
| Ton |
3.5 |
4 |
5 |
| Voltage/ Frequency/ Phase |
208/230V - 60Hz - 1 phase |
208/230V - 60Hz - 1 phase |
208/230V - 60Hz - 1 phase |
| Cooling Capacity |
40000 |
45000 |
56000 |
| Heating Capacity |
44000 |
44000 |
53000 |
| Amperage |
28.00 |
29.50 |
37.00 |
| SEER2 |
14.3 |
14.3 |
14.3 |
| Indoor Unit Dimensions |
19-2/3"×45-3/4"×22" |
22"×53-1/8"×24" |
22"×53-1/8"×24" |
| Outdoor Unit Dimensions |
29-1/7"×32-7/8"×29-1/7" |
29-1/7"×32-7/8"×29-1/7" |
29-1/7"×32-7/8"×29-1/7" |
| Lineset Size |
3/8" & 3/4" |
3/8" & 3/4" |
3/8" & 3/4" |
| AHRI # |
211597882 |
211597883 |
211597884 |
Â
What Our Experts Think
-
High Cooling Capacity: Delivers up to 55,500 BTU/h, suitable for medium to large spaces.
-
Energy-Efficient: Achieves a SEER2 rating of 14.3, ensuring cost-effective operation.
-
Durable & Reliable: Features LG compressors and hydrophilic aluminum fins for long-lasting performance.
-
Quiet Operation: Equipped with ECM motors and efficient airflow design to minimize noise.
-
Easy Installation: Multi-positional setup compatible with standard thermostats for flexible installation.
Q&A
Q: What is the Air-Con Saturn Series Cooling-Only Air Conditioner used for?
A: Designed to provide efficient cooling for residential and light commercial spaces, offering capacities ranging from 1.5 to 5 tons.
Q: What features are included in the Air-Con Saturn Series Cooling-Only Air Conditioner?
A: Includes high-efficiency LG compressors, ECM fan motors, hydrophilic aluminum fins, and compatibility with standard thermostats.
Q: Is the Air-Con Saturn Series Cooling-Only Air Conditioner energy-efficient?
A: Yes, with a SEER2 rating of 14.3, it offers energy-efficient cooling performance.
Q: How does the Air-Con Saturn Series Cooling-Only Air Conditioner compare to other air conditioners?
A: Combines high cooling capacity, energy efficiency, and flexible installation options, making it a competitive choice in its category.
Maintenance Tips
-
Clean Air Filters: Inspect and clean or replace air filters regularly to maintain airflow and efficiency.
-
Inspect Coils: Clean evaporator and condenser coils to prevent dirt buildup and ensure optimal performance.
-
Check Refrigerant Levels: Ensure proper refrigerant levels; low levels can indicate leaks and affect cooling efficiency.
-
Clear Condensate Drain: Regularly inspect and clean the condensate drain to prevent water buildup or overflow.
-
Annual Maintenance: Schedule professional inspections annually to check system components and ensure optimal operation.
