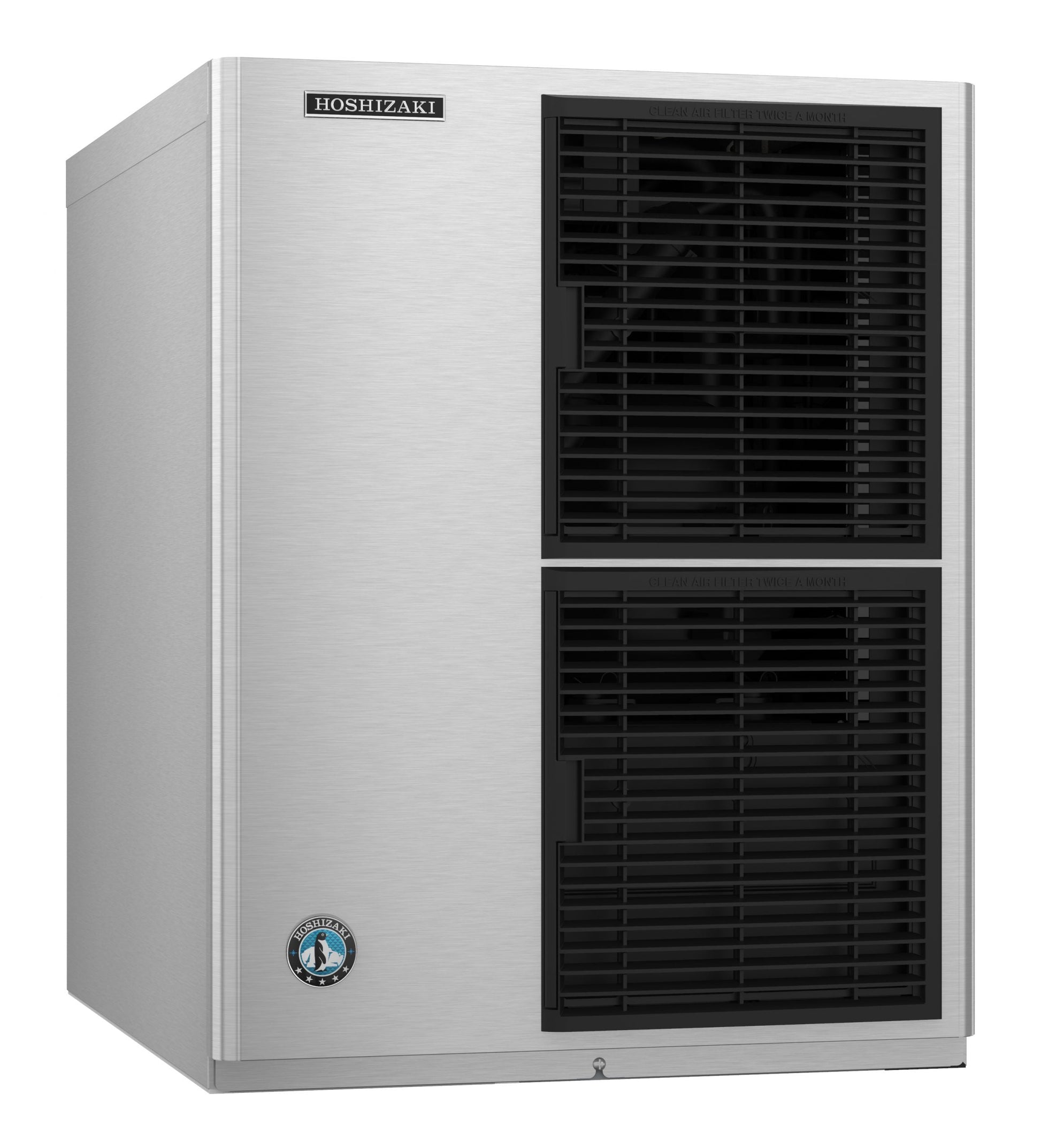

Hoshizaki | 22" Wide Air-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-520MAJ-E

Hoshizaki | 22" Wide Air-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) -  KM-520MAJ-E

The KM-520MAJ-E is capable of producing approximately 238 kg of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-520MAJ-E has a 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. Replaces KM-515MAH-E.

Features

• Dimensions: 559 mm W x 695 mm D x 711 mm H
• Up to 238 kg of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior

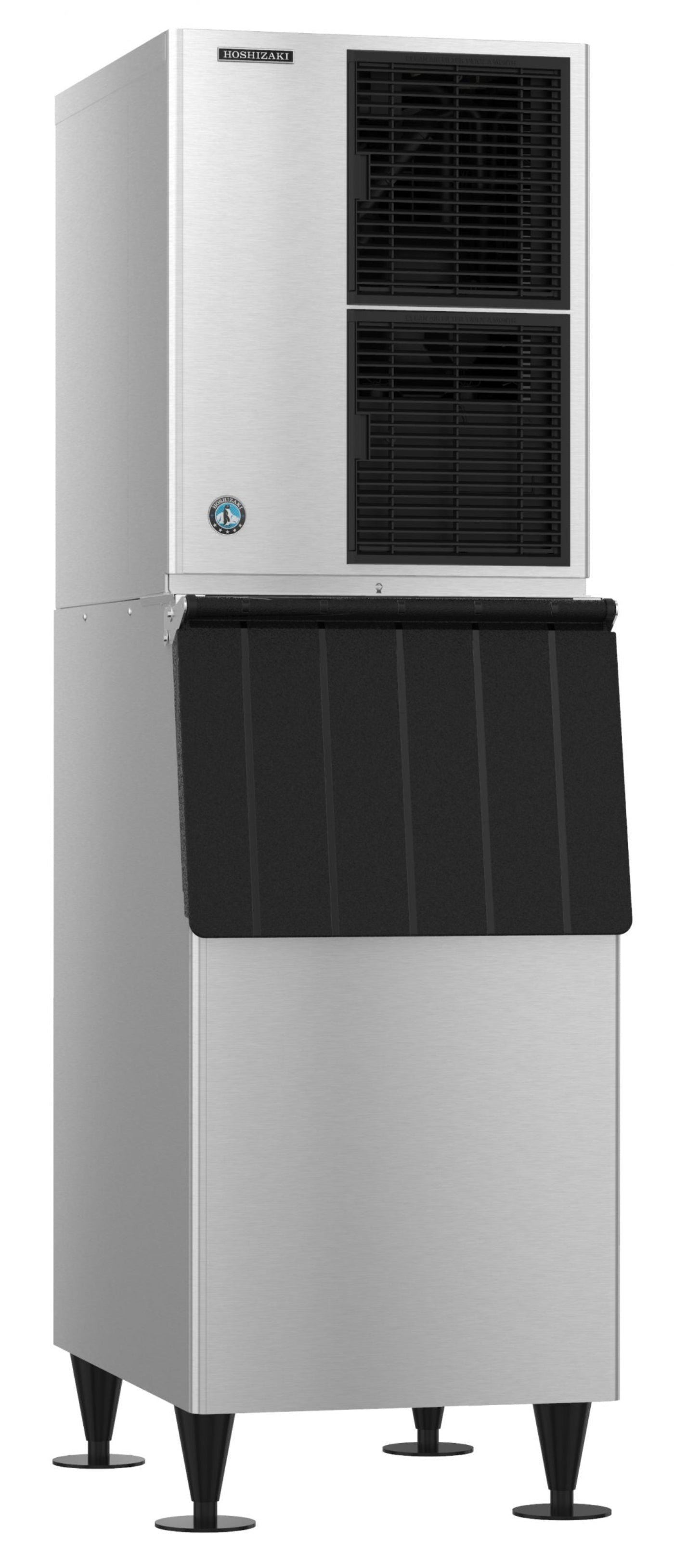

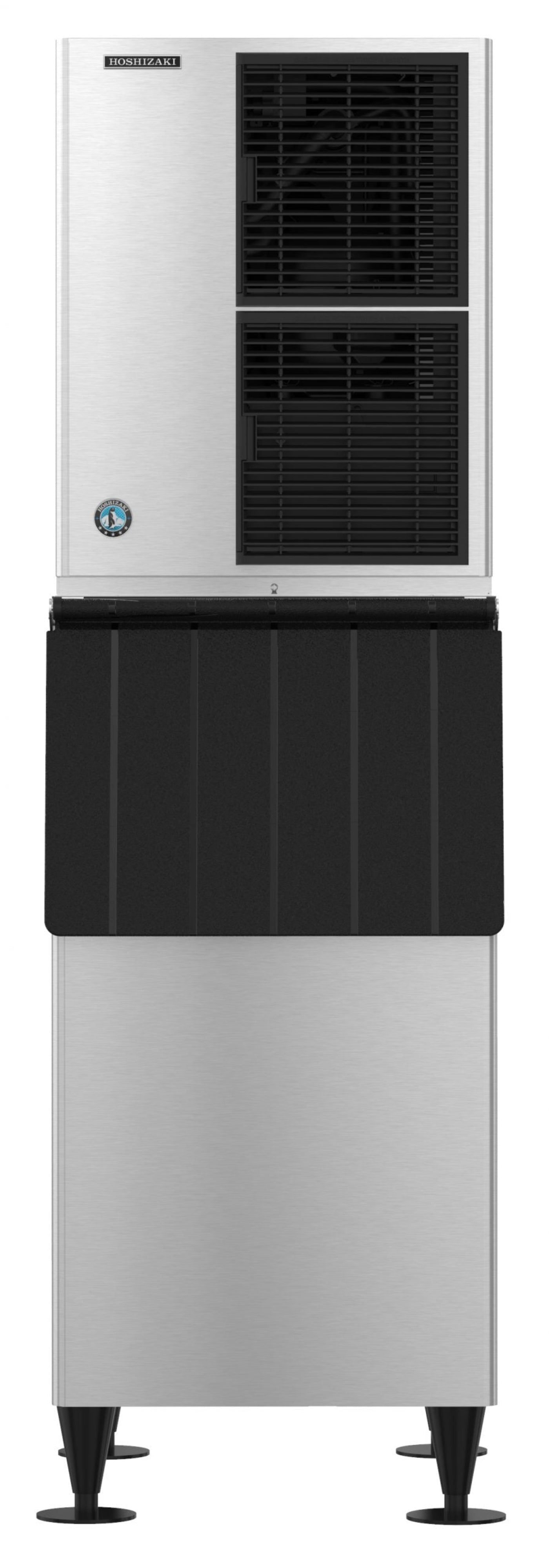

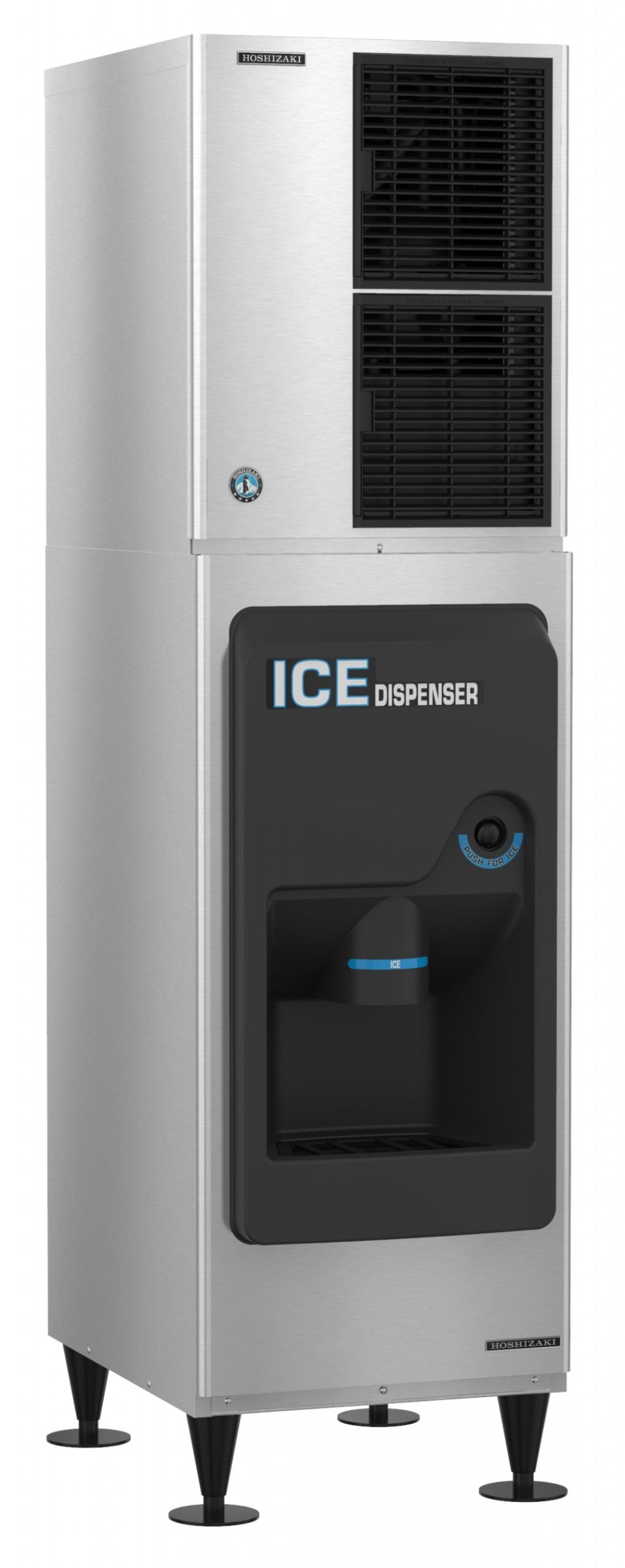

• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
• EverCheck alert system
• CycleSaver design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (500 g)
• Heat Rejection:7300 BTU/hr
• Ambient temperature range: 7 – 38°C
• Water temperature range: 7 – 32°C
• Water pressure: 0.7 – 8 kg/cm2
• Voltage range: 198 – 254V
• 8.4 amps (15 Amp Max fuse)
• 6.52 kwh/100 lbs.@ 90/70
• 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
• Clean ice and easy maintenance lead to longer unit life span
• Warranty: Contact factory for warranty information.
• “-E”: 50Hz Electrical Model

 Specifications

What Our Experts Think

• Space-Saving Design: 22-inch wide unit perfect for locations with limited space but high ice demand.
• Air-Cooled System: Efficient and eco-friendly air-cooled technology for optimal performance and minimal energy use.
• Crescent Ice Production: Produces clear, crescent-shaped ice cubes that are durable, slow-melting, and ideal for a variety of beverages.
• Heavy-Duty Performance: Built for continuous, reliable ice production, suitable for restaurants, bars, and small commercial operations.
• Bin Sold Separately: Customize your storage setup by purchasing the appropriate bin based on your ice needs.

Q&A

Q: What is the Hoshizaki KM-520MAJ-E?
A: The Hoshizaki KM-520MAJ-E is a 22-inch wide air-cooled crescent cuber ice maker designed for high-performance ice production in commercial settings. (Bin sold separately.)

Q: What type of ice does the Hoshizaki KM-520MAJ-E produce?
A: It produces crescent-shaped ice, which is ideal for cooling beverages, providing reliable, consistent ice output.

Q: Is the ice maker air-cooled?
A: Yes, the KM-520MAJ-E uses an air-cooled system, offering energy-efficient performance without the need for water cooling.

Q: Does the Hoshizaki KM-520MAJ-E come with a bin?
A: No, the bin is sold separately, allowing you to select the appropriate storage solution for your needs.

Q: How much ice does the Hoshizaki KM-520MAJ-E produce?
A: The KM-520MAJ-E can produce up to 510 pounds of crescent ice per day, making it suitable for medium to high-demand commercial environments.

Maintenance Tips

• Regular Cleaning: Wipe down the exterior and interior with a damp cloth and mild detergent to remove dust and debris.
• Descale the Machine: Perform regular descaling to remove mineral buildup and ensure the ice maker operates efficiently.
• Check Air Filter: Clean or replace the air filter regularly to ensure proper airflow and avoid overheating.
• Inspect Water Supply: Ensure the water supply is clear and securely connected to prevent leaks and blockages.
• Empty the Bin: Regularly empty the ice bin to maintain ice quality and avoid odor buildup.
