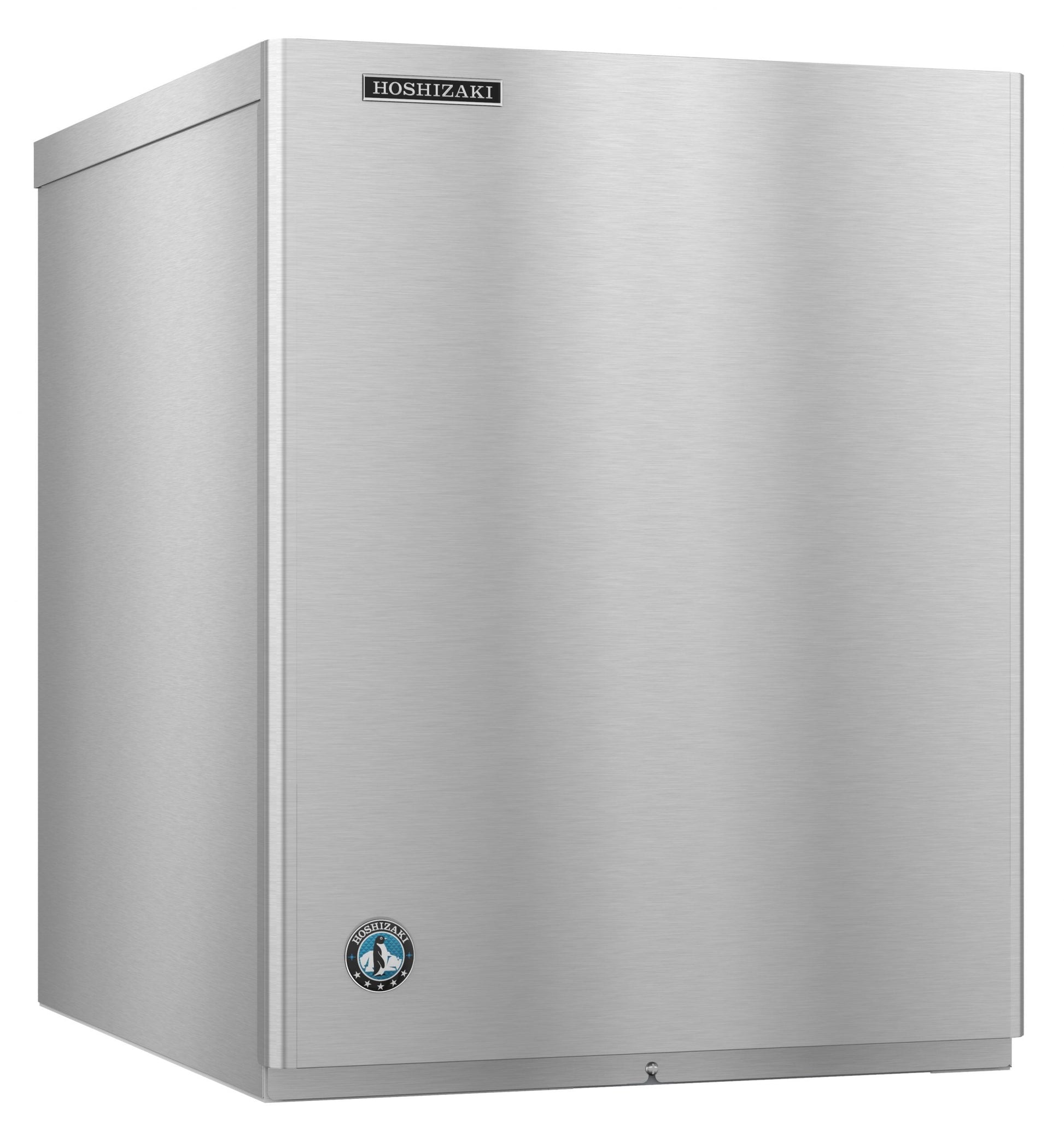

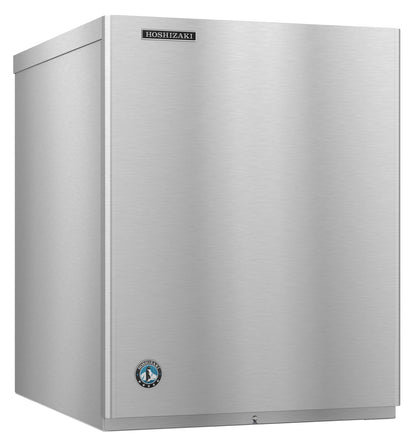

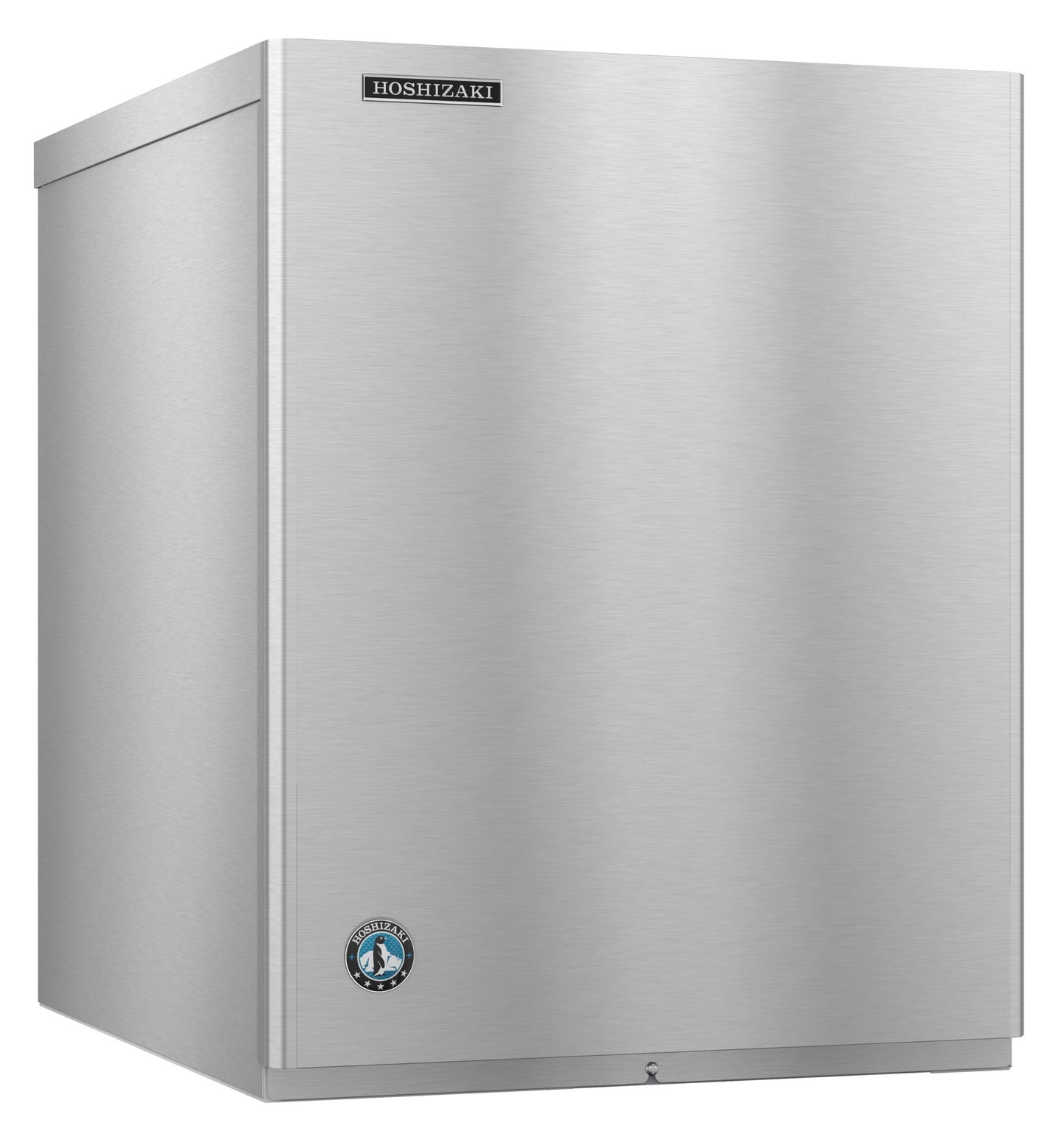

Hoshizaki| 22" Wide Water-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-520MWJ
The KM-520MWJ is capable of producing approximately 474 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Slim Line Modular icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-520MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. Replaces KM-515MWJ.
Features
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 474 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

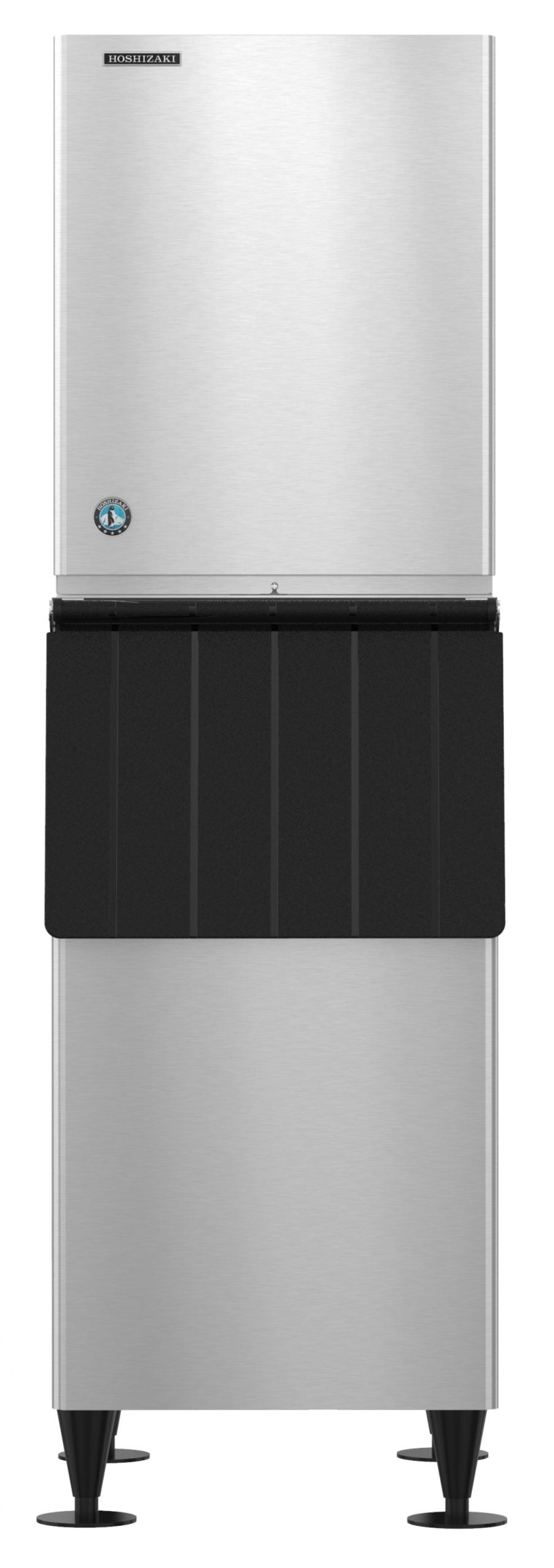

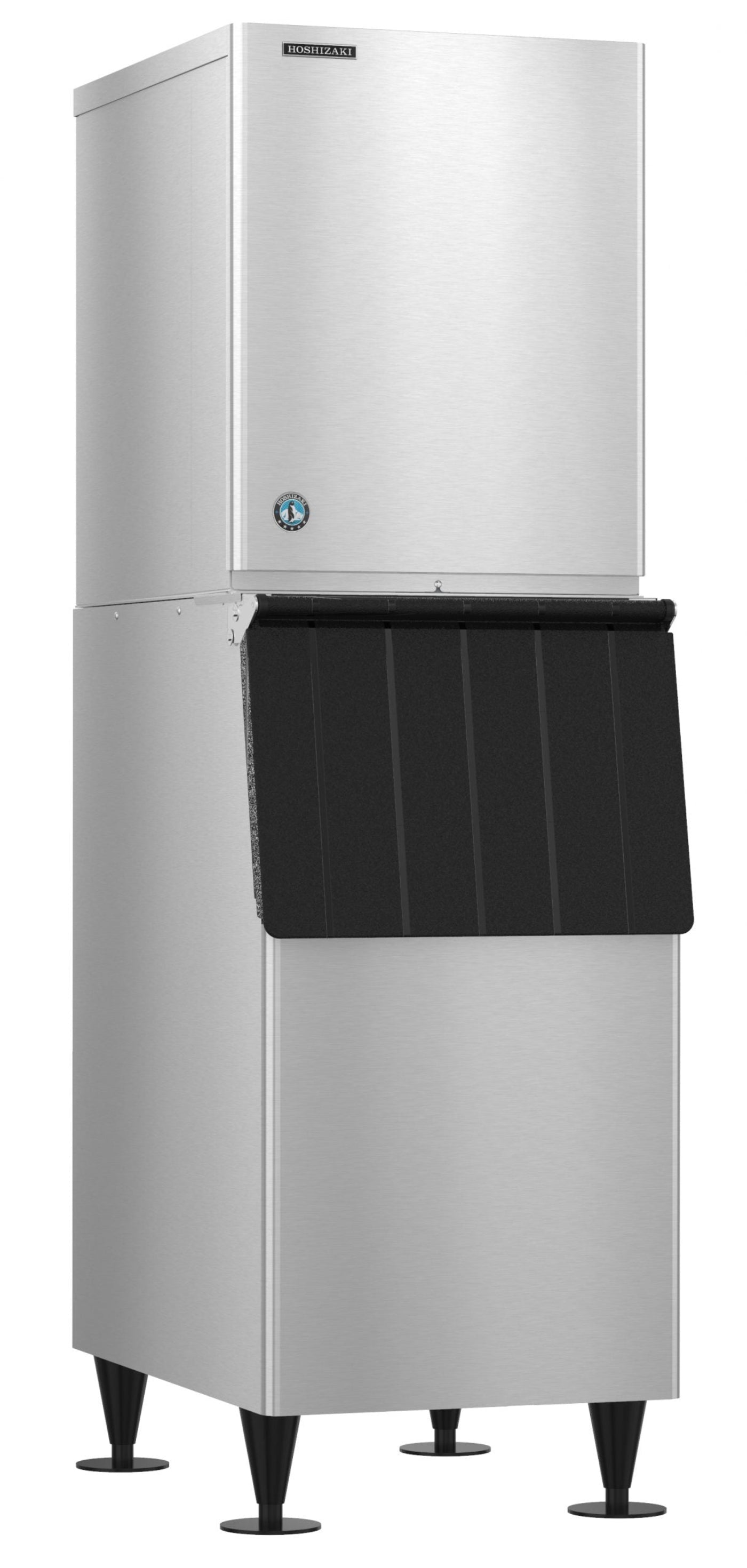

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck alert system
- CycleSaver design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (12.7 oz. / 360 g)
- Heat Rejection:8100 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 8.45 amps (20 Amp Max fuse)
- 4.65 kwh/100 lbs. 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-520MWJ |
| Weight |
175 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
28" |
| Compatible With |
ice bin or dispenser |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
474 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
The Hoshizaki KM-520MWJ Water-Cooled Crescent Cuber Ice Maker is a powerful and efficient choice for businesses that require high ice production with minimal noise and heat output.
-
High Production Capacity: Produces up to 556 lbs of ice per day, perfect for bars, restaurants, and hotels.
-
Water-Cooled System: Ideal for locations with high ambient temperatures, ensuring consistent ice production.
-
Crescent Cube Design: Unique, slow-melting shape prevents ice clumping and maximizes cooling efficiency.
-
Durable Stainless Steel Exterior: Built to withstand heavy commercial use.
-
Bin Sold Separately: Customize storage capacity based on business needs.
Q&A
Q: What is the Hoshizaki KM-520MWJ Ice Maker?
A: The KM-520MWJ is a 22" wide, water-cooled commercial ice maker that produces high-quality crescent-shaped ice cubes.
Q: How much ice can it produce?
A: It delivers up to 556 lbs of ice per day, making it ideal for medium-to-high-demand environments.
Q: Does it include an ice storage bin?
A: No, the storage bin is sold separately, allowing for customized ice storage solutions.
Q: What type of ice does it make?
A: It produces Hoshizaki’s signature crescent-shaped ice, which is harder, melts slower, and enhances beverage cooling efficiency.
Q: What are the benefits of a water-cooled system?
A: Water-cooled units operate efficiently in hot environments, maintain consistent ice production, and reduce heat output compared to air-cooled models.
Q: Is it energy-efficient?
A: Yes! Hoshizaki’s CycleSaver design ensures maximum ice production with minimal energy consumption.
Q: What businesses is this ice maker ideal for?
A: Perfect for restaurants, bars, hotels, and healthcare facilities that require a reliable, high-volume ice supply.
Q: What maintenance is required?
A: Regular cleaning and water filter use are recommended to maintain peak performance and ice purity.
Maintenance Tips
-
Clean & Sanitize Regularly – Wipe exterior, clean internal components, and sanitize ice-making surfaces.
-
Descale Water System – Remove mineral buildup from water lines and evaporator for efficiency.
-
Inspect Water & Drain Lines – Ensure proper flow and check for leaks or clogs.
-
Check Condenser Function – Keep the water-cooled condenser free of debris and ensure proper water flow.
-
Monitor Electrical & Mechanical Parts – Regularly inspect pumps, valves, and connections for reliable operation.
