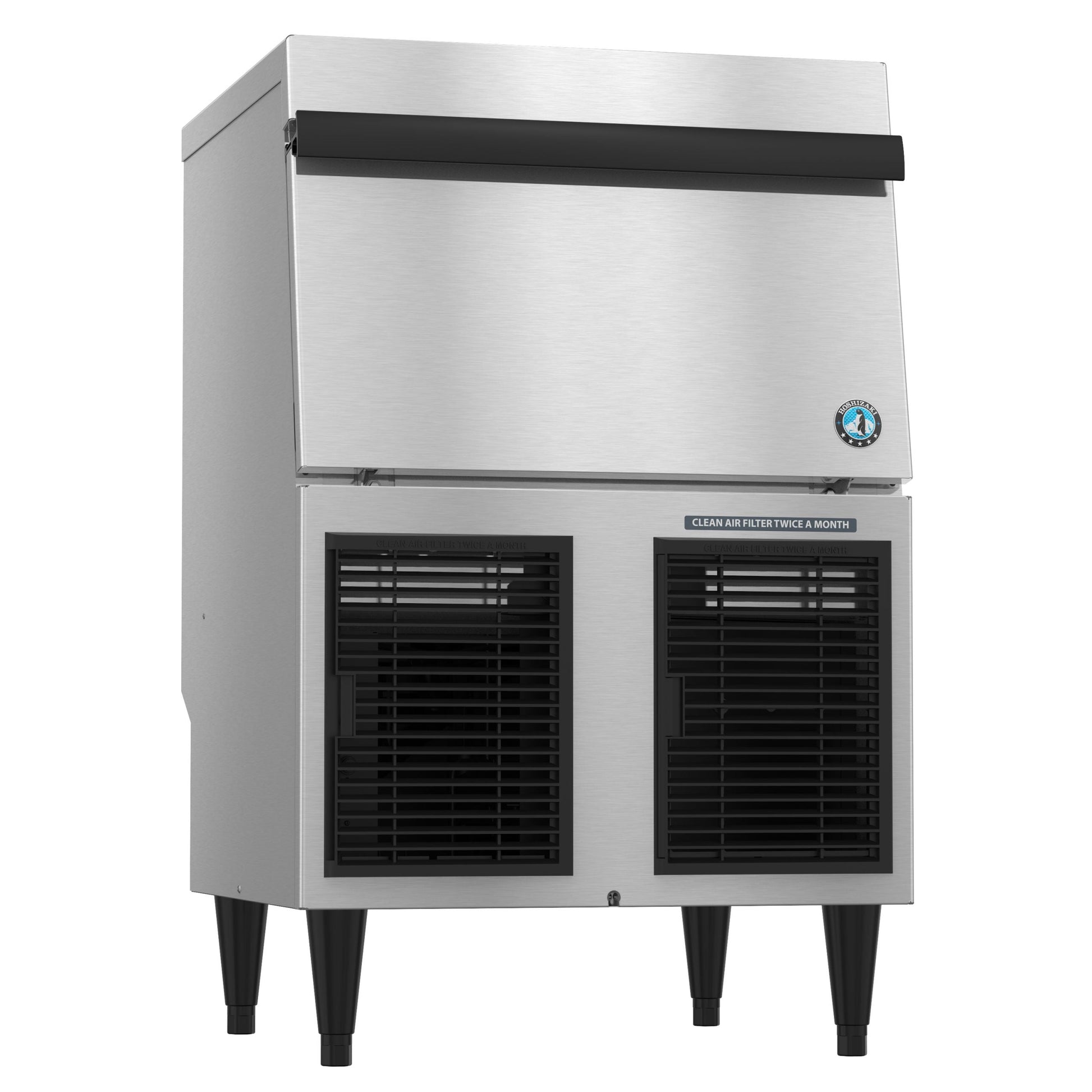

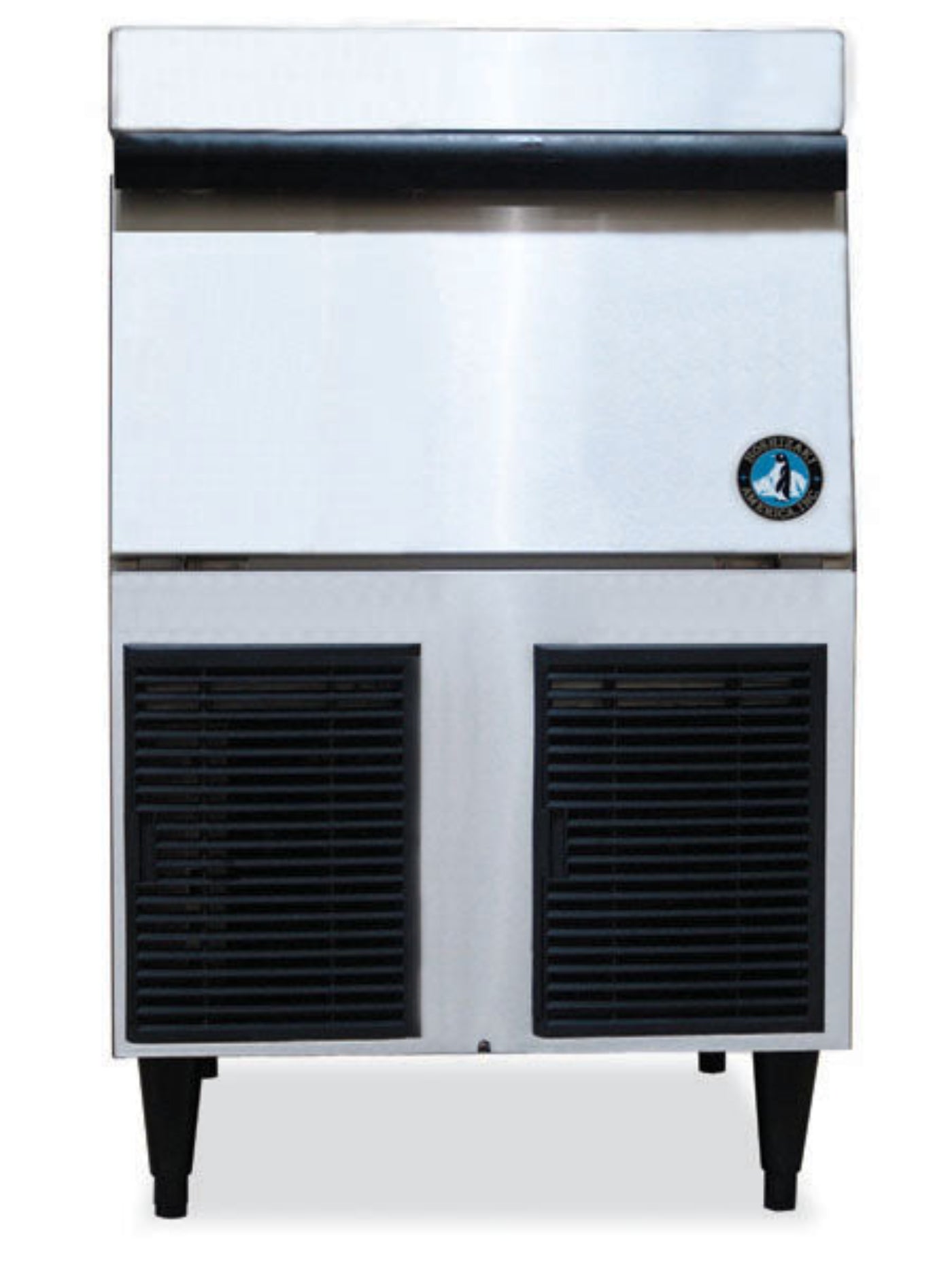

Hoshizaki F-330BAJ | 24" Wide Air-Cooled Undercounter Flaker Ice Maker w/ Built-In Storage Bin - F-330BAJ

Hoshizaki F-330BAJ | 24" Wide Air-Cooled Undercounter Flaker Ice Maker w/ Built-In Storage Bin - F-330BAJ

The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 24″ W x 26″ D x 39″ H
• Up to 332 lbs of ice produced per 24 hours
• Up to 80 lbs of built-in storage capacity (2.7ft3)
• Produces flaked ice
• Durable stainless steel exterior
• Front in, front out airflow
• 2 second rinse every hour to remove sediment
• Advanced CleanCycle24™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (7.1 oz. / 200 g)
• Heat Rejection:3400 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 6.9 amps (15 Amp Max fuse)
• 5.91 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span


Specifications

What our Experts Think

• Compact Undercounter Design – 24" wide to fit seamlessly into tight spaces.

• Flake Ice Production – Produces up to 332 lbs daily, perfect for beverages and food displays.

• Built-In Storage Bin – Holds up to 80 lbs of ice for quick access.

• Air-Cooled Efficiency – Reduces water usage while maintaining reliable performance.

• Durable Stainless Steel Build – Corrosion-resistant and easy to clean.

Q&A

Q: What type of ice does the Hoshizaki F-330BAJ produce?
A: This unit produces soft, chewable flake ice, ideal for beverages, seafood displays, healthcare applications, and food preservation.

Q: What are the dimensions and storage capacity?
A: The ice maker is 24 inches wide, making it compact enough for undercounter installation while providing a built-in storage bin with a capacity of approximately 80 lbs of ice.

Q: What is the ice production rate?
A: The F-330BAJ can produce up to 332 lbs of flake ice per day under optimal conditions, ensuring a steady ice supply for commercial needs.

Q: What kind of cooling system does it use?
A: It features an air-cooled, self-contained refrigeration system, which eliminates the need for additional water connections, making it easier to install and maintain.

Q: Is it energy-efficient?
A: Yes, it is ENERGY STAR® certified, meaning it is designed for low power and water consumption, making it cost-effective and environmentally friendly.

Q: What material is the ice maker built from?
A: The exterior is made of durable stainless steel, providing longevity, corrosion resistance, and easy cleaning.

Q: Where is this ice maker best suited for use?
A: It's perfect for restaurants, bars, seafood markets, healthcare facilities, and supermarkets that require high-quality flake ice in a compact footprint.

Maintenance Tips

• Clean Water System: Sanitize every 6 months to prevent scale buildup.

• Inspect & Replace Filters: Maintain water quality for clear, fresh ice.

• Check & Clean Condenser Coils: Every 3 months, remove dust for efficient cooling.

• Monitor Ice Production: Address irregularities in output promptly.

• Clean Evaporator & Auger: Prevent mold, bacteria, and mineral deposits.

• Keep Ventilation Clear: Ensure proper airflow around the unit for optimal performance.
