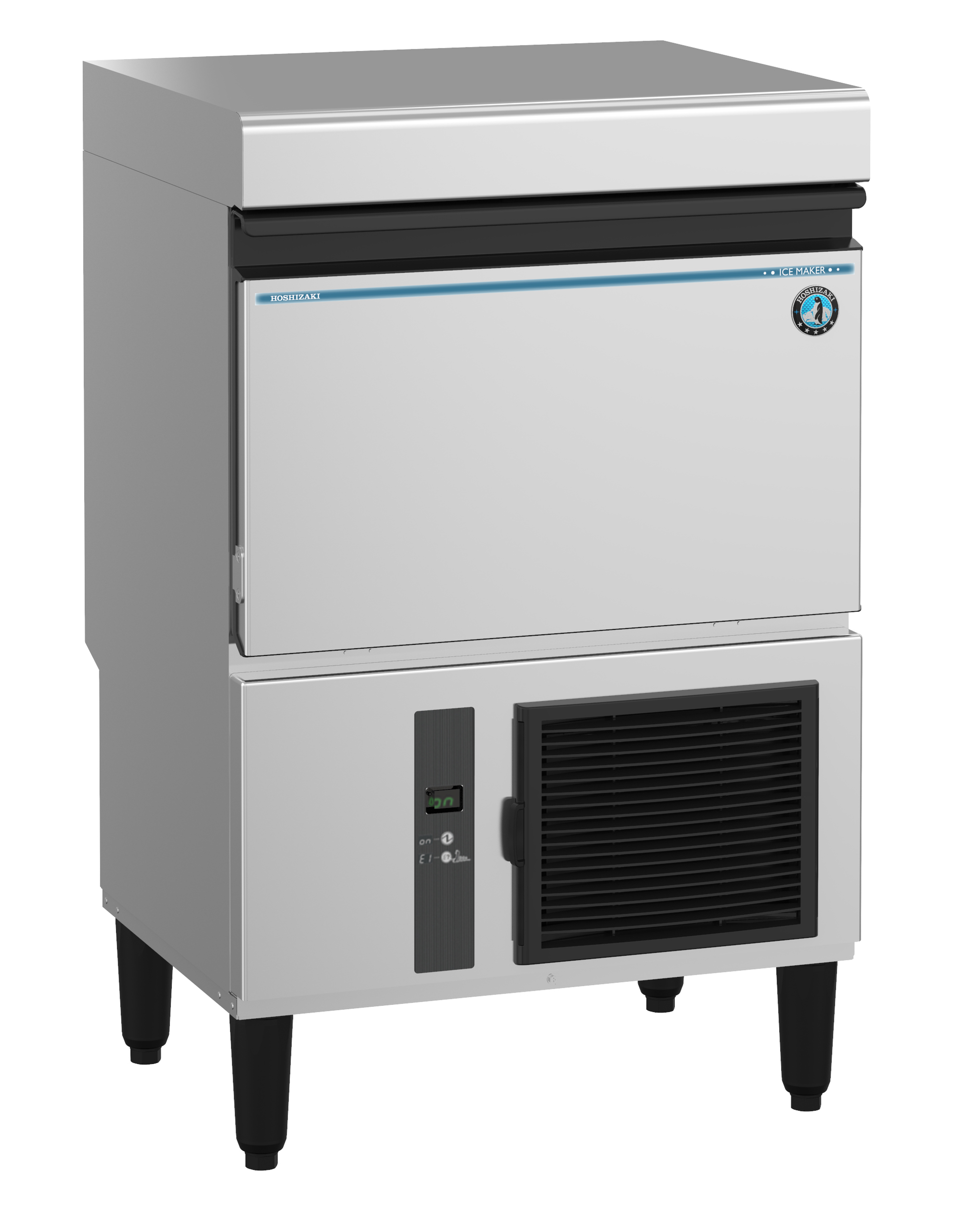

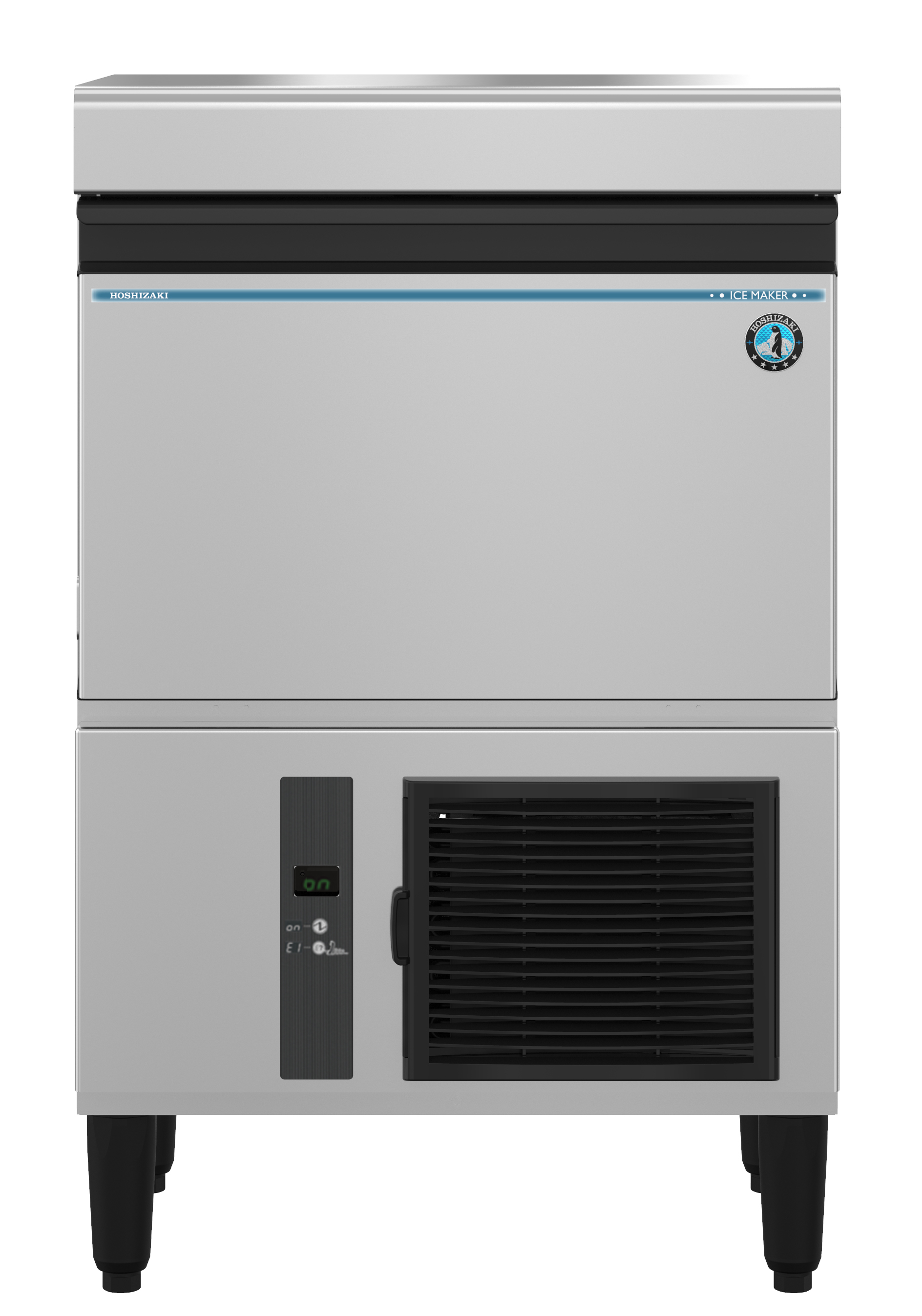

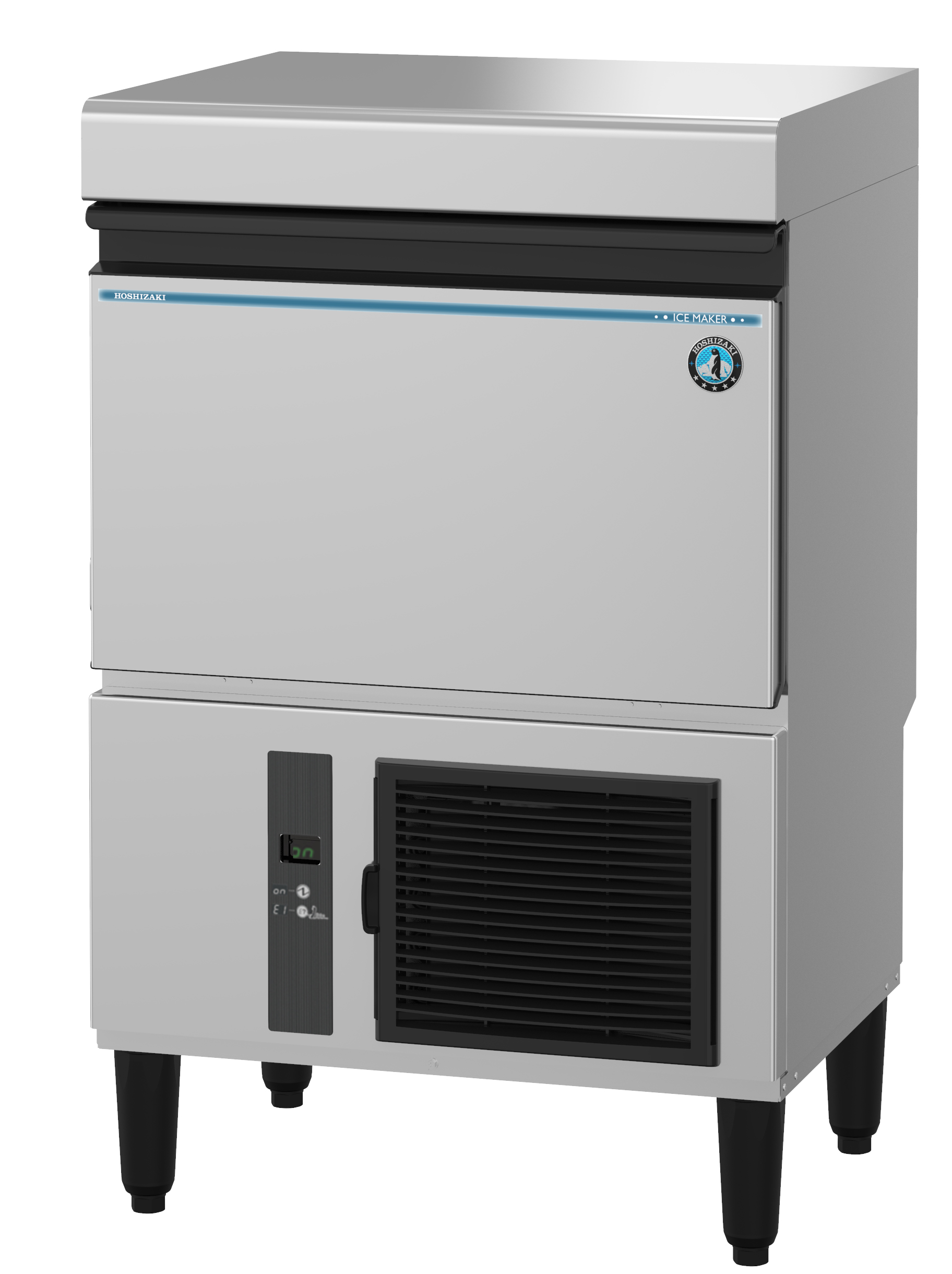

Hoshizaki | 25" Wide Air-Cooled Sphere Cube Ice Maker w/ Built-In Storage Bin - IM-50BAA-Q
The IM-50BAA-Q is capable of producing approximately 50 lbs of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs of built-in storage capacity (ft3)*. The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 24-3/4″ W x 20-3/4″ D x 39- 1/2 ” H
- Up to 50 lbs or 500 spheres of ice produced per 24 hours
- Up to 36 lbs of built-in storage capacity (ft3)

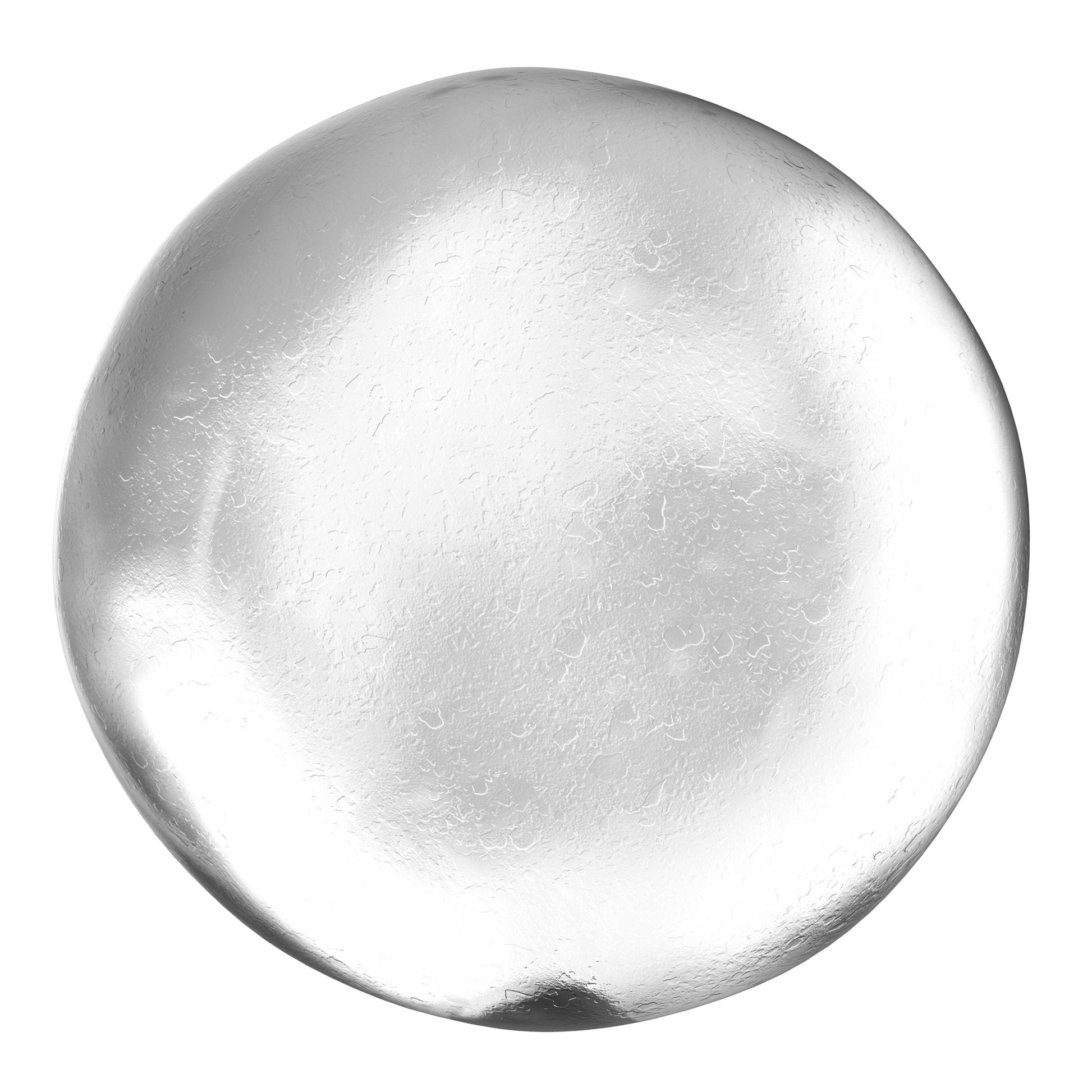

- Produces individual sphere cubes
- Durable stainless steel exterior
- Front in, back out airflow
- Ice scoop included
- Foam injected polyurethane for insulation (HFC free)
- Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
- R-134a refrigerant (7.1 oz. / 201 g)
- Heat Rejection:1500 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 7 – 113psig
- Voltage range: 104 – 127V
- 5 amps (15 Amp Max fuse)
- 15.7 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
IM-50BAA-Q |
| Weight |
168 lbs |
| Width |
24.75" |
| Depth |
20.75" |
| Height |
39.5" |
| Installation Type |
undercounter |
| Cooling |
air-cooled |
| Ice Type |
gourmet ice |
| Refrigeration |
self-contained refrigeration |
| Finish |
stainless steel |
| Production per 24 hr (Lbs) |
50 |
| Bin storage capacity (Lbs) |
36 |
| Voltage |
115 |
| Phase |
1 |
What Our Experts Think
-
Compact & Powerful: 25-inch wide design perfect for small to medium-sized commercial settings, producing premium sphere-shaped ice.
-
Air-Cooled System: Quiet, energy-efficient air-cooled system ensures consistent performance and reduces heat buildup in controlled environments.
-
Sphere Cube Ice: Produces large, slow-melting sphere ice, ideal for high-end beverages, cocktails, and premium service.
-
Built-In Storage Bin: Includes an integrated storage bin that holds up to 40 lbs of ice, offering convenience and saving space.
-
Reliable & Durable: Designed for continuous, heavy-duty use, ensuring long-lasting performance in busy environments like bars and upscale restaurants.
Q&A
Q: What is the Hoshizaki IM-50BAA-Q?
A: The Hoshizaki IM-50BAA-Q is a 25-inch wide air-cooled sphere cube ice maker that includes a built-in storage bin, designed for producing high-quality sphere ice for beverages in commercial environments.
Q: What type of ice does the Hoshizaki IM-50BAA-Q produce?
A: It produces sphere-shaped ice, which is known for its slow melt rate and elegant appearance, making it ideal for premium beverages and cocktails.
Q: Is the ice maker air-cooled?
A: Yes, the IM-50BAA-Q is air-cooled, offering energy-efficient performance while minimizing water usage and reducing heat buildup.
Q: Does the Hoshizaki IM-50BAA-Q come with a bin?
A: Yes, it comes with a built-in storage bin, allowing for easy access to the ice without needing a separate bin.
Q: How much ice does the Hoshizaki IM-50BAA-Q produce?
A: The IM-50BAA-Q can produce up to 50 pounds of sphere ice per day, making it a perfect solution for small to medium-volume commercial operations.
Maintenance Tips
-
Regular Cleaning: Clean the exterior and interior with a damp cloth and mild detergent to remove dust, dirt, and stains.
-
Descale the Unit: Perform regular descaling to prevent mineral buildup and ensure consistent ice production.
-
Check Airflow: Keep the air vents and condenser clean to maintain proper airflow and cooling efficiency.
-
Inspect Water Filter: Replace or clean the water filter as needed to ensure clean, high-quality ice.
-
Empty Ice Bin: Regularly empty the ice bin to maintain ice quality, prevent odors, and avoid ice contamination.
